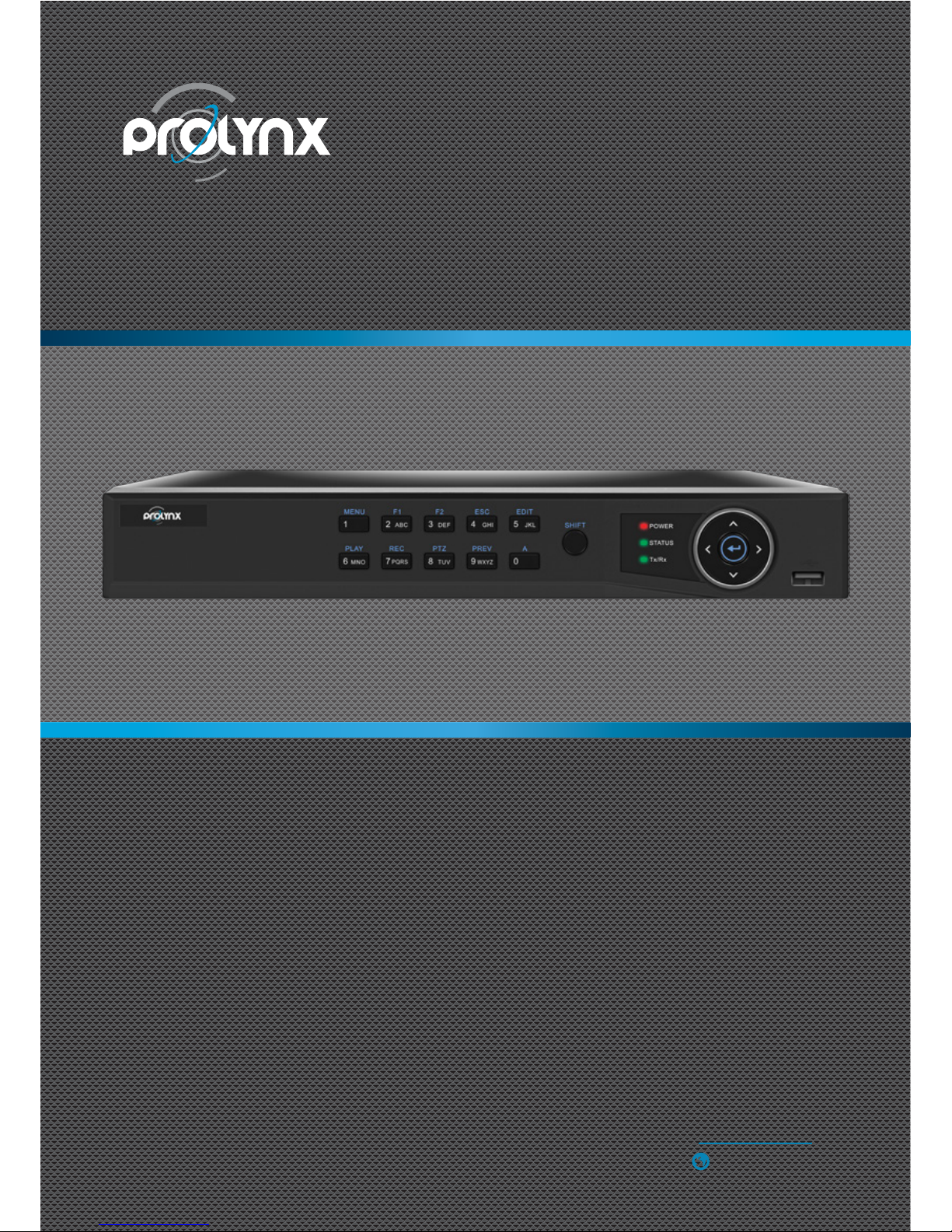

PROLYNX PL-DVR1004N1 Manuel utilisateur

E-Series WD1 Standalone DVR

PL-DVR1004N1 / PL-DVR1008N2

User Manual

Design & specifications are subject to change without notice. www.prolynx.ae

MADE BY PROLYNX

User Manual

Regulatory information

FCC information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the

applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive

2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in

the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in

the European Union. See the product documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

User Manual

Trademarks and Registered Trademarks

•Windows and Windows mark are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

•HDMI, HDMI mark and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

•The products contained in this manual are authorized by HDMI Licensing LLC with the use right of the

HDMI technology.

•VGA is the trademark of IBM.

•UPnPTM is a certification mark of the UPnPTM Implementers Corporation.

•Other names of companies and product contained in this manual may be trademarks or registered

trademarks of their respective owners.

User Manual

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact

dealer.

This manual may contain several technically incorrect places or printing errors, and the content is subject to

change without notice. The updates will be added into the new version of this manual. We will readily

improve or update the products or procedures described in the manual.

User Manual

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

•Ensure unit is installed in a well-ventilated, dust-free environment.

•Unit is designed for indoor use only.

•Keep all liquids away from the device.

•Ensure environmental conditions meet factory specifications.

•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it

may cause damage to the sensitive electronics within the unit.

•Use the device in conjunction with an UPS if possible.

•Power down the unit before connecting and disconnecting accessories and peripherals.

•A factory recommended HDD should be used for this device.

•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or

equivalent type only. Dispose of used batteries according to the instructions provided by the battery

manufacturer.

User Manual

Product Key Features

General

!Connectable to the network cameras and network domes (this feature is supported by HDVR

series).

!PAL/NTSC adaptive video inputs.

!H.264 video compression with high reliability and superior definition.

!Encoding at up to WD1 (PAL: 960×576, NTSC: 960×480) resolution

!Each channel supports dual-stream.

!Independent configuration for each channel, including resolution, frame rate, bit rate, image

quality, etc.

!Input and output video quality is configurable.

!Normal and event recording parameters configurable per individual camera.

!Encoding for audio/video composite stream or video stream; audio and video synchronization

during composite stream encoding.

!Watermark technology.

!Video quality diagnostics.

Local Monitoring

!Simultaneous HDMI/VGA and CVBS outputs.

!HDMI/VGA output at up to 1920×1080P resolution.

!1/4/6/8/9/16/25/36-division live view is supported, and the display sequence of screens is

adjustable.

!Live view screen can be switched in group, and manual switch and automatic cycle view is also

provided, the interval of automatic cycle can be adjusted.

!Quick setting menu is provided for live view.

!The selected live view channel can be shielded.

!Motion detection, tamper-proof, video exception and video loss alarm functions.

!Privacy mask.

!Multiple PTZ protocols supported; setting and calling of PTZ preset, patrol and pattern.

!Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

!1 SATA hard disk can be connected to PL-DVR1004/N1, 2 SATA hard disks to

PL-DVR1008/N2, with a maximum of 4TB storage capacity for each disk.

!8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.

!HDD group management.

!Support HDD standby function.

!HDD property: redundancy, read-only, read/write (R/W).

!HDD quota management; different capacity can be assigned to different channel.

Recording and Playback

!Holiday recording schedule configuration.

!Normal and event video encoding parameters.

!Multiple recording types: manual, normal, motion.

!Recording by main stream or sub stream is configurable.

!8 recording time periods with separated recording types.

!Pre-record and post-record for motion detection for recording, and pre-record time for schedule

User Manual

and manual recording.

!Searching record files by event.

!Customization of tags, searching and playing back by tags.

!Locking and unlocking record files.

!Local redundant recording.

!Searching and playing back record files by channel number, recording type, start time, end time,

etc.

!Smart search for the selected area in the video.

!Smart playback to go through less effective information.

!Zooming in when playback.

!Playing reversely.

!Support pause, speed up, speed down, skip forward, and skip backward when playback, locating

by dragging the mouse.

!4/8/16-ch synchronous playback.

Backup

!Export video data by USB, SATA storage device.

!Export video clips when playback.

!Management and maintenance of backup devices.

Alarm and Exception

!Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard

mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and

HDD full, etc.

!Alarm event triggers full screen monitoring, audio alarm, notifying surveillance center and

sending email.

!Automatic restore when system is abnormal.

!Support alarm push notification (in live video or playback) on the linked mobile phones when

alarm event occurs.

Note: The mobile phone must be installed with the iVMS-4500 client software and the alarm

push function is enabled.

Other Local Functions

!Three-level user management; admin user is allowed to create many operating accounts and

define their operating permission, which includes the limit to access any channel.

!Operation, exceptions and log recording and searching.

!Import and export of device configuration information.

Network Functions

!1 self-adaptive 10M/100M network interface

!IPv6 is supported.

!TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, RTSP, NTP, SADP, SMTP, SNMP, NFS and

iSCSI are supported.

!Extranet access by HiDDNS.

!Support access by Cloud P2P.

!TCP, UDP and RTP for unicast.

!Auto/Manual port mapping and automatically discovered by NAT.

!Remote search, playback, download, locking and unlocking of the record files, and downloading

files broken transfer resume.

!Remote parameters setup; remote import/export of device parameters.

User Manual

!Remote viewing of the device status, system logs and alarm status.

!Remote locking and unlocking of control panel and mouse.

!Remote HDD formatting and program upgrading.

!Remote system restart.

!Alarm event and exception information can be sent to the remote host.

!Remotely start/stop recording.

!Upgrade by remote FTP server.

!Remote PTZ control.

!Two-way audio and voice broadcasting.

!Embedded WEB server.

Development Scalability:

!SDK for Windows and Linux system.

!Source code of application software for demo.

!Development support and training for application system.

User Manual

TABLE!OF!CONTENTS!

Product Key Features..........................................................................................................5!

C H A P T E R 1.......................................................................... Error! Bookmark not defined.!

Introduction.................................................................................. Error! Bookmark not defined.!

1.1 Front Panel.................................................................. Error! Bookmark not defined.!

1.2 IR Remote Control Operations ................................... Error! Bookmark not defined.!

1.3 USB Mouse Operation................................................ Error! Bookmark not defined.!

1.4 Input Method Description........................................... Error! Bookmark not defined.!

1.5 Rear Panel ................................................................... Error! Bookmark not defined.!

1.6 Starting Up and Shutting Down the Device................ Error! Bookmark not defined.!

C H A P T E R 2......................................................................................................................12!

Getting Started........................................................................................................................12!

2.1 Using the Wizard for Basic Configuration .................................................................13!

2.2 Menu Operation ..........................................................................................................17!

2.3 Adding and Connecting the IP Cameras.....................................................................19!

2.2.1 Adding the IP Cameras....................................................................................19!

2.2.2 Configuring the Connected IP Cameras ..........................................................22!

C H A P T E R 3......................................................................................................................23!

Live View .................................................................................................................................23!

3.1 Introduction of Live View ..........................................................................................24!

3.2 Operations in Live View Mode ..................................................................................25!

3.2.1 Front Panel Operation......................................................................................25!

3.2.2 Using the Mouse in Live View........................................................................25!

3.2.3 Using an Auxiliary Monitor.............................................................................26!

3.2.4 Main/Aux Output Switching............................................................................27!

3.2.5 Quick Setting Toolbar in Live View Mode .....................................................27!

3.3 Configuring Live View Settings .................................................................................30!

3.4 Channel-zero Encoding...............................................................................................32!

3.5 Manual Video Quality Diagnostics.............................................................................32!

3.6 User Logout ................................................................................................................34!

C H A P T E R 4......................................................................................................................35!

PTZ Controls...........................................................................................................................35!

4.1 Configuring PTZ Settings...........................................................................................36!

4.2 Setting PTZ Presets, Patrols & Patterns......................................................................36!

4.2.1 Customizing Presets.........................................................................................36!

4.2.2 Calling Presets .................................................................................................37!

4.2.3 Customizing Patrols .........................................................................................38!

4.2.4 Calling Patrols..................................................................................................40!

4.2.5 Customizing Patterns .......................................................................................41!

4.2.6 Calling Patterns................................................................................................41!

4.3 PTZ Control Toolbar ..................................................................................................42!

C H A P T E R 5......................................................................................................................44!

User Manual

Record Settings .......................................................................................................................44!

5.1 Configuring Encoding Parameters..............................................................................45!

5.2 Configuring Record Schedule.....................................................................................48!

5.3 Configuring Motion Detection Record .......................................................................52!

5.4 Configuring Alarm Triggered Record ........................ Error! Bookmark not defined.!

5.5 Configuring Manual Record .......................................................................................55!

5.6 Configuring Holiday Record ......................................................................................56!

5.7 Configuring Redundant Record..................................................................................59!

5.8 Configuring HDD Group for Record..........................................................................61!

5.9 Files Protection ...........................................................................................................62!

C H A P T E R 6......................................................................................................................64!

Playback...................................................................................................................................64!

6.1 Playing Back Record Files..........................................................................................65!

6.1.1 Playing Back by Channel.................................................................................65!

6.1.2 Playing Back by Time......................................................................................67!

6.1.3 Playing Back by Event Search.........................................................................68!

6.1.4 Playing Back by Tag........................................................................................70!

6.1.5 Playing Back by Smart Search.........................................................................73!

6.1.6 Playing Back by System Log...........................................................................74!

6.1.7 Playing Back External Files.............................................................................76!

6.2 Auxiliary Functions of Playback ................................................................................77!

6.2.1 Playing Back Frame by Frame.........................................................................77!

6.2.2 Smart Search ....................................................................................................77!

6.2.3 Digital Zoom....................................................................................................79!

6.2.4 Reverse Playback.............................................................................................79!

C H A P T E R 7......................................................................................................................81!

Backup .....................................................................................................................................81!

7.1 Backing up Record Files.............................................................................................82!

7.1.1 Backing up by Normal Video Search ..............................................................82!

7.1.2 Backing up by Event Search............................................................................84!

7.1.3 Backing up Video Clips...................................................................................87!

7.2 Managing Backup Devices .........................................................................................90!

C H A P T E R 8......................................................................................................................92!

Alarm Settings.........................................................................................................................92!

8.1 Setting Motion Detection............................................................................................93!

8.2 Setting Sensor Alarms ................................................ Error! Bookmark not defined.!

8.3 Detecting Video Loss..................................................................................................95!

8.4 Detecting Video Tampering........................................................................................96!

8.5 Handling Exceptions...................................................................................................97!

8.6 Setting Alarm Response Actions ................................................................................99!

8.7 Triggering or Clearing Alarm Output Manually......... Error! Bookmark not defined.!

C H A P T E R 9......................................................................................................................99!

Network Settings .....................................................................................................................99!

9.1 Configuring General Settings ...................................................................................100!

Ce manuel convient aux modèles suivants

Table des matières

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
