AQ1570
Quick Reference Guide
PERFECTLY SCENTED ENVIRONMENTS
UPDATED 2020-03-04
UNPACKING
AQ1570BASE is shipped in two boxes.
AQ1570BASE Box 1 of 2 contains the following:
Central Control Unit (CCU), key, and mount kit
AQ1570BASE Box 2 of 2 contains two of the following:
Cartridge enclosure, airline tubing (50ft), plume kit,
mount kit, and plume director
2
AQ1570 Quick Reference Guide
INSTALLATION
The airline tubing allows the CCU to be wall-mounted near an electrical source and the cartridge
heads up to 100ft (30m) away. AQ1570BASE includes two cartridge heads, but the CCU can be
expanded to three or four cartridge heads with AQ1570ADD packages.
Each mount kit contains the following
Drywall Anchors Concrete Anchors Screws for Drywall Washers for Screws for
or Concrete Drywall or Concrete Sheet Metal
1. Wall mount the CCU and cartridge enclosures.
2. Connect the CCU to power.
3. Install a plume kit and plume director on each cartridge head.
4. Connect the airstem and insert the cartridge as shown. Then, screw the plume kit cap onto the
cartridge plume port.
3
AQ1570 Quick Reference Guide

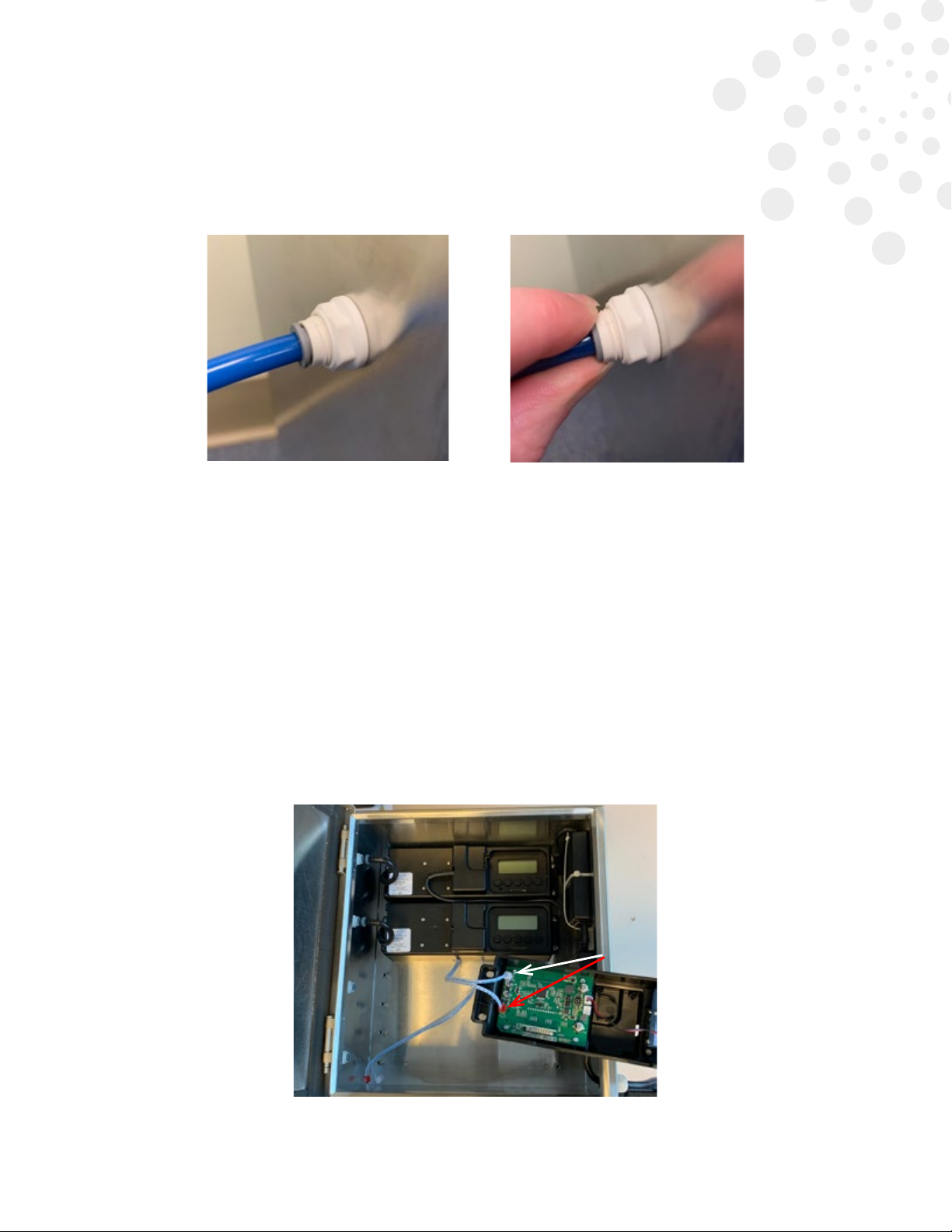

5. Connect the CCU to each cartridge enclosure by pushing the tubing rmly into the appropriate
push-to-connect bulkhead ttings (Fig. 1). If needed, disconnect the tubing from the bulkhead
ttings by depressing the grey ring (Fig 2).
6.
Fig. 1 Fig. 2
Cut or coil excess tubing. Protect the tubing from damage by securing it to the walls or ceiling
with cable loop clamps, zip ties, or cable raceway as necessary.
7. Remove the yellow battery tab from the top module of the CCU, then power on and program
each module independently. Each cartridge head can service 1,800-150,000ft3(51-4245m3).
INSTALLATING AN ADDITIONAL MODULE
To install an additional module in the CCU:
1. Connect a wire harness to the two inputs (one red and one white) on the back of the circuit
board of the new module, as shown.
4
AQ1570 Quick Reference Guide
2. Place the connected module over the next 4 standoffs and use the included screws to secure it in
place.
3. Push to connect the airline stem tting to the bulkhead.
4. Mount the respective cartridge head and connect with airline tubing per normal installation
instructions.
5. Power on and program the new module.
Refer to the full product manual at https://www.airqmanuals.com for complete safety, operating,
moving, and storage instructions.
