SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result of
incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
2 Progress
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an electrical
hazard.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of electric
shock.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Do not activate the microwave function when the appliance
is empty. Metal parts inside the cavity can create electric
arcing.
•Metallic containers for food and beverages are not allowed
during microwave cooking. This requirement is not
applicable if the manufacturer specifies size and shape of
metallic containers suitable for microwave cooking.
•WARNING: If the door or door seals are damaged, the
appliance must not be operated until it has been repaired
by a qualified person.
Progress 3
•WARNING: Only a qualified person can carry out any
service or repair operation that involves the removal of a
cover which gives protection against exposure to
microwave energy.
•WARNING: Do not heat liquids and other foods in sealed
containers. They are liable to explode.
•Use only utensils that are suitable for use in microwave
ovens.
•When heating food in plastic or paper containers, observe
the appliance due to the possibility of ignition.
•The appliance is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads,
slippers, sponges, damp cloth and similar may lead to risk
of injury, ignition or fire.
•If smoke is emitted, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
•Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling the
container.
•The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
•Eggs in their shell and whole hard-boiled eggs should not
be heated in the appliance since they may explode, even
after microwave heating has ended.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•The appliance should be cleaned regularly and any food
deposits removed.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch the
surface, which may result in shattering of the glass.
•Failure to maintain the appliance in a clean condition could
lead to deterioration of the surface that could adversely
4 Progress
affect the life of the appliance and possibly result in a
hazardous situation.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the oven door opens without restraint. If
not the oven has to be lifted.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power supply.
• The built-in unit must meet the stability
requirements of DIN 68930.
Cabinet minimum
height (Cabinet un‐
der the worktop mini‐
mum height)
444 (460) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
455 mm
Height of the back of
the appliance
440 mm
Width of the front of
the appliance
595 mm
Width of the back of
the appliance
559 mm
Depth of the appli‐
ance
567 mm
Built in depth of the
appliance
546 mm
Depth with open
door
882 mm
Ventilation opening
minimum size. Open‐
ing placed on the
bottom rear side
560x20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1500 mm
Mounting screws 3.5x25 mm
Electrical connection
WARNING! Risk of fire and
electric shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche
Progress 5
below the appliance, especially when it
operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance is supplied with a main
plug and a main cable.
Use
WARNING! Risk of injury,
burns and electric shock or
explosion.
• This appliance is for household
(indoors) use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put aluminium foil directly on
the bottom of cavity of the
appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance operates. Heat and moisture
can build up behind a closed furniture
panel and cause subsequent damage
to the appliance, the housing unit or the
floor. Do not close the furniture panel
until the appliance has cooled down
completely after use.
6 Progress
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Make sure the cavity and the door are
wiped dry after each use. Steam
produced during the operation of the
appliance condensates on cavity walls
and can cause corrosion.
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Fat and food remaining in the appliance
can cause fire and electric arcing when
the microwave function operates.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
Internal lighting
WARNING! Risk of electric
shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational status
of the appliance. They are not intended
to be used in other applications and are
not suitable for household room
illumination.
• Use only lamps with the same
specifications.
Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
Disposal
WARNING! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
Progress 7
PRODUCT DESCRIPTION
General overview
1 2
8
4
3
1
2
3
6
4
5
7
1Control panel
2Electronic programmer
3Heating element
4Microwave generator
5Lamp
6Fan
7Shelf support, removable
8Shelf positions
Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
CONTROL PANEL
Electronic programmer
21 3 4 5 6 7 8 9 10 11
8 Progress
Use the sensor fields to operate the appliance.
Sensor
Field
Function Description
1- DISPLAY Shows the current settings of the appliance.
2ON / OFF To activate and deactivate the appliance.
3OPTIONS To set an oven function or an automatic pro‐
gramme.
4
MICROWAVE To activate the Microwave function. When the
function is active, press this sensor field to change
the microwave power.
5
TEMPERATURE /
FAST HEAT UP
To set and see the cavity temperature or the core
temperature sensor temperature (if present). If you
press it and hold for three seconds, it turns the
Fast heat up function ON and OFF.
6DOWN To move down in the menu.
7UP To move up in the menu.
8
OK / Microwave
Quick Start
To confirm a selection or setting. To activate the
Microwave function when the appliance is deacti‐
vated. Each press of this sensor field adds 30 sec‐
onds to the duration.
9OVEN LIGHT To activate or deactivate the oven lamp.
10 CLOCK To set the clock functions.
11 MINUTE MINDER To set the Minute Minder.
Display
A B C
DEFG
A. Oven function symbol
B. Temperature / time of day / microwave power
display
C. Clock / Residual heat display / Minute Minder
D. Residual heat indicator
E. Indicators for the clock functions
F. Heat-up indicator / Fast Heat Up indicator
G. Number of an oven function / programme
Progress 9

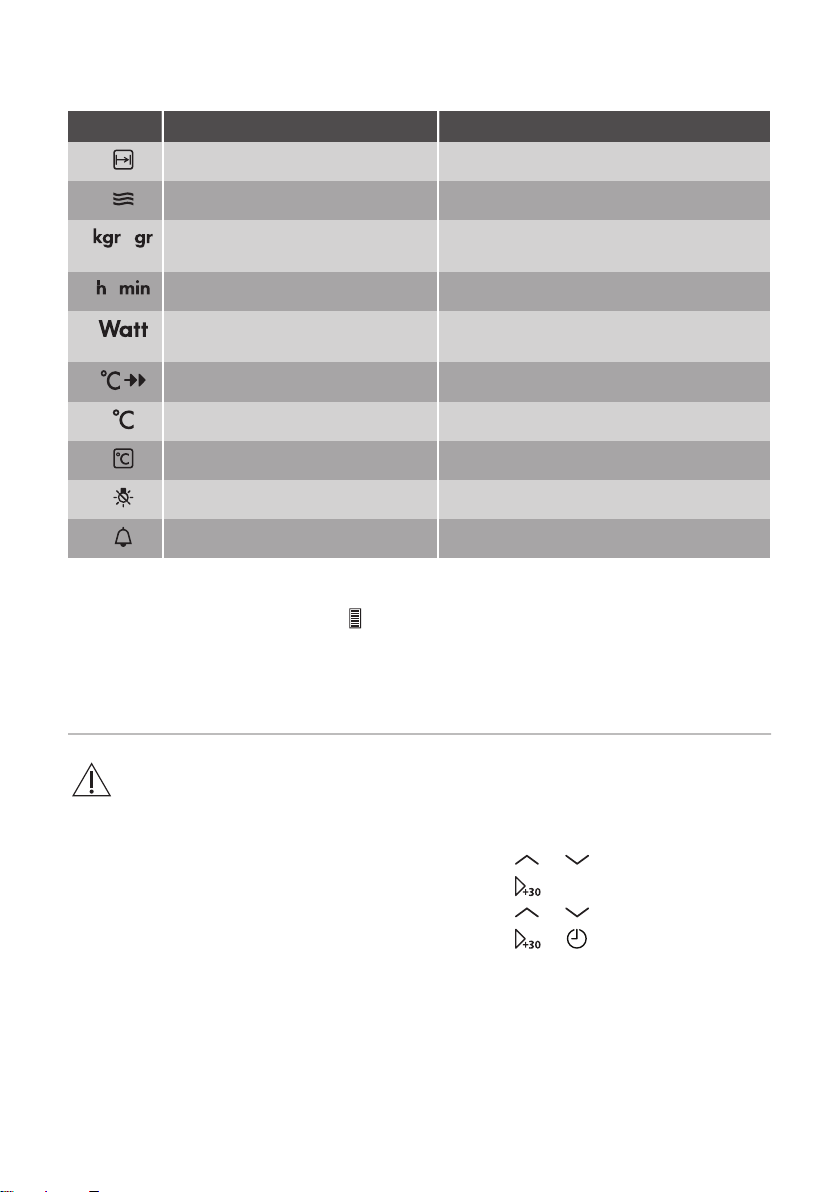

Other indicators of the display:
Symbol Name Description
Automatic programme You can choose an automatic programme.
Microwave function The microwave function operates.
/ kg / g An automatic programme with a weight in‐
put operates.
/ h / min A clock function operates.
Watt You can set the power for the microwave
function.
Temperature / Fast heat up The function operates.
Temperature The current temperature is indicated.
Temperature You can change the temperature.
Light You deactivated the light.
Minute minder The minute minder function operates.
Heat up indicator
If you turn on the heating function,
appears. The bars show that the
temperature in the oven increases or
decreases.
When the oven is at the set temperature,
the bars go off the display.
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories
before the first use.
Put the accessories and the removable
shelf supports back to their initial position.
Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows h and 12:00.
1. Touch or to set the hours.
2. Touch .
3. Touch or to set the minutes.
4. Touch or .
The Temperature / Time display shows
the new time.
Changing the time
You can change the time of day only when
the appliance is off.
10 Progress
Autres manuels pour PCM43102X
1
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Progress Four à micro-ondes
Progress
Progress PM276 Manuel utilisateur
Progress
Progress PM20810X Manuel utilisateur
Progress
Progress PCM43102X Manuel utilisateur
Progress
Progress PCM43100X Manuel utilisateur
Progress
Progress PBCM 4500X Manuel utilisateur
Progress
Progress PCM43103X Manuel utilisateur
Progress
Progress PM20800X Manuel utilisateur
Progress
Progress PM2762 Manuel utilisateur
