Ceiling Fan Installation Manual

P257093089925_A

Date Purch as ed

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

109226

P2570

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so

long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to

be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic

blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of

any sea coast. Extended warranties for ENERGY STAR®qualified products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are

warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance

with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for

fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical

components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no

warranty other than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for

replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864) 678-1000 for repair or replacement

which shall be determined in Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not

limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or

neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without

limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or

attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION AND

ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS

LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR

CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY,

BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,

WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or

consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights

and you may have other rights which vary from state to state.

785247221653

785247221660

785247221646

Table of Contents

Safety Rules.....................................................................................................................................................................................

Unpacking Your Fan .......................................................................................................................................................................

Installing Your Fan ..........................................................................................................................................................................

Operating Your Transmitter ..........................................................................................................................................................

Care of Your Fan ...........................................................................................................................................................................

Troubleshooting ............................................................................................................................................................................

Specifications ................................................................................................................................................................................

11.

13.

14.

15.

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of fire, electric shock, or personal injury,

mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.)

Or Less" and use mounting screws provided with the outlet box. Most outlet

boxes commonly used for the support of light fixtures are not acceptable for

fan support and may need to be replaced. Due to the complexity of the

installation of this fan, a qualified licensed electrician is strongly

recommended.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.

Use only UL-listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from

the trailing edge of the blades to the floor.

7. To operate the reverse function on this fan, press the reversing button while

the fan is running.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are not packed

with the fan must be UL Listed and marked suitable for use with the

model fan you are installing. Switches must be UL General Use

Switches. Refer to the Instructions packaged with the light kits

NOTE

READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

WARNING

THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS AND /OR OTHER

REPRODUCTIVE HARM. THOROUGHLY WASH HANDS AFTER

INSTALLING, HANDLING, CLEANING, OR OTHERWISE TOUCHING

THIS PRODUCT.

Unpack your fan and check the contents. You should have the following items:

Unpacking Your Fan 2.

10. Loose parts bag containing:

a. Blade attachment hardware

(4 screws, 4 metal washers )

b. Allen wrench

c. Mounting hardware

Wire nuts (3)

1. Fan blades (5)

2. Canopy assembly

3. Ball/downrod assembly

4. Coupling cover

5. Decorative scroll

Fan motor assembly

7. Remote control

8. 12V MN21/A23 battery

9. Balancing kit

Tools Required

Phillips screw driver, straight slot screw driver,

adjustable wrench, step ladder, and wire cutters.

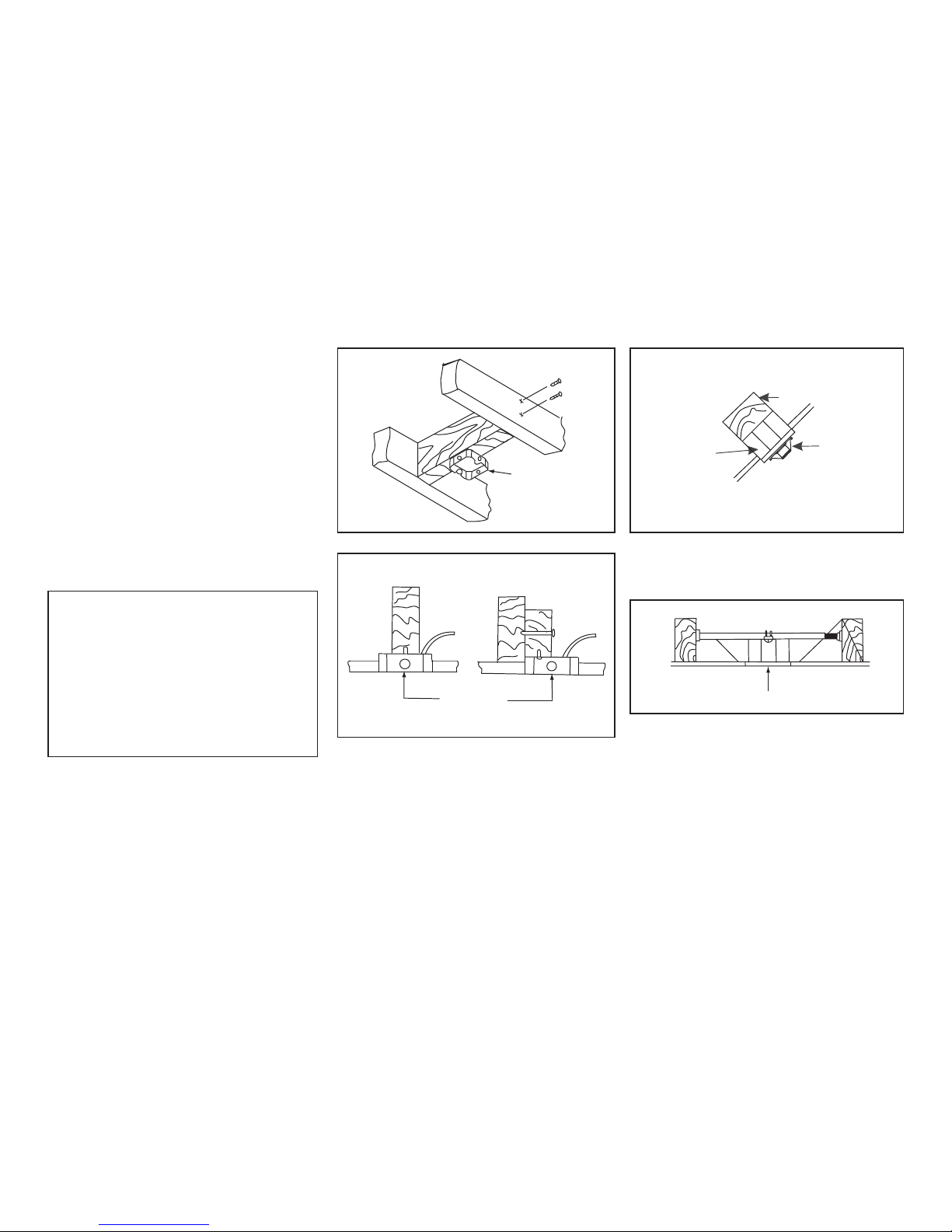

Mounting Options

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the

fan (at least 35 lbs). Do not use plastic outlet

boxes.

Figure 4

Figure 3

Figure 1

Figure 2

Outlet box

Outlet box Outlet box

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Progress Lighting Retailer).

3. Installing Your Fan

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHER PERSONAL INJURY,

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE

SUPPORT OF LIGHTING FIXTURES MAY NOT

BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Angled ceiling

maximum

17 angle

Recessed

outlet box

Provide strong support

Ceiling

hanger

bracket

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two types

of hanging assemblies; the standard ceiling

installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting.

The "close-to-ceiling" mounting is recommended

in rooms with less than 8-foot ceilings or in areas

where additional space is desired from the floor to

the fan blades.

When using the standard downrod installation, the

distance from the ceiling to the bottom of the fan

blades will be approximately 18 1/8 inches. The

"close-to-ceiling" installation reduces the distance

from the ceiling to the bottom of the fan blades to

approximately 9 inches.

Once you have decided which ceiling installation

you will use, proceed with the following

instructions. Where necessary, each section of the

instructions will note the different procedures to

follow for the two types of installation.

Hanging the Fan

Option 1:

Standard Ceiling Mounting

Remove the

Canopy Ring

Figure 5

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. (Figure 6)

Route wires exiting from the top of the fan

motor through the coupling cover, decorative

scroll, canopy cover, canopy ring, canopy and

then through the ball/ downrod. (Figure. 7)

Loosen, but do not remove the 2 set screws on

the collar on top of the motor housing.

Loosen but

do not Remove Remove

Figure 6

(Figure 7)

Figure 7

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing. (Figure 7) Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Tighten two set screws on top of the fan motor

firmly. Attach the decorative scroll to the

motor housing using the screws provided.

Pin in Locked

Positioon

Motor Collar Coupling Cover

Screws

Decorative Scroll

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Cover

Canopy Ring

Cotter Pin

Tighten Screw

Firmly

Clevis Pin

Remove three of the six screws and lock

washers (every other one) from the collar of

top motor. (Figure 9)

Route the wires exiting the top of the fan motor

through the canopy ring (make sure the slot

openings are on top). then proceed to place the

ceiling canopy over the collar at the top of the

motor. (Figure 10)

Align the mounting holes with the holes in the

motor and fasten using the screws and lock

washers removed in step 4. (Fig. 10)

Tighten the mounting screws security.

Motor

Collar Screw and Lock Washer

(3 of 6 Places)

Figure 9

Option 2:

Close-to-Ceiling Mounting

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. (Figure 6)

Remove the decorative canopy bottom cover

from the canopy by turning the canopy bottom

cover counterclockwise. (Figure 8)

Canopy

Bottom

Cover

Remove

Figure 8

Figure 10

Collar

Ceiling

Canopy

Screw and

Lock Washer

(3 Places)

Canopy Ring

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them onto

the new longer downrod before proceeding step 3.

(The longer downrod is available at any Progress

Lighting retailer)

WARNING

FAILURE TO PROPERLY INSTALL

CLEVIS PIN AS NOTED IN STEP 5

COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

WARNING

FAILURE TO COMPLETELY TIGHTEN

THE THREE SCREWS IN STEP 7 COULD

RESULT IN FAN LOOSENING AND

POSSIBLY FALLING.

WARNING

WHEN USING THE STANDARD BALL/

DOWNROD MOUNTING. THE TAB IN THE

RING MUST REST IN THE GROOVE OF THE

HANGER BALL. FAILURE TO PROPERLY SEAT

THE TAB IN THE GROOVE COULD CAUSE

DAMAGE TO WIRING.

WARNING

THE TAB AS SHOWN IN FIGURE 12 IS ONLY

TO BALANCE THE FAN WHILE ATTACHING

WIRING. FAILURE TO HANG AS SHOWN IN

FIGURE 12 MAY RESULT IN TAB BREAKING

CAUSING THE FAN TO FALL. TAB MUST PASS

FROM INSIDE TO OUTSIDE OF CANOPY.

Installing Fan to

the Electrical Box

Figure 11

Carefully lift the fan assembly up to the ceiling

mounting bracket and hang the fan on the tab

provided by utilizing one of the holes at the outer

rim of the ceiling canopy. (Figure 12) If use

standard mounting, seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated in

the groove in the hanger ball. (Figure 12)

Pass the 120-volt supply wires through the

center hole in the mounting bracket. (Figure 11)

Attach the mounting bracket on the outlet box

by sliding the mounting bracket over the screws

provided with the outlet box. (Figure 11) When

using “close-to-ceiling” mounting, it is

important that the mounting bracket be level. If

necessary, use leveling washers (not included)

between the mounting bracket and the outlet

box. Note that the flat side of the mounting

bracket is toward the outlet box. (Figure 11)

Securely tighten the two mounting screws.

Figure 12

Groove

Standard Mounting Close-to-Ceiling Mounting

Tab

CUL Listed

Outlet Box

Ceiling Mounting

Bracket

Mounting

Screws (Supplied

with Outlet Box) 120V

Wires

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY. MOUNT

FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

Make the Electric

Connections

WARNING: To avoid possible electrical shock,

be sure electricity is turned off at the main fuse box

before wiring.

Step 1. Motor to House Supply Wires Electrical

Connections: Connect the WHITE wire (Neutral)

from the outlet box to the WHITE wire marked

"AC in N" from the motor. (Fig. 13)

Step 2. Connect the BLACK wire (Hot) from the

outlet box to the BLACK wire marked "AC in L"

from the motor. (Fig. 13)

Secure all wire connections with the plastic wire

nuts provided.

Figure 13

Outlet Box

Black ("AC IN L")

White ("AC IN N")

White (Neutral)

Black (Hot)

Green or bare

copper (ground)

Ground (green)

(Connect to ground

wire on hanger

bracket if no house

ground wire exists.)

Table des matières

Langues :

Autres manuels Progress Lighting Ventilateur

Progress Lighting

Progress Lighting AirPro P250004 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250074 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250093 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2548 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro COPAN Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250058 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2538 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250072 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250038 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Willacy P250063 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2564 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2539 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250059 Manuel utilisateur

Progress Lighting

Progress Lighting P250020 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Midvale P250011 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Huff P250030-031 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Lindale P250028 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250060 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro CALERA Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2578 Instructions d'utilisation et d'entretien

Progress Lighting

Progress Lighting AirPro P250102 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2572 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2584-71 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2540-14330K Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
