PROGRESS LIGHTING FAN MOTORS ARE WARRANTED TO THE END USER TO BE

FREE OF ELECTRICAL AND/OR MECHANICAL DEFECTS FOR A PERIOD OF 30

(THIRTY) YEARS FROM DATE OF SALE. PULL CHAIN SWITCHES, REVERSE

SWITCHES, CAPACITORS AND METAL FINISHES ARE WARRANTED FOR A PERIOD

OF 1 YEAR. WARPING OF WOODEN OR PLASTIC BLADES IS NOT COVERED BY

THIS WARRANTY.

THE END USER HAS THE OPTION OF RETURNING THE DEFECTIVE FAN TO THE

PLACE OF PURCHASE DURING THE FIRST 30 DAYS FOR A REPLACEMENT. AFTER

30 DAYS, THE PURCHASER MUST CONTACT PROGRESS LIGHTING FOR REPAIR

OR REPLACEMENT. THE END USER ALSO BEARS THE RESPONSIBILITY FOR ALL

COSTS IN THE REMOVAL, SHIPPING AND REINSTALLATION OF FANS OR PARTS

FOR REPAIR OR REPLACEMENT.

PROGRESS LIGHTING WILL NOT ASSUME LIABILITY OR RESPONSIBILITY FOR

DAMAGES (INCLUDING INCIDENTAL OR CONSEQUENTIAL) CAUSED BY THE

IMPROPER INSTALLATION OR OPERATION OF THE UNIT OR ITS COMPONENT

PARTS, OR BY THE FAILURE OF SUPPORTING HARDWARE NOT SUPPLIED BY

PROGRESS LIGHTING. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER

GUARANTEES, WHETHER EXPRESSED OR IMPLIED, AND IS VOIDED IN CASES OF

ABUSE, MISUSE OR IMPROPER HANDLING, NEGLIGENCE, SHIPPING DAMAGE,

UNAUTHORIZED REPAIRS (MADE OR ATTEMPTED) OR UNUSUAL APPLICATION.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND

YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

30-YEAR LIMITED WARRANTY

Safety Rules.....................................................................................................................................

Unpacking Your Fan .........................................................................................................................

Installing Your Fan ...........................................................................................................................

Installing the Light Kit......................................................................................................................

Your .............................................................................................................

Care of Your Fan .............................................................................................................................

Troubleshooting .............................................................................................................................

Specifications ................................................................................................................................

Operating Transmitter

10.

11.

12.

13.

Table of Contents

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may

need to be replaced, consult a qualified electrician if in doubt.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for use

with the model fan you are installing. Switches must be UL General

Use Switches. Refer to the Instructions packaged with the light kits

and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use onlyUL

Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

7. To operate the reverse function on this fan, press the reversing

button while the fan is running.

8. Avoid placing objects in the path of the blades.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

ATTENTION

Under the Energy Policy Act of 2005, federal regulations require

all ceiling fans with light kits manufactured or imported after

January 1, 2009, to limit the total wattage consumed by the light

kit to 190 watts. Therefore, this product is equipped with a 190W

limiting device. If lamping exceeds 190 watts, the light kit will

shut off automatically until the proper wattage of bulbs are

installed. Reset the light kit by turning it off, replacing the bulbs

with the correct wattage, and then turning the light kit back on.

Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items;

1. Fan blades (3)

5. Fan motor assembly

Canopy assembly

Ball/downrod assembly

Coupling cover

6. Mounting plate

710

13. Loose parts bag containing:

a. Blade attachment hardware

(10 screws, 10 fiber washers )

b. Mounting hardware:

Wire nuts (3)

7. Light plate

8. Glass shade

9. 0 Watt halogen bulb

10. Receiver with 6 wire nuts

12. Balancing kit

11. Transmitter incl. 2 mounting screws

3. Installing Your Fan

Tools Required

Phillips screw driver, straight slot screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the

b u i l d i n g s t r u c t u r e . U s e a p p r o p r i a t e

fasteners and building materials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs). Do not use plastic outlet

boxes.

Note: You may need a longer downrod to

mainta i n p r oper blade clear a n ce when

installing on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

( a v a i l a b l e a t y o u r P r o g r e s s L i g h t i n g

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

Mounting

Plate

Outlet box

Figure 1

Figure 3

Figure 2

Figure 4

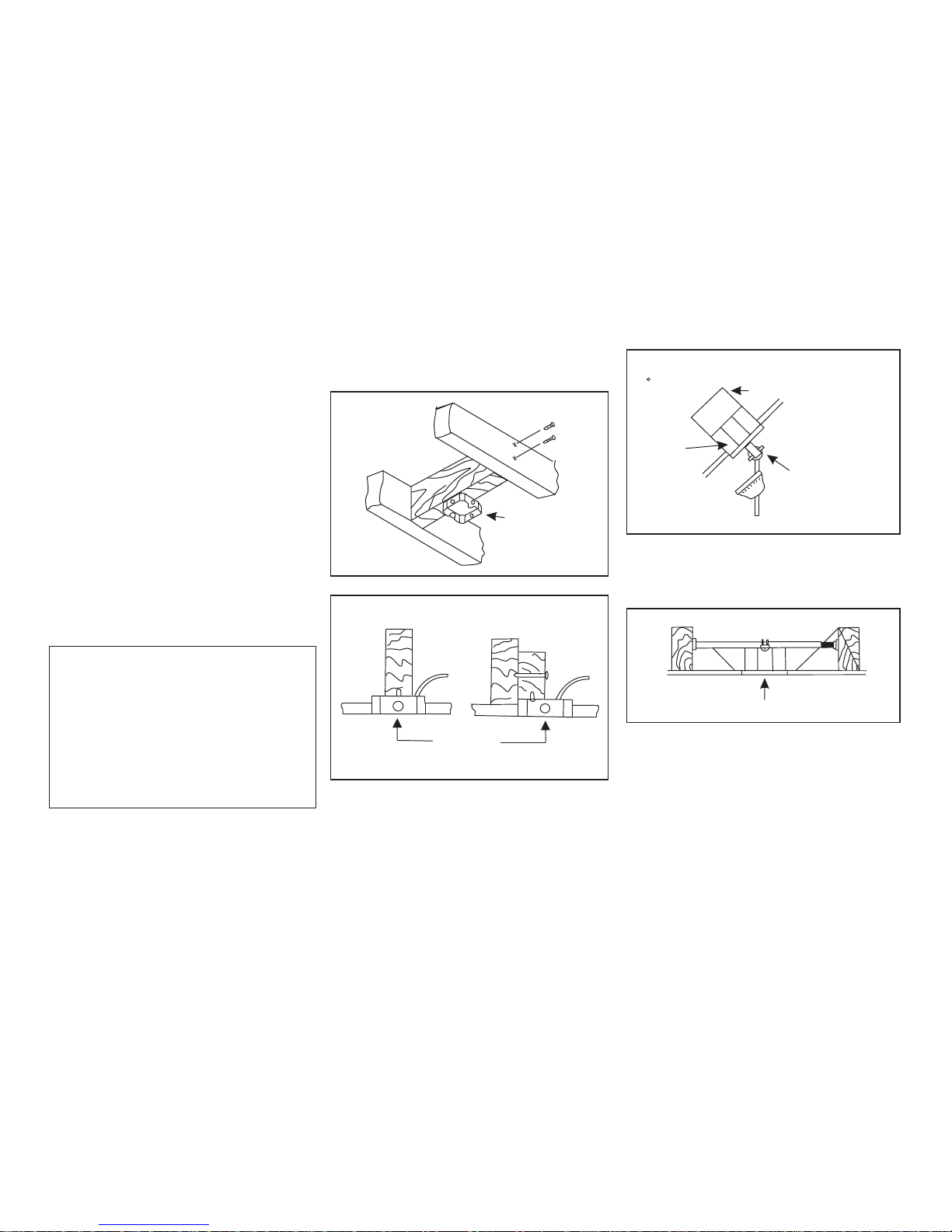

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHER PERSONAL INJURY,

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE SUPPORT

OF LIGHTING FIXTURES MAY NOT BE

ACCEPTABLE FOR FAN SUPPORT AND MAY

NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Angled ceiling

maximum

24 angle

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

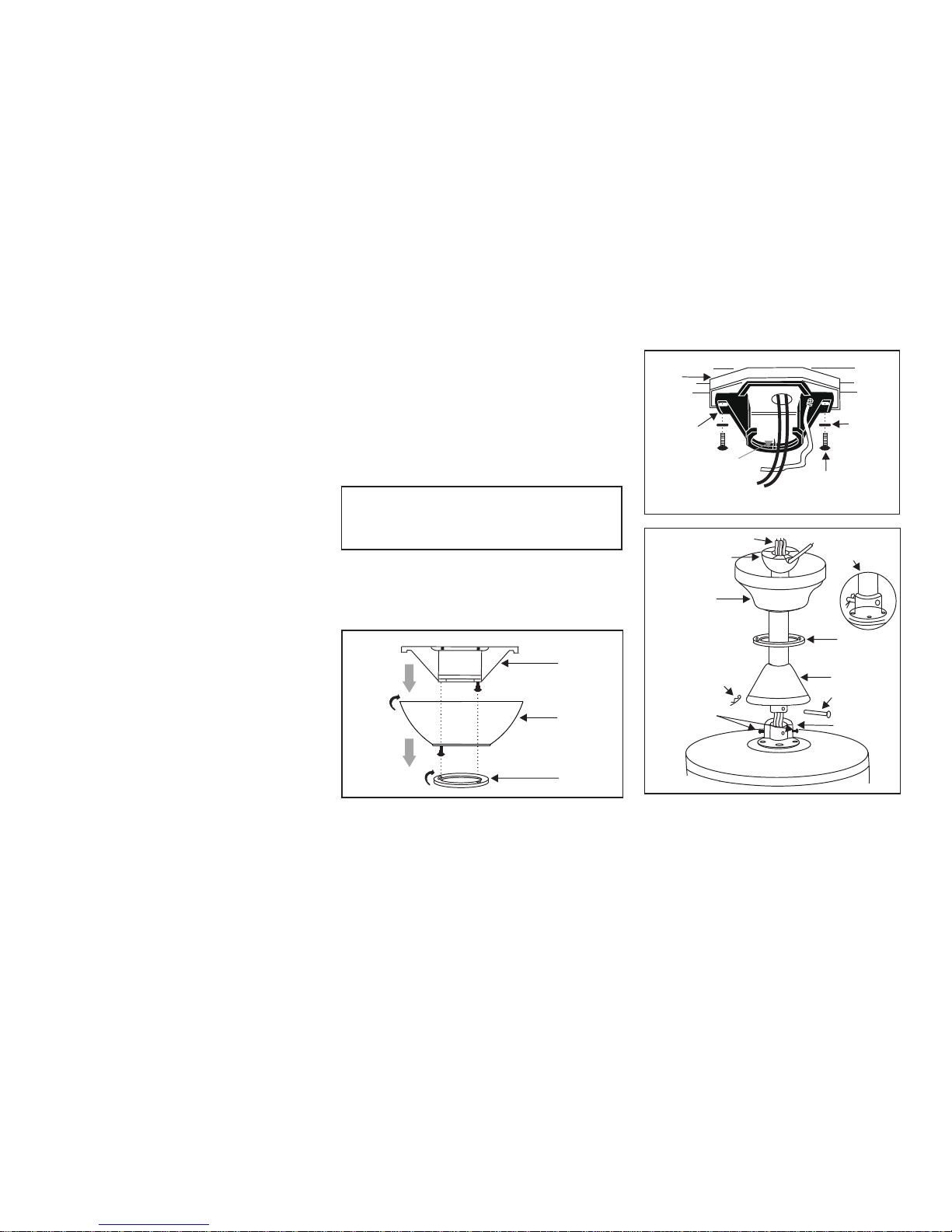

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise.(Fig. 5)

Step 2. Remove the mounting bracket from

the canopy by removing the 1 of 2 screws

from the bottom of the mounting bracket and

loosening the other one a half turn from the

screw head. Next, turn the canopy counter

clockwise to removing the mounting bracket

from the canopy. (Fig, 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling hanger

bracket as shown in Fig. 6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

Step 5. Remove the hanger pin, lock pin and

set screws from the top of the motor

assembly.

Step 6. Route wires exiting from the top of

the fan motor through the collar cover,

canopy cover, canopy and then through the

ball / downrod. (Fig. 7)

WARNING

FAILURE TO PROPERLY INSTALL LOCKING PIN

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Step 8. Tighten two set screws on top of the fan

motor firmly (Figure 7)

Step 9. Place the downrod ball into the hanger

bracket socket.

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig.7). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole near the end of

the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Figure 5

Ceiling

hanger

bracket

Ceiling

canopy

Canopy

cover

Mounting

screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

CUL Listed

electrical

box

Figure 6 120V Wires

Washers

Pin in

locked

position

Motor collar

Motor wires

Ball/downrod

assembly

Ceiling

canopy

Tighten

screws

firmly

Figure 7

Hanger pin

Locking pin Collar cover

Canopy

cover

Make the Electric Connections

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

NOTE: This remote control unit is equipped

with 16 code combinations to pr event

possible interference from or to other remote

units. The frequency switches on your

receiver and transmitter have been preset at

the factory. Please recheck to make sure the

switches on the transmitter and the receiver

are set to the same position, any combination

of settings will operate the fan as long as the

transmitter and receiver are set to the same

position.(Figure 8)

Step 1. (Figure 9) Insert the receiver into the

mounting bracket with the flat side of the

receiver facing the ceiling.

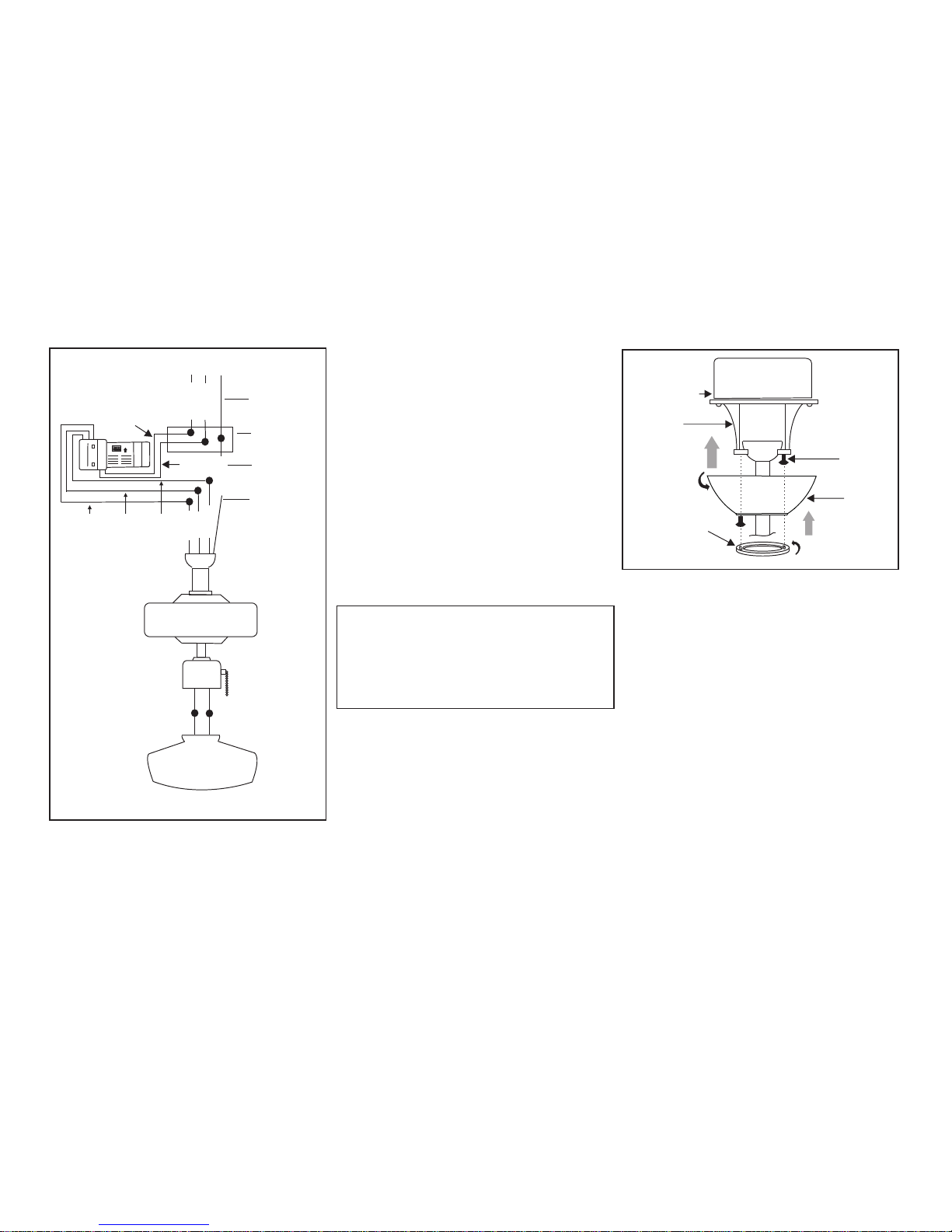

Step 2. (Fig. 10) Motor to Receiver Electrical

Connections: Connect the Black wire from

the fan to Black wire marked "TO MOTOR

L". Connect the White wire from the fan

to the White wire marked "TO MOTOR N"

from the receiver. Connect the Blue wire

from the fan to the Blue wire marked "For

Lig ht" from the re ceive r. Secure wi re

connections with the plastic wire nuts

provided.

Step 3. (Figure 10) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white(neutral) wire from the

ceiling to the white wire marked "AC in N"

f r o m t h e R e c e i v e r. S e c u r e t h e w i r e

connection s with the plastic wire nut s

provided.

Step 4. (Figure 10) If your outlet box has a

ground wire (green or bare copper) connect it

to the fan ground wires; otherwise connect

the hanging bracket ground wire to the

mounting bracket. Secure the wire connection

with a plastic nut provided. After connecting

the wires spread them apart so that the green

and white wires are on one side of the outlet

box and black and blue wires are on he other

side. Carefully tuck the wire connections up

into the outlet box.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit and the fan's receiving unit.

Figure 9

Receiver

Hanger

bracket

Figure 8

Code switch

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 10

WHITE

BLUE

BLACK

Figure 11

Outlet box

Hanger

bracket

Canopy

cover

Screws

Finishing the Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Slide the canopy up to mounting bracket

and place the key hole on the canopy over the

screw on the mounting bracket, turn canopy until

it locks in place at the narrow section of the key

holes. (Fig. 11)

Align the circular hole on canopy with

the remaining hole on the mounting bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until the

canopy and canopy cover are snug.

Step 2.

Step 3.

WARNING

Make sure the notch on the hanging bracket

properly sits in the groove in the hanger

ball before attaching the canopy to the

bracket by turning the housing until it

drops into place.

Attaching the Fan

Blades

Insert the blade through the slot in housing.

Align holes in blade and motor and secure

with 3 screws and fiber washers. Repeat

process with the other blades. (Fig. 12)

Figure 12

Fiber

washer

Blade

Slot

Screws

Blade Balancing

All blades are grouped by weight. Because

natural woods very in density, the fan may

wobble even though the blades are weighed

equally.

The following procedure should correct most

fan wobbling problems. Check after each step.

1. Check that all blade and blade arm screws

are secure.

2. Most fan wobbling problems are caused

when blade levels are unequal. Check this level

by selecting a point on the ceiling above the tip

of one of the blades. Measure this distance as

shown in Figure 13. Rotate the fan until the

next blade is positioned for measurement.

Repeat for each blade. The distance deviation

should be equal within 1/8".

3. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable.

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by side)

blades can redistribute the weight and possibly

result in smoother operation.

Touching

ceiling

Figure 13

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE HOLDERS

WHILE INSTALLING, BALANCING THE

BLADES, OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN

ROTATING FAN BLADES.

Autres manuels pour P2514

Table des matières

Autres manuels Progress Lighting Ventilateur

Progress Lighting

Progress Lighting AirPro P2544-2030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250107 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250061 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250089 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Trevina II P2555 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2539 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2564-3030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250071 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Verada P2558 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2564 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2540 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2538 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2554 Manuel utilisateur

Progress Lighting

Progress Lighting CALERA Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2572 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250003 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250026 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2548 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250060 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro COPAN Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2556 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Schaal P250101 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250102 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250016 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
