Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only the

screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9 kg).

Use only cUL Listed outlet boxes marked “Acceptable for Fan

Support of 35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of 7

feet clearance from the trailing edge of the blades to the oor.

6. Do not wait for the fan to stop before pressing the reverse

button. The fan will not reverse direction if the fan is not

moving.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into electrical box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

electrical box and ungrounded conductor on the other side of

the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing. Switches

must be UL General Use Switches. Refer to the instructions

packaged with the light kits and switches for proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part

no. DP-51R, manufactured by DAWNSUN ELECTRONIC

TECHNOLOGY CO LTD ZHONGSHAN.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Blade attachment hardware

(19 screws)

b. Electrical hardware and balancing kit

(1 plastic wire connector, blade balancing kit)

7. Light Kit Pan

8. Light Kit Fitter Assembly

9. Light Shade

10. Transmitter and Receiver

11. Extension Lead Wires (4)

1. Mounting Bracket (inside canopy)

2. 6” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

6. Blades (6)

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

911

2h 4h 8h

OFF

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 20˚. If the canopy touches

downrod, turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 6 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 18 inches.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring counter-clockwise

until it unlocks. (Figure 5)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly.

4. Place downrod over canopy and canopy

ring, slide the motor collar cover onto the

downrod. Connect the extension lead wires

to the lead wires from motor. Make sure

the quick connectors are clasped rmly.

Route the wires through the ball/downrod

assembly. (Figure 7)

Remove

Loosen but Do Not Remove

Turn Canopy Ring to Remove

Figure 5

Figure 6

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Pin in locked

position

Motor wires

Ball/Downrod

assembly

Canopy

Canopy ring

Motor collar

cocer

Hanger pin Locking pin

Motor collar Tighten

screws

Standard mounting

Installing Fan to

the Electrical Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 9)

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

Figure 8

Figure 10

Figure 11

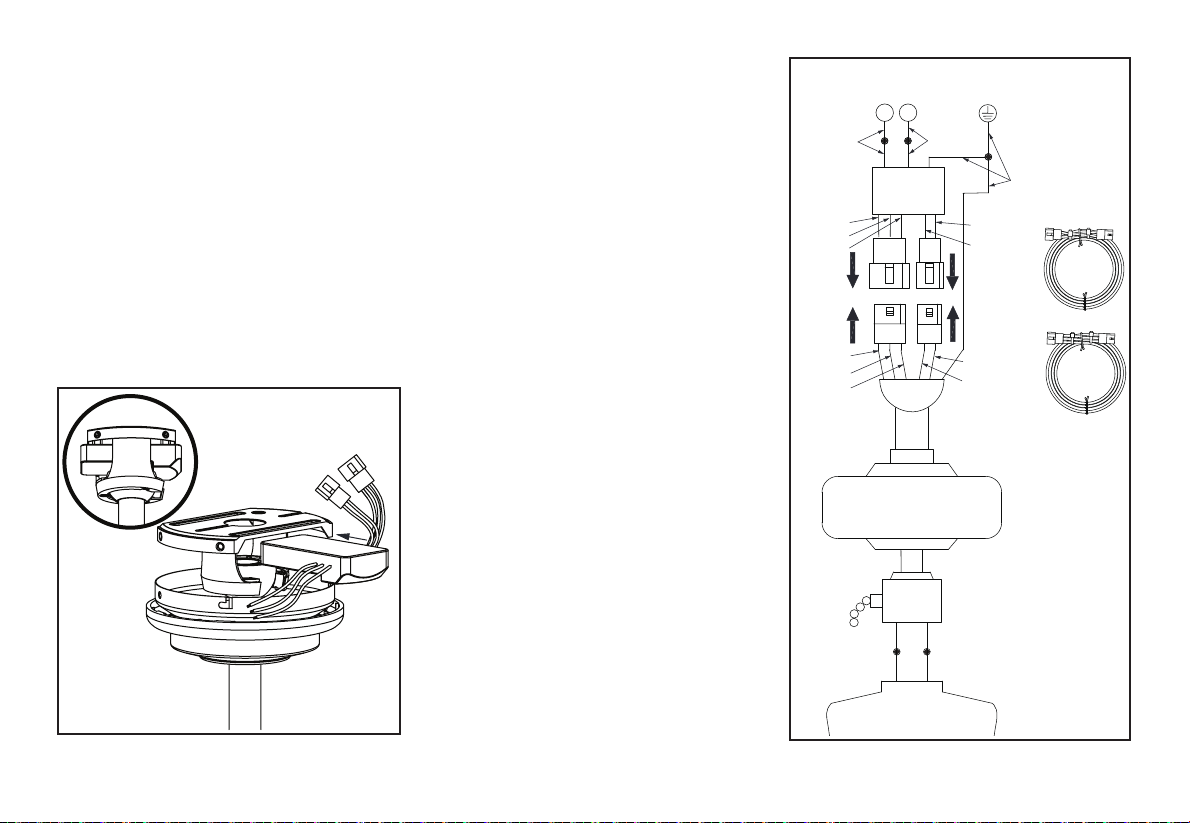

BLUE

BLACK WHITE

WHITE

Remote

Receiver

WHITE

L N

BLACK

GREY

ROWN

BLUE

ROWN

GREY

GREEN

WHITE

BLUE

SUPPLY CIRCUIT

Installing the

Receiver into the

Mounting Bracket

1. Position the house supply wires to one side

of the slide-on mounting bracket; position

the fan wires to the opposite side.

2. Insert the narrow end of the receiver (as

shown, at side toward ceiling) into the

slide-on mounting bracket until it rests on

top of the ball/downrod assembly. (Figure

10)

Wiring the Fan to the

Receiver

1. If using the 6 in. ball downrod assembly

provided, wire the receiver to the fan wires

by connecting the molded adaptor plug

from this receiver with the molded adaptor

of the fan motor assembly together.

(Figure 11)

2. If you wish to use longer downrod, you

can use the extension lead wire (66 in.)

provided by connecting the molded

adaptors together.

Wiring the Receiver to

the Household Wiring

1. Connect the green wire to the household

ground wires using a wire connecting nut.

2. Connect the receiver black wire to

the household black wire using a wire

connecting nut.

3. Connect the receiver white wire to the

household white wire using a wire

connecting nut.

Attaching the Fan

Blades

Figure 13

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling

canopy with the two screws in the

mounting plate. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws rmly.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. Install the decorative canopy ring by

aligning the ring’s slots with the screws in

the canopy. Rotate the ring clockwise to

lock in place.

4. You may now proceed to attaching the

fan blades.

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

1. Insert the blade through the slot

cut-off in the center ywheel, align

the three screw holes in the blade

with the screw holes in the ywheel

and secure with the screws provided.

(Figure 13)

2. Repeat for the remaining blades.

Screws

Motor Assembly

Blade

Figure 12

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Progress Lighting Ventilateur

Progress Lighting

Progress Lighting AirPro P250034 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2542-3030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2572 Manuel utilisateur

Progress Lighting

Progress Lighting P2570 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2562 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2586 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Lindale P250028 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Midvale P250011 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2556 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250036 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250071 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2574-8030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Huff P250030-031 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2592 Manuel utilisateur

Progress Lighting

Progress Lighting Airpro P250073 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250000 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250082 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2560 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2552 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250107 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Schaal P250101 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2588 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2539 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2568 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
