PROEM MDC-2F7SD Manuel utilisateur

MDC-2F7SD

User manual: page 03

Manuel utilisateur: page 11

VIDEO PORTIERS

Monitor MDC-2F7SD

English

- 2-

Digital bus

2 wires

4 cameras

32 monitors

Introduction

Vous venez de faire l’acquisition d’un moniteur vidéo-portier MDC-

2F7SD et nous vous en remercions.





- Grand écran 7 pouces tactile

- Mémoire avec carte SD

- Deux relais par camera

- Jusqu’à 4 cameras et 32 moniteurs

De plus, ce moniteur vous offre la fonction de cadre photo numérique



!

saura répondre aux attentes de votre quotidien.

L’Equipe PROEM

You have just acquired a video door entry system monitor MDC-2F7SD and

we thank you.

This monitor is on Digital 2 wires bus technology and has been design to

provide you a great confort of use :

- Big 7 inch touch screen 16/9

- SD card memory

- Two relay per door station

- Upto 4 door stations and 32 monitors.

Moreover, this monitor is getting the digital photo frame function to run slide

show of your favorite photos.

We hope it will match perfectly with your interior design and the expectations

of your day to day life.

PROEM team

- 3-

1. Parts and Functions

Home Screen

UNLOCK Button

MONITOR Button

TALK Button

CALL Button

MENU Button

Microphone

Speaker

Connection Port

Ventilation Vent

Mounting Hook

1 2 3 4 5 6

DIPS

BT1

BT2

GND

Manual

Monitor

Memory

Playback

Album User Setup

09/30/2010 Thu.16:41

Intercom Multimedia

Playback

2. Monitor mounting

145~160 cm

 Use the screws to fix the Mounting Bracket on the wall.(accessories include a

Bracket, two 4X25 screws (use to fasten the Mounting Bracket), 2 wire cables (use

to connect with Monitor)).

 Connect the system correctly. then hang the Monitor on the Mounting Bracket



Monitor MDC-2F7SD

English

- 4-

*Intercom Call by namelist:User in one apartment can call other apartments in the

system. Press CALL button on monitor in standby mode or touch Intercom item on

home screen page , then touch Intercom by Namelist icon (the namelist will be

created automatically by the system). Select a name on the screen then touch Dial

Number icon to call.Press icon to enter last/next name list page.

3.1 Answering a Door Call

3.2 Door Release

3.3 Entrance Monitoring

3.4 Intercom Function

 Press the CALL button on door station.

 The monitor rings,and the visitor's image will be seen on screen.

 Press TALK Button or touch icon, you can talk

with the visitor for 90 seconds. During talking state,

press the TALK Button again or press icon to

end the conversation. If the system connects two or

more Monitors, pick up any Monitor , the others will

be automatically shut off.

 Press MONITOR button on monitor in standby

mode,or touch Monitor icon on home

screen.the screen will display the view of the

Outdoor Station. During monitoring, touch

Manual Camera icon to get into the camera

switching mode, (or directly touch Manual

Camera icon on home screen), if multi Door

Stations are installed, you can press the camera

1/2/3/4 to monitor the Door Station or CCTV

camera you want.press Home icon to exit out

the menu.

 During the conversation, press UNLOCK Button or touch icon to unlock the door.

(if two locks are connected to door camera,touch unlock 2nd icon to release the

second lock )

!"#$%

Home

Unlock

Talk

Standard

Screen

Capture

1:1

Camera 1 Camera 2 Camera 3 Camera 4

2 3 41

09/30/2010 Thu.16:41

Home

Monitor

Time

3 . Operation Instructions

- 5-

*Inner Call: If multi Monitors are installed in one user, select and press the Inner Call

item, the other Monitors will ring at the same time, whichever Monitor answers the call,

conversation is started,and the other monitors will stop ringing at the same time.

*Direct Dial Guard unit: A Monitor can be assigned as Guard Unit Monitor; when the

Guard Unit Monitor answers the call, conversation with the guard person is started.

4.1 Ring Tone Setting

 Touch the screen anywhere (or press MENU button ) in standby mode,a full screen

calendar will be showed.

12 pieces ring tones can be selected.

1. Current date

2. Current day

3. Current time

Intercom

by Namelist

Inner Call Direct Call

Guard Unit

09/30/2010 Thu.16:41

Home

Dial

Number

Last

-Name List-

[0001] Jim,Zhang

[0002] Calo,Liu

[0003] Jacko,Zhang

[0004] Jana,Qiao

[0005] Hebe,Zhang

[0006] Tony,Li Close

09/30/2010

16:41

Thu.

*Note: 1. Press "CALL" button or touch Dial Number icon again to redial.

*2. Touch

icon to cancel the call.

4 . Basic Setup Instructions

Monitor MDC-2F7SD

English

- 6-

 Touch the screen again (or press MENU

button again) to enter home screen. then touch

User Setup icon to enter call tone setting

screen,touch Door station call tone/intercom call

tone/door bell call tone,12 pieces ring tones will

be displayed , Choose a ring tone which you

want, then touch icon to save and exit, the

ring tone will be performed. or touch icon to

unsave and exit.

4.2 Ring Volume Setting

You can set a ring volume for day time,6:00

AM~18:00 PM is the day time by default,enter home

screen page(refer to 4.1) then touch User

Setup icon to enter next page,and then touch

Ring Volume icon to enter Ring Volume page,Use

icon to decrease/increase the volume. then

touch icon to save and exit,or touch icon

to unsave and exit.

Ring Volume

Night Ring Volume

Ring Volume

Adjust - Adjust +

Exit&Save

Exit&Unsave

Night ring

Volume Night ring

Volume

Adjust - Adjust +

Exit & save

Exit & & unsave

Door Station

Call Tone

Exit&Save

Carman

Ding Dong

Rhythm of the rain

For Elise

Sonatine

Edelweiss

Going Home

Congratulate

Do Re Me

Happy Birthday

Jingle Bell

Telephone Ring

Exit&Unsave

You can active a ring volume for night time,18:00

PM~6:00 AM is the night time by default,if you

don't want to be disturbed at night ,you can set the

volume to 0.Enter home screen page(refer to 4.1)

touch User Setup icon to enter next page,

then touch Night Ring Volume icon to

enter Night Ring Volume page,Use icon to

decrease/increase the volume.After setting a value

you want,you should touch Ring Volume

icon to active the setting, after that the Ring Volume

icon will change to Night Ring Volume

icon. then touch icon to save and exit,night

ring volume will be performed. or touch icon to

unsave and exit.

Note:touch Night Ring Volume icon

again,you can cancel the night ring volume setting.

Night Ring

Volume

Adjust - Adjust +

Exit&Save

Exit&Unsave

Ring Volume

- 7-

 Enter home screen page(refer to 4.1),thenTouch Monitor by Select icon to enter

next page.and then press Monitor Time icon to enter monitor time setting page.

 Input digitals by pressing the digital keypad, and press icon to change the setting

location,and press icon to save. Settings will be performed immediately, press

icon to return last page .

4.3 Monitor Time Setting

4.4 Screen Setting

4.5 Restore to Default

When the Monitor is in monitoring or talking

state, Press Adjust icon to enter

screen setting page.Touch any item you

want,then touch to decrease or

increase the value.Settings will be performed

immediately. Press icon to exit out the

page.

The restore to default function allows the

user to recover the settings to factory setting.

Note that the restore to default operation will

not change the time setting and the datas on

buit-in memory or SD card.

Enter home screen page(refer to 4.1),then

touch User Setup icon to enter the

setting page,press Restore to default item,

the default settings will be loaded. press

Home icon to return to home screen page.

Camera 1 Camera 2 Camera 3 Camera 4

2 3 41

09/30/2010 Thu.16:41

Home

Monitor

Time

Monitor time set

min:[01] sec:[30]

Cancel

Brightness

color

scene

Talk Volume

Adjust Return

Adjust - Adjust +

Door Station

Call tone

Intercom

Call tone

DoorBell

Call tone

Clock

Ring

Volume

Night Ring

Volume

Refault to

Default

09/30/2010 Thu.16:41

Home

Monitor MDC-2F7SD

English

- 8-

This Monitor has been equipped with a built-in memory (about 120 MB) together with a SD card

reader. Maximum 16 GB SD card can be supported.

 The monitor can play photos and pictures.

 Photo frame function, each photo playing will last 5 seconds, More pictures in the SD card,

longer time for triggering the function, 800 pictures is supported in inner memory. With 2G

SD card,more than 30000 pictures can be supported.

 Use T-views photo software tool to transform the JPG format photos took by digital camera

to TVS format photos that can be viewed on Monitor.

 The captured pictures will be saved in a folder named by date,note that the pictures

recording every day will be saved in different folders which automatically generated every

day

 The captured pictures in the built-in memory can be copied to the SD card, and it can be

seen on the computer.

 The built-in memory can be formatted by the Monitor.

 Avoid to plug in/out the SD card when the monitor is under operation.

 Playing will be interrupted by the calling from outdoor station.

SD card

5 . Built-in Memory and SD card

- 9-

5.1 Picture Recording

5.2 Record times Setting

5.3 Picture Playback

Both Auto-Recording and Manual-Recording are

available.and Auto-Recording is default. If receive a

Call , after 3s, the monitor will record automatically.

or you can touch Capture icon to record the

visitor's image manually.

Touch Memory Playback icon on home

screen,4 pictures will be displayed in the memo for

each page. you can touch or to enter last

or next picture memo,or touch icon to delete

all pictures. And you can zoom the picture on full

screen by touch icon , on full screen mode,

touch icon to preview last/next picture.or

you can touch icon to delete the picture you are

previewing.press icon to return home screen

page.

You can setup Memo Options to choose 1/4/8 pictures

memo. If 4/8 was chosen, you will have 4/8 shots

for each recording operation, and every 1.5 seconds

catch a picture.

Touch Multi Media icon on home screen to

enter next page, then touch Memory Options

icon,a digital keypad will be showed on the screen,you

can only set the record times for 1/4/8 by touching the

digital keypad.touching other digitals are unvalid .and

press icon to save. Settings will be performed

immediately, press icon to return last page .

Record times: [ 1 ]

Cancel

Page Down

Home

Full Screen

Picture 1

2010-9-30 01 2010-9-30 02

2010-9-30 042010-9-30 03

Picture 2

Picture 4Picture 3

Delete All

Page UP

Recording...

DS1 00:03 Talking

Home

Unlock

Talk

Standard

Screen

Capture

1:1

Monitor MDC-2F7SD

English

- 10 -

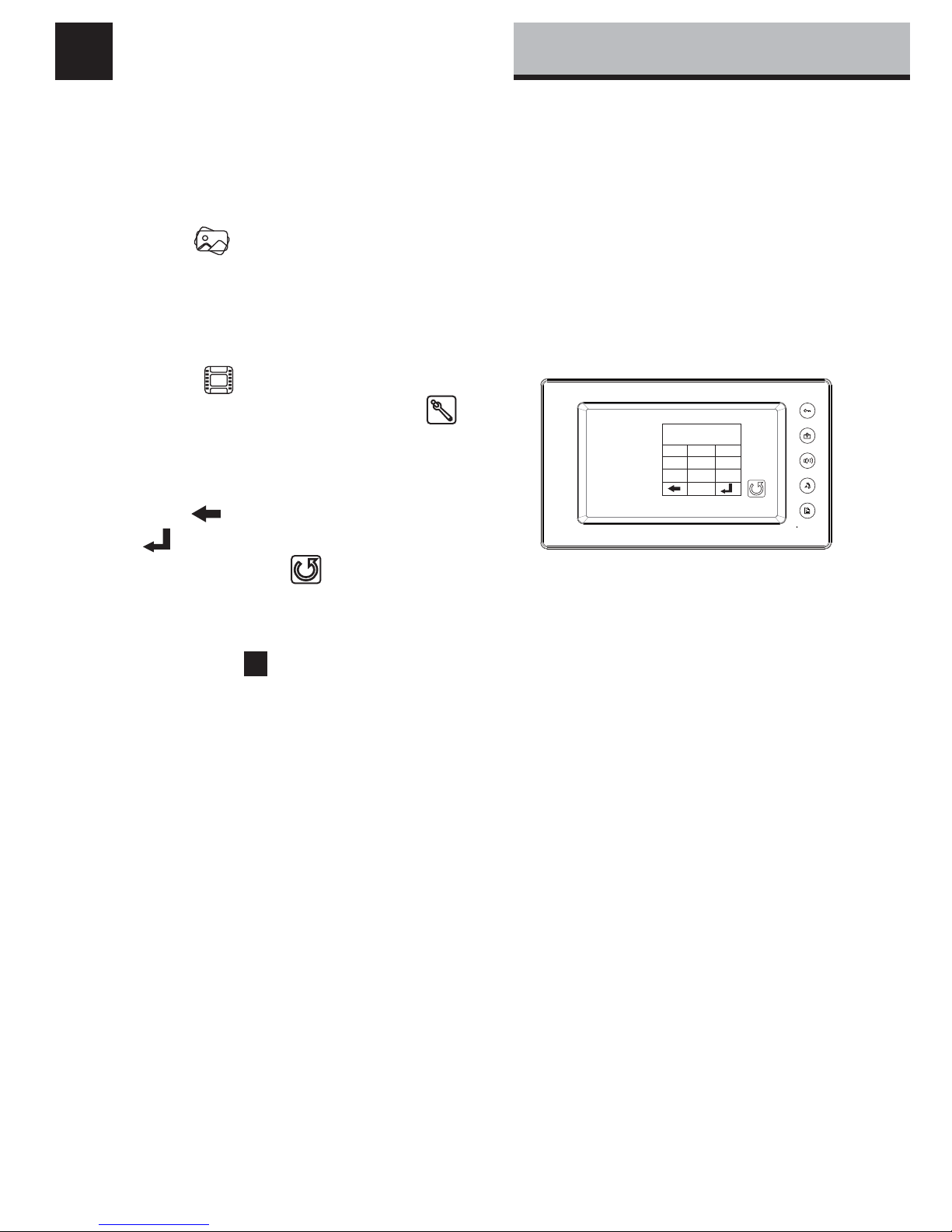

5.4.1 Playing

5.4.2 Playing time setting

Touch Album icon on home screen to play the photos(must plug in SD card).it can be



last/next photo.

Touch Multi Media icon on home screen

to enter next page, then touch Album

Options icon,a digital keypad will be showed on

the screen,then you can set the playing time by

touching the digital keypad to input digitals and

press icon to change the location,and press

icon to save. Settings will be performed

immediately, press icon to return last page .

5.4 Photo Frame

Power Supply : DC 24V (supplied by Adaptor)

Power Consumption: Standby 15mA; Working status 400mA

Monitor Screen: 7 Inch color TFT-LCD

Display Resolution: 800*3(RGB)*480 pixels

Built-in Memory: 120 MB

Picture Memo: 800pcs(inner memory),>30000pcs(2G SD card)

Monitor Dimension: 138(H)×235(W)×24(D)mm

Album time set

min:[01] sec:[30]

Cancel

6 . Speciﬁcation

Table des matières

Langues :

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
