QUICK START GUIDE
PG /6800.543.6618
Follow Steps and Scan QR Codes for Corresponding Videos.
B17 SET-UP FOR STANDARD PACKAGE
WWW.PROCUTUSA.COM PG /7
1. Remove packaging from wooden crate containing
50-4400 and remove all items from drawers.

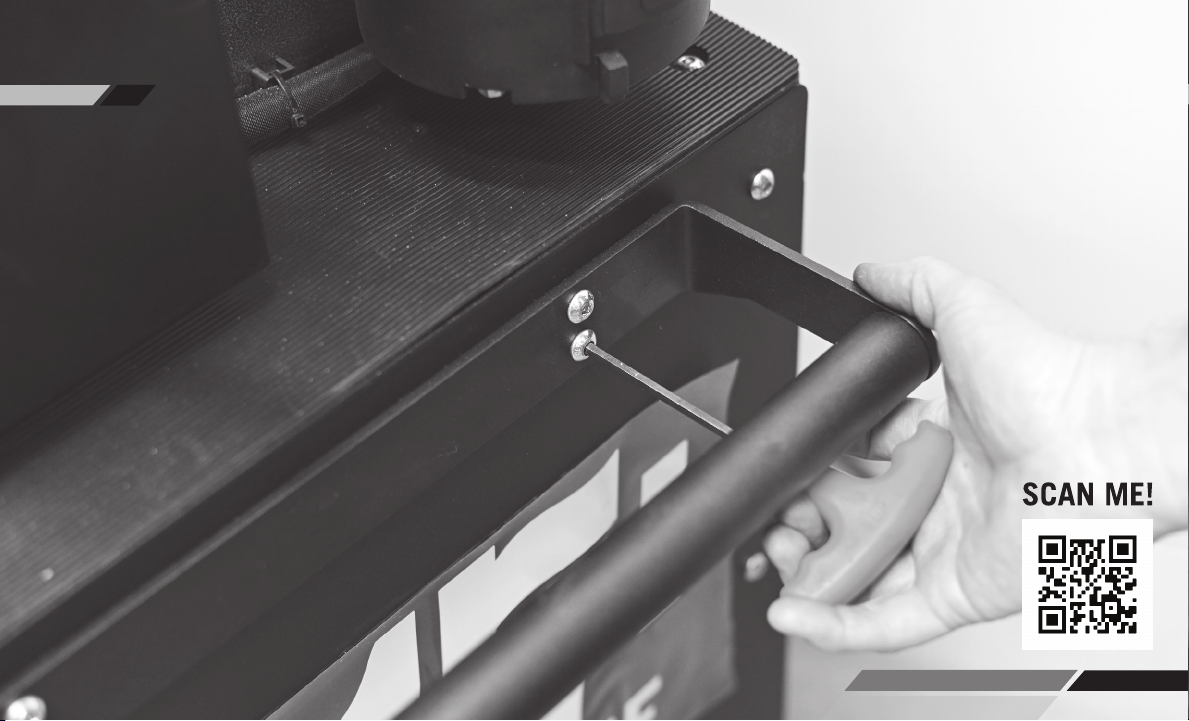

2. Install the mobile cart handle on the right end of the cart.
3. Carefully remove the cart from the pallet
4. Remove wood top and sides of B17 lathe crate, plastic bag,
and extra cardboard.
PG /8800.543.6618

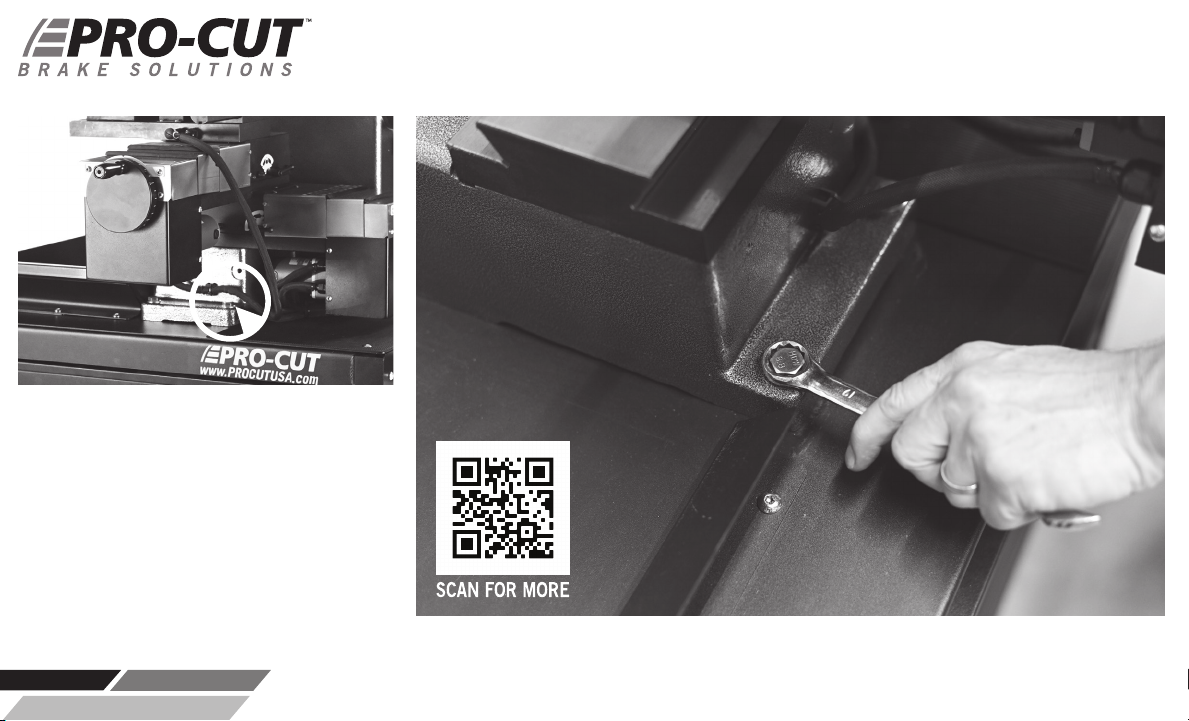

5. Remove 5 bolts holding lathe to pallet. Install 3 lifting eye bolts and attach the 49-4020 lifting chain.
The 2 short lengths attach to the top eye bolts, and the long chain secures to lower eye bolt to keep the
lathe level during lifting.
Insert Lift Eyes (5A / 5B). Add a
rag behind lift chain to pad ways.
5A 5B 5C
WWW.PROCUTUSA.COM PG /9
B17 49-4020 Lift Chain
6. Lift the B17, using a 2 ton engine hoist and 2 people. Before lifting be certain none
of the chains are arranged in a way that will cause damage to the lathe.
PG /10 800.543.6618
7. Roll the mobile cart under the lift-
ed B17 and line up the bolt holes
on the lathe to the top of the mobile
cart. Lower the lathe slowly until 1/4”
off cart top and start screws by hand.
Land the lathe and tighten screws se-
curely.
