Princeton EO710F Manuel utilisateur

EO710f

17” FLAT COLOR MONITOR

REFERENCE MANUAL

FRONT COVER

EO710f

Table of Contents

FCC Information

Safety Information

Installation

Controls & Functions

Preset Timing

Input Pin Assignment

Technical Specifications

Troubleshooting

Reference Manual

FCC Information

This equipment has been tested and found to comply with limits

for a class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protec-

tion against harmful interference in a residential installation.

This equipment can generates, uses, and radiate radio fre-

quency energy, and if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. If this equipment does cause unacceptable

interference to radio and television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures.

Caution:

To comply with the limits for an FCC Class B computing device,

always use the shielded signal cord and shielded power cord

supplied with this unit.

Caution to the User:

The Federal Communications Commission warns the user that

changes or modifications to the unit not expressly approved

by the party responsible for compliance could void the user’s

authority to operate the equipment. if necessary, the user should

contact the dealer or an experienced radio/television technician

for additional suggestions.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced Radio/TV technician

for help.

Safety Information

Provided with this monitor is a detachable power supply cord

with IEC320 style terminations. It may be suitable for con-

nection to any UL listed personal computer with similar con-

figuration. Before making the connection, ensure that the

voltage rating of the computer convenience outlet is the same

as the monitor and that the ampere rating of the computer

convenience outlet is equal to or exceeds the monitor current

rating.

For 120V applications use only UL listed detachable power

cord with NEMA configuration 5-15P type (parallel blades)

plug cap.

For 240V applications use only UL listed detachable power

cord with NEMA configuration 6-15P type (tandem blades)

plug cap.

Use only a power source and connection appropriate for the

monitor as indicated on the marking label.

Slots and openings in the cabinet are provided for ventilation;

these openings must not be blocked or covered. Never push

objects of any kind into cabinet slots or other openings.

Never insert anything metallic into the monitor openings.

Doing so may create a danger of electric shock.

To avoid electric shock, never touch the inside of the monitor.

Only a qualified technician should open the monitor’s case.

Unplug the monitor from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. use a damp, lint-

free cloth for cleaning.

Install the monitor near an outlet that you can reach easily.

Disconnect the product by grasping the plug firmly and pull-

ing in from the outlet. Never disconnect it by pulling the

cord.

Installation

No tools are required to install the EO710f. Simply follow the

instructions outlined in the next few pages.

Connect Power Cord

Connect the female end of the power cable to the power input

receptacle on the back panel of the EO710f. Then, plug the

male end of the power cable into an AC outlet.

Connect Signal Cable

Attach the loose end of the signal cable to the graphics card.

Be cautious in inserting the cable properly into the graphics

card. If the cable does not seem to fit, it may be facing

the wrong direction. Turn the cable over and try to match

the shape of the connector with that of the graphics card.

Power On

Switch ON the power to both the EO710f and your computer.

There will be a short delay before the display appears.

Adjust the Picture

Adjust the controls, if necessary, to obtain the best display.

Instructions on how to use the On-Screen Display controls and

the Auto Setup button may be found in the next section, “Con-

trols and Functions.”

Controls & Functions

Base of Unit

Assemble the tilt/swivel base onto the bottom of the monitor.

Turn the monitor for a comfortable viewing angle within 80

degrees horizontally and 20 degrees vertically.

Signal Cable (VGA Cable)

Connect the end of the signal cable to your graphics card on

your computer.

Power Input (AC)

Connect the AC outlet with the supplied power cord as shown

on page 3.

Power Button

Press this button to turn the power ON or OFF. There will be a

short delay before the display appears.

Control & Functions Buttons

Press “MENU” button to activate OSD menu.

Press “Up/Down” buttons to scroll through the selection.

Press “Enter” button to execute the selection.

Adjustment Buttons

Pressing the “Up/Down” buttons are used to adjust picture

adjustment or to highlight a selection.

From left to right:

“MENU” button

“UP” button

“DOWN” button

“ENTER” button

CLOSER LOOK

Controls & Functions

The OSD menu activates when you press the “MENU” button. Use either the

“Up” button to move your selection up or “Down” button to move your selection

down. After making your selection, Press the “Enter” button and you will be able

to move your selection in the sub-menu to the right.

Use either the “Up” or “Down” buttons to select the function you would like to

modify. Use the “Enter” button and you will see a status bar indicating adjust-

ment values. Press either the “UP” or “DOWN” to perform the adjustment.

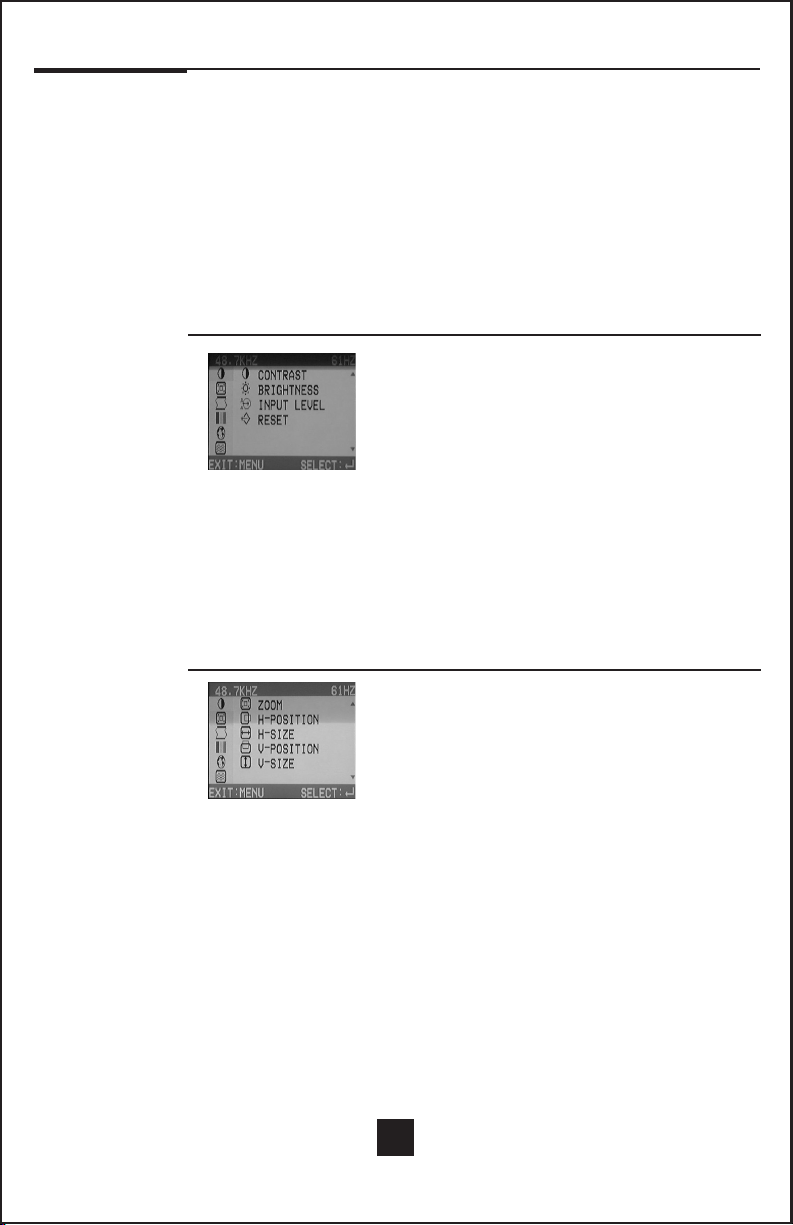

Below are the descriptions of what each function will do:

Contrast

Selecting this function allows you to make adjustments to

the luminosity level of the display screen.

Brightness

Selecting this function allows you to make adjustments to

the black level of the display screen.

Input Level

Selecting this function allows you to choose input of 0.7V

or 1.0V video input voltage levels. (Expert Only)

Reset

Selecting this function will reset the Contrast and Bright-

ness levels, Size, Position, Geometry to factory preset

values.

Zoom

Selecting this function allows you to enlarge your image

proportionally.

H-Position (Horizontal Position)

Select this function, then use the “UP/DOWN buttons to

center the image horizontally on the display screen.

H-Size (Horizontal Size)

Select this function, then use the “UP/DOWN” buttons to

increase or decrease the image width to horizontally fill

the display screen.

V-Position (Vertical Position)

Select this function, then use the “UP/DOWN” buttons to

center the image vertically on the display screen.

V-Size (Vertical Size)

Select this function, then use the “UP/DOWN” buttons to

increase or decrease the image height to vertically fill the

Controls & Functions

Pincushion (Side-Pin)

Select this function, then use the “UP/DOWN” buttons

to straighten the sides of the image by pulling them in

opposing directions.

Pin Balance

Select this function, then use the “UP/DOWN” buttons to

straighten the sides of the image by pulling them in the

coressponding direction.

Trapezoid

Select this function, then use the “UP/DOWN” buttons

to even the widths of the top and bottom of the display

(pulling the sides in opposing directions).

Parallel

Select this function, then use the “UP/DOWN” buttons to

center the top and bottom of the display (pulling the sides

in the corresponding direction).

Rotation

Select this function, then use the “UP/DOWN” buttons to

rotate the image until the sides of the image are parallel

to the edge of the bezel.

9300K

Select this to select your color temperature to 9300°

Kelvin. (Cool White Point)

6500K

Select this to select your color temperature to 6500°

Kelvin. (Warm White Point)

User (custom color temperature settings)

Select this to customize your white point settings. You

will be given the Red, Green, and Blue adjustments.

(Changes to the “User” is not recommended).

Controls & Functions

English

Selecting this will change your OSD to English.

Deutsch

Selecting this will change your OSD to German.

Francais

Selecting this will change your OSD to French.

Espanol

Selecting this will change your OSD to Spanish.

Italic

Selecting this will change your OSD to Italian.

H-Moire (Horizontal Moire)

Select this function, then use the “UP/DOWN” buttons

to decrease the moire, a Finger Print Pattern that causes

some dithered colors to appear uneven.

V-Moire (Vertical Moire)

Select this function, then use the “UP/DOWN” buttons to

decrease the moire, an interference pattern that causes

some dithered colors to “vertical shimmer” or appear

uneven.

OSD H-Position

Select this function, then use the “UP/DOWN” buttons to

move the OSD menu horizontally.

OSD V-Position

Select this function, then use the “UP/DOWN” buttons to

move the OSD menu vertically.

Degauss

Selecting this function will demagnetize the CRT when the

display becomes discolored or washed out in appear-

ance. The monitor will automatically degauss on startup

if the monitor has been shut-off.
