Princess 119011 Manuel utilisateur

Made in China

Microwave oven

01.119011.09.001

THE MICROWAVE

A microwave is mainly used for quickly heating, preparing and defrosting food

like vegetables, meat, fish and potatoes. In addition, it is suitable for preparing

ready-to-eat meals or a glass or bottle of (baby)milk. Using the microwave

function will accelerate the defrosting, preparing and heating process.

How does a microwave work?

• The microwave works through electromagnetic microwaves, which are

sent by a high voltage system. These microwaves have a frequency

of 2450MHz and are not ionizing. This means they do not damage

the molecules. The microwaves turn the water within the food into

heat. Besides water, also fat molecules within the food are effective to

transform radiation energy into heat.

• The microwaves are going directly through tableware, which allows the

food to heat up quickly. Vitamins and natural flavours will be preserved.

Because the microwaves remain within the device, the heating is in some

parts more intense than in others. For this reason, the microwave is

generally equipped with a glass turntable. Due to the rotating motion, the

turntable enables the energy to be divided more equally.

IMPORTANT SAFETY INSTRUCTIONS

• To reduce the risk of fire, electric shock, injury to persons

or exposure to excessive microwave oven energy when

using your appliance, follow basic precautions, including

the following:

• Liquids and other foods must not be heated in sealed

containers since they are liable to explode.

• It is hazardous for anyone other than a competent person

to carry out any service or repair operation that involves

the removal of a cover which gives protection against

exposure to microwave energy.

• Only allow children to use the oven without supervision

when adequate instructions have been given so that

the child is able to use the oven in a safe way and

understand the hazards of improper use.

• Only use utensils suitable for use in microwave ovens.

• The oven should be cleaned regularly and any remaining

food should be removed.

• Read and follow the specific: "PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY".

• When heating food in plastic or paper containers, keep

an eye on the oven due to the possibility of ignition.

• If smoke is observed, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

• Do not overcook food.

• Do not use the oven cavity for storage purposes. Do not

store items, such as bread, cookies, etc. inside the oven.

• Remove wire twist-ties and metal handles from paper or

plastic containers/bags before placing them in the oven.

• Install or locate this oven only in accordance with the

installation instructions provided.

• Eggs in the shell and whole hard-boiled eggs should not

be heated in microwave ovens since they may explode,

even after microwave heating has ended.

• Use this appliance only for its intended uses as described

in manual. Do not use corrosive chemicals or vapors in

this appliance. This oven is especially designed to heat. It

is not designed for industrial or laboratory use.

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• Do not store or use this appliance outdoors.

• Do not use this oven near water, in a wet basement or

near a swimming pool.

• The temperature of accessible surfaces may be high

when the appliance is operating. The surfaces are liable

to get hot during use. Keep cord away from heated

surface, and do not cover any events on the oven.

• Do not let cord hang over edge of table or counter.

• Failure to maintain the oven in a clean condition could

lead to deterioration of the surface that could adversely

affect the life of the appliance and possibly result in a

hazardous situation.

• The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before

consumption, in order to avoid burns.

• Microwave heating of beverages can result in delayed

eruptive boiling, therefore care must be taken when

handling the container.

• The appliance is not intended for use by persons

(including children) with reduced physical , sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

• Children should be supervised to ensure that they do not

play with the appliance.

• The appliances are not intended to be operated by means

of an external timer or separate remote-control system.

• Accessible parts may become hot during use. Young

children should be kept away. Steam cleaner may not be

used for cleaning.

• Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can

scratch the surface, which may result in shattering of the

glass.

• The rear surface of appliance shall be placed against a

wall.

• Never use the microwave without the turntable shaft,

turntable ring assembly and the glass turntable.

• Make sure food and containers of food are always placed

on the glass tray for cooking.

• The appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance

shall not be made by children unless they are older than

8 and supervised.

• Keep the appliance and its cord out of reach of children

less than 8 years.

• If smoke s emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

• This appliance is intended to be used in household and

similar applications such as:

a. Staff kitchen areas in shops, offices and other working

environments.

b. By clients in hotels, motels and other residential type

environments.

c. Bed and breakfast type environments

d. Farm houses

• Accessible parts may become hot during use. Young

children should be kept away.

• Steam cleaner is not to be used.

• During use the appliance becomes hot. Care should be

taken to avoid touching heating elements inside the oven.

• Only use the temperature probe recommended for

this oven.(for ovens provided with a facility to use a

temperature-sensing probe.)

• WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid

touching heating elements. Children less than 8 years of

age shall be kept away unless continuously supervised.

• The microwave oven must be operated with the

decorative door open. (for ovens with a decorative door.)

• : surface may get hot during use.

Precautions to avoid possible exposure to excessive microwave energy

• Do not attempt to operate this oven with the door open

since this can result in harmful exposure to microwave

energy. It is important not to break or tamper with the

safety interlocks.

• Do not place any object between the oven front face and

the door or allow soil or cleaner residue to accumulate on

sealing surfaces.

• If the door or door seals are damaged, the oven must not

be operated until it has been repaired by a competent

person.

• If the apparatus is not maintained in a good state of

cleanliness, its surface could be degraded and affect

the lifespan of the apparatus and lead to a dangerous

situation.

To reduce the risk of injury to persons grounding installation

• Touching some of the internal components can cause

serious personal injury or death. Do not disassemble this

appliance.

• Electric Shock Hazard Improper use of the grounding

can result in electric shock. Do not plug into an outlet until

appliance is properly installed and grounded.

• Consult a qualified electrician or serviceman if the

grounding instructions are not completely understood

or if doubt exists as to whether the appliance is properly

grounded. If it is necessary to use an extension cord , use

only a 3-wire extension cord.

• A short power-supply cord is provided to reduce the risks

resulting from becoming entangled in or tripping over a

longer cord.

• If a long cord set or extension cord is used the marked

electrical rating of the cord set or extension cord

should be at least as great as the electrical rating of the

appliance.

• The long cord should be arranged so that it will not drape

over the counter top or tabletop where it can be pulled on

by children or tripped over unintentionally.

Which materials are not suitable for placing in the microwave?

Not all materials can be placed in a microwave. Below shows which

materials are not suitable:

• Cookware made of porcelain and ceramics

• Non-heat-resistant bowls

• Metal bowls

• Metal racks (except the supplied rack)

• Aluminium foil

• Flammable material such as plastic, paper, plastic, textile, wood, flowers

or other flammable material.

• The packaging of sealed packaged foods can easily burst, which may

cause fire.

• Keep warm packages. These can be ignited.

• Metal locking strips

• Pillows filled with grain, cherry pits or gel.

• Sealed bowls and eggs. Eggs may burst due to the pressure.

If you’re not sure, you can test the material in question by following

the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along

with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for

microwave cooking.

4. Do not exceed 1 minute cooking time.

PARTS DESCRIPTION

1. Control panel

2. Turntable shaft

3. Turntable ring assembly

4. Turntable Glass tray

5. Observation window

6. Door assembly

7. Safety interlock system

8. Grill Rack (Only be used in grill function and be placed on the glass tray)

2 34

INSTALLATION AND CONNECTION

• Remove all packing material and accessories. Examine the oven for

any damage such as dents or a broken door. Do not install if the oven

is damaged.

• Remove any protective film, found on the microwave oven cabinet

surface.

• Do not remove the light brown Mica cover that is attached to the oven

cavity to protect the magnetron.

• Select a level surface that provide enough open space for the intake

and/or outlet vents.

• The minimum installation height is 85cm.

• The rear surface of appliance shall be placed against a wall. Leave a

minimum clearance of 30cm above the oven, a minimum clearance of

20 cm i s required between the oven and any adjacent walls.

• Do not remove the legs from the bottom of the oven.

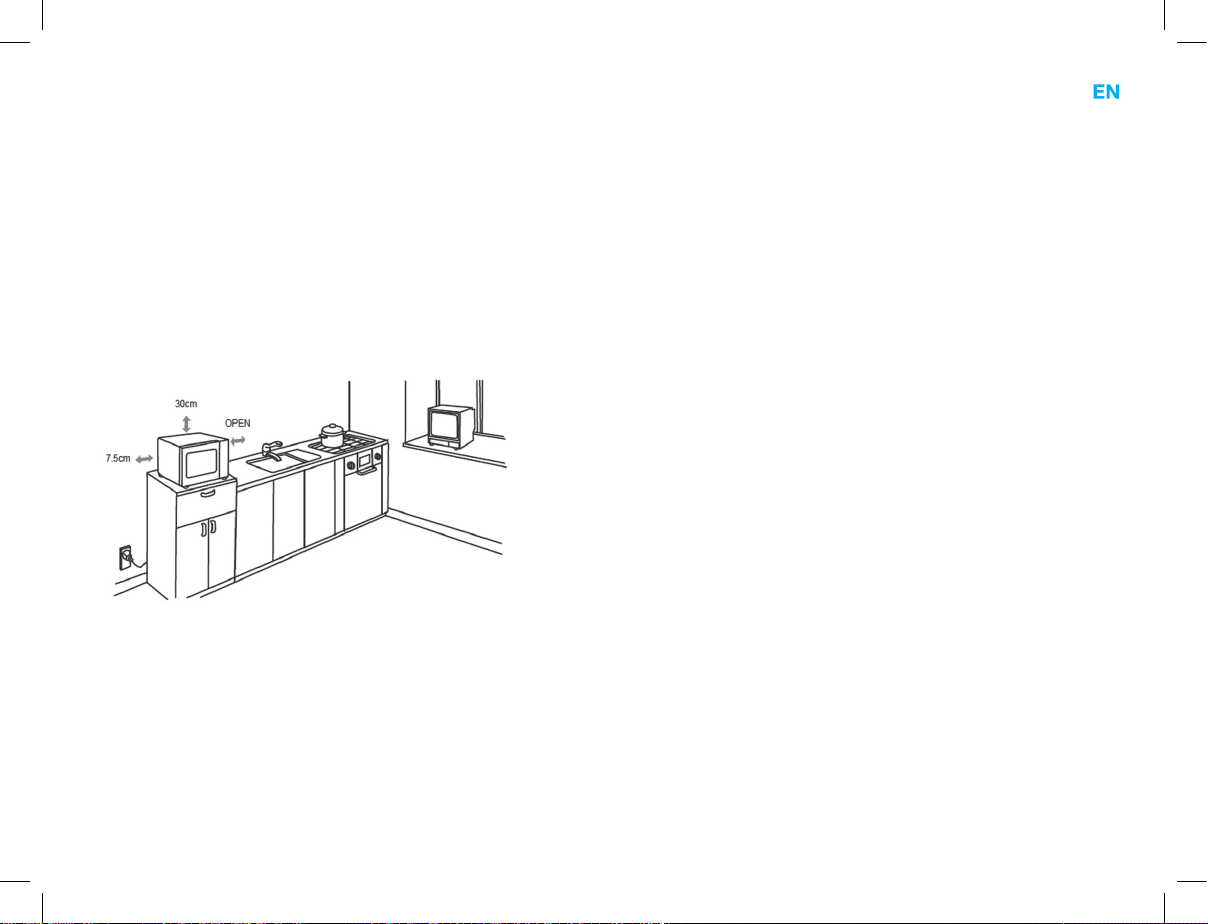

• The rear surface of appliance shall be placed against a wall. A minimum

clearance of 7.5cm is required between the oven and any adjacent

walls. One side must be open. Leave a minimum clearance of 30cm

above the oven. Do not remove the feet from the bottom of the oven.

• Blocking the intake and/or outlet openings can damage the oven.

• Place the oven as far away from radios and TV as possible. Operation of

microwave oven may cause interference to your radio or TV reception.

• Plug your oven into a standard household outlet. Be sure the voltage

and the frequency is the same as the voltage and the frequency on the

rating label.

• Do not install the oven over a stove or other heat-producing appliance.

If installed near or over a heat source, the oven could be damaged and

the warranty would be void.

OPERATION INSTRUCTIONS

Clock Setting

When the microwave oven is electrified, the screen will display "0:00",

buzzer will ring once.

• Press "Clock" to select clock function, the hour figures will flash.

• Turn to adjust the hour figures, the input time should be within 0--23.

• Press "Clock", the minute figures will flash.

• Turn to adjust the minute figures, the input time should be within 0--59.

• Press "Clock" to finish clock setting. ":" will flash, and the time will light.

Note:

• If the clock is not set, it would not function when powered.

• During the process of clock setting, if you press "Stop/Clear", the oven

will go back to the previous status automatically.

Microwave Cooking

Press "Microwave" the screen will display "P100". Press "Microwave"

repeatedly or turn to choose the power you want, and "P100", "P80",

"P50", "P30" or "P10" will display for each added press. Then press

"Start/+30Sec./Confirm" to confirm, and turn to set cooking time from 0:05

to 95:00. Press "Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes,

you can operate the oven as the following steps.

• Press "Microwave" once, the screen displays "P100".

• Press "Microwave" once again or turn" " to choose 80% microwave power.

• Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".

• Turn to adjust the cooking time until the oven displays "20:00".

• Press "Start/+30Sec./Confirm" to start cooking.

Note: the step quantities for the adjustment time of the coding switch are

as follow:

0---1 min : 5 seconds

1---5 min : 10 seconds

5---10 min : 30 seconds

10---30 min : 1 minute

30---95 min : 5 minutes

"Microwave" Pad instructions

Order Display Microwave display power

1 P100 100%

2 P80 80%

3 P50 50%

4 P30 30%

5 P10 10%

"Grill/Combi." Pad instructions

Order Display Microwave power Grill power

1 G 0% 100%

2 C-1 55% 45%

3 C-2 36% 64%

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food

over, close the door, and then press "Start/+30Sec./Confirm" to continue

cooking. If no operation, the oven will continue working.

Quick Start

• In waiting state, press "Start/+30Sec./Confirm" to start cooking with

100% power, each added press will increase 30 seconds cooking time

up to 95 minutes.

• In microwave, grill, combination cooking or time defrost state, each press

of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.

• In waiting state, turn left to set cooking with 100% microwave power.

After choosing the cooking time, press "Start/+30Sec./Confirm" to start

cooking.

Defrost By Weight

• Press "Weight Defrost" once, and the oven will display "dEF1".

• Turn to select the weight of food from 100 to 2000 g.

• Press "Start/+30Sec./Confirm" to start defrosting.

Defrost By Time

• Press "Time Defrost" once, and the oven will display "dEF2".

• Turn to select the defrost time. The MAX time is 95 minutes.

• Press "Start/+30Sec./Confirm" to start defrosting. The defrost power is

P30 , and it will not be changed.

Kitchen Timer

• Press “Kitchen Timer”, screen will display 00:00, clock indicator will light.

• Turn to enter the correct time.(The maximum cooking time is 95 minutes.)

• Press "Start/+30Sec./Confirm" to confirm setting, clock indicator will be

lighted.

• When the kitchen time is reached, clock indicator will go out. The

buzzer will ring 5 times. If the clock has been set (24-hour system), the

screen will display the current time.

Note: The kitchen Time is different from 24-hour system Kitchen Timer is a

timer.

Auto Menu

• Turn right to choose the menu, and "A-1" to "A-8" will display, which

means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.

• Press "Start/+30Sec./Confirm" to confirm.

• Turn to choose the default weight as the menu chart.

• Press "Start/+30Sec./Confirm" to start cooking.

Menu Weight Display

A-1

Pizza

200 g. 200

400 g. 400

A-2

Meat

250 g. 250

350 g. 350

450 g. 450

A-3

Vegetable

200 g. 200

300 g. 300

400 g. 400

A-4

Pasta

50g(with 450 ml cold water) 50

100g(with 800 ml cold water) 100

A-5

Potato

200 g. 200

400 g. 400

600 g. 600

A-6

Fish

250 g. 250

350 g. 350

450 g. 450

Menu Weight Display

A-7

Beverage

1 cup(120 ml) 1

2 cups(240 ml) 2

3 cups(360ml) 3

A-8

Popcorn

50 g. 50

85 g. 85

100 g. 100

Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one

section is defrosting, then defrosting shall be placed in the first section

automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80%

microwave power for 7 minutes, operate it as the following:

• Press "Time Defrost" once, and the oven will display "dEF2".

• Turn to select the defrost time till "5:00" displays.

• Press "Microwave" once, the screen display "P100".

• Press "Microwave" once again or turn " " to choose 80% microwave

power.

• Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".

• Turn to adjust the cooking time till the oven displays "7:00".

• Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound

once for the first section, defrosting time counts down; buzzer will

sound once again entering the second cooking. When cooking finishes,

buzzer sounds five times.

Inquiring Function

• In states of microwave,grill and combination cooking, press

"Microwave", the current power will be displayed for 3 seconds. After 3

seconds, the oven will turn back to the former state.

• In cooking state, press "Clock/ Kitchen Timer" to inquire the time and

the time will display for 3 seconds.

Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long

beep denoting entering the children-lock state and current time will display

if the time has been set, otherwise, the screen will display " ".

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will

be a long "beep" denoting that the lock is released.

CLEANING

• Before cleaning, unplug the appliance and wait for the appliance to cool

down.

• Clean the inside of the appliance with a damp cloth. Never use harsh

and abrasive cleaners, scouring pad or steel wool, which damages the

device.

• Clean the accessories in the usual way in soapy water.

• The door frame and seal and neighboring parts must be cleaned

carefully with a damp cloth when they are dirty.

• Never immerse the device in water or any other liquid. The device in not

dishwasher proof.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the

oven door glass since they can scratch the surface, which may result in

shattering of the glass.

• Cleaning Tip---For easier cleaning of the cavity walls that the food

cooked can touch:

• Place half a lemon in a bowl, add 300ml(1/2 pint) water and heat on

100%microwave power for 10 minutes. Wipe the oven clean using a

soft, dry cloth.

TROUBLE SHOOTING

Normal

Microwave oven

interfering TV

reception.

Radio and TV reception may be interfered when

microwave oven operating. It is similar to the

interference of small electrical appliances, like

mixer, vacuum cleaner, and electric fan. This is

normal.

Dim oven light. In low power microwave cooking, oven light may

become dim. This is normal.

Steam accumulating

on door, hot air out

of vents.

In cooking, steam may come out of food. Most

will get out from vents. But some may accumulate

on cool place like oven door. This is normal.

Oven started

accidentally with no

food in.

It is forbidden to run the unit without any food

inside. It is very dangerous.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Princess Four à micro-ondes

Princess

Princess 01.119010.09.001 Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
