Pride Mobility VivaLIFT Manuel utilisateur

Included in this document: Hand Control Reference Guide,

Fabric Care, Assembly, Warranty, and Weight Capacity

Headrest

Lumbar

Back

Legrest

Hand Control referenCe Guide

NOTE: This quick reference guide offers basic hand control functions, general care instructions,

basic assembly information, warranty information and weight capacity information for your

chair. Before operating the chair, thoroughly read the owner’s manual and all other supplemental

documents for information on safety, basic operation and care and maintenance.

NOTE: These products are non-medical devices and are not meant to assist, treat, diagnose or

alleviate any medical condition or disability.

The illustrations reﬂect those hand controls with the highest level of functionality. The hand control you

receive may have fewer options, but basic functionality is the same.

The premier feature of the ViVaLiFT!™Power Recliner is that you have the ability to adjust your feet and back

independently to achieve your perfect position. For example, the seat back can recline until it is horizontal to the

ﬂoor. To achieve this, press and hold seatback recline button (“8”) (as shown in ﬁgure 1) until it is fully reclined.

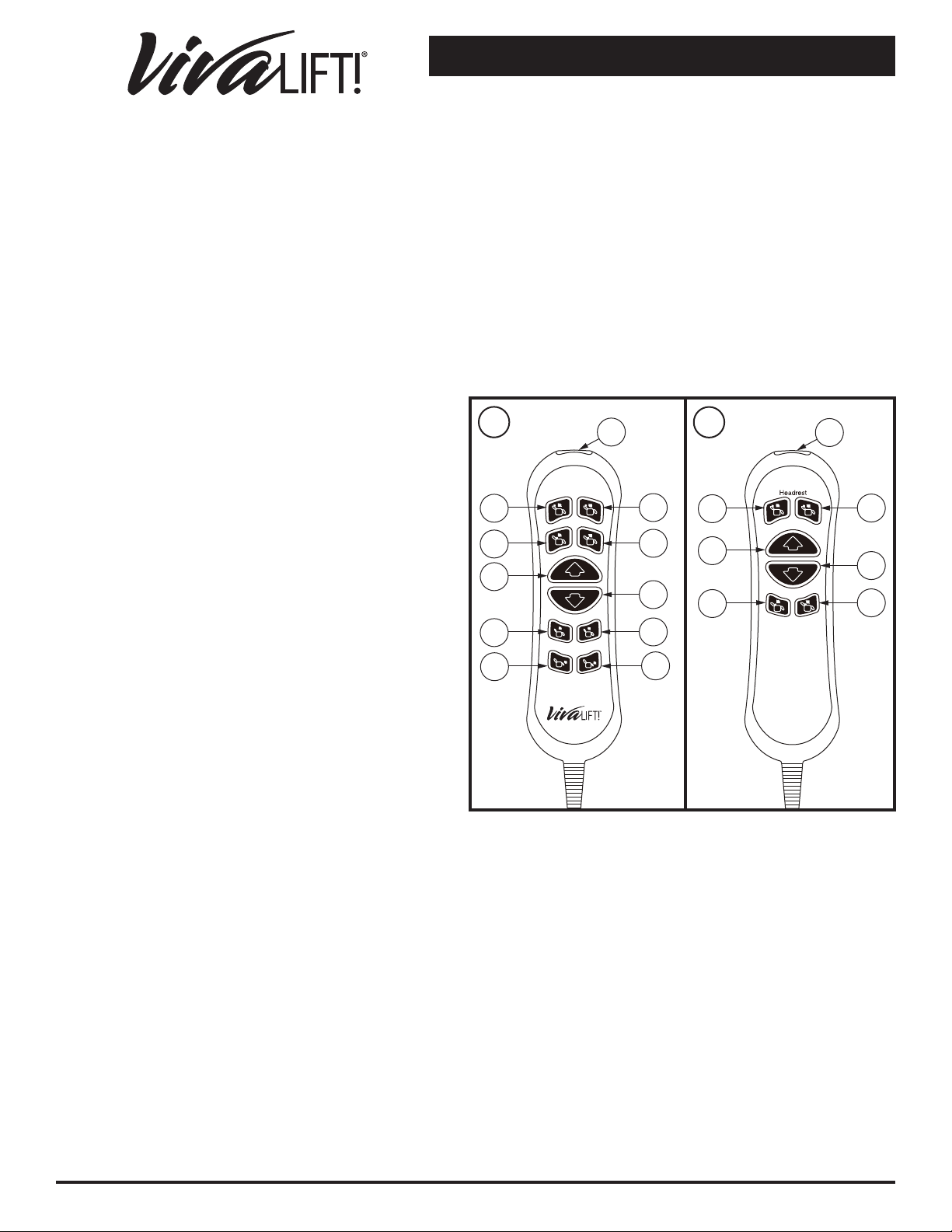

Figure 1. Hand Control - Styles A and B

HAND CONTROL IDENTIFICATION KEY

1. USB PORT

Use to connect to/charge USB enabled

devices.

NOTE: iPhone users must use ONLY MFI-

certiﬁed cables when charging iPhone

devices.

2. HEADREST IN BUTTON

Press and hold to move headrest in.

3. HEADREST OUT BUTTON

Press and hold to move headrest out.

4. LUMBAR SUPPORT IN BUTTON

Press and hold to move lumbar support in.

5. LUMBAR SUPPORT OUT BUTTON

Press and hold to move lumbar support out.

Back

6. UP BUTTON

Press and hold to return all chair power options to the neutral position, while lifting you into an upright

position.

7. DOWN BUTTON

Press and hold to lower chair to seated or reclined position.

8. SEATBACK RECLINE BUTTON

Press and hold to recline the seatback.

9. SEATBACK INCLINE BUTTON

Press and hold to raise the seatback.

10.LEG REST UP BUTTON

Press and hold to raise the legrest.

11.LEG REST DOWN BUTTON

Press and hold to lower the legrest.

Your ViValift!™Power reCliner

Figure 2. Chair Assembly

FABRIC CARE INSTRUCTIONS

The fabric covering this piece of furniture is very durable for everyday living. Clean only with water-

based shampoo or foam upholstery cleaner. Do not over wet. Do not use solvents to spot clean. Light

scrubbing will help with any tougher spots that may have developed. Always check a small spot of fabric

in an area that is unseen to be sure the cleaning agent being used will not discolor or fade the fabric’s

ﬁnishing. Let the chair air dry and vacuum for the best result.

CHAIR BACK ASSEMBLY

NOTE: If your chair is an Inﬁnite model, refer to the assembly instructions provided with the

chair. For the 2-position model, the KD sleeves are located on the inside as shown in ﬁgure 2.

1. Check that the locking clip on the back of the chair is in the vertical position. Reposition if necessary.

2. Drape the hand control and cable over the chair base, then slide the back onto the base. Ensure the

hand control cable is routed through the rear of the chair.

NOTE: Depending on chair width, you may need to slide on one side of the back at a time. If this is the

case, level the chair-back before pressing down to lock into position.

3. Push ﬁrmly on the top of the back to lock into position. You must hear a click from each side of the chair to

ensure the back is locked in properly.

NOTE: Pull up on the chair-back to ensure that it is locked in place.

Your ViValift! Power reCliner

4. Plug in the lumbar and headrest connectors. If

your model is Headrest Only, you only need to

plug in the Headrest.

5. If your model has back wings, align the KD

sleeves, and slide the wing down into place,

see ﬁgure 3. Please note there is a label on

the brackets. Please assemble them as indi-

cated (1-1 and 2-2).

6. Connect the Power Transformer cable to the

corresponding plug coming from the back of

the chair, (see ﬁgure 2).

7. Connect the Power Cord into the Power Trans-

former (see ﬁgure 2).

8. Connect the power cord into an electrical outlet

near where the chair will be used.

Figure 3. Wing Back Installation

POWER HEADREST MOTOR CONNECTIONS

For initial use, troubleshooting or chair

reassembly, you may have to connect or

reconnect the power headrest motor wires.

1. Lay the seatback, face down, on the chair

base and route all cables through the wire

access point as shown.

Note: If you do not have a “Y” cable,

proceed to step 3.

2. For chairs equipped with a “Y” cable, plug

the seat base motor cable into the motor box

connector, and plug the hand control cable

and the seatback motor cable into the “Y”

cable connectors.

3. For chairs equipped with a control box, plug

the cable marked “A” into the control box’s

“A” port, and the cable marked “B” into the

control box’s “B” port. Plug the controller

cable into the center wire connector.

Figure 5. Power Headrest Cable Routing

Figure 6. Power Headrest Cable Connections

Figure 7. Power Headrest Control Box Connections

SEAT BASE MOTOR CABLE

HAND CONTROL CABLE

SEATBACKMOTORCABLE

CONTROL BOX

Your ViValift! Power reCliner

notes

Rev D/June 2021
