Owner’s Manual
SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualied technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specied. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capability of operating a powered wheelchair.
CAUTION! Federal law restricts this device to sale by or on the order of a physician or other
certied personnel licensed by the law of the State (US only) or region in which this personnel
practices to use or order the use of the device.
Copyright © 2018
INFMANU4922/Rev A/August 2018
NOTE: This owner’s manual is compiled from the latest specications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classication (IEC 60529).
NOTE: This product and its components are not made with natural rubber latex. Consult with the manufacturer
regarding any after-market accessories.
Authorized Pride Provider:
Address:
Telephone:
Purchase Date:
Jazzy Air® 2 www.pridemobility.com 3
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag counterclockwise anticlockwise
authorized authorised path footpath path bridleway
labor labour
CONTENTS
I. INTRODUCTION .................................................................................................................................4
II. SAFETY ...................................................................................................................................................5
III. YOUR POWER CHAIR ......................................................................................................................7
IV. ASSEMBLY...........................................................................................................................................15
V. COMFORT ADJUSTMENTS........................................................................................................17
VI. BATTERIES AND CHARGING....................................................................................................21
VII. CARE AND MAINTENANCE........................................................................................................25
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where our Power Chairs are
sold. We have chosen to compose this manual using language and spellings common to the USA. Since we
recognize that not all English-speaking countries use the same words or spellings, please refer to the following
chart for some common word variations that may be encountered throughout this manual.
4 www.pridemobility.com Jazzy Air® 2
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art
components with safety, comfort, and styling in mind. We are condent that these design features will provide
you with the conveniences you expect during your daily activities. Once you understand how to safely operate
and care for your power chair, it should give you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power
chair for the rst time. You must also read all instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating system that accompanied your power
chair before initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare
professional, in using good judgment.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove
or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to
install any retrot kits from time to time provided by Pride to enhance or preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually packaged.
If you do not receive a complete delivery, please contact your authorized Pride Provider immediately. Where damage
has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.
Jazzy Air® 2 www.pridemobility.com 5
Manufactured in
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Read and follow the information in the owner’s manual.
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identied and explained in the Consumer Safety Guide that is included with
your power chair. Please become familiar with all the warnings and safety information found in the Consumer
Safety Guide and refer to this resource often.
Class II equipment
Indicates power chair securement points.
Power chair not rated for occupied transit.
Power chair information label
6 www.pridemobility.com Jazzy Air® 2
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the rst time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best t the individual needs of the power chair user. Please be aware that the nal
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly tted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in
the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be dened as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and condent control as you maneuver
through doorways, on and o of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on
each tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.
Jazzy Air® 2 www.pridemobility.com 7
III. YOUR POWER CHAIR
THE JAZZY AIR® 2 POWER CHAIR
The Jazzy Air® 2 Power Chair has two main assemblies: the seat assembly (A) and the power base assembly (B).
See gure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly
includes two motor/brake assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
See gures 1, 2, and 3.
1
5
7
9
13
12
11
10
3
2
8
A
B
6
4
Figure 1. The Jazzy Air® 2 Power Chair
1. Seatback
2. Armrest
3. Lift Mechanism Switch
4. Controller
5. Seat Base
6. Light Switch (for Marker Lights)
7. Under Seat Storage
8. Body Shroud
9. Front Rigging (Foot Platform Shown)
10. Rear Caster Wheel
11. Drive Wheel
12. Marker Lights
13. Front Caster Wheels
Identication Key
8 www.pridemobility.com Jazzy Air® 2
III. YOUR POWER CHAIR
1
2
5
4
3
Figure 2. The Jazzy Air® 2 Power Base
Electrical Components
The electrical components are located either on or inside the power base. The main circuit breaker is located on
the side of the power base. The power module is located under the front shroud. See gure 3.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.
Power Module: Provides connection between the joystick module and the motors, batteries, and o-board charger.
1. Lifting Mechanism
2. Front Shroud
3. Caster Wheels
4. Main Circuit Breaker
5. Rear Shroud
Identication Key
Jazzy Air® 2 www.pridemobility.com 9
III. YOUR POWER CHAIR
10
3
2
7
1
1
9
5
4
6
8

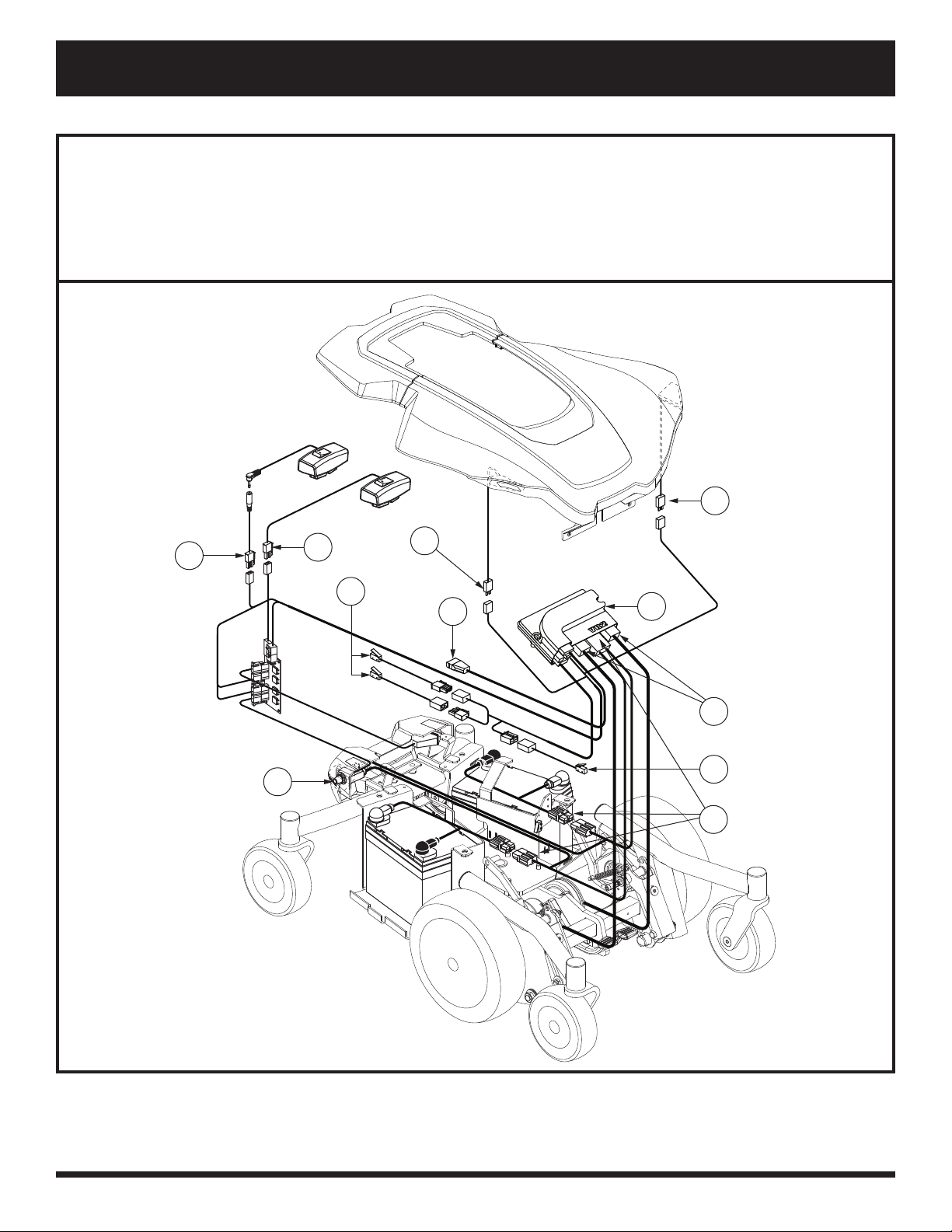

Figure 3. The Jazzy Air® 2 Electrical Components
Identication Key
1. Marker Light Connectors
2. Lift Switch Extension Harness Connector
3. Light Switch Connector
4. Suspension Lockout Switches
5. Controller Connector
6. Lift Actuator Switch
7. Power Module
8. Motor Connectors
9. Battery Connectors
10. Main Circuit Breaker
10 www.pridemobility.com Jazzy Air® 2
III. YOUR POWER CHAIR
Manual Freewheel Levers
Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage
the drive motors from the gearboxes and maneuver the chair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not
disengage the drive motors when the power chair is on an incline or decline, as the
unit could roll on its own. Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To engage or disengage the drive motors:
1. Locate the levers at the front of the power base.
2. Pull both levers upward to engage the drive motors (drive mode). See gure 4.
3. Push both levers downward to disengage the drive motors (freewheel mode). See gure 5.
If a lever is dicult to move in either direction, slightly rock the power chair back and forth. The lever should
then move to the desired position.
WARNING! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.
Figure 4. Drive Mode (Drive Engaged) Figure 5. Freewheel Mode (Drive Disengaged)
FREEWHEEL LEVERS FREEWHEEL LEVERS
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Pride Mobility Fauteuil roulant
Pride Mobility
Pride Mobility Quantum Jazzy 1420 Manuel utilisateur
Pride Mobility
Pride Mobility Quantum Dynamo 1107 Manuel utilisateur
Pride Mobility
Pride Mobility JAZZY Jazzy 1113 Manuel utilisateur
Pride Mobility
Pride Mobility QUANTUM SERIES Manuel utilisateur
Pride Mobility
Pride Mobility Jazzy 1170 XL Manuel utilisateur
Pride Mobility
Pride Mobility JAZZY 1121 Manuel utilisateur
Pride Mobility
Pride Mobility Jazzy 600 ES Manuel utilisateur
Pride Mobility
Pride Mobility JET 3 Manuel utilisateur
Pride Mobility
Pride Mobility Power Glide Instructions de montage
Pride Mobility
Pride Mobility APEX ALUMALITE Manuel utilisateur
Pride Mobility
Pride Mobility Jazzy 1170 XL Manuel utilisateur
Pride Mobility
Pride Mobility R4 Manuel utilisateur
Pride Mobility
Pride Mobility KITASMB1673 Manuel du propriétaire
Pride Mobility
Pride Mobility Jazzy Select 6 Ultra PG VR2 Manuel utilisateur
Pride Mobility
Pride Mobility QUANTUM SERIES Manuel utilisateur
Pride Mobility
Pride Mobility JAZZY 1103 Manuel utilisateur
Pride Mobility
Pride Mobility Go-Chair Manuel utilisateur
Pride Mobility
Pride Mobility Quantum 1650 Manuel utilisateur
Pride Mobility
Pride Mobility Quantum 1650 Manuel utilisateur
Pride Mobility
Pride Mobility Jet 3 Ultra Manuel utilisateur
