basic operations instructions

INFMANU3613/Rev I/February 2020

A Pride/Quantum Rehab Provider or a qualiﬁed technician

must perform the initial setup of this power chair and

must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual

and on the power chair to identify warnings and important

information. It is very important for you to read them and

understand them completely.

Indicates a potentially hazardous condition/situation.

Failure to follow designated procedures can cause either

personal injury, component damage, or malfunction. On

the product, this icon is represented as a black symbol

on a yellow triangle with a black border.

These actions should be performed as speciﬁed. Failure

to perform mandatory actions can cause personal injury

and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white

border.

These actions are prohibited. These actions should

not be performed at any time or in any circumstances.

Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this

icon is represented as a black symbol with a red circle

and red slash.

Intended Use

A wheelchair component is a device intended for medical

purposes that is generally sold as an integral part of a

wheelchair, but may also be sold separately as a replacement

part.

Regarding Devices for Prescription Use

CAUTION! Federal law restricts this device to sale by or

on the order of a physician or other certiﬁed personnel

licensed by the law of the State (US only) or region in

which this personnel practices to use or order the use

of the device.

NOTE: This owner’s manual is compiled from the latest

speciﬁcations and product information available at

the time of publication. We reserve the right to make

changes as they become necessary. Any changes to

our products may cause slight variations between the

illustrations and explanations in this manual and the

product you have purchased. The latest/current version

of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and

REACH directives and requirements.

NOTE: This product meets IPX4 classiﬁcation

(IEC 60529).

NOTE: This product and its components are not made

with natural rubber latex. Consult with the manufacturer

regarding any after-market accessories.

SECURITY GUIDELINES

MANDATORY!

PROHIBITED!

WARNING!

BASIC OPERATION INSTRUCTIONS

Table of Contents

Introduction.............................................................. 4

Safety........................................................................ 5

Front Riggings ......................................................... 6

Swing-away Footrests............................................. 7

Drop-in Leg Rests.................................................... 8

Elevating Leg Rests ................................................ 8

Multi-Axis Foot Plates........................................... 10

Adjustable Center-Mount Foot Platform.............. 11

Power Elevating Leg Rests................................... 12

Power Articulating Leg Rests............................... 13

Swing-away Power Articulating Leg Rests ......... 13

Center-Mount Articulating Foot Platform............ 14

Swing-away Calf Pads........................................... 14

Language Usage

This owner’s manual is intended for distribution in all English-

speaking countries where our Power Chairs are sold. We

have chosen to compose this manual using language and

spellings common to the USA. Since we recognize that not all

English-speaking countries use the same words or spellings,

please refer to the following chart for some common word

variations that may be encountered throughout this manual.

USA Variation

asphalt tarmac

authorized authorised

backward(s) rearward(s)

caster castor

center centre

color colour

cord lead

counterclockwise anticlockwise

curb kerb

elevator lift

labor labour

meter metre

path bridleway; footpath

pocketbook handbag

provider dealer; agent

sidewalk pavement

tire tyre

trunk boot

turn signal turn indicator

wrench spanner

yard grounds

4BASIC OPERATION INSTRUCTIONS

Introduction

WELCOME to Pride Mobility Products (Pride). The product

you have purchased combines state-of-the-art components

with safety, comfort, and styling in mind.We are conﬁdent that

the design features will provide you with the conveniences

you expect during your daily activities. Understanding how

to safely operate and care for this product should bring you

years of trouble-free operations and service.

Read and follow all instructions, warnings, and notes in this

manual before attempting to operate your product for the

ﬁrst time. You must also read all instructions, warnings, and

notes contained in any supplemental instructional booklets

for the controller, front riggings, and/or seating system that

accompanied your power chair before initial operation. Your

safety depends upon you, as well as your provider, caretaker,

or healthcare professional, in using good judgment.

This manual is to be used in addition to the power base

owner’s manual that came with your power chair. If there is

any information in this manual which you do not understand,

or if you require additional assistance for setup or operation,

please contact your Pride/Quantum Rehab Provider. Failure

to follow the instructions, warnings, and notes in this

manual and those located on your Pride product can

result in personal injury and/or product damage and will

void Pride’s product warranty.

Purchaser’s Agreement

By accepting delivery of this product, you promise that you

will not change, alter, or modify this product or remove or

render inoperable or unsafe any guards, shields, or other

safety features of this product; fail, refuse, or neglect to

install any retroﬁt kits from time to time provided by Pride to

enhance or preserve the safe use of this product.

Safety

The symbols below are used on the product to identify

warnings, mandatory actions, and prohibited actions. It

is very important for you to read and understand them

completely.

Read and follow the information in the

owner's manual.

Avoid exposure to rain, snow, ice, salt,

or standing water whenever possible.

Maintain and store in a clean and dry

condition.

EMI/RFI–This product has been tested

and passed at an immunity level of

20 V/m.

Electromagnetic and Radio Frequency Interference

(EMI/RFI)

Laboratory tests have shown that electromagnetic and

radio frequency waves can have an adverse effect on the

performance of electrically powered mobility vehicles.

Electromagnetic and Radio Frequency Interference can

come from sources such as cellular phones, mobile two-way

radios (such as walkie-talkies), radio stations, TV stations,

amateur radio (HAM) transmitters, wireless computer links,

microwave signals, paging transmitters, and medium-range

mobile transceivers used by emergency vehicles. In some

cases, these waves can cause unintended movement or

damage to the control system. Every electrically powered

mobility vehicle has an immunity (or resistance) to EMI. The

higher the immunity level, the greater the protection against

EMI. This product has been tested and has passed at an

immunity level of 20 V/m.

Be aware that cell phones, two-way radios, laptops,

electricity gernerators or high power sources and other

types of radio transmitters may cause unintended

movement of your electrically powered mobility

vehicle due to EMI. Do not turn ON hand-held personal

communication devices, such as citizens band (CB)

radios and cellular phones,while the powered wheelchair

is turned on. Be aware of nearby transmitters, such

as radio or TV stations, and avoid coming into close

proximity to them.

The addition of accessories or components to the

electrically powered mobility vehicle can increase the

susceptibility of the vehicle to EMI. Do not modify your

power chair in any way not authorized by Pride.

The electrically powered mobility vehicle itself can

disturb the performance of other electrical devices

located nearby, such as alarm systems.

NOTE: For further information on EMI/RFI, go to

the Resource Center on www.pridemobility.com. If

unintended motion or brake release occurs, turn your

power chair off as soon as it is safe to do so. Call Pride

or contact your Pride/Quantum Rehab Provider to report

the incident.

WARNING!

BASIC OPERATION INSTRUCTIONS

Front Riggings

Figure 1 provides information on available front riggings’ components. Use this diagram to familiarize yourself with the

function of each component before using the front riggings.

SWING-AWAY FOOTRESTS

Enable user to rotate the footrests to the side before transferring onto or off

the power chair.

Swing-away Footrest

DROP-IN LEG RESTS

Heavy Duty

with Multi-axis

Foot Plate

ELEVATING LEG RESTS

Offer an infinite range of adjustment for the leg angle.

Standard ELR

Swing-away Footrest with

Multi-axis Foot Plate

SWING-AWAY POWER

ARTICULATING LEG

RESTS (ALR)

Maintain correct knee-

to-heel measurements

when user's legs are

raised or lowered.

Pediatric

60°–90°

HD ELR

ADJUSTABLE

CENTER-MOUNT

FOOT PLATFORM

Installed directly on

the seating system

to accommodate

users who

require a

positioning

system and

prefer a foot platform.

HIGH PIVOT POWER

ELEVATING LEG

RESTS (ELR)

Mimic the motion of the

knee during leg

elevation.

CENTER-MOUNT

ARTICULATING

FOOT PLATFORM (AFP)

Maintains correct

knee-to-heel

measurements

when user's

legs are raised

or lowered.

POWER ARTICULATING

LEG RESTS (ALR)

Maintain correct knee-to-

heel measurements

when user's legs

are raised or

lowered.

Figure 1. Front Riggings

BASIC OPERATION INSTRUCTIONS

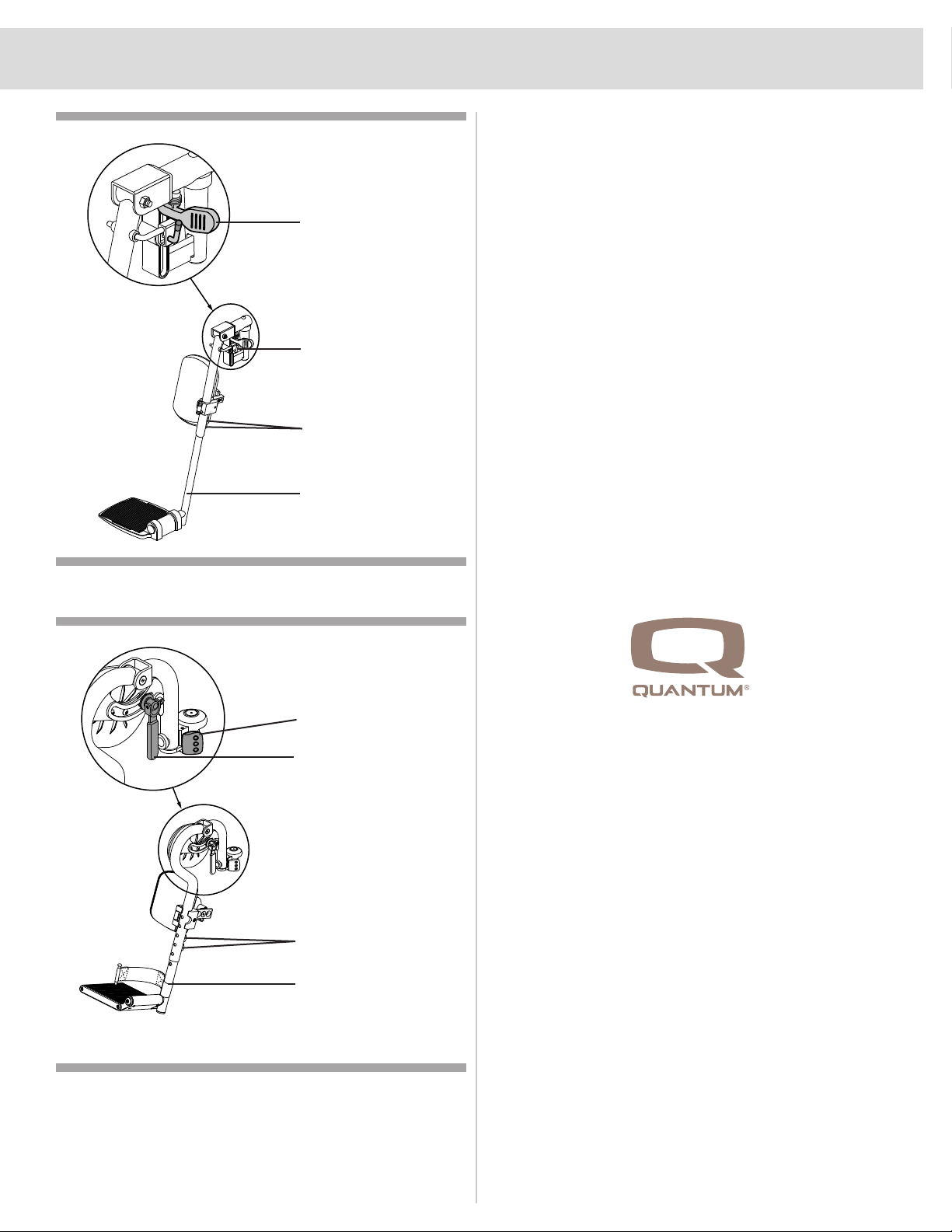

Swing-away Footrests

Swing-away footrests (SFRs) enable you to rotate the

footrests to the side before you transfer onto or off of your

power chair.

To rotate the SFRs:

1. Push in the release lever.

2. Rotate the SFRs.

To adjust the SFR length:

1. Remove the adjustment screw(s) from the footrest

extension. See ﬁgure 2 or 3.

2. Slide the footrest up or down to the desired length.

3. Reinstall the adjustment screw(s).

To change foot plate angle:

1. Loosen the hardware on the bottom of the foot plate.

See ﬁgure 4.

2. Adjust the foot plate to the desired position. See ﬁgure 4.

3. Tighten the hardware on the bottom of the foot plate.

To adjust the SFR angle when equipped with 60°–90°

SFRs:

1. Remove protective foam cover. See ﬁgure 5.

2. Remove shoulder bolt. See ﬁgure 5.

3. Adjust the SFR to the desired angle.

4. Reinstall the shoulder bolt. See ﬁgure 5.

5. Reinstall the protective foam cover.

Figure 2. Swing-away Footrest Adjustment

Figure 3. Pediatric Footrest Adjustment

Figure 4. Foot Plate Angle Adjustment

SFR Release Lever

Adjustment Screws

Footrest Extension

SFR Release Lever

Adjustment Screw

area (Located on Rear

of Footrest Extension)

Footrest

Extension

Hardware Location

BASIC OPERATION INSTRUCTIONS

Drop-in Leg Rests

Drop-in leg rests are easily installed into leg rest hangers.

You can adjust the forward/back position, as well as the

length of the drop-in leg rests. See ﬁgure 6.

To adjust the forward/back position:

1. Remove the adjustment bolt from each side rail.

2. Move the leg rest hanger in or out to the desired position.

3. Align the adjustment holes in the leg rest hanger with

those in the side rail.

4. Reinstall the adjustment bolts to secure the leg rest

hangers.

To adjust the leg rest length:

1. Remove the adjustment screws from the leg rest

extension.

2. Slide the leg rest up or down to the desired length.

3. Align the adjustment holes in the leg rest extension and

reinstall the adjustment screws.

Figure 5. Swing-away 60°–90° Leg Rests

Figure 6. Heavy Duty Drop-in Leg Rests

Elevating Leg Rests

Elevating Leg Rests (ELRs) offer an inﬁnite range of

adjustment for the leg angle.

To rotate the ELRs:

1. Push in release lever A.

2. Rotate the ELRs.

To adjust the angle on standard or heavy duty ELRs:

1. Push down release lever B. See ﬁgure 7.

2. Move the leg rest to the desired angle.

To adjust the angle on international style #14 ELRs:

1. Pull up on release lever B. See ﬁgure 8.

2. Move the leg rest to the desired angle.

3. Push down on release lever B.

To adjust the ELR length:

1. Remove the two adjustment screws from the side of

each leg rest extension. See ﬁgure 7 or 8.

2. Slide the leg rest up or down to the desired length.

3. Reinstall the two adjustment screws.

Shoulder Bolt

Protective Foam Cover

Leg Rest

Leg Rest Hanger

Adjustment Bolt

Adjustment

Screws

BASIC OPERATION INSTRUCTIONS

Figure 7. Standard Elevating Leg Rests

Figure 8. International Style #14 Elevating Leg Rests

Release Lever A

Release Lever B

Adjustment Screws

Leg Rest Extension

Release Lever A

Release Lever B

Adjustment Screws

Leg Rest Extension

BASIC OPERATION INSTRUCTIONS

Multi-Axis Foot Plates

Multi-axis foot plates can be installed on a standard elevating

leg rest (ELR) or a swing-away footrest. The multi-axis foot

plates have four adjustments: leg rest length (A), position

(B), tilt (C), and angle (D). See ﬁgure 9.

To change leg rest length (A):

1. Remove (loosen on swing-aways) the hardware.

2. Move the leg rest to the desired position.

3. Reinstall (tighten on swing-aways) the hardware.

To change foot plate position (B):

1. Remove (loosen on swing-aways) the hardware.

2. Move the foot plate to the desired position.

3. Reinstall (tighten on swing-aways) the hardware.

To change foot plate tilt and angle on swing-aways (C):

1. Loosen the hardware.

2. Tilt (rotate on swing-aways) the foot plate to the desired

position.

3. Tighten the hardware.

To change foot plate angle on ELRs (D):

1. Turn the setscrew(s) clockwise to decrease the angle.

2. Turn the setscrew(s) counterclockwise to increase the

angle.

Figure 9. Multi-axis Foot Plate for ELR (Left) and for

Swing-away Footrest (Right)

BASIC OPERATION INSTRUCTIONS

Setscrew Setscrews

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pride Mobility Fauteuil roulant

Pride Mobility

Pride Mobility Power Glide Instructions de montage

Pride Mobility

Pride Mobility Jet 7 Manuel utilisateur

Pride Mobility

Pride Mobility QUANTUM SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy 600 ES Guide de configuration

Pride Mobility

Pride Mobility Jazzy 1170 XL Manuel utilisateur

Pride Mobility

Pride Mobility Pride Profile INFMANU2127 Instructions de montage

Pride Mobility

Pride Mobility Jazzy Select 14XL Manuel utilisateur

Pride Mobility

Pride Mobility JAZZY 614 Series Manuel utilisateur

Pride Mobility

Pride Mobility Jet 3 Ultra Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy 1170 XL Manuel utilisateur

Pride Mobility

Pride Mobility QUANTUM SERIES Manuel utilisateur

Pride Mobility

Pride Mobility LIFT CHAIR Series Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy 600 ES Manuel utilisateur

Pride Mobility

Pride Mobility Quantum 6000Z 3S Manuel utilisateur

Pride Mobility

Pride Mobility JET 3 Manuel utilisateur

Pride Mobility

Pride Mobility QUANTUM SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Quantum Dynamo 1107 Manuel utilisateur

Pride Mobility

Pride Mobility Quantum Jazzy series Manuel utilisateur

Pride Mobility

Pride Mobility Litestream XF LTD Manuel utilisateur

Pride Mobility

Pride Mobility QUANTUM REHAB Euro Seat 2 Manuel utilisateur

Pride Mobility

Pride Mobility Jet 7 Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy Elite ES Manuel utilisateur

Pride Mobility

Pride Mobility Quantum Jazzy series Manuel utilisateur

Manuels Fauteuil roulant populaires d'autres marques

Otto Bock

Otto Bock Skippi plus Manuel utilisateur

Invacare

Invacare Action 4NG series Manuel utilisateur

SORG

SORG LoopSORG 802 Manuel utilisateur

Designability

Designability WizzyBug Instructions d'installation

Vermeiren

Vermeiren RAPIDO Manuel utilisateur

Excel

Excel G5 KIDS 0285 Manuel utilisateur

M. Bartels

M. Bartels SA-3 Manuel utilisateur

nino robotics

nino robotics NIno Manuel utilisateur

Vermeiren

Vermeiren Turios Manuel utilisateur

Invacare

Invacare MK5 EX Manuel utilisateur

Invacare

Invacare Solara Spree GT Manuel

Nova

Nova TKW-12 Manuel utilisateur

BCW

BCW Advantage Manuel utilisateur

You-Q

You-Q Luca Manuel utilisateur

interco

interco Ortolight Standard Mode d’emploi

Nova

Nova 7190L Manuel utilisateur

Vermeiren

Vermeiren EZ1 Manuel utilisateur

PaceSaver

PaceSaver Scout M-300 Manuel utilisateur
