Page 8 — PRESTO OWNER’S MANUAL: PL SERIES
S E C T I O N 3
UNPACKING
AND ASSEMBLY
A. INSPECTION

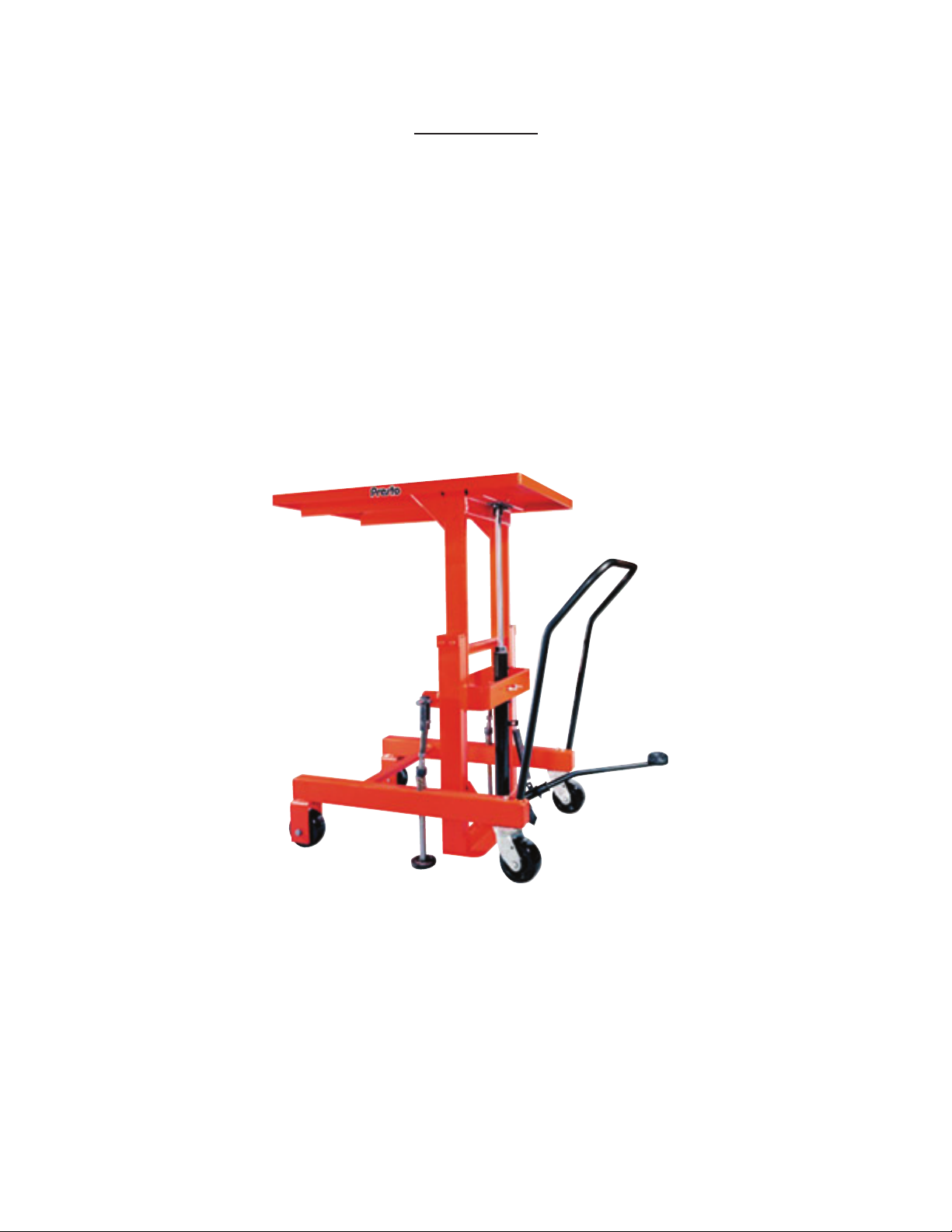

Upon receipt of the PL Lift, inspect the equipment
completely to determine if there is any shipment damage
and that the lift is complete. Do not use the lift if there
appears to be any damage.
S E C T I O N 4
OPERATION
A. SET-UP PROCEDURE
Each Hydraulic Table has been thoroughly inspected
and tested prior to shipment. Due to possible damage
in transit the following procedure must be performed
before the equipment is used.
1. Remove all protective covering making certain
that nothing is jammed or fallen into the moving
parts of the table.
2. Inspect the Table for damage in shipment. Be sure
to notify the trucking rm immediately if there is
any damage.
3. All Hydraulic Tables are equipped with a hand
operated oor lock.
4. For shipment, the foot pedal is wired to the unit.
Before using the table this pedal should be in-
stalled into the foot pump lever.
B. OPERATING PROCEDURE FOR HYDRAU-
LIC TABLES
The following instructions apply to the hydraulic
table. Carefully read and understand the procedures
before operating the equipment:
1. Maximum table capacity for the Hydraulic Table
is 2000 lbs. (Rubber wheels 1000 lbs. capacity.)
2. Before loading or unloading table, make sure
the hand operated oor lock is securely locked
against the oor. This requires you to pull up
upon the oor handle. The oor lock is released
by pushing the handle down.
3. Always place loads near the center of the table.
When transferring loads to the table platform
always slide, rather than drop, onto the raised table.
4. Pump the pedal on the cylinder to raise the table.
Depress the release pedal to lower the table.
5. Keep feet out of the carriage unit; keep hands out
of the roller path.
6. Always lower table (especially when loaded) to
its lowest position before moving the machinery
any distance.
7. Keep hands clear from under the table when load-
ing and unloading.
S E C T I O N 5
SERVICING
A. SERVICING INSTRUCTIONS
For manually Operated Hydraulic Lift Tables
If tables does not rise to full height:
It probably requires oil (check with table in down posi-
tion). To ll cylinder with oil, follow these instructions:

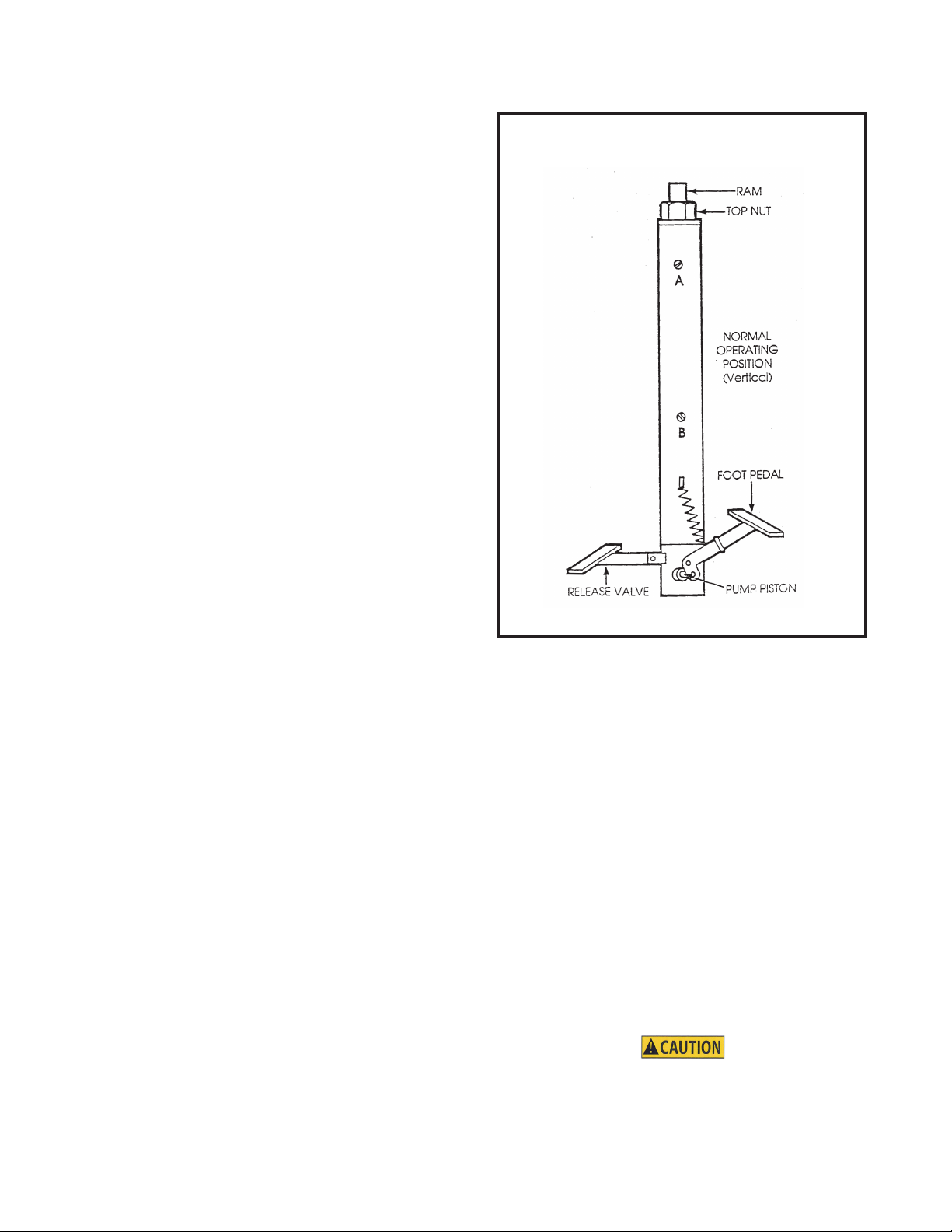

There are two pipe plugs in the cylinder. Vent Plug and
Oil Level Plug. Remove both plugs. Put a good grade
of hydraulic jack oil in the cylinder through the top
hole, replace both plugs. TOP PLUG IS A BREATHER
PLUG. BE SURE TO REPLACE PLUGS IN THEIR
PROPER PLACES.
If table does not load, or tends to creep downward
under a load:
1. Ram chevron set may be worn.
2. Dirt particle may be obstructing seating of the valve,
allowing leakage.

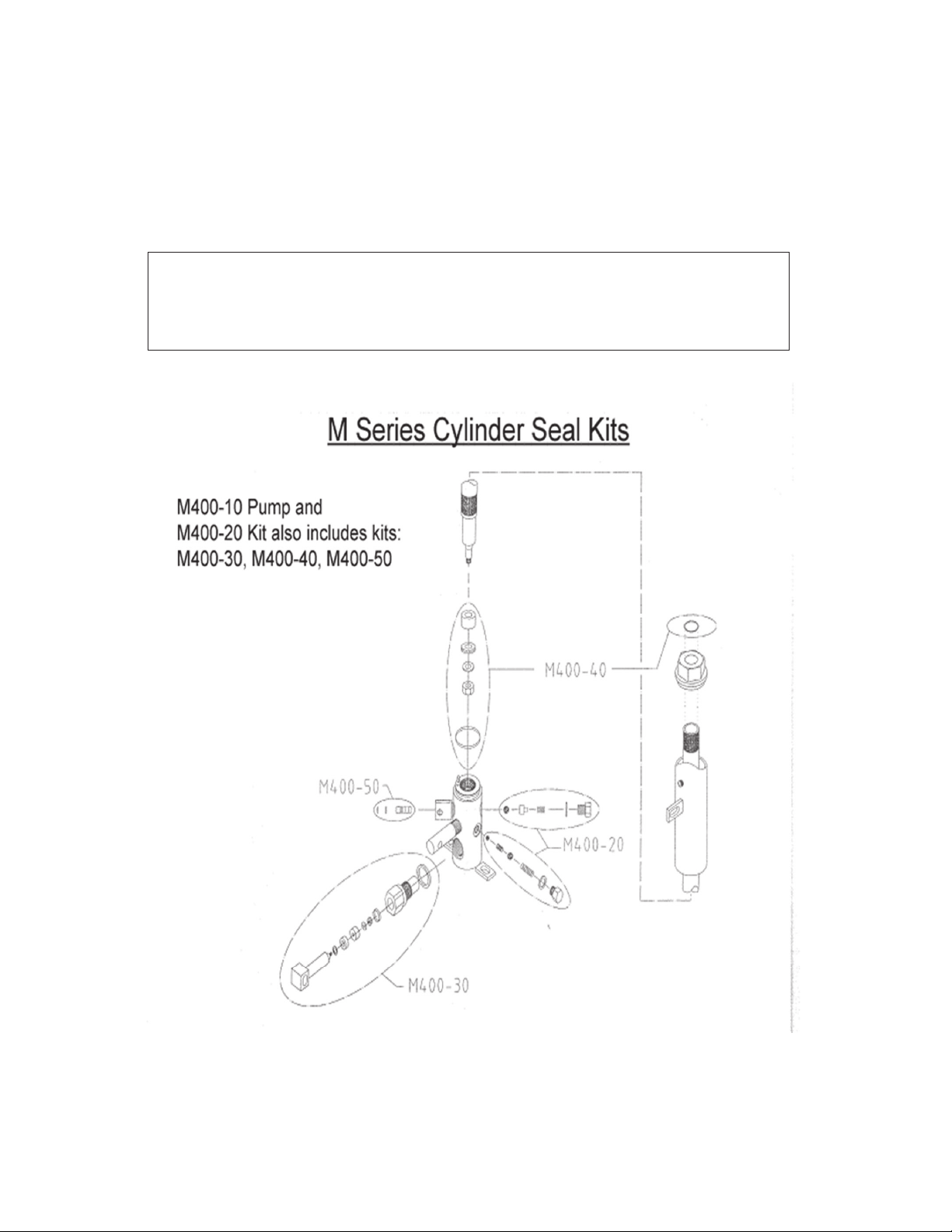

To replace ram chevron set in hydraulic cylinder as-
sembly:
1. Remove hydraulic cylinder from table and remove
Vent Plug and Oil Level Plug and drain oil from
cylinder.
2. Clamp pump body in vise, unscrew top hex nut and
remove outer cylinder.
3. Remove inner cylinder from pump making sure not
to distort or mar cylinder. Note: DO NOT use pipe
wrench.
4. Remove ram and replace chevron set.
5. Push ram into cylinder- chevron set last!
6. Reassemble and ll with clean hydraulic jack oil.
