Prestigio P199 Manuel utilisateur

1PRESTIGIO P199

ENG

Prestigio P199

User’s Manual

2 PRESTIGIO P199

ENG

Safety Instructions

1.Please read these safety instructions carefully.

2.PleasekeepthisUser‘sManualforlaterreference.

3.Pleasedisconnectthisequipmentfromconnecterbeforecleaning. Don‘tuseliquidorsprayed detergent for cleaning.

Use moisture sheet or cloth for cleaning.

4. Make sure the voltage of the power source when you try to connect the equipment to the power outlet.

5. All cautions and warnings on the equipment should be noted.

6. Never pour any liquid into opening, this could cause fire or electrical shock.

7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.

8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.

b. The equipment has been exposed to moisture.

c. The equipment has not work well or you can not get it work according to user‘s manual.

d. The equipment has dropped and damaged.

e. If the equipment has obvious sign of breakage.

9.DO NOT LEAVETHIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED,STORAGETEMPERATURE ABOVE 40?C,IT MAY

DAMAGETHE EQUIPMENT.

3PRESTIGIO P199

ENG

View of Monitor

Front View (1) Front View (2)

Back View (3) Side View (4)

991POIGITSERP4

ENG

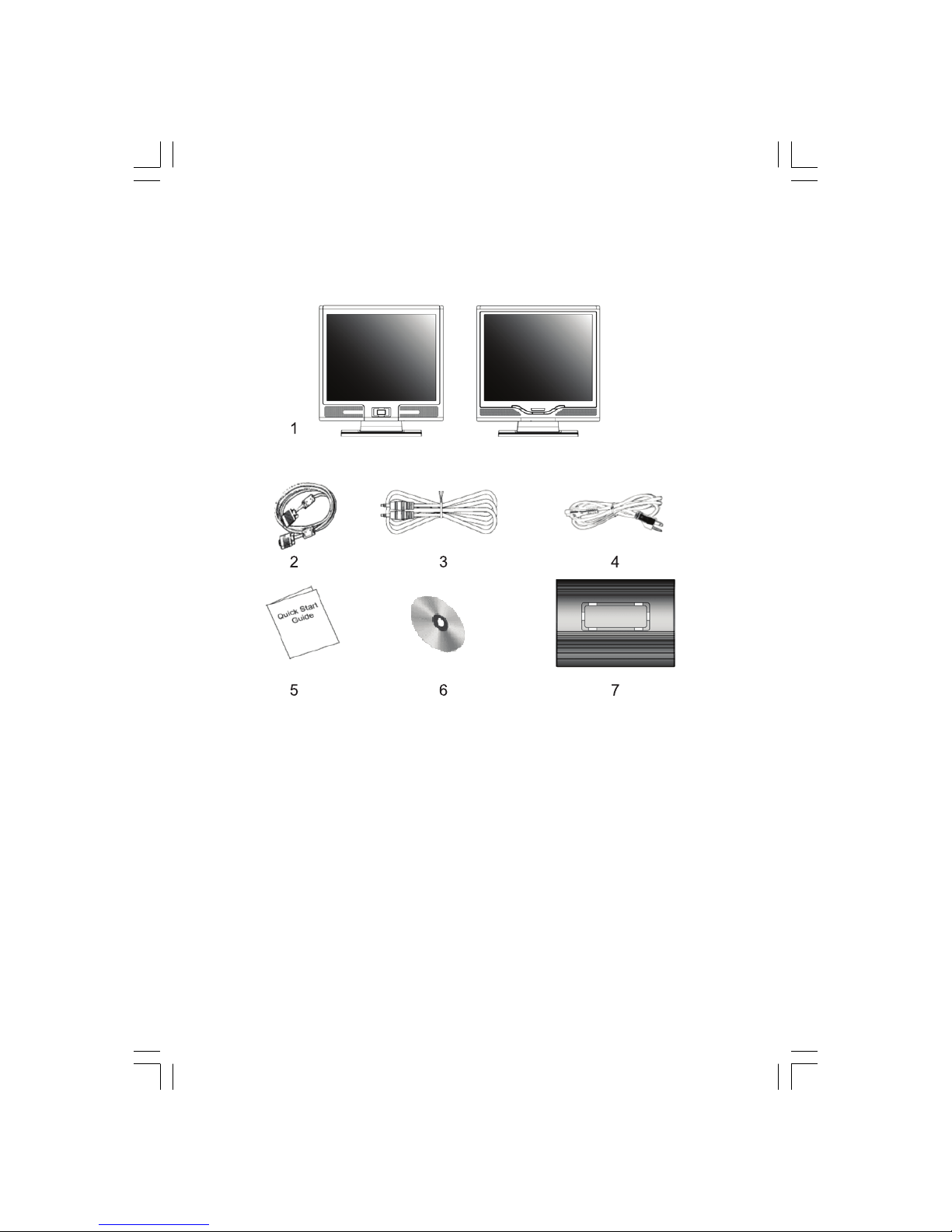

Unpacking

Thank you for your purchase.Please first check the following package content of the 19”LCD monitor.Contact your

dealer or store whereyou purchased the LCD monitor if anything is missing.

1. 19” TFT LCD Monitor

2. External Univ15 pin D-sub (RGB Analog) input signal cable *DVI. and Video are optional*

3. Audio Cable with Stereo Phone Jack

4. Power Cord

5. Quick Start Guide

6. CD User’s Manual

7. Quick Stand

5PRESTIGIO P199

ENG

Warning

1. Make sure that the system power is turned off.

2. Plug the signal cable to the signal connector at the rear of PC.

3.Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.

4. Connect the power cord to power source.

5.Turn on the computer and the monitor.

6.For the best display quality,we suggest that you set the resolution as shown page Display Mode.

Cleaning Notes

1. Be gentle to clean the screen.

2. Never use any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.

3. We suggest that a camel hair brush or a soft, lint-free cloth be used to clean the screen.

4.Don’t exert any pressure directly to the LCD screen.

Precaution

1. Do not expose the monitor to direct sunlight or heat.

2.Do not spill liquid on the monitor.

3.Do not attempt to open the monitor.You may be hurt by electric shock.For service,call your place of purchase.

4.Do not use your monitor when magnets or electronic products are operating nearby.

5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes

applied with mild solution.

6.Do not place anything on your monitor.Bad ventilation may elevate temperature in the monitor.

7.Don’t use your fingers to touch the LCD screen,directly.Fingerprint contains oil and may be difficult to clean.

6 PRESTIGIO P199

ENG

Features

Power Saving:

Thepower management complies withVESA DPMS standard. Whenthesystem is idle (OffMode), the monitor automati-

cally cut its power consumption to a level less than 5w.

Auto Adjustment Key Function:

With“AUTO”key,you can automatically adjust the display for your best view.

Wide Viewing Angle:

The horizontal 160°and vertical 150° offer you great screen view.

Plug and play compatibility:

With DDC1/DDC2B compliance,the monitor is plug and plays compatible to Windows 95/98/me/2000/XP.

Space Saving:

The monitor is designed with 220 mm in-depth to provide you with more hand room for desk working space.

Side-by-Side :

The monitor comes with 26.59 mm trimmed down frame to offer side-by-side operation

7PRESTIGIO P199

ENG

Hardware Installation

BecarefultoyourLCDmonitor.It’svery delicateandeasytobreak.TurnoffLCD’sandPC’spowerbeforeinstallation.Follow

the installation step by step described below.

Input

1. DC-IN: This is for connecting the power cable

2. AUDIO-IN: This can be connected to the audio-out connector of any sound resource.

3. VGA-IN : This can be connected with the D-Sub 15 pin signal cable.

4. DVI-I input: This is the connector for digital video signal inputs (option)

991POIGITSERP8

ENG

Hardware Installation Step by Step

1. Get ready with your Quick-Stand and hold your monitor firmly but gentle with your hands and let the panel

facing you to pedestal the monitor on the Quick-stand. When you hear the “Click” that means you have set up your

monitor in the first place successfully.

2. Turn your monitor upside down carefully with panel facing you to locate all connector port.

3.Plug in signal cable to VGA-IN of the monitor and the other side of the cable to the computer.

Hardware Installation Step by Step

9PRESTIGIO P199

ENG

4.Connect the audio cable to AUDIO-IN on the monitor, and the other side to computer line out.

5. Plug power cord onto the Power jack of the monitor.

6. Congratulations! You have just completed the hardware installation.

How to Remove Quick-Stand of Monitor

Remove Quick-Stand of the monitor by unlocking the six hooks as the illustration shows below when you need

to deliver the monitor for any reason.

991POIGITSERP01

ENG

Monitor Setup Button

Menu control button

There 5 keys for user to set up the monitor,including “Power”,“MENU“,“AUTO”,”<-> Down”,” <+> Up”.Please refer

to the introduction below.

1.“Power”:Turn the LCD power on and off.When the power is on, the light turns green,and standby in the color of

orange.

2.“AUTO”: Exit and save thesetting.Hot key for auto adjustment.

3. “MENU”: Press the button to display OSD main menu and select OSD Option.

4.“Up”:Increasethevaluein theOSD option.HotkeyforPC/Video/S-Video/TV mode.You canuse thebuttontoswitch

between PC,Video,S-Video,andTV modescreen.

5. “ Down”: Decrease the value in the OSD option. Hot key for volume adjustment.
