Prestigio Digital Media Adapter DMA-301

extended User’s Manual

Your Essential Guide

CE Declaration of Conformity

This equipment complies with the specifications relating to electromagnetic

compatibility EN 55022/A1 Class B and EN 50082-1. This meets the reasonable

protection requirements set out in the European Council Directive on the

approximation of the laws of the member states relating to Electromagnetic

Compatibility Directive (89/336/EEC).

Manufacturer’s Disclaimer

The information in this document is subject to change without notice and does not

represent a commitment on the part of the vendor. No warranty or representation,

either expressed or implied, is made with respect to the quality, accuracy, or fitness

for any particular purpose of this document. The manufacturer reserves the right to

make changes to the content of this document and/or the products associated with it

at any time without obligation to notify any person or organization. In no event will the

manufacturer be liable for direct, indirect, special, incidental, or consequential

damages arising out of the use or inability to use this product or documentation, even

if advised of the possibility of such damages.

This document contains materials protected by copyright laws. All rights are

reserved. No part of this manual may be reproduced or transmitted in any form, by

any means, or for any purpose, without the express written consent of its authors.

Product names appearing in this document are mentioned for identification purposes

only. All trademarks, product names, and brand names appearing in this document

are the property of their respective owners.

Packing List

Below are the items that should be included in your digital media adapter

package.

one digital media adapter

one base ring

one AC power adapter

one audio/video “combo” cable

one remote control

two batteries for the remote control

one CD-ROM containing this manual and the media server software

a quick installation guide

Before installing the system, examine the contents of the package carefully. If

anything appears to be damaged or missing, contact the supplier as soon as

possible.

System Requirements

To run the media server program included with your digital media adapter,and to

allow the media server to communicate with the digital media adapter, you must

have the following computer and networking equipment:

an IBM-type X86 microcomputer running Microsoft®Windows 2000 or XP

This is the hardware and software environment in which the media server

program runs. Other media server programs running in this and/or other

environments may also work with the media adapter if they adhere to the

UPnP AV (Universal Plug-and-Play Audio/Video) specification.

(Some anti-virus and firewall programs can interfere with the operation of

UPnP products such as your media server and media adapter. If the network

connection is good but there are problems with communication between the

media server and the media adapter, you may need to adjust or upgrade your

anti-virus or firewall software to allow UPnP operation.)

ample storage space for audio/video files

Files containing sound and/or pictures, especially moving pictures, can take up

a great deal of disk space. The computer should have at least one hard disk

with a capacity in the tens of gigabytes.

The disk you plan to install the media server on should have at least ten

megabytes of free space for the installation.

a 10/100-Mbps wired Ethernet or IEEE 802.11b/g wireless network interface

The server and the media adapter will communicate through a network

connection. The network can include other devices, or it can be a one-to-one

connection between the media adapter and the computer running the server.

The media adapter has two built-in network interfaces: one for a 10- or 100-

Mbps (megabits per second) wired connection (Ethernet or Fast Ethernet/RJ-

45), and one for an IEEE (Institute of Electrical and Electronics Engineers)

802.11b or 802.11g (11- or 54-Mbps) wireless connection. The computer

system running the server software must have a network interface based on

one of these specifications.

A plain Ethernet (10-Mbps) or 802.11b (11-Mbps WLAN) interface may be

sufficient if the server and the media adapter share the network with only few

or no other devices. Fast Ethernet (100-Mbps wired) or 802.11g (54-Mbps

wireless) capability though is strongly recommended.

If you are going to use a wired network connection, see “Network cabling,”

below.

Other requirements and computer-or network-related items that will be required in

some cases but not in others, are described below.

Batteries

You will need two size-AAA batteries for the remote control. Other common

designations for such batteries are UM-4, AM-4, R03, and LR03. One pair of

batteries is already included in the package.

Hub, switch, or access point (AP)

An Ethernet or Fast Ethernet hub or switch is required if the network is wired

and you connect more than two devices. An 802.11b or 802.11g wireless

access point is required if the connection is wireless and will provide a link to a

wired network (such as the Internet) or more than 2 devices form a WLAN-

network.

Internet connection

An Internet connection is required if you wish to use your digital media adapter’s

Internet radio streaming feature.(This means that a hub, switch, or

access point is also required. A common solution is to use a broadband

connectivity device — an ADSL or cable modem or router — with a built-in

hub, switch, or access point.)

Network cabling

A 10-Mbps wired connection requires a Category 3 unshielded or shielded

twisted-pair (UTP or STP) Ethernet cable. A wired interface with Fast Ethernet

(100-Mbps) capability requires a Category 5 UTP or STP cable.

Video and audio cabling

Almost every display device will take a coaxial composite video connection,

and almost every audio device will take a coaxial analog audio connection.

The included combo cable can be used to make both of these connections.

(Plugs and jacks for these connections are almost universally color-coded

yellow for composite video, white for the left audio channel, and red or brown

for the right audio channel.)

Chances are, however, your audio/video equipment can take connections that

provide better picture and sound quality than composite video and analog

audio connections.

Assuming you want the best possible sound and picture quality, you will need

to purchase additional cabling if —

•Your TV or projector accepts S-Video or YPBPRcomponent video

signals.

A YPBPRcomponent video connection (three coaxial jacks colored red,

green, and blue) is preferable to an S-Video connection (usually one

round, four- or seven-contact DIN jack); either one is preferable to a

composite video connection.

A YPBPRconnection carries only video signals. You can use the

included combo cable for a YPBPRconnection; you will then need

separate audio cabling.

A DIN-type S-Video connection also carries only video. For this type of

connection you will have to purchase an S-Video cable. Assuming that

your audio equipment has coaxial analog audio inputs, you can use the

combo cable for audio.

If your TV or projector has a SCART jack (and no YPBPRinputs),

check to see if it can accept S-Video signals through the SCART

connection. If it can, you may need or wish to purchase a SCART

cable. SCART carries analog video or (if available) S-Video signals

(switching is automatic); it also carries analog audio signals. (One

Scart-to-Scart cable is included)

•You wish to use a digital connection for audio.

The media adapter outputs S/PDIF digital audio signals through its

TOSLINK®optical jack, a small, square connector that comes with a

protective plug installed. Your audio equipment may accept S/PDIF

signals through an identical connector, an optical mini-jack, or a

(usually orange) coaxial jack. Be sure to purchase the right kind of

TOSLINK cable, or an optical-to-coaxial converter and suitable cables.

As long as you have suitable equipment and cabling, you can use any audio

output in combination with any video output. Be aware that if you set the

DMA-301 in setup to route any Surround encoded Signal like AC3 directly to

the optical outlet, the analog outlet will not work since the decoding to stereo

is also disabled with this setting.

We strongly recommend using audio and video cables that are as short as

possible, and not using any kind of signal converter. (An adapter such as a

coaxial-to-miniplug analog audio cable, or a medium converter such as the

S/PDIF optical-to-coaxial converter mentioned above, is OK.)

Introduction

Congratulations on purchasing a fine digital media product — and thank you for

taking the time to read this manual.

We hope it won’t take too much of your time!

Your digital media adapter will work with many kinds of audio, video, and

networking equipment. Just finding the information you need to set it up can seem

like a daunting task.

For that reason, we’ve done our best to keep to the essentials in this manual.

If we made it a reference manual (like most manuals for digital products), it would

contain far more than you need to be able set up and use the system — and (if

you’re like us) there’s a good chance you’d feel like giving up before you found the

information you needed.

This manual is certain to be all you need, and to get you up and running very quickly,

especially if —

your network (existing or planned) is typical of home computer networks

your audio/video equipment is typical of home entertainment centers, and . . .

you read and carry out the instructions carefully!

You are no doubt eager for your digital media adapter to start its first playback-

performance. Let us, then, without delay, introduce the cast and help you set the

stage . . . .

Overview of the System

This section introduces the three main “players” in your digital media adapter,and

describes some of the roles they play.

Media Server

This is a program that runs on a computer on your network and lets you find

and select the “media files” and other content that you will later view and listen

to on your audio/video equipment.

Note: Strictly speaking, audio/video material is content, and media are the

substances and spaces through which it reaches us. There is, however,

a trend to refer to computerized audio/video material as “media.” In this

manual, we bow to this usage where necessary. Also certain files will

be addressed as “container”-types.

When you are ready to enjoy the content that you have selected, you just

leave the media server running. (It can run in the background, taking up

almost no screen space.) It will use the computer’s network connection to

communicate with the next part of the chain . . . .

Media Adapter

The media adapter connects to your network and audio/video equipment, puts

an attractive background image on your TV or projector screen, and lists the

media servers that it is in communication with. When you select a server, the

adapter lists the content available from that server.

When you select an item to play, the media adapter requests it from the media

server, the server sends it, and the adapter converts it into a form that your

audio/video equipment can output.

Last but not least : the device you use to communicate your wishes to the

media adapter . . . . :

Remote Control

When the media adapter displays a list on your TV or projector screen, an item

in the list is highlighted in some way. The handheld remote control has arrow

buttons for moving the highlighting to the item you want, a Select button for

activating that item, and buttons similar to those on tape and disc players for

controlling playback.

The media server, media adapter, and remote control play many roles — perform

many functions — in addition to those described above. You will learn all their most

important roles as you set the stage . . . .

Installing the Media Server

The media server software is supplied on the CD-ROM included with your digital media

adapter. It is normally the first part of the system that you install and use.

The software must be installed on a computer running Microsoft®Windows 2000 or

XP. A network connection is not required at the time of server installation, but will be

required soon afterward.

The computer should have lots of free disk space for the audio/video content you will

play. The server itself requires less than 10 megabytes of disk space.

You can install the server software on more than one computer on the same network.

Each running copy will appear as a different server on your TV or projector screen

when you start using your digital media adapter.

Install the media server as follows:

1. Bring up the Windows “desktop” display.

If the computer is already powered on and in windows mode, exit any running

programs until the desktop appears. If the computer is off, turn it on and wait

for the desktop to appear.

2. Insert the CD-ROM included with your digital media adapter.

An animated “splash” screen (accompanied by music) will automatically

appear in 15 to 30 seconds. It will be replaced by a e selection screen 15 to 30

seconds after that.

3. Click the language you prefer.

A function selection screen in the language you selected will appear. It will

contain commands for installing the server, viewing the quick guide and user

manual, and installing a reader for viewing the guide and manual.

Since you are reading these instructions, we assume that you have already

installed the reader if necessary and viewed the user manual. Only

instructions for installing the server are given here.

4. Click the command to install the server.

The installation program will display a message about extracting files, and

then a dialog box for selecting a language will appear. The language that you

select will be used in the next few steps and in the media server’s user

interface.

5. Open the list of languages, click the one you prefer, and click OK.

The installation program will display a message about preparing a “wizard,”

and then the license agreement for the server software will appear.

We assume in the next step that you have read the agreement and you

accepted its terms.

6. Click Yes.

A dialog box for specifying the location of the server in your computer's

directory tree will appear. We assume in this manual that you accept the

“default” (pre-set) location.

7. Click Next.

The installation program will display a dialog box for specifying the “folder” in

the Start menu’s Programs section that will contain commands for starting up

the media server and related programs. We assume in this manual that you

will accept the default folder.

8. Click Next again.

Installation will begin. The installation program will report its actions and

display a progress bar while installation is under way.

When installation is complete, a dialog box containing a completion message,

some options, and a Finish button will appear.

To enable an option, position the mouse over it and click so that a check mark

appears in its check box.

We recommend “clicking” the option to create a shortcut for the media server

on the Windows desktop. If you later decide to delete the shortcut, you can

easily do so without affecting the media server itself. (You can also create a

shortcut later if you leave the option unchecked, but that is more complicated.)

We assume below that you do not check the option to launch the media server

immediately. The next chapter starts with instructions on starting up the media

server without the help of the installation program.

(Besides, there are some “loose ends” to take care of: the CD-ROM is still in

the drive, and its function selection screen is still covering the entire desktop

display.)

One of the options lets you set the media server to start up automatically each

time Windows starts up. The server program itself provides same setup option,

so you can enable automatic startup now or later (and you can easily disable

or re-enable it any time you wish).

9. Click Finish.

The installation program will exit. The function selection screen that appeared

in step 3 will still occupy the display. Note the EXIT button in its top right

corner.

10.Click EXIT and remove the CD-ROM from the drive.

You may notice some changes on the Windows desktop and in the Start

menu. These are explained in the following chapter.

Repeat these steps on as many computers containing media on your network as you

wish. Note that each of these then will be a server.

Part 1. A Tour of the Media Server

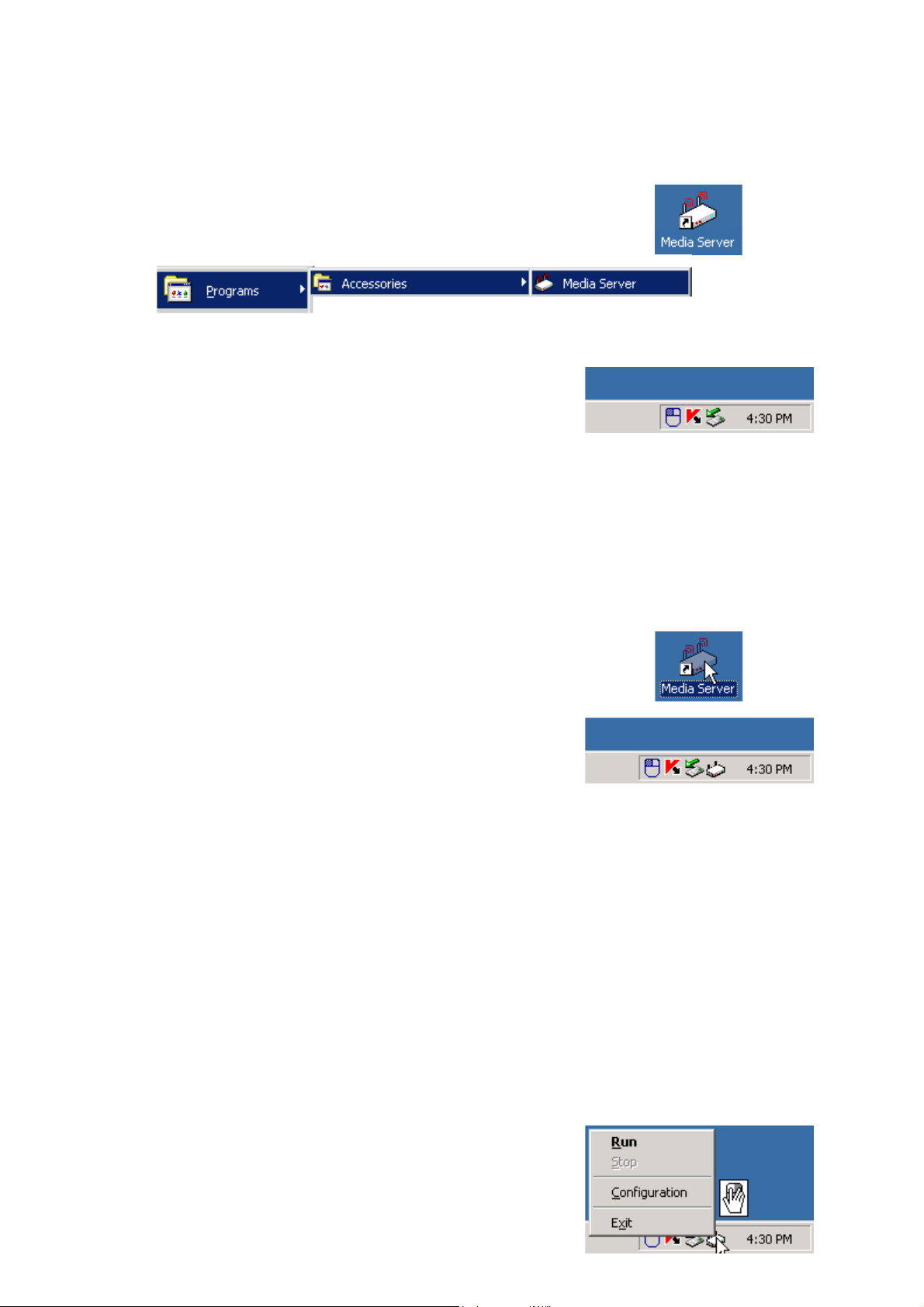

Installing the media server puts a new group in the Programs section of the Start

menu (below, left) and (assuming you selected this option during installation) a new

shortcut on the Windows desktop (below, right).



Before you start the server, examine the “system tray.” This is the

clock/notification area normally located at the right end of the task bar. What it

contains varies from computer to computer; the illustration here is only an

example.



To start the server, double-click its desktop

shortcut (or, if you prefer, open the Start menu,

go to Programs, open the Cyber Media Server

folder, and choose the Cyber Media Server

command).

After a few seconds, the server’s icon will appear in the system tray.

When the server starts up, it automatically announces its presence on the

network and waits for requests from media adapters for listing and content.

This is then shown by the animated “waves” emanating from the antennas on

the tray icon. When these waves appear, the server is said to be “actively

running.”

However, the first time the server starts up, it has no audio/video content to list

or send. Finding and selecting the content that you want it to offer is the first

part of server “configuration.”

It is through the tray icon’s command menu that you start the process of

configuring the server.



Autres manuels Prestigio Adaptateur

Prestigio

Prestigio Nobile 152C Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
