Operator Manual

Model 1172

INTENTIONAL BLANK PAGE

SX GO™ Operator Manual© Original Printed in English

IMPORTANT SAFETY INFORMATION

Definitions of Terms 1-1

Safety Rules & Procedures 1-2

INTRODUCTION

General Information 1-3

Technical Assistance 1-3

Specifications 1-4

Sharp EZ-Bags©1-5

Theory of Operation 1-6

Security 1-12

SET-UP & OPERATION

Machine Placement 2-1

Loading Bag Film 2-2

Loading Ribbon 2-3

Machine Operation 2-4

Maintenance/Cleaning 2-5

CONTROLS

Operator Controls 3-1

Home Screen 3-2

Dashboard Screen 3-2

Help Screen 3-3

Admin Screen 3-4

Settings Screen I 3-5

Settings Screen II 3-6

Settings Screen III 3-7

Options Screen 3-8

I/O Screen 3-9

Service Screen I 3-10

Service Screen II 3-11

About Sharp Screen 3-12

Dashboard Screen 3-13

Printer Configuration Screen 3-15

Barcode Verifier Configuration Screen 3-16

PRINTER CONTROLS

Control Panel 4-1

Display Icons 4-2

Loading Label 4-3

Configuring Labelview©4-3

Creating New Label 4-3

Adding Fields to Label 4-3

Saving Label 4-4

Downloading Label to Printer 4-4

FAULT & ALERT MANAGEMENT

HMI Fault Management 5-1

HMI Alert Management 5-3

Printer Fault Management 5-4

APPENDIX

Settings Summary 6-1

Sharp Warranty 6-2

Replacement Parts 6-3

TABLE OF CONTENTS

6-4

SX GO™ Operator Manual©Original Printed in English

DEFINITION OF TERMS

Throughout this manual, you will find the following

safety notices with the accompanying symbol.

This symbol signifies important safety issues re-

garding the operation and maintenance of the

Sharp SX GO™.

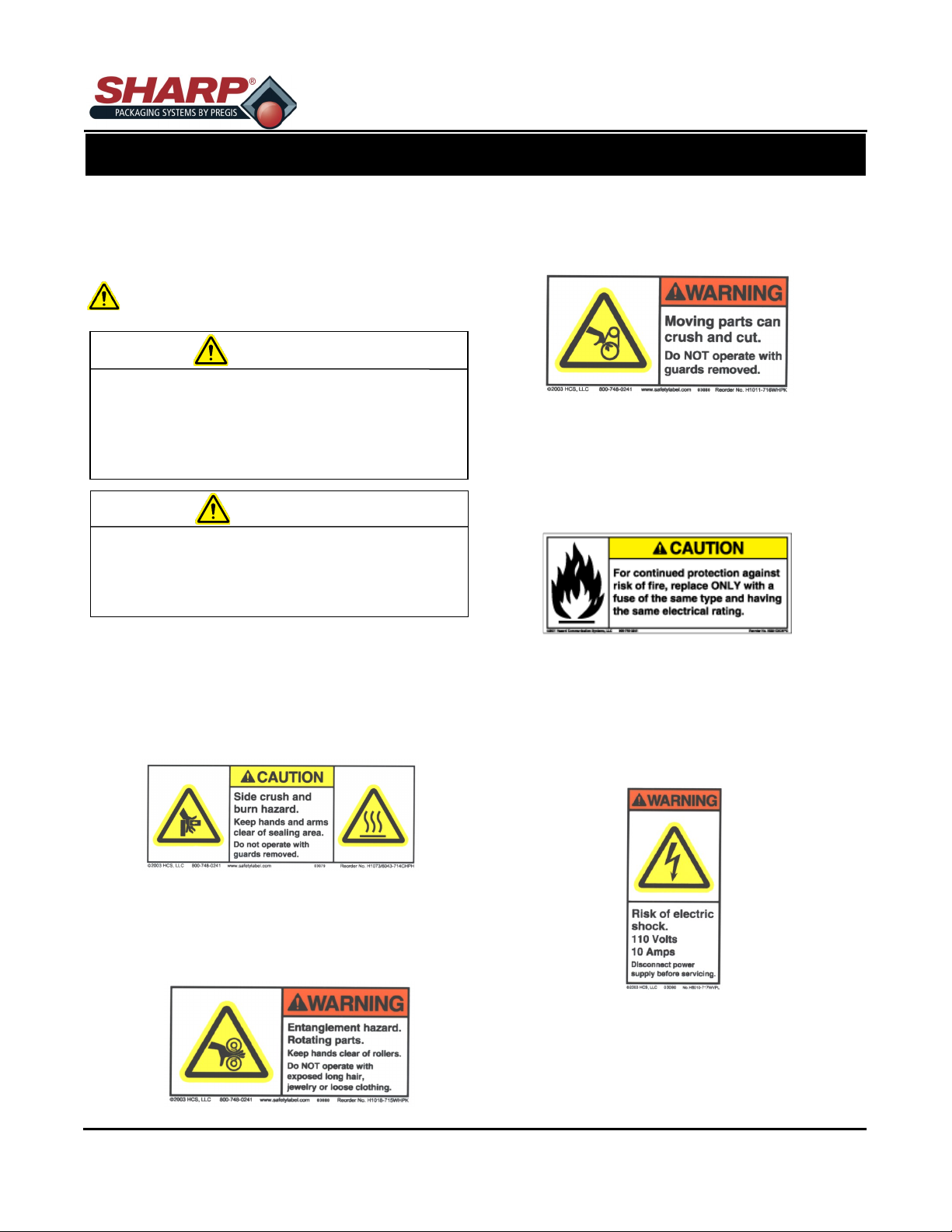

SAFETY LABELS

The following label is placed onto the Sharp SX GO™

wherever a removable shield, or panel, guards the

heated sealing area. Always disconnect electrical

power from the machine prior to removing any guards

and/or panels.

The following label is displayed where there is the po-

tential of your hands, long hair, jewelry, etc., becoming

entangled between two rotating parts. Be sure to se-

cure loose items before approaching and operating

the machine.

The following label on the Sharp SX GO™ is located

where there is potential of injury due to pinch points or

moving parts. Make certain electrical power is discon-

nected before removing any guards and/or panels.

The following label is located in the proximity of a

fused circuit. Be certain to replace blown fuses ONLY

with fuses with the same electrical rating. Always dis-

connect electrical power before removing any guards

and/or panels and servicing the Sharp SX GO™.

The label shown below is located on the Sharp SX

GO™ wherever a removable shield, or panel,

guards electrical components. Always disconnect

electrical power from machine prior to removing any

guards and/or panels with this label.

IMPORTANT SAFETY INFORMATION

1-1

GENERAL WARNING. Indicates information

important to the proper operation of the equip-

ment. Failure to observe may result in damage

to the equipment and severe bodily injury or

death.

WARNING!

GENERAL CAUTION. Indicates information im-

portant to the proper operation of the equip-

ment. Failure to observe may result in damage

to the equipment.

CAUTION

SX GO™ Operator Manual©Original Printed in English

The machine requires regular, periodic maintenance

to ensure reliable service. No maintenance should be

performed unless the safety precautions for the

maintenance are thoroughly understood.

Follow all instructions in this manual for safe opera-

tion.

Follow all company and industry standard safety poli-

cies regarding this kind of machinery that may exceed

those listed in this manual.

Keep all safety features, guards, interlocks and sen-

sors in good working order.

EQUIPMENT SAFETY FEATURES

The Sharp SX GO™ is equipped with a polycarbonate

shield covering the Jaw and Bag Open Fingers.

DO NOT operated the unit with this feature re-

moved.

OBSTRUCTION SENSING JAW

The Sealing Assembly is equipped with Obstruction

Sensing Sensors, which can detect an obstruction in

the Sealing Area. If the Jaw Sensors detect and object

preventing the Jaw from closing, the Obstruction Sen-

sors de-energize and place the machine into a fault

condition.

A message appears in the display informing the Oper-

ator of the Jaw Fault, allowing the Operator to clear

the Sealing Area and reset the bagging cycle.

IMPORTANT SAFETY INFORMATION

SAFETY RULES & PROCEDURES

1-2

Always remove electrical power from the unit

prior to performing any service on the machine.

WARNING!

Do NOT operate or perform maintenance with

exposed long hair, jewelry or loose clothing as

these may get caught in machine. Failure to do

so could result in severe bodily injury or death.

WARNING!

The Sharp SX GO™ is equipped with Jaw Ob-

struction Detection Sensors. These sensors are

not designed, nor intended , to be a safety sen-

WARNING!

SX GO™ Operator Manual©Original Printed in English

INTRODUCTION

ABOUT THIS MANUAL

This manual has been prepared for your use in oper-

ating the Sharp SX GO™ packaging machine.

It is important that you familiarize yourself with the

product as much as possible before operating or trou-

bleshooting.

Make sure you read through the IMPORTANT SAFE-

TY INFORMATION and THEORY OF OPERATION

sections of this manual before operating this machine.

The SX GO™ packaging machine is designed to be

an effective solution for manually bagging product,

dramatically reducing packaging costs and improving

package quality. The SX GO™ platform features an

integrated pivoting Printhead utilizing a Datamax A-

4212 Mark II printer.

Print Method Thermal Transfer, directly onto

surface of bag

Print Speeds 12”/second (304 mm/sec)1

Print Resolution 203 dpi (8 dot/mm)

Print Width (max.) 4.094” (104 mm)

The printer has full downloadable font support to Win-

dows® TrueType® (including multiple language and

Unicode support); Fixed, variable and merged test

fields; Flexible date/time formats; Flexible shift code

formats; Auto best before date calculations and con-

cession management; Auto incrementing/

decrementing text, counters and bar codes; Multiple

graphic formats supported (up to maximum print ar-

ea); Link fields to databases; Scalable text and blocks.

Your Sharp SX GO™ is the result of extensive re-

search and field testing with the following features:

 State of the art Step Logic Programming tech-

nique that logically controls each machine action

(step) in sequence and verifies that the correct

action occurred with sensor feedback.

 Simplified layout of digital outputs in PLC pro-

gram for ease of troubleshooting.

 Improved fault handling that can display multiple

fault conditions simultaneously.

 Simplified operator set-up.

 Displays all PLC I/O status, including Expansion

I/O.

 Manual pushbuttons on Service Screens provide

both text and color cues as to the state of the

device.

 Help Screens show setting range and default

values.

 Speed settings in inches/second instead of raw

numbers.

The materials used were selected for maximum dura-

bility and optimum performance. Every unit is thor-

oughly inspected and tested prior to shipment.

TECHNICAL ASSISTANCE

Assistance with the SX GO™ can be obtained by noti-

fying Sharp Packaging Systems at:

Sharp Packaging Systems

Corporate Headquarters

N56 W22387 Silver Spring Drive

Sussex, WI 53089 USA

Service: 800-634-6359 (ext. 1572)

Parts: 800-634-6359 (ext. 1571)

Fax: 262-820-0373

GENERAL INFORMATION

1-3

SX GO™ Operator Manual©Original Printed in English

PACKAGING SPECIFICATIONS

MACHINE SPECIFICATIONS

1Material, gauge and size of package, along with weight and size of product will cause rate to vary.

INTRODUCTION

SPECIFICATIONS

1-4

BAG WIDTH BAG LENGTH FILM GAUGE

MINIMUM 2” (5 cm) 3.5” (8.89 cm) 1 mil (25 microns)

MAXIMUM 18” (45.72 cm) 40” (101.6 cm) 4 mil (100 microns)

WIDTH HEIGHT DEPTH WEIGHT POWER RATE OPERATING

TEMP

HUMIDITY

RANGE

30”

(76.2 cm)

24”

(60.96)

34.5”

(87.63)

250 lbs.

(113.40 kg)

110VAC,

10A 35 BPM132° - 140° F

10% - 90%

RH, Non-

Condensing

SX GO™ Operator Manual©Original Printed in English

The Sharp SX GO™ is designed to use a wide variety

of bag sized and materials. Sharp EZ-Bags© are rec-

ommended for optimum operating performance, effi-

ciency and safety. System performance specifications

are base on utilizing consistent, high quality, pre-

opened bags. Any bag used must meet Sharp Pack-

aging Systems’ manufacturing tolerances. The follow-

ing list shows so me of the Sharp EZ-Bags© films

available through Sharp Packaging Systems, Inc.:

E-Z Bags©

 General Purpose

 Xtreme Poly (XP)

 Ultra

 HD Mailer

 Sharp Packaging High Density (SPHD)

 Polypropylene

 Sharp’s Military Specification Film

 Gamma Patient

 Sharp’s Metalized Barrier Film

 Electric Static Discharge (ESD)

 Modified Atmospheric Packaging (MAP)

 Sharp’s Non-Scratch Film

 E-Z Stat™ (Anti-Static)

 Vapor Corrosive Inhibitor (VCI)

Contact Sharp Customer Service at 800-634-6359 to

order Sharp EZ-Bags© and for information regarding

film and bag specifications.

THERMAL TRANSFER RIBBON

The Sharp SX GO uses thermal transfer ribbon to

print various information onto the bags as they pass

through the machine. The following is a list of ribbon

that is available through Sharp Packaging Systems.:

 Standard Direct Wax Ribbon

 Premium Was Resin Ribbon.

Contact Sharp Customer Service at 800-634-6359 to

order ribbon.

INTRODUCTION

SHARP EZ-BAGS© & RIBBON

1-5

SX GO™ Operator Manual©Original Printed in English

MODES

The bagger has four distinct operating modes: Manual, Auto, Filler, and Auto Filler. Manual and Auto modes

are built into the machine and require no optional equipment or changes to the Factory Configuration. Filler and

Auto Filler are optional and must be setup in the Admin and Setting II Screen.

To better define these terms, a Filler is a machine such as a weigh scale, vibratory bowl, or infeed conveyor that

will fill the open bag with product, prior to sealing the bag. A Filler requires the use of Handshaking I/O between

the bagger PLC and the Filler, so that the Filler will know when to deliver product to the bagger and the bagger

will know when to cycle.

The term AUTO refers to how the bagger cycles. If the machine cycles bags continuously without the operator

manually initiating each cycle start, not including the first bag out, then the machine is cycling automatically

(AUTO). If each bagger cycle requires the operator to manually press a cycle start button, foot switch, etc., then

the machine is said to be cycling in Manual Mode.

MANUAL MODE

Filler = OFF

Auto = OFF

Both the Filler and Auto buttons are OFF at the HMI. In manual mode, the operator hand loads or fills each

opened bag and then cycles the bagger. The operator initiates a cycle by one of these methods:

 Pressing the Cycle pushbutton on the HMI

 Operating the Foot Switch

In manual mode, the machine cycles one bag at a time. Cycle rates in this mode are largely dependent upon the

loading speed of the operator.

Filler Mode

Filler = ON

Auto = OFF

With Filler ON and Auto OFF, the bagger will run in “Filler Mode”. This mode cycles a single bag out each time

and requires the operator to initiate a Cycle Start for each bag. In this mode, a filler device or machine does the

actual loading or filling of the open bag.

The Filler uses handshake signals to synchronize with the bagger for product delivery. A bagger output, signals

the Filler to deliver product and a bagger input, signals when the Filler is done. For example, Filler Mode could

be used when an operator is hand loading literature after the infeed conveyor delivered its separate part or com-

ponent.

Ready for Filler (O-13) – The bagger PLC (Programmable Logic Controller) turns on this output as follows:

 The machine has successfully completed a cycle and presented a new bag. Once the above condition(s)

is (are) met the PLC program turns on O-13, essentially telling the Filler device that a bag is present and

ready to be filled. The filling device releases its product into the open bag.

Filler Done (I-11) - The Filler device will turn on the bagger PLC input I-11. This signals the bagger that the filler

has completed delivery of the product. The filler machine must include a dry contact isolation

relay for its signaling device to ensure electrical isolation between the Filler and the Bagger PLC.

THEORY OF OPERATION

INTRODUCTION

1-6

 The filler function has a separate detailed specification, “Sharp Packaging Filler Handshaking”. The spec-

ification covers all Sharp Baggers and includes signature sign-off lines so that Filling machine vendors

are in 100% compliance with this specification. This also ensures proper operation of a complete system.

AUTO MODE

Filler = OFF

Auto = ON

With Filler OFF and Auto ON, the bagger will run in “Auto Mode”. In Auto Mode the machine operator manually

fills the opened bag, while the machine cycles automatically. The Auto Dwell time is adjustable using the numer-

ic entry box located just to the right of the AUTO button.

The operator initiates the first bag out and Auto Mode is immediately activated. When the bag is opened, the

operator loads the bag (Auto Dwell Timer is timing). When the timer finishes, the bagger automatically starts the

bagger sealing cycle and feeds out the next bag. To cancel Auto Mode, the operator can press the Reset Button

on the HMI.

AUTO FILLER MODE

Filler = ON

Auto = ON

With Filler and Auto both ON the bagger will run in “Auto Filler Mode”. In this mode a Filler device is used to both

fill and automatically initiate the next cycle. This is accomplished by means of hand-shaking I/O provided in the

bagger's standard control interface. The Filler device must comply with the “Sharp Packaging Filler Handshaking

Specification”.

Parts Counting

Filler = ON

Auto = ON/OFF

Parts Counter = ON

Target Count – The numeric entry next to the “Parts Counter” button is the Target Count and is adjustable from

1-999. This button and numeric entry is located on Settings 2 screen.

Actual Count – The numeric entry next to the “Parts Count” displays how many parts have been counted. This

number resets to 0 once the bagger cycle is initiated or if Part Counter is turned off. This value can be edited

from the dashboard.

The bagger has a setting for counting parts. Parts Counting mode is used in conjunction with the Filler mode.

When the parts counter is turned on, the bagger counts each part as it is being loaded into the opened bag.

When the terminal count is reached, the Filler Trigger signal is turned on to start the Filler Drop Timer.

Parts can be loaded and counted in the following ways:

Filler

An automatic filling Machine can deliver one part at a time and signal the bagger using the “FILLER DONE” input

I-11. The bagger will count each rising edge of I-11 as a single part. When the parts counted equals the target

value, the filling cycling is completed and the bagger will automatically cycle after the drop timer has expired.

Hand Loading

THEORY OF OPERATION

INTRODUCTION

1-7

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pregis Équipement d'emballage

Pregis

Pregis Easypack Coiler Manuel utilisateur

Pregis

Pregis Easypack coiler-lite Manuel utilisateur

Pregis

Pregis Quantum Pro 4068969 Manuel utilisateur

Pregis

Pregis Easypack Quantum XT Manuel utilisateur

Pregis

Pregis AirSpeed SMART Manuel d'installation et d'exploitation

Pregis

Pregis SHARP MAX PRO 18 Manuel utilisateur

Pregis

Pregis SHARP MAX-PRO Manuel utilisateur

Pregis

Pregis packmaster pro 383 Manuel utilisateur

Pregis

Pregis SHARP MAX 1143 Manuel utilisateur

Pregis

Pregis SHARP SX Manuel utilisateur

Pregis

Pregis EASYPACK QUANTUM Series Manuel utilisateur

Manuels Équipement d'emballage populaires d'autres marques

U-Line

U-Line S-15188 Manuel utilisateur

ITATOOLS

ITATOOLS ITA22 Manuel utilisateur

Fieldpiece

Fieldpiece MG44 Manuel utilisateur

Smart wasp

Smart wasp X300 Manuel utilisateur

U-Line

U-Line S-1135 Manuel utilisateur

Z.R. Tools

Z.R. Tools MS25-1 Manuel utilisateur

Sipromac

Sipromac SIPROVAC 620A Manuel utilisateur

strapex

strapex STR 66 Manuel utilisateur

U-Line

U-Line H-5334 Manuel utilisateur

Imetec

Imetec Q5901 Manuel utilisateur

Transpak

Transpak TP-201 Mode d’emploi

Lacor

Lacor 69352 Fiche technique

Eastey

Eastey EXS-100 Manuel utilisateur

Inova

Inova SV 125 Manuel utilisateur

CombiSteel

CombiSteel 7529.0010 Manuel utilisateur

HUALIAN

HUALIAN HVC-260T/1A Manuel utilisateur

U-Line

U-Line H-2079 Manuel utilisateur

Strapack

Strapack iQ400 Instructions de fonctionnement
