Pregis EasyPack GeoTerra Manuel utilisateur

PregisEasyPack®GeoTerra™

Manual Dispenser

User Manual

Revision A

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

Table of Contents

1Introduction.........................................................................3

2General Safety .....................................................................4

3Assembly and Inspection ......................................................4

4Operation ............................................................................5

Loading ................................................................................6

Tension Adjustment and Use..................................................7

Unloading .............................................................................9

5Maintenance ......................................................................10

6Troubleshooting.................................................................11

7Specifications.....................................................................13

8Revision Table ................................................................... 14

LANGUAGES OF OPERATION DISCLAIMER

The original version of this manual is in English and denoted “Original Instructions” in the top center header.

All translated versions are denoted “Translation of Original Instructions” in the same location.

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

Property of Pregis LLC

227 W Monroe St

Suite 4100

Chicago, IL 60606

United States of America

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

1Introduction

GeoTerra is a paper-based, wrappable packaging which provides light cushioning and interleaving

protection as it nests within itself, locking products into place. The material starts flat while on a roll, but

as it is stretched a lattice structure is created.

The GeoTerra Manual Dispenser is used to apply tension to the flat roll, stretching and expanding the paper

at the point of packaging. The Manual Dispenser makes roll changes and tension adjustments simple with

two lightweight, easy-to-use core chucks.

GeoTerra Paper Material:

Item #

Formulation

Bundle Width

Bundle Length

4088373

50#

15-in

950-ft

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

2General Safety

The following instructions are only a guideline and should be considered a supplement to your plant’s

comprehensive safety program. Your business’ policy supersedes these guidelines if at any time the two

contradict each other. Please read and understand the manual including all danger, warnings, and caution

statements. If after reading the manual you have questions, contact your supervisor or the Pregis service

desk to get answers before working with the machine.

1. Keep the work area clean and uncluttered. Walking surfaces should always be free of packing

material and debris to prevent slipping or tripping hazard.

2. Follow your business’ guidelines and policies for properly lifting loads exceeding 20 lbs.

3. Ensure Manual Dispenser is properly secured to work surface prior to use.

3Assembly and Inspection

Parts to be assembled and inspected by Pregis technicians.

If machine requires maintenance or repair, contact Pregis Tech Service Hotline

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

4Operation

Idle Side Chuck Placement

Friction Side Chuck Placement

FLANGE INSIDE OF FRAME

TETHER ON OUTSIDE OF

FRAME

TETHER ON OUTSIDE OF

FRAME

FLANGE INSIDE OF FRAME

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

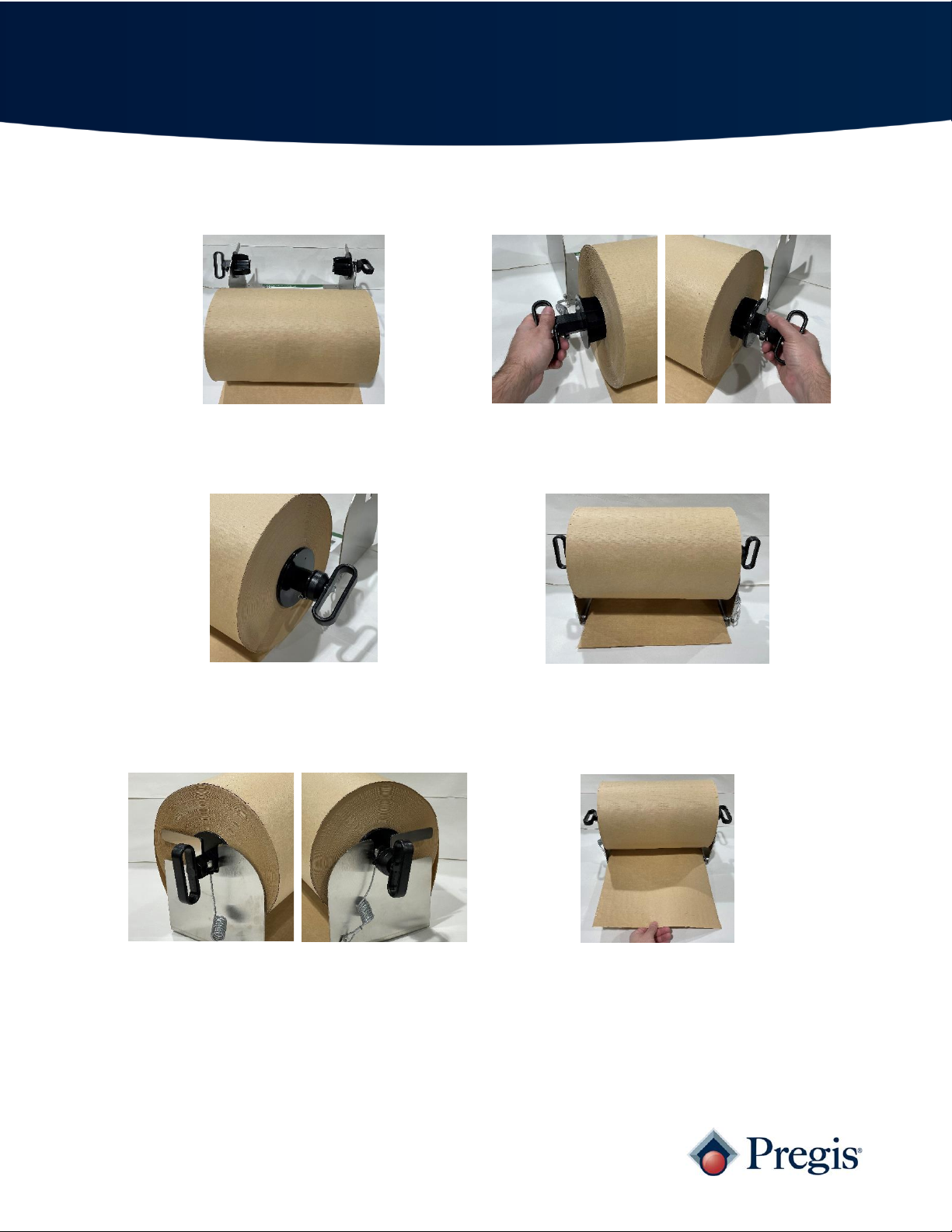

1) Remove Roll from packaging. Set roll on table

in front of dispenser.

2) Insert Core Chucks –one at each end of the

roll.

3) Ensure each is fully inserted (the plastic should

be flush).

4) Lift by Core Chucks, set into frame.

5) Check that Core Chucks are properly seated.

6) Pull the tail of material towards you. Adjust

tension as needed (see “Tension Adjustment

and Use”).

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

Tension Adjustment and Use

Adjustment Handle

The Manual Dispenser roll tension is controlled by only one of the two Core Chucks. The Adjustment Handle,

typically found on the right-hand side of the dispenser, is identifiable by Wave Spring between the Roll and

Adjustment Handle. The Idle Handle, typically found on the left-hand side of the dispenser, is ONLY used

to lift the roll, and does not have any adjustment.

IDLE HANDLE –NO ADJUSTMENT

ADJUSTMENT HANDLE

Changes Throughout Roll

Tension adjustments may be necessary as the roll is consumed. In general, tension will need to be increased

as the roll diameter gets smaller.

NO ADJUSTMENT FEATURES

WAVE

SPRING

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

Increasing Tension / Paper Is Not Expanding

If the paper is not expanding when pulled, then tension must be increased. Rotate the Adjustment Handle

CLOCKWISE. Do not overtighten if excessive resistance is felt in the handle. If the handle is fully tightened

and there is not enough tension in the paper, check the Troubleshooting guide below.

Decreasing Tension / Paper Is Tearing

If the paper is tearing when pulled, then tension must be decreased. Rotate the Adjustment Handle

COUNTERCLOCKWISE.

May 2023

Pregis EasyPack®GeoTerra™Manual Dispenser User Manual

Tech Service Hotline: 886-904-6979 (US), +39 33 11 34 16 65 (Italy),

00800 888 888 44 (All other European Countries)

Original Instructions

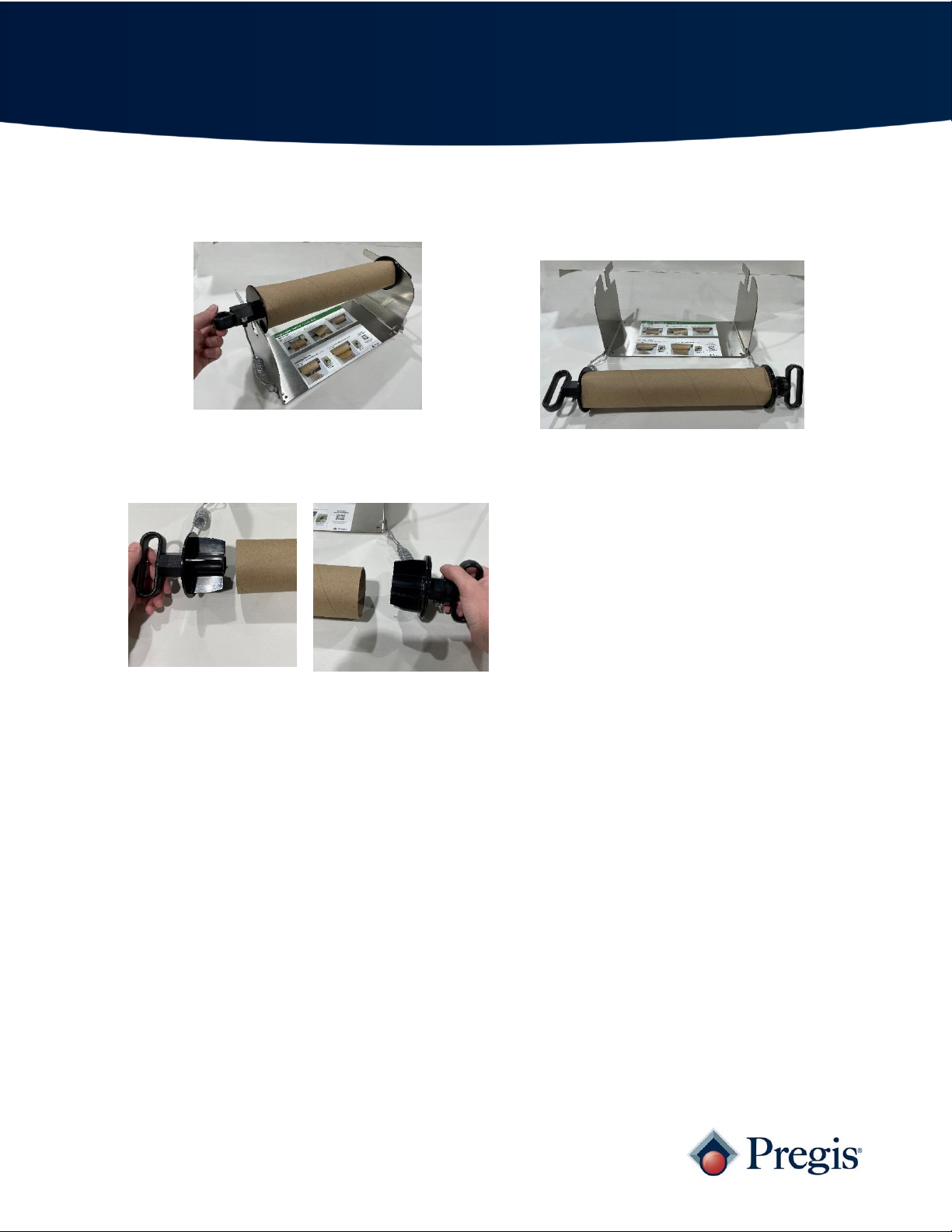

Unloading

1) Lift Core Chucks and Roll out of the dispenser

frame.

2) Set Core Chucks and Roll onto the

work surface in front of the

dispenser.

3) While holding the Roll, remove each Core

Chuck (one at a time).

4) Recycle the empty core and load the

new roll.
