CW-202 Assembly Guide
page 3
IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Important Safety Guidelines
for Owners
Follow these guidelines to maintain proper working
condition of the equipment:
Important: Do not modify the equipment or any of
its parts, or permanently remove any part from the
equipment. Do not use accessory attachments that
are not recommended by Precor, as such attachments
might cause injuries.
• Qualified technicians must perform all regular
maintenance.
• Make sure that trainers, facility personnel, and
maintenance technicians understand how to use
the equipment, know important safety guidelines,
and can recognize potential problems such as a
worn cable or cracked weld.
• Strength training requires a significant focus by the
facility and its staff to maintain the quality of the
fitness environment. If possible, the facility should
provide direct supervision of the fitness equipment
at all times by people knowledgeable about the
safe operation of the equipment and trained to
recognize potential problems.
• If any staff member witnesses unsafe use of
the equipment, he or she should address the
user directly, demonstrate the proper technique,
and review the Important Safety Information for
Users. Precor recommends posting a copy of the
Important Safety Information for Users near the
equipment in a prominent location.
• Make sure the equipment is stable and placed on
a solid, level surface. The equipment is designed to
be freestanding; however, equipment can be bolted
to the floor for extra stability. Consult a qualified
general contractor for proper fastening methods.
• Make sure that the equipment is installed with
enough free space for safe operation. With most
equipment, the general rule is to allow about a
4-foot (1.2-meter) circle of space from the user’s
center. For Functional Training equipment, make
sure that the operating space is large enough to
allow the cables to be fully extended in all possible
directions.
• Check the equipment thoroughly based on the
recommended inspection schedules outlined in
this manual, including daily, weekly, monthly and
annual checks.
• Place an “out-of-order” sign on the equipment
during maintenance of the equipment or the
surrounding area. Users should never be
allowed to operate the equipment until it has
been inspected and works properly. If a piece of
equipment needs service, keep it out of use until
repaired.
• Whenever a weight can drop and hit a user,
such as with an Olympic bench, Precor highly
recommends that a helper or spotter be used.
• Do not place the equipment outdoors or on wet
surfaces.
Obtaining Service
For information about product operation
or service, refer to the Precor web site
at www.precor.com where you can also
find customer support numbers or a list of
Precor authorized service centers.
If you call or e-mail Customer Support, have
the serial number available.
You can find the serial number printed on
a label affixed to the equipment. For future
reference, write the serial number in the
space provided below.
Serial number:
_______________________
CW-202 Assembly Guide
page 4
IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Important Safety Information
for Users
Before beginning any fitness program, you should
obtain a complete physical examination from your
physician.
French equivalent of the preceding paragraph, for the
Canadian market: Il est conseillé de subir un examen
médical complet avant d’entreprendre tout programme
d’exercise. Si vous avez des étourdissements ou des
faiblesses, arrêtez les exercices immédiatement.
When using exercise equipment, you should always
take basic precautions, including the following:
• If you do not understand how to operate a piece of
equipment, ask someone from the facility such as
a trainer to demonstrate how to use it and explain
any safety instructions.
• Do not allow children on or near the equipment.
Do not leave children unsupervised around the
equipment.
• Use the equipment only for its intended purpose.
Do not use accessory attachments that are not
recommended by the manufacturer, as such
attachments may cause injuries.
• Wear proper exercise clothing and shoes for your
workout—no loose clothing.
• Do not overexert yourself or work to
exhaustion. Use reasonable judgment when
working with weights. Avoid using excessive
weight, which may cause injury.
• If you feel pain, faintness, dizziness, or abnormal
symptoms, stop exercising immediately and
consult your physician.
• Keep head, limbs, fingers, and hair clear of all
moving parts while the equipment is in use. Keep
hands clear of racking pegs.
• Never drop or insert objects into any opening in the
equipment.
• Always check the equipment before using it. If
you spot a potential problem, contact someone in
the facility immediately. Do not use the equipment
until the facility has verified that the equipment is
working properly. Do not attempt to fix a broken or
jammed machine.
• Do not use the equipment outdoors or on wet
surfaces.
• Do not drop or slam the weight stack
while exercising.
• Do not use the equipment if an “out of
order” sign has been placed on it.
• Read all posted instructions, including
all safety instructions and warnings.
CW-202 Assembly Guide
page 5
Table of Contents
1
2
Table of Contents
Important Safety Guidelines for Owners............................................................................. 3
Obtaining Service .................................................................................................................................................... 3
Important Safety Information for Users............................................................................... 4
Preparations........................................................................................................................... 6
Unpacking the Equipment ....................................................................................................................................... 6
Required Tools......................................................................................................................................................... 6
Installation Requirements........................................................................................................................................ 6
Hardware Kit............................................................................................................................................................ 7
Assembly Instructions .......................................................................................................... 8
Open the Box........................................................................................................................................................... 8
Assemble the Unit ................................................................................................................................................... 9
Assemble the Pads.................................................................................................................................................. 11
Clean the Pads and Assembly................................................................................................................................. 11
Product Specifications..........................................................................................................12
CW-202 Assembly Guide
page 6
1
Preparations
Preparations
The CW-202 parts are inspected before shipment.
Each unit contains several pieces that require
assembly.You must obtain adult assistance during the
assembly process.
Unpacking the Equipment
When you open the box, carefully unpack the pieces
and lay them on the floor near the location where you
plan to use them.
CAUTION: Be careful when you remove the
packaging material with a utility knife. Do not cut
the upholstery or scratch the paint.
If any items are missing, contact the dealer from whom
you purchased the unit. For more information, refer to
Obtaining Service.
Required Tools
Tools that you need to obtain before assembling the
unit include:
❏Wire cutter or utility knife
❏¾-inch open-end wrench
Installation Requirements
Follow these installation requirements when
assembling the unit:
• Review the Important Safety Guidelines for
Owners.
• Assemble the unit where it will be used.
Provide ample space around the unit.
• Install components in the sequence shown.
•Insert all fasteners in the same direction.
For aesthetic purposes, insert all the fasteners
in the same direction unless specified (in text or
illustrations) to do otherwise.
• Leave room for adjustments. Tighten the
fasteners to keep the unit stable, but leave room
for adjustments. Do not fully tighten fasteners until
instructed to do so.
CW-202 Assembly Guide
page 7

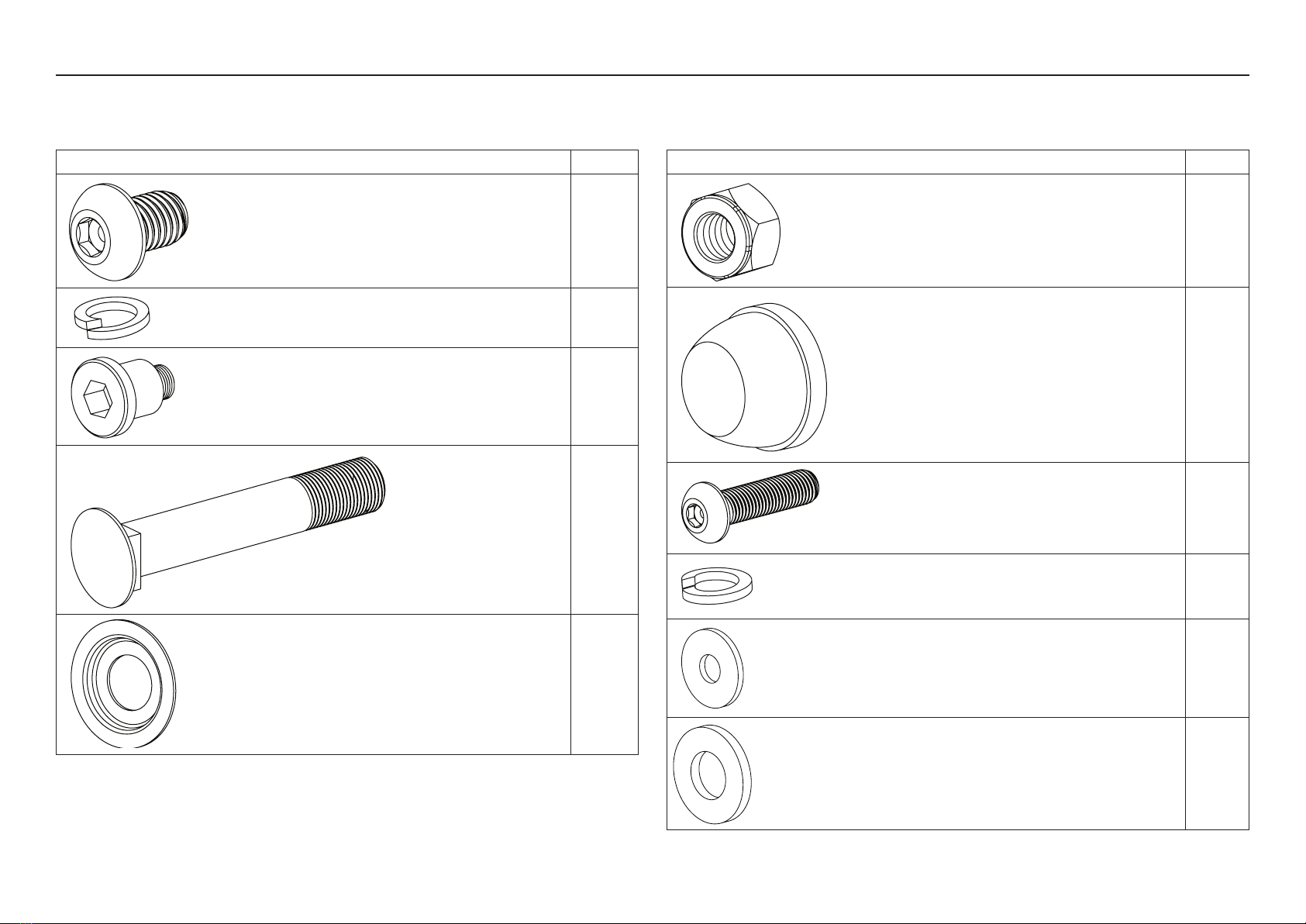

½ x ¾-inch Buttonhead screw (A) 4
½-inch Hat washer (E) 6
½-inch Locknut (F) 6
Fastener Qty
Hardware Kit
Preparations, continued
½-inch Split washer (B) 4
⁵⁄₁₆-inch Split washer (J) 6
Fastener Qty
½-inch Shoulder bolt (C) 1
⁵⁄₁₆ x 1¼-inch Buttonhead screw (H) 6
½ x 3-inch Carriage bolt (D) 6
⁵⁄₁₆-inch Washer (K) 6
Plastic cap (G) 6
¹₂-inch Washer (L) 6
CW-202 Assembly Guide
page 8
2
Assembly Instructions
Assembly
Instructions
Assembly of the CW-202 takes about 20 minutes to
complete. If this is the first time you have assembled
this type of equipment, plan on allowing more time.
Be careful to open boxes and assemble components in
the sequence presented in this manual.
Note: With so many assembled parts, proper alignment
and adjustment is critical. While tightening the
fasteners, be sure to leave room for adjustments. Do
not fully tighten fasteners until instructed to do so.
Open the Box
Use wire cutters to open the box and remove the
packing materials.

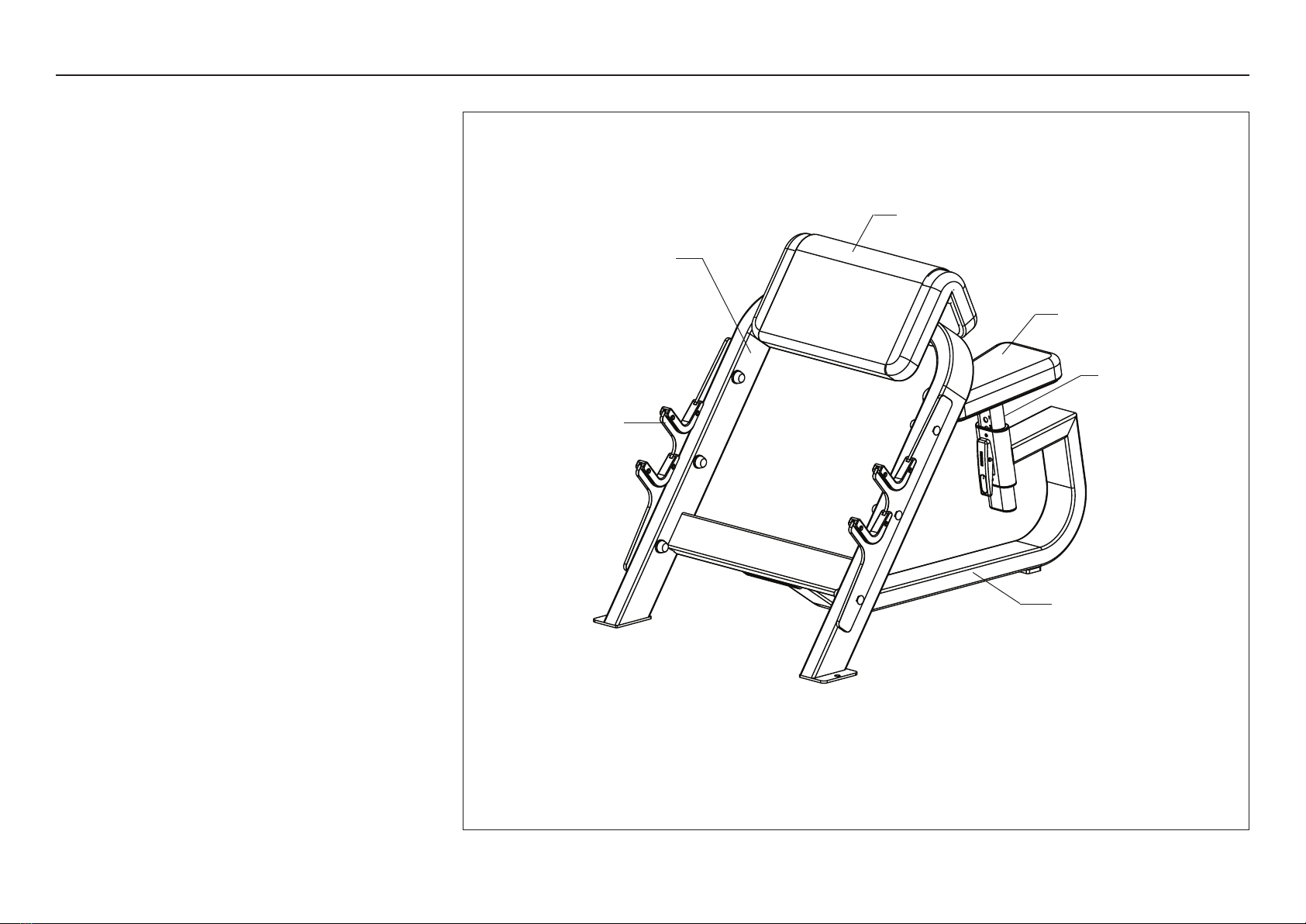

The illustration shows how the CW-202 will look when
you have completed its assembly. The callouts identify
specific pieces. Base Assem-
bly
Upright
Frame
Seat Adjust-
ment
Weight Bar
Plate
Seat Pad
Elbow Pad
CW-202 Assembly Guide
page 9

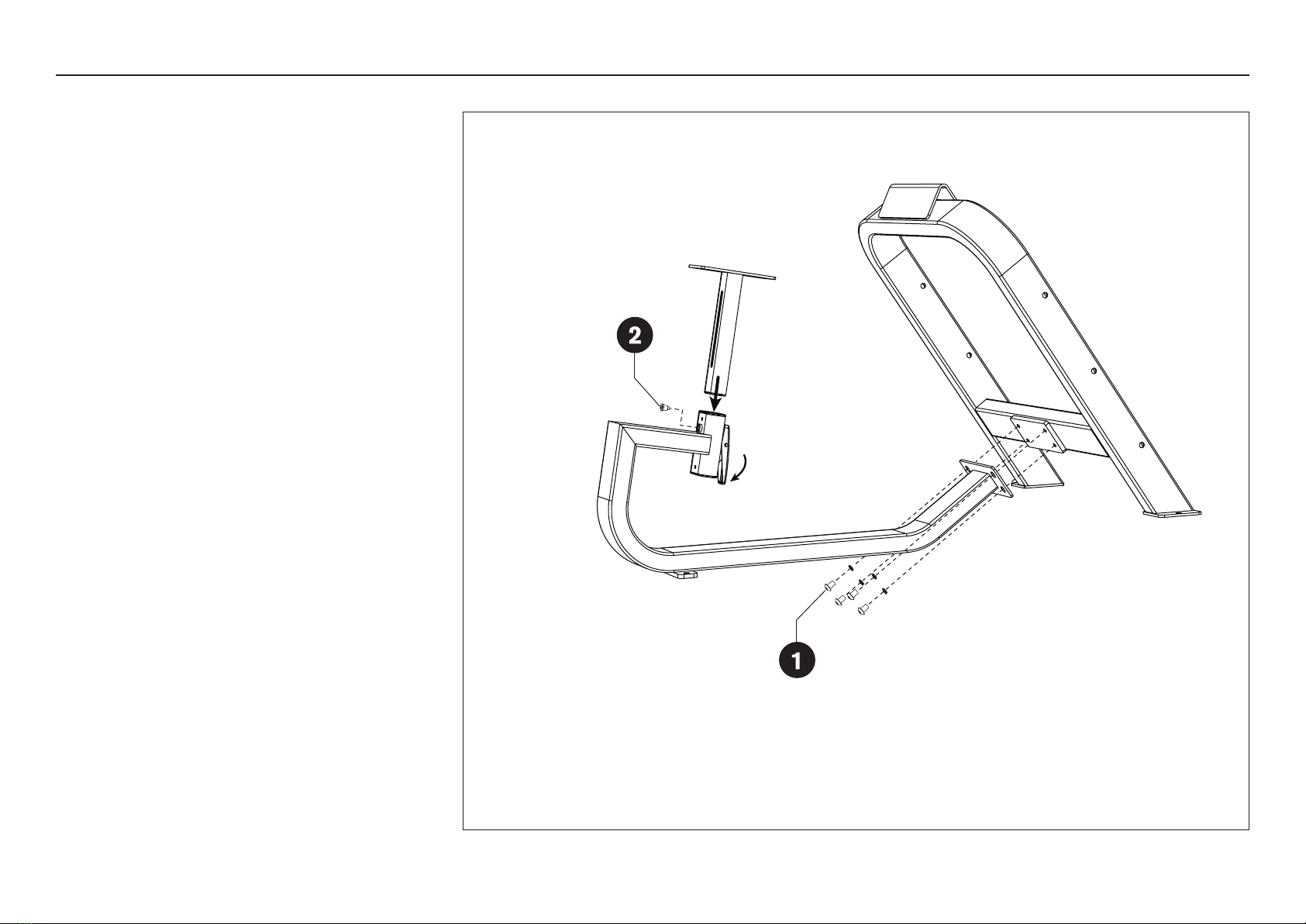

Assemble the Unit
1. Attach the Base Assembly to the Upright Frame
using
four ¾-inch buttonhead screws (A)
four ½-inch split washers (B)
Wrench tighten.
2. Press the handle on the Base Assembly and slide
the Seat Adjustment into the Base Assembly.
Release the handle while the pin is aligned with
one of the holes in the Seat Adjustment. Secure
the Seat Adjustment using one shoulder bolt (C).
Wrench tighten.
Assemble the Unit
4 - ¾” buttonhead screws
4 - split washers
1 - ½” shoulder bolt
CW-202 Assembly Guide
page 10
Assemble the Unit, continued
Important: In the following two steps, insert the
bolts so that their heads face outward on both
sides. If the heads of the bolts face inward, their
threaded ends can protrude far enough to damage
the finish on barbell weight plates.

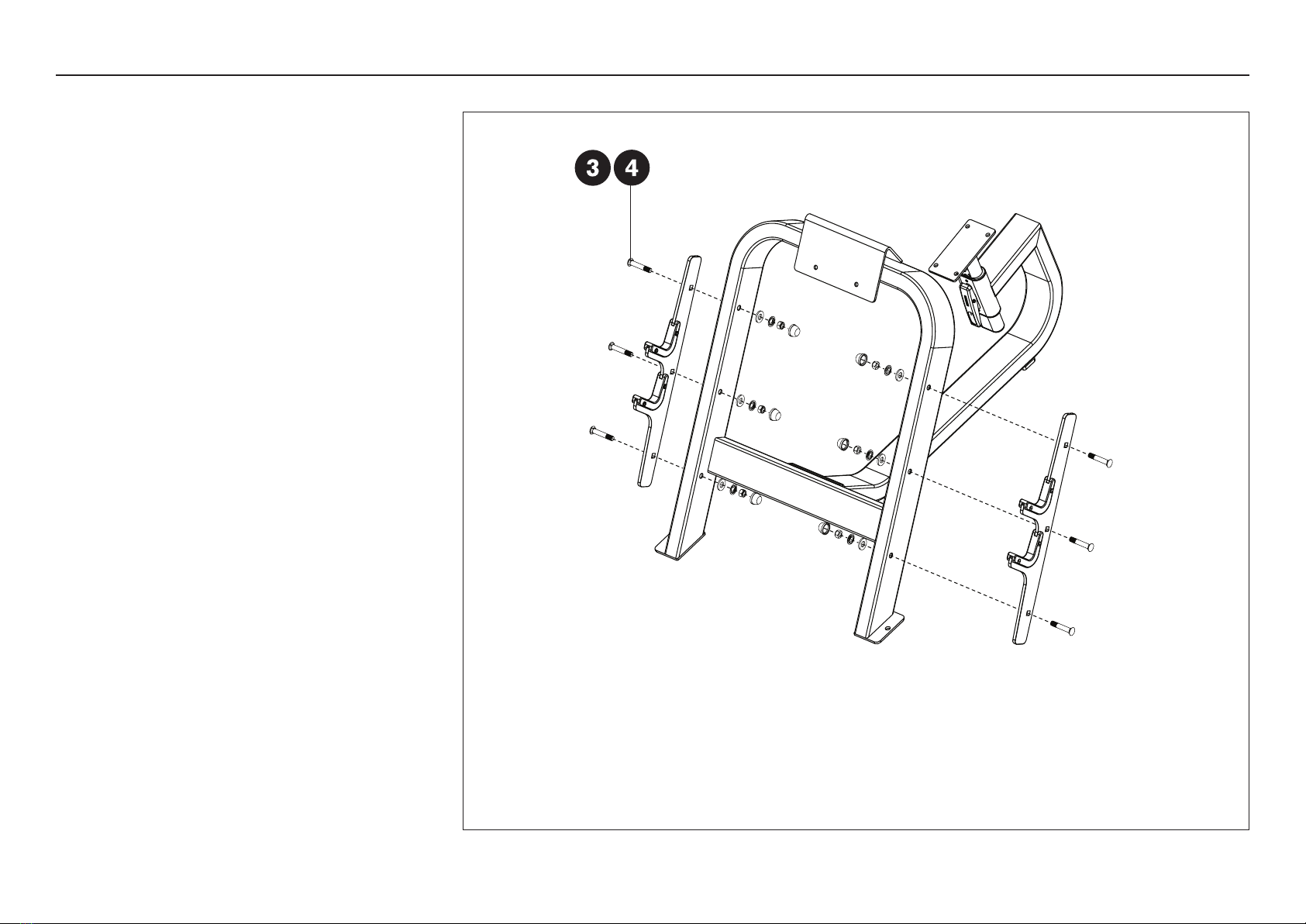

3. Attach the left-hand Weight Bar Plate to the outside
of the left-hand side of the Upright Frame using
three 3-inch carriage bolts (D)
three ½-inch flat washers (L)
three ½-inch hat washers (E)
three ½-inch locknuts (F)
Wrench tighten using a ¾-inch open-end wrench
and snap a Plastic Cap (G) over each locknut.
4. Repeat step 3 to attach the right-hand Weight Bar
Plate to the right-hand side of the Upright Frame.
6 - 3” carriage bolts
6 - washers
6 - hat washers
6 - locknuts
6 - plastic caps
