Precor EFX524 Manuel utilisateur

Light Commercial EFX®Owner’s Manual

COMMERCIAL PRODUCTS DIVISION

page2

COMMERCIAL PRODUCTS DIVISION

When using the EFX®, basic precautions should always be followed, includ-

ing the following:

• To ensure your safety and to protect the unit, read all the instructions

before assembling and using the self-powered EFX®524.

• To ensuretheproperuse andsafetyof theEFX,makesure thatall users

readthis manual.Pleasemake thismanuala part ofyourstaff’straining

program. Remind the users that before beginning any fitness program,

heor sheshouldobtain acompletephysical examinationfromhis orher

physician.

Il est conseillé de subir un examen médical complet avant d’entre-prendre

tout programme d’exercise. Si vous avez des étourdissements ou des

faiblesses, arrêtez les exercices immédiatement.

DANGER —

WARNING —

• Do not allow children or those unfamiliar with its operation on or near

the EFX. Do not leave children unsupervised around the EFX.

• Never leave the EFX unattended with the optional battery recharger

plugged in. Unplug the unit from the outlet when it is not in use, before

cleaning it, and before putting on or taking off parts.

• Assemble and operate the EFX on a solid level surface. LocatetheEFX

a few feet from walls or furniture. Check the unit before each use and

verifythatallfastenersaresecure. MaintaintheEFXingoodworkingcondi-

tion.(Seethe

Maintenance

section).

• Use the EFX only for its intended use as described in this manual. Do

notuse accessoryattachmentsthat arenot recommendedbythe manu-

facturer—such attachments might cause injuries.

• Use care when getting on or off the EFX. Use the stationary handrail

whenever possible. Keep your body and head facing forward. Never

attempt to turn around on the EFX.

• Wear proper exercise clothing and shoes during a workout—no loose

clothing.Tie long hair back.

• Do not rock the unit. Do not stand on the display console or casing.

• Never drop or insert any object into any opening. Keep towels and

hands away from moving parts.

• If you purchased the optional POLAR®chest strap, review the guide-

lines found in the

Precor Heart Rate Option Owner’s Manual

that is

supplied with that option.

• Do not overexert yourself or work to exhaustion. If you feel any pain or

abnormal symptoms, stop your workout immediately and consult your

physician.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electrical shock, always unplug the

optionalbatteryrechargerfromitspowersourcebeforeclean-

ing or performing any maintenance tasks.

To reduce the risk of burns,fire, electric shock, or injury to

persons, take the following precautions:

IMPORTANT SAFETY INSTRUCTIONS

page3

COMMERCIAL PRODUCTS DIVISION

•Keepallelectricalcomponentsawayfromliquidstopreventshock.Donot

set anything on the casing, handrails, or display console. Place liquids,

books, or magazines intheappropriatereceptacles.

• Never place your hand(s) or feet in the path of the roller arm because

injury may occur to you or damage may occur to the equipment.

• Never operate the unit if it is damaged,if it is not working properly,if it

has been dropped, or dropped in water. Return the unit to a service

center for examination and repair.

• Keep the optional battery recharger cord away from heated surfaces.

• Donot operatewhere aerosol(spray) productsare beingused orwhere

oxygen is being administered.

• Do not use outdoors.

• Do not attempt to service the EFX yourself other than the assembly and

maintenanceinstructionsfoundinthismanual.Referto

ObtainingService

HAZARDOUS MATERIALS AND PROPER DISPOSAL

The EFX524 has an internal battery which must be removed before the EFX is

scrapped.Thebattery containsmaterials whichareconsidered hazardoustothe

environment.Proper disposal of the battery is required by federal law.

To remove the battery from the EFX, take the following steps:

CAUTION: Unplug the battery recharger and disconnect it from

its receptacle at the rear of the EFX.

Tools required: Phillips head screwdriver and hex wrench set.

1. Remove both the right and left rear covers from the EFX.

2. Remove the top rear cover.

3. Unplug the black and red battery wires from the circuit board.

4. Separate the circuit board from the battery by removing four screws.

5. The battery is held in place with a metal bracket. Lift the battery away from

the bracket.

6. DisposeofthebatteryaccordingtothefederalHazardousWasteRegulations.

SAFETY APPROVAL

When identified with the ETL-c logo, the EFX has been tested and conforms to

the requirements of CAN/CSA-E-335-1/3-94, Safety of Household and Similar

Electrical Appliances.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

page4

COMMERCIAL PRODUCTS DIVISION

RFI — RADIO FREQUENCY INTERFERENCE

Federal Communications Commission Part 15

The EFX has been tested and found to comply with,

• theIECEMCDirective(internationalelectromagneticcompatibilitycertification)

• the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a commercial installation.The EFX generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

withthe owner’smanualinstructions,maycauseharmfulinterferenceto radio

communications. Operation of the EFX in a residential area is likely to cause

harmful interference. If this occurs, the user will be required to correct the

interferenceat hisorher ownexpense.

CAUTION —

Canadian Department of Communications

This digital apparatus does not exceed the Class A limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the Canadian

DepartmentofCommunications.

Leprésentappareilnumériquen’émetpasdebruitsradioéélectriquesdépassantles

limites applicables aux appareils numériques de la Class A prescrites dans le

RèglementsurlebrouillageradioélectriqueédictéparleministéredesCommunica-

tionsduCanada.

EUROPEAN APPLICATIONS

This product conforms to the requirements of the European Council Directive 89/336/

EEC,ElectromagneticCompatibilityandhas beentestedtothefollowingstandards:

EN55022, Limits & Methods of Measurement of Radio Interference, Information

TechnologyEquipment(ClassA).

EN50082-1, Generic Immunity Standard for Residential, Commercial and Light

Industrial Products (Class A).

ThisproductadditionallyconformstotherequirementsoftheEuropeanCouncilDirective

73/23/EEC,LowVoltageDirectiveandhasbeentestedtothefollowingstandard:

IEC 335-1, Safety of Household and similar Electrical Appliances.

European Applications

Thisproducthas beentestedtotherequirementsofEN55022,“Limits&Methods of

Measurement of Radio Interference, Information Technology Equipment.” Per that

standard,the EFX524is aClassAproduct.Inadomesticenvironment,thisproduct

maycauseradiointerference,inwhichcasetheuserisresponsibletotakeadequate

measurestoalleviatetheinterference.

Per FCC rules, changes or modifications to the EFX

not expressly approved by Precor, could void the

user’sauthority tooperatetheequipment.

page5

COMMERCIAL PRODUCTS DIVISION

EFX®SELF-POWERED FEATURES

ThepowersourcefortheEFXistheuser.Whena personworksoutontheEFXand

moves the foot pedals at a stride rate above 40 strides per minute, the power that

is generated allows the EFX to function properly.

Informationaldisplaysappearwhenthebatteryislowor whentheuser hasstopped

pedaling during a workout.The display provides minimal instructions to let you

know what to do to retain power.If the messages are ignored, the EFX will begin

shutdown procedures to maintain the charge of the battery. Refer to page 33,

InformationalDisplaysPriortoShutdown

An optional battery recharger can be purchased and provides sustained power to

theEFX. Ifyouplan tocustomize yourunit,theoptionalbattery rechargeris highly

recommended.Topurchasetheoptionalbatteryrecharger,checkwithyourdealer.

OBTAINING SERVICE

Do not attempt to service the self-powered EFX®yourself except for the

maintenancetasksdescribedin thismanual.The EFXdoesnot containanyuser-

serviceableparts.Forinformation aboutproductoperationorservice, contactan

authorized Precor Commercial Products Customer Service Representative at

1-888-665-4404.

Diagram 1

EFX serial number location.

Serial number label location

To help customer service personnel expedite your call, have your serial number

available.Theserialnumbercanbe foundon alabel nearthepowerreceptacleon

the rear cover.Refer to Diagram 1.If you have any questions regarding the EFX,

usethemodelandserialnumberswheneveryoucallyourPrecordealerorservicer.

Modelnumber: EFX®524

Unitnumber: _____ Serialnumber: _____________________________

page6

COMMERCIAL PRODUCTS DIVISION

ABOUT THIS MANUAL

Insidethis manual,youwillfindinstructionsforinstallingandusingtheself-powered

EFX. To maximize the use of the EFX, please study this manual thoroughly. The

manualuses thefollowingconventions foridentifyingspecialinformation:

“Note:”Containsadditionalinformation that appliestothe preceding text.

“Important:”Indicatesinformationto which you shouldpayspecial attention.

“CAUTION:” Indicates steps or information necessary to prevent harm to

yourself or damage to the equipment.

“WARNING:”Providesinstructionsto prevent electricaldamageto theequip-

ment and prevent injuries to yourself.

“DANGER:”Indicates steps you must take to prevent electrical shock.

page7

COMMERCIAL PRODUCTS DIVISION

Important Safety Information...........................................2

HazardousMaterialsand ProperDisposal .............................. 3

SafetyApproval ..................................................................... 3

RFI—Radio FrequencyInterference ..................................... 4

EuropeanApplications ........................................................... 4

EFX®Self-powered Features.................................................. 5

ObtainingService................................................................... 5

About this Manual .................................................................. 6

Unpacking the EFX®..................................................................................................9

StandardEquipment............................................................... 9

OtherEquipment .................................................................... 9

Acquiring theAppropriateTools .............................................. 9

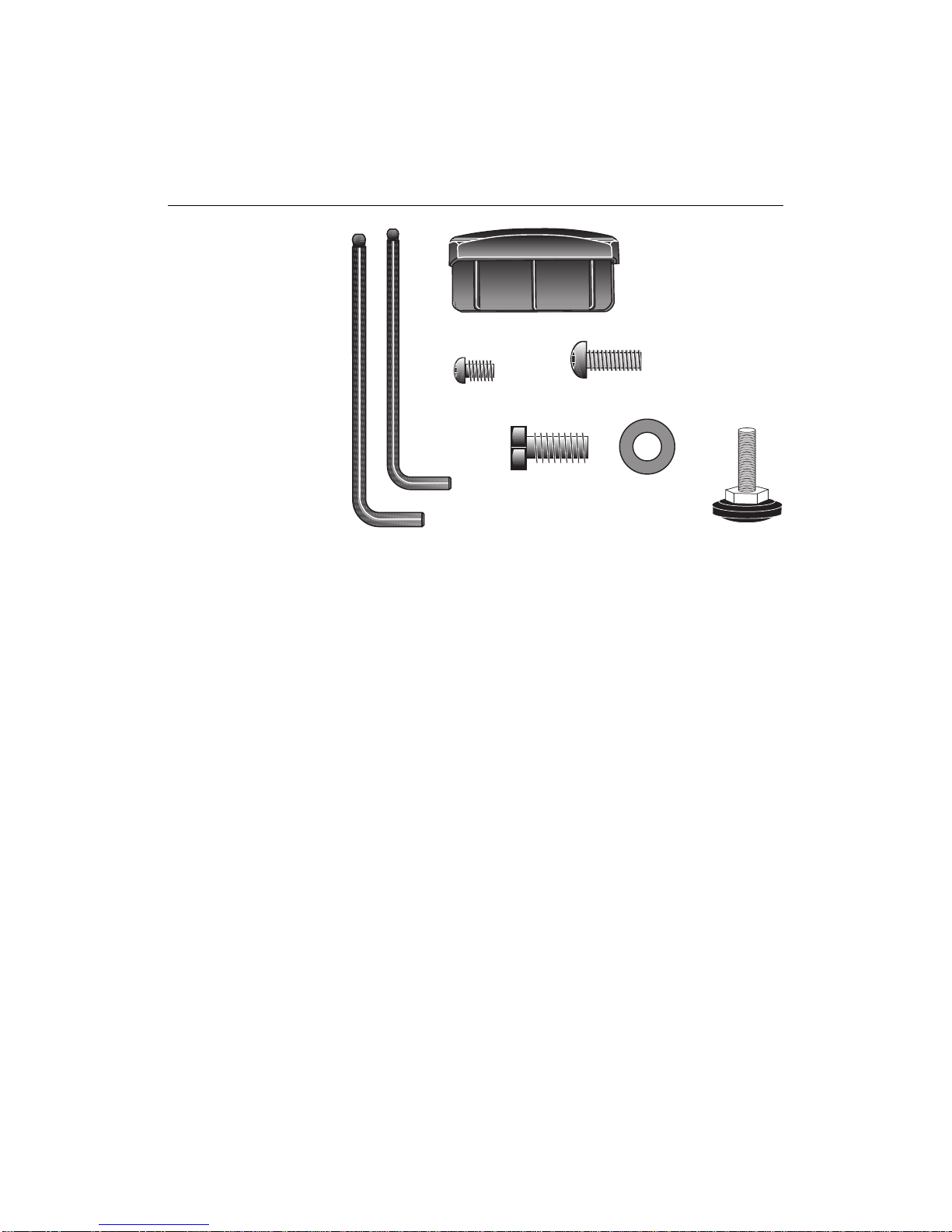

HardwareKit .......................................................................... 10

Setting Up the EFX .........................................................11

Installation Requirements ....................................................... 11

Assembly Instructions ........................................................... 11

RemovingtheLockingPin...................................................... 23

SupplyingPowerTo theEFX®524 ........................................... 23

Testing the Heart Rate Display ............................................... 24

Custom Settings Mode ..................................................25

Changing the CustomSettings ............................................... 25

DeterminingtheUnits of Measure .......................................... 26

Setting aWorkoutTime Limit.................................................. 27

Setting a PauseTime Limit .................................................... 27

Viewingthe Odometer,Hoursof Use,

SoftwareVersion, andErrorLog ............................................. 27

Using CSAFEStandard Equipment ........................................ 28

Table of Contents

page8

COMMERCIAL PRODUCTS DIVISION

Table of Contents

The EFX®524 Display .....................................................29

Featuresonthe Display Console............................................ 29

UserSetupPrompts............................................................... 30

Using Quick Start During the Setup Prompts ......................... 31

Smart Rate®Display .............................................................. 32

CenterDisplay........................................................................ 32

CrossRampDisplay ............................................................... 33

InformationalDisplaysPrior to Shutdown ............................... 33

Keys on the Display Console.................................................. 34

Exercising on the EFX®..................................................................................... 36

RemovingtheLockingPin...................................................... 36

TheHeart Rate Feature.......................................................... 36

Utilizing the Smart Rate®Feature........................................... 37

WorkoutTips .......................................................................... 37

UsingtheStationary Handrail ................................................. 38

Changing the Display Features using the Select Key ............. 38

Quick Steps to Working Out ................................................... 39

Cooling DownAfter aWorkout ................................................ 40

Pause, Cool Down and Exit Features ..................................... 40

Inserting the Locking Pin ....................................................... 41

Courses...........................................................................42

Manual Mode and the Quick Start Key................................... 42

GlutealCourse ....................................................................... 42

IntervalCourse....................................................................... 43

CrossTrainingCourse............................................................. 44

Weight LossCourse ............................................................... 44

Maintenance ...................................................................45

Cleaningthe Equipment ......................................................... 45

Storing the POLAR®Chest Strap ........................................... 45

Servicing the EFXandLongTerm Storage ............................. 45

Symptoms of a Low Battery ................................................... 46

UsingtheBatteryRechargerandIts PowerCord.................... 46

ReplacingtheBattery............................................................. 46

ExplodedViews...................................................................... 47

WarrantyCard ........................................................................ 53

Specifications ............................................................back cover

page9

COMMERCIAL PRODUCTS DIVISION

Thankyoufor purchasing theself-poweredPrecor EFX®524.

Important: Before using the EFX, we urge you to familiarize yourself and your

staffwiththe entireOwner’sManual.Understandingthismanual willhelpyouand

your customers use the EFX safely and successfully.

YourEFXiscarefullyinspectedbeforeshipmentsoitshouldarriveingoodoperating

condition.Precorshipstheunit inthefollowing pieces:

❑Base frame assembly ❑Base frame stabilizers (left and right)

❑Upright support ❑Display console assembly

❑Handrails(leftand right) ❑Bracket and side covers

❑Hardwarekitandowner’smanual

CAUTION: This unit weighs over 183 pounds (82 kilograms). To prevent

injuryto yourselfordamage tothe equipment, obtainappropriate assistance

before removing the unit from the pallet.

Ifanyitemsaremissing,contactyourPrecorCommercialProductsServiceRepre-

sentativeat1-888-665-4404.

STANDARD EQUIPMENT

TheEFX®524incorporates thePrecorSmartRate®andHeart Ratefeaturesintoits

displayconsole. Devices,suchas FitLinxx®,that areCSAFEcompatible,canalso

beattached.

Note:AnoptionalPOLAR®cheststrapcanbepurchasedandwornduringaworkout.

The chest strap transmits the user’s heart rate to the display console’s receiver.

OTHER EQUIPMENT

Optionalequipmentavailable throughyourdealer includes:

• Batteryrecharger

• POLAR®chest strap.

If you are interested in obtaining Precor option kits for your unit, check with your

dealer.For customer service, see

Obtaining Service

on page 5.

ACQUIRING THE APPROPRIATE TOOLS

Obtain the following tools

before

assembling the EFX.

❑Wirecutter ❑Phillipshead screwdriver

❑Rubbermallet ❑Hex torquewrench

❑Two9/16”combinationwrenches(open-end andbox)

❑SAE Standard socket set with socket extension for 1/2-inch and

9/16-inchbolts

Unpacking the EFX®

page10

COMMERCIAL PRODUCTS DIVISION

Diagram 2

EFX524

Hardware kit

HARDWARE KIT

Carefully unpack the parts from the shipping container.Open the Hardware Kit

and make sure that you have the following items as shown in Diagram 2:

❑(A) 3/16-inch hex key — secure handrails in handrail clamp

❑(B) 5/32-inch hex key — secure front covers

❑(C)Endcap

❑(D) Four Phillips-head 1/2-inch screws — attach display console

❑(E) Four buttonhead 3/4-inch screws — secure front cover

❑(F)Twenty hex head 1-inch bolts — attachupright,handrailsand stabilizers

❑(G)Twenty 3/8-inch bolts —attachuprightandstabilizerstobase

❑(H)Height adjustor

If any items are missing, contact your dealer.If you need customer service, refer

ObtainingService

onpage 5.

Note:Afterassembling the EFX, besureto store thehexkeys in asecureplace.

Thetools are usedformaintenance proceduresthat aredescribedinthismanual.

Autres manuels pour EFX524

Table des matières

Autres manuels Precor vélo elliptique

Precor

Precor Discovery Series Manuel utilisateur

Precor

Precor Resolute RSL 324 Manuel d'utilisation

Precor

Precor 5.31 Manuel utilisateur

Precor

Precor Elliptical Fitness Crosstrainer Experience 700... Manuel utilisateur

Precor

Precor Resolute RSL 314 Manuel utilisateur

Precor

Precor EFX EFX 821 Instructions de montage

Precor

Precor Precision 400 Series Manuel utilisateur

Precor

Precor Experience 700 line Series Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Precor

Precor Elliptical Fitness Crosstrainer EFX 5.25 Manuel utilisateur

Precor

Precor PRECISIONSERIES Manuel technique

Precor

Precor EFX 833 Manuel utilisateur

Precor

Precor EFX 5.33 Manuel utilisateur

Precor

Precor EFX Series Manuel utilisateur

Precor

Precor Elliptical Fitness Crosstrainer EFX 536i Manuel utilisateur

Precor

Precor EFX524 Manuel utilisateur

Precor

Precor Resolute RSL 605 Manuel utilisateur

Precor

Precor C542i Manuel utilisateur

Precor

Precor Crosstrainer 800 Manuel utilisateur

Precor

Precor EFX 835 Instructions de montage

Precor

Precor Resolute RSL 505 Manuel utilisateur

Precor

Precor Resolute RSL 623 Manuel utilisateur

Precor

Precor EFX 5.17i Manuel utilisateur

Precor

Precor Experience Series 800 line EFX Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur

Reebok

Reebok 1000 Zx Elliptical Manuel utilisateur
