USER’S MANUAL FOR
Precision Power
Model Number: PP36PB-12-EX
Review the following important safety warnings to avoid bodily
injury or damage to equipment during installation or operation of
this device.
Read ALL instructions before attempting to install or operate this
device.
This device is intended for indoor use only. To prevent
the risk of fire or eletrical shock, install in dry location
free from damp or wet environment, or potentially damp
or wet environment.
Adhere to all acceptable operating environment
limitations as listed to prevent the risk of of fire or
electrical shock (see user specifications within User's
Manual)
NO user-replaceable parts within this device. To avoid
bodily injury, risk of fire or electrical shock do not attempt
to remove cover of device.
Device is not designed for use with any alternate
connection to AC power than as stated within user
specifications of this user's manual.
WARNINGS
NOTE: The reference to “PB36-EX” within this User Manual
refers to Precsion Power Model PP36PB-12-EX and all
package accessories as listed below.
CONTENTS OF NXGM PACKAGE
NOTE: Please verify all standard contents are accounted for
upon receipt of PB36-EX
STANDARD: (1) DC Outdoor Rated Power Supply;(3) Cable
Ties; (1) 3- Pin Connector; (1) User's Manual
PB36 INTRODUCTION
The PB36-EX is designed and intended for use as an indoor or
outdoor rated, compact, wall mountable Vdc power supply for
devices with max rating of 12Vdc 36Watts. Specifically for use
with Indoor or Outdoor Rated 12Vdc Optical Network
Terminals. The PB36-EX is designed to provide constant
supply of 12Vdc output power during normal operating
conditions. PB36-EX is also designed with internal charging
functionality equipped to supply direct DC power and battery
INSTALLATION
STEP 1: INSPECT PACKAGE TO VERIFY ALL STANDARD CONTENTS ARE
ACCOUNTED FOR. REVIEW "CONTENTS OF NXGM-EX PACKAGE" FOR LIST OF
STANDARD CONTENTS

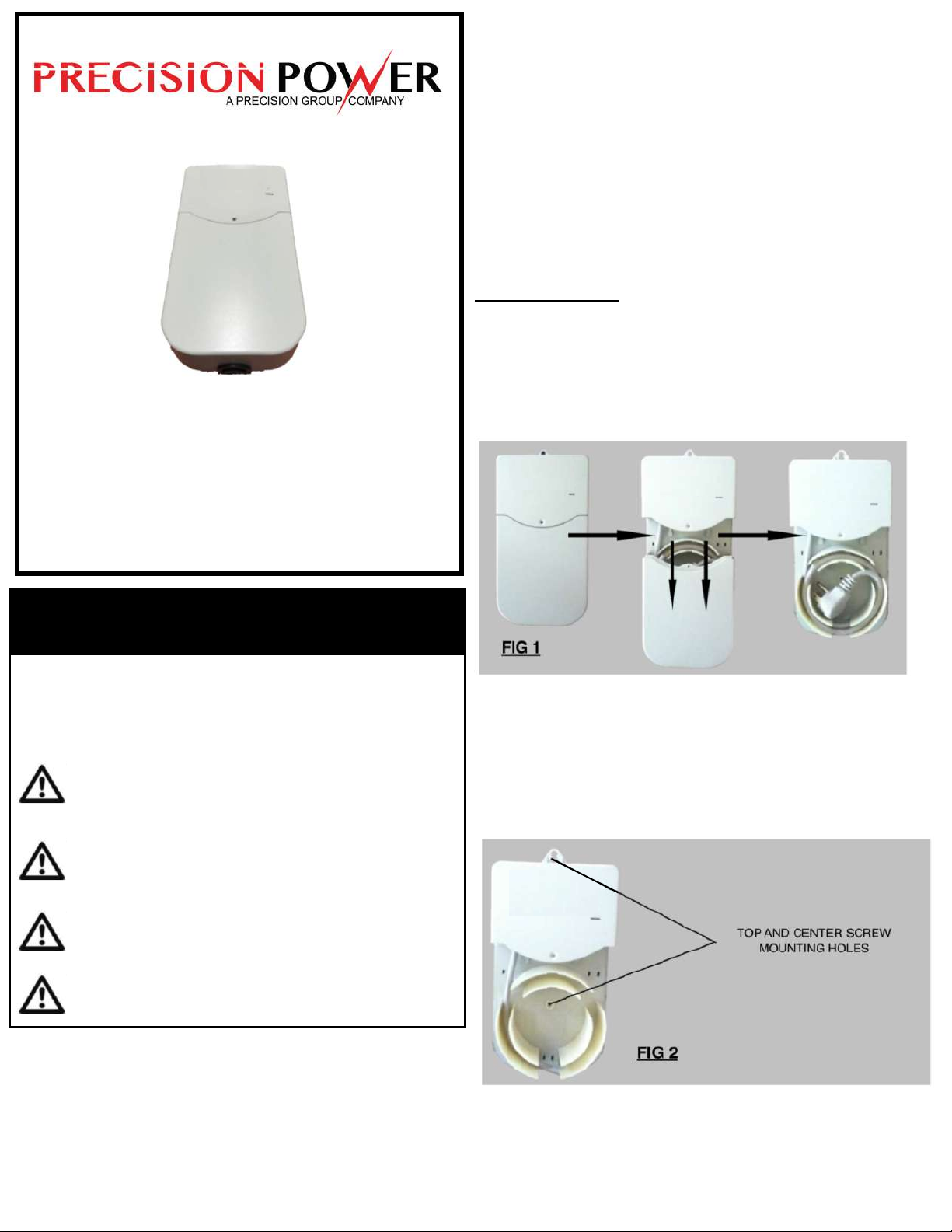

STEP 2: REMOVE CABLE STORAGE AND MANAGEMENT COVER (SEE FIG 1)
STEP 3: SECURE PB36-EX TO INTERIOR OR EXTERIOR WALL USING #8 OR #10
SCREWS (NOT INCLUDED). PLACE SCREWS IN TOP AND CENTER SCREW
MOUNTING HOLES ON PB36-EX (SEE FIG 2).
NOTE: ENSURE PB36-EX IS SECURED TO FLAT AND EVEN SURFACE. WALL
ANCHORS (NOT INCLUDED) MAY BE NEEDED FOR INSTALLING ON DRY WALL
FOR PROPER SECUREMENT.
FCC NOTICE
This equipment has been tested and found to comply with the
limit for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with these
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: (1)
Reorient or relocate the receiving antenna. (2) Increase the
separation between the equipment and receiver. (3) Connect
the equipment into an outlet on a circuit different from that to
which the receiver is connected. (4) Consult the dealer or an
experienced radio/TV technician for help.
CAUTION: Any changes or modifications could void the
authority granted by the FCC to operate this equipment.
NOTE: Precision Power reserves the right to change or
correct the contents of this document and does not assume
any responsiblity for ommissions or errors.
STEP 4: USING PROVIDED 3 PIN TERMINAL BLOCK, TERMINATE
RECOMMENDED 16AWG 2 OR 3 CONDUCTOR LOW VOLTAGE CABLE
(NOT INCLUDED) AS SHOWN IN FIG 3.
NOTE: 3RD PIN ON TERMINAL BLOCK IS ONLY USED WHEN OPTIONAL
INLINE BATTERY BACKUP IS INSTALLED. 3RD PIN PROVIDES
CHARGING VOLTAGE TO BATTERY. **3RD PIN IS NOT FOR
GROUNDING PURPOSES - CONNECTING ACTIVE GROUND TO 3RD PIN
CAN CAUSE PB36-EX TO OPERATE INCORRECTLY
STEP 5: CONNECT 3 PIN TERMINAL BLOCK TO PB36-EX
STEP 6: CONNECT PB36-EX VAC 3 PRONG PLUG TO STANDARD U.S.
120VAC OUTLET. VERIFY SYSTEM STATUS LED IS ILLUMINATED TO
CONFIRM ACTIVE VAC VOLTAGE IS NOW PRESENT.
SYSTEM STATUS LED - GREEN LED WHEN PB36-EX IS OPERATIONAL
STEP 7: ROLL UP EXCESS VAC AND VDC CABLE IN PB36-EX CABLE
MANAGEMENT TRAY
STEP 8: REPLACE CABLE STORAGE AND MANAGEMENT COVER AND
FASTEN "SECURITY" SCREW TO SECURE COVER TO PB36-EX
Core Telecom Systems
(888) 375-8826
www.coretelecom.net
