Index

1. Before the installation. ............................................................................................... 5

1.1. Selecting the Antenna Installation Site. ...................................................................................... 5

1.2. Recommended size of the pedestal ........................................................................................... 6

1.3. Safe Access from Radiation Hazard ........................................................................................... 6

2. Tools needed ............................................................................................................. 8

3. Unpacking the wooden crate with Pedestal base, step-by-step ................................... 9

4. Removing the Radome assembly to Install Router Equipment. .................................. 13

4.1. Step 1. Orienting the Antenna. .................................................................................................. 13

4.2. Step 2. Locating dome screws. ................................................................................................. 14

4.3. Step 3. Unscrewing dome screws. ............................................................................................ 14

4.4. Step 4. Opening the Radome. .................................................................................................... 15

4.5. Step 5. Unscrewing the gas lifters. ........................................................................................... 16

5. Fitting the routers inside the Antenna ....................................................................... 18

5.1. Step 1. Selecting installation area for the Routers. .................................................................. 18

6. Connecting Antenna RF Cables and closing the Radome ........................................... 19

6.1. Step 1. Replacing the dome....................................................................................................... 19

6.2. Step 2. Fasten all four M5 Cap screws ..................................................................................... 20

6.3. Step 3. Connecting RF Cables from Router/s to Antennas ..................................................... 20

6.4. Step 4: Connector layout inside the Antenna. .......................................................................... 21

6.5. Step 5. Closing the Radome. ..................................................................................................... 23

7. Antenna Mounting Templates .................................................................................. 24

8. Mounting the Antenna .............................................................................................. 26

8.1. Mounting WaveHunter with the Pedestal Option. .................................................................... 26

8.2. Mounting WaveHunterTM without the Pedestal. ....................................................................... 26

8.3. Following the recommendation to mount the .......................................................................... 26

8.4. Cable connections. .................................................................................................................... 26

8.5. External cables to the WaveHunterTM ....................................................................................... 27

9. Grounding and RF protection .................................................................................... 28

10. Installation check..................................................................................................... 28

10.1. Router check............................................................................................................................... 28

10.2. RF cable check. .......................................................................................................................... 29

11. After sale ................................................................................................................. 29

11.1. Maintenance and Service. ......................................................................................................... 29

11.2. Troubleshooting. ........................................................................................................................ 30

11.3. Spare Parts. ................................................................................................................................ 30

Page 4 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

Version Control.

Version Date Description of Changes Responsible

1.00 21/04/2022 First Public Release Pieter Prinsloo/ Andre

Killian

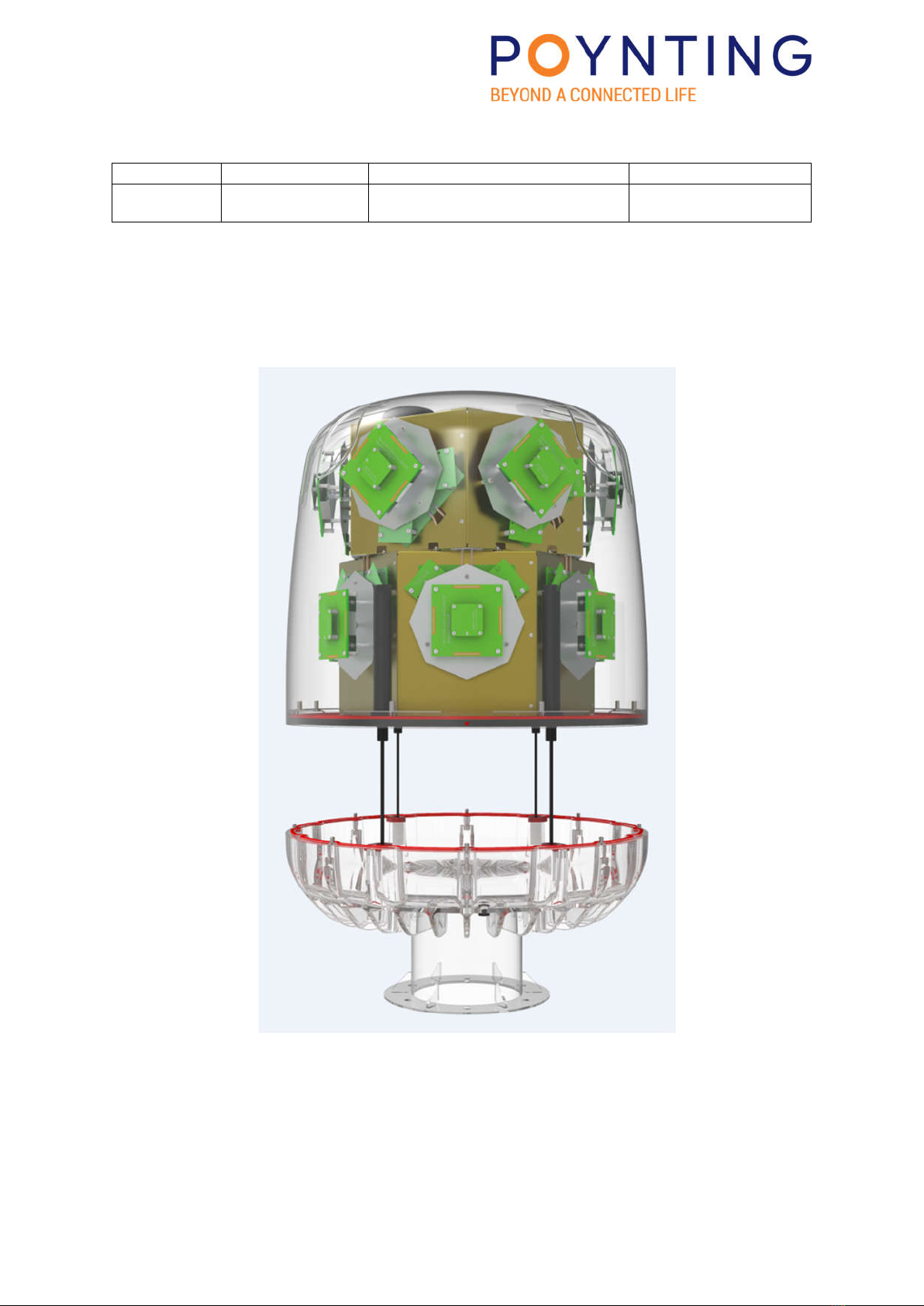

WaveHunterTM in ‘open’ position showing Antenna Array and opened Equipment Bay

Page 5 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

CWSI – Certified WaveHunterTM System Integrator

1. Before the installation.

1.1. Selecting the Antenna Installation Site.

The WaveHunterTM consists of a cluster of Poynting Antenna’s patented, wide-band Uni-

Directional Antennas which together creates a 360º electromagnetic radiation pattern. A

‘Radiation Pattern’ defines an Antenna’s ability to efficiently transmit- or receive radio signals

within the three-dimensional area defined by this ‘Radiation Pattern’. (see ‘Radiation Patterns’ in

the Technical Documentation of the WaveHunterTM).

An ideal omnidirectional Antenna has, as close as possible, a 360º clear view towards the

horizon. This implies that the Antenna installation site must have as little as possible solid

obstacles in the line-of-sight of the Antenna System, 360º in the horizontal plane, towards the

horizon.

Any substantial structures in the path between the WaveHunterTM and the shore based towers it

is pointing to will cause degradation of the signal. The location of the WaveHunterTM should be

chosen to minimize blockage caused by the structures of the ship.

It is desirable to be mounted high enough to minimize the effects of the surrounding structures.

Large, solid, structures will cause significant signal loss while wire rope stays, lifelines, small

diameter handrails and other accessories may cause little to no noticeable loss.

1.1.1. Horizontal Radiation Pattern (or Azimuth) - The WaveHunterTM has an excellent Horizontal,

also known as ‘Azimuth’, radiation pattern that will ensure perfect reception from 360º around

the vessel provided the area ‘around’ the Antenna System is clear of obstacles.

1.1.2. Vertical Radiation Pattern (or Vertical Aperture) - Equal consideration should be given to the

vertical plane. The WaveHunterTM Antennas have an approximate 60º vertical aperture at the

lower frequencies; approximately 30º below the ‘horizon’ and 30º above the ‘horizon’. the

‘horizon’ being the 0º ‘line-of-sight’ of the Antenna pointing to the horizon. The ‘aperture’ of

the Antennas should be unobstructed as far as possible.

This ‘vertical aperture’ is important to counteract any ‘Pitch-and Roll’ of the vessel

that would result in loss of transmission- or reception of the signal.

1.1.3. Obstacles - Solid objects are objects such as Masts, Exhaust Funnels, other Antennas, and

such like, mainly metal structures, that can potentially attenuate the Radio Signal being

transmitted from- or received by the WaveHunterTM.

1.1.4. Close proximity to RADAR - Do not install the Antenna near the ship’s RADAR, especially on

the same horizontal plane. The electromagnetic pulsed energy from the RADAR may

significantly adversely affect the Signal-to-Noise (SNR) of the internal Routers’ receivers

installed in the WaveHunterTM.

It is recommended to position the Antenna at least 4 feet (1.2 m) above or below the level of

the RADAR Antenna and minimum of 15 feet (4.6 m) away from the high power short wave

radars.

The S-Band RADAR, in particular, operates at frequencies between 2,9 – 3,1 GHz and, since

the WaveHunterTM is designed to be a wide bandwidth Antenna, to be able to receive signals

in the frequency bands 617 MHz – 4 200 MHz, SNR protection for the above S-Band

frequencies can only be offered by the filters in the Router’s transceiver. It is therefore

Page 6 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

prudent to provide as much physical separation as possible between the radiation envelope

of the RADAR and that of the WaveHunterTM.

RADAR blanking Since RADAR provides ‘situational awareness in the direction of the Bow

and +175° from 0° (the ‘bow’) towards the Port- and the Starboard side, there can be approx.

10° ‘blanked out’ or ‘exclusion zone’ towards the stern. This means that placing the

WaveHunter towards the Stern is achievable without fear of RADAR interference.

1.1.5. Rigid Mounting Position - The mounting platform should be rigid enough and not be

subjected to excessive vibration. The movement of the Antenna can be minimized by

installing at the centre of the vessel. If these conditions can be only partially satisfied, find the

best compromised installation site between the various considerations.

1.1.6. Ideal Height of Installation - Since the Router/s installed in the WaveHunterTM will be

communicating with shore-based telecommunication towers, it would be advantageous to

install the WaveHunterTM as high as possible on the Vessel relative to the waterline. Typical

positions will be on a spreader, +4 feet (1.2m) above the RADAR dome.

If both X-Band and C-Band RADAR systems are installed it would typically be worthwhile to

install above the X-Band RADAR which. in most cases, will be mounted higher as it is the

smaller of S-Band and X-Band RADAR Antennas.

1.2. Recommended size of the pedestal

Please refer to the drawings in this document. The WaveHunterTM can be supplied with and

installed on a pedestal or without, refer to Pages 20 and 21 of this document.

1.3. Safe Access from Radiation Hazard

1.3.1. Passive System - The WaveHunterTM Antenna System is a system of passive elements

capable of radiating Electromagnetic Wave in designed Frequency Bands and as such the

System itself does not produce radiation that can be dangerous to any lifeform.

1.3.2. Effective Isotropic Radiated Power (EIRP). Antennas are designed to concentrate the

Electromagnetic Wave in a particular direction either Omni-Directionally or Uni-Directionally as

mentioned above. Antennas increases the ‘concentration’ of Electromagnetic Radiation that

potentially the Human Cells would be exposed to.

Although this is taken into consideration when the maximum RF Power output of a Router is

specified in the FCC (Federal Communications Commission) Specifications, it is

recommended that ‘Radiation Warning Signs’ be placed in strategic locations when there is a

possibility that personnel or passengers on a vessel could come into close contact with the

WavhunterTM Antenna System.

1.3.3. Router Transmitter Radio Frequency Output Power - LTE, 4G, 5G Routers’ specifications are

governed by regulations promulgated by various standards bodies in various Countries like

the FCC mainly in the USA, limiting the RF output power from the transmitter. Many of the

standards adopted around the World take their input from the FCC.

In this instance we are concerned with the RF Power output of the Router/s transmitter/s

installed in the WaveHunterTM. Radio Frequencies in the range 3kHz – 300 GHz are regarded

as the ‘Radio Frequency Spectrum’. The main safety concern, as far as RF radiated Power is

concerned, is to protect people from being exposed to too high levels of Electromagnetic

(Radio) Waves that could cause damage to cells within their bodies and lead to illness due to

this radiation.

Page 7 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

All Routers installed in the WaveHunterTM should conform to international standards limiting

the RF radiation presented to the WaveHunterTM Antennas. Although there are many

parameters governing the level of Electromagnetic radiation allowed to be transmitted from a

LTE/4G/5G Router, class 3 devices (most Routers) are limited to 23dBm or around 200mW

and some Class 3 Routers are allowed 26dBm at higher frequencies i.e. approximately

400mW. The integrator/installer need not necessarily be concerned with these numbers as

the main concern is to only install Routers passed by the various standards bodies, mainly the

FCC.

1.3.4. Mounting position promotes safety – Apart from the Router transmission power being

restricted by the abovementioned regulations, since the suggestion is to mount the

WaveHunterTM as high as possible, away from structures that can impede the transmission

and reception of radio signals this will promote safety as well since personnel or passengers

on the vessel would not normally be in close proximity of the installation and be in danger of

exposure to the electromagnetic waves from the installed Router’s transmitters radiated

through the Directional Antennas inside the WaveHunterTM Antenna System.

The following Website from the FCC provides more information:

https://www.fcc.gov/engineering-technology/electromagnetic-compatibility-division/radio-

frequency-safety/faq/rf-safety#Q2

1.3.5. High performance System - Whilst the above recommendations are set out to ensure optimal

performance and cares which should be taken in positioning the WaveHunterTM, the patented

Directional Antennas, configured to provide an Omni-Directional pattern for MIMO enabled

Routers, will provide excellent reception of land-based LTE, 4G and 5G Signals and although

we urge good positioning, we have found the system to outperform any other Antenna we

have tested.

Space left blank intentionally

Page 8 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

2. Tools needed

24 & 19 mm Spanner 6mm Allen/Hex key

(For Power Drill)

4- & 6-mm Allen/Hex key Power Drill

The method of installation and mounting of Antenna may vary with vessel design

but the following procedures are applicable in most situations, and will result in a

secure and effective installation.

Space left blank intentionally

Page 9 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

3. Unpacking the wooden crate with Pedestal base, step-by-step

3.1.1. Step 1.

Remove 8 Top clips from the edge of the wooden crate and detach the top panel.

3.1.2. Step 2.

Remove Top Lid and unclip the first side panel as shown in images below then continue to

next step.

Page 10 of 31

www.poynting.tech

Poynting Group (Pty) Ltd

Registration Number: 2014/239013/07

3.1.3. Step 3.

Remove Side panel and continue to unclip all side panels till you only have base and exposed

WaveHunter TM.

Table des matières

Autres manuels Poynting Antenne

Poynting

Poynting OMNI-214 Manuel utilisateur

Poynting

Poynting OMNI 400 Manuel utilisateur

Poynting

Poynting PUCK-V1 Manuel utilisateur

Poynting

Poynting LPDA-0092-04 Manuel utilisateur

Poynting

Poynting XPOL-1 Manuel utilisateur

Poynting

Poynting PUCK-V1-W Manuel utilisateur

Poynting

Poynting MIMO-4 Manuel utilisateur

Poynting

Poynting XPOL-1-5G Manuel utilisateur

Poynting

Poynting OMNI-700 Series Manuel utilisateur

Poynting

Poynting PowerfulSignal PUCK-12 Manuel utilisateur

Poynting

Poynting RIPPLE Manuel utilisateur

Poynting

Poynting OMNI-404 Manuel utilisateur

Poynting

Poynting OMNI-900 Manuel utilisateur

Poynting

Poynting XPOL-2 Manuel utilisateur

Poynting

Poynting A-PUCK-0002-V1-01 Manuel utilisateur

Poynting

Poynting MIMO-3-V2 Manuel utilisateur

Poynting

Poynting PUCK-5 Manuel utilisateur

Poynting

Poynting OMNI-292-V2 Manuel utilisateur

Poynting

Poynting OMNI-293 Manuel utilisateur

Poynting

Poynting OMNI-600-V1 Manuel utilisateur

Poynting

Poynting A-OMNI-0902-V1-02 Manuel utilisateur

Poynting

Poynting OMNI-493 Manuel utilisateur

Poynting

Poynting XPOL-24 Manuel utilisateur

Poynting

Poynting EPOYNT Manuel utilisateur

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur
