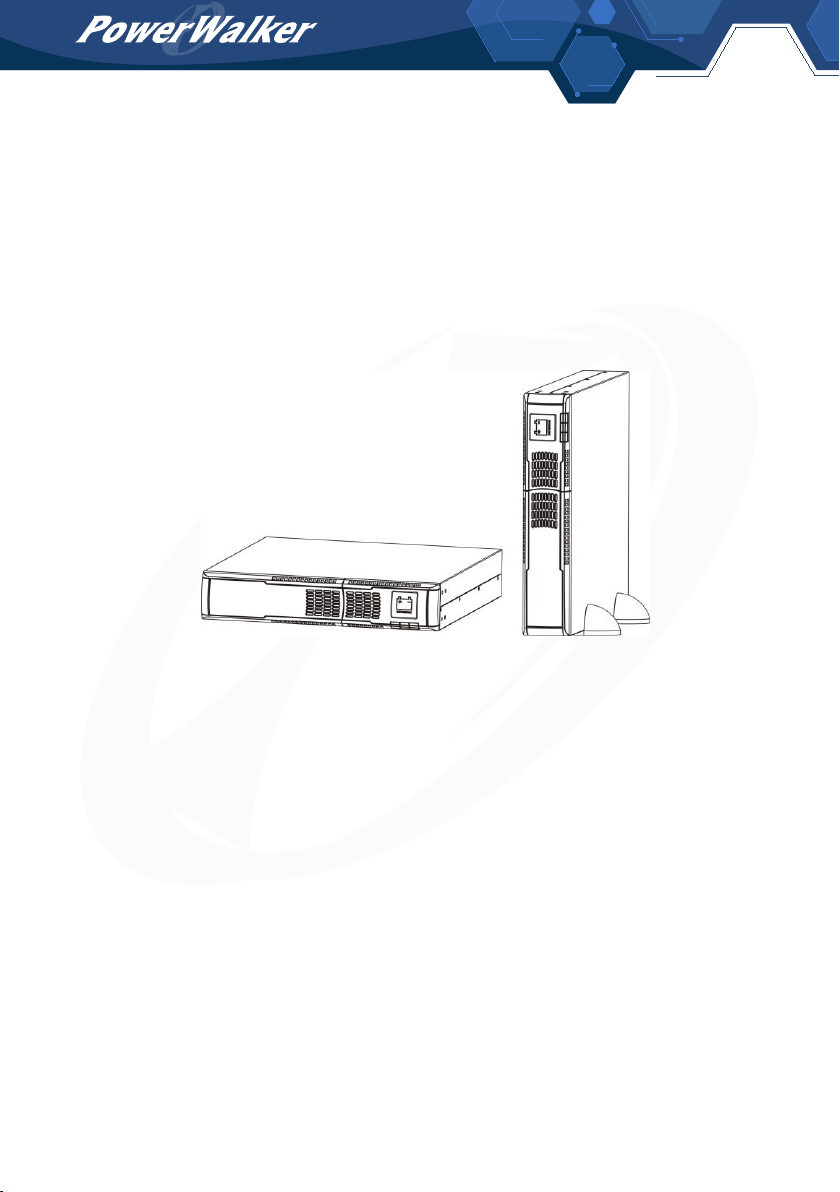

PowerWalker BPH A72RM-12 Guide de l'administrateur
1
BP A36-72RM
6x - 12x bat.
1. Important Safety Warnings
Please comply with all warnings and operating instructions in this manual
strictly. Save this manual properly and read carefully the following instructions
before installing the unit. Do not operate this unit before reading through all
safety information and operating instructions carefully.
Do not try to repair the unit yourself, contact your local supplier or your
warranty will be void.
To eliminate any overheating of the battery box, keep all ventilation
openings free from obstruction and do not place any foreign objects on
top of the battery bank. Keep the battery box 20 cm away from the wall.
Make sure the battery box is installed within the proper environment as
specified. (0-40°C and 30-90% non-condensing humidity)
Do not install the battery box under direct sunlight. Your warranty will be
void if the batteries fail due to overheating.
This battery box is not designed for use in dusty, corrosive and salty
environment.
SOP - How to assemble
2
The warranty for this battery bank will be void if water or other liquid is
spilt or poured directly onto the battery box. Similarly we do not warrant
any damage to the battery box if foreign objects are deliberately or
accidentally inserted into the battery box enclosure.
The battery will discharge naturally if the system is unused for a period of
time.
It should be recharged every 2-3 months if unused. If this is not done,
then the warranty will be null and void. During normal operation, the
batteries will be automatically remained in charged condition.
Servicing of batteries should be performed or supervised by trained
personnel with knowledge of batteries and the required precautions.
When replacing batteries, it is necessary to replace ALL batteries with the
same quantity, type & capacity.
CAUTION –Do not dispose of battery or batteries in a fire. The battery
may explode.
CAUTION –Do not open or mutilate the batteries. The electrolyte from
the batteries is toxic and harmful to the skin and eyes.
CAUTION –Risk of Electric Shock –Hazardous voltage may exist between
battery terminals and ground. Test before touching with bare hands.
CAUTION –A battery can present a risk of electrical shock and high short
circuit current. The following precaution should be observed when
working on batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting
battery terminals.
Do not plug or unplug the battery connector if UPS works in DC
(discharging) mode.
2. Product Overview and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside
the package is damaged. Please keep the original package in a safe place for
future use.
2-1 Rear Panel View
3
1. DC connector : connects to either UPS or 2nd battery box
2. DC breaker: Battery over-current protection breaker
2-2 Installation and Setup with UPS
Unpacking & Inspection
1. Remove the battery box from the packing.
Note: The battery box is very heavy, be cautious when unpacking and
lifting the unit to avoid injury.
2. Check the inside package
Battery box unit
Quick guide
Battery connection cable x 1
Ear x 2 & screw x 8
Extended stand
Selecting Installation Position
It is necessary to select a proper environment to install the unit, in order to
minimize the possibility of damage to the battery box and extend the life of
the batteries. Please follow the instructions below:
1. Keep at least 20cm (8 inches) clearance from the rear panel of the unit
from the wall or other obstructions.
2. Do not block the air-flow to the ventilation openings of the unit.
3. Please ensure the installation site environmental conditions are in
accordance with the unit’s working specifications to avoid overheat and
excessive moisture.
4. Do not place the unit in a dusty or corrosive environment or near any
flammable objects.
5. This unit is not designed for outdoor use.
Battery connection cable
Ears
screws
Extended stand
4
This unit can either be mounted or placed vertically on the desk.
Rack Installation
Tower Installation
Connecting with UPS and Other Battery Box
Follow below installation chart to connect with UPS and other battery box with
included cable.
3. Type of Battery Required
This battery box has been designed to operate with the following types of
batteries:
24V/9Ah Version: 2 pieces of 12V 9Ah batteries
24V/18Ah Version: 4 pieces of 12V 9Ah (2+2) batteries
36V/9Ah Version: 3 pieces of 12V 9Ah batteries
36V/18Ah Version: 6 pieces of 12V 9Ah (3+3) batteries
48V/9Ah Version: 4 pieces of 12V 9Ah batteries
UPS
2nd battery box
1st battery box
5
48V/18Ah Version: 8 pieces of 12V 9Ah (4+4) batteries
72V/9Ah Version: 6 pieces of 12V 9Ah batteries
72V/18Ah Version: 12 pieces of 12V 9Ah (6+6) batteries
4. Battery Installation
If your battery box is not installed with batteries, please follow
proper procedure to put batteries inside of unit.
NOTE: MAKE SURE THAT THE BATTERY BOX IS DISCONNECTED FROM THE
UPS BEFORE PERFORMING THE FOLLOWING SEQUENCE OF OPERATIONS.
Battery Box 24V
Step 1 : Open the package and place the battery box on a horizontal plane.
Step 2: Remove the removable front panel part by pulling it from the lower
extremity
Step 3: Remove the fixed part of the front panel by removing the 2 screw present.
6
Step 4: Remove the metal top cover of the battery box by unscrewing the 6 screws
present on the two sides (3 on the right side + 3 on the left side) and the 3
screws on the top and the 4 screws on the back side.
Step 5: Once the battery box is opened, remove the battery fixing plate present on
the left side of the unit by unscrewing the 2 screws.
Pull up first and then push the battery fixing plate.
Note: To install the second branch of batteries, repeat the same procedures on the
battery fixing plate on the right side of battery box.
7
Step 6: Now, it is possible to put all batteries in battery box following the picture
below (in the following drawing is indicated the fasten positions for the
correct batteries placing).
Note: To install the second branch of batteries, repeat the same procedures on the
right side of battery box.
Step 7: Connecting the batteries following the wiring diagram shown in next
chapter.
Step 8: Put correct batteries inside with the metal plate.
Note: To install the second branch of batteries, repeat the same procedures on the
right side of battery box.
Step 9: Put metal top cover back to the unit. Close the frontal fixing plate and the
two parts of the front panel and secure it with screws.
Step 10: Then, connect battery box to the UPS.
8
Battery Box 36V
Step 1 : Open the package and place the battery box on a horizontal plane.
Step 2: Remove the removable front panel part by pulling it from the lower
extremity.
Step 3: Remove the fixed part of the front panel by removing the 2 screw present.
Step 4: Remove the metal top cover of the battery box by unscrewing 6 screws
present on the two sides (3 on the right side and 3 on the left side), 3
screws on the top and 4 screws on the back side.
9
Step 5: Once battery box is opened, remove the battery fixing plate present on the
left side by unscrewing 2 screws present.
Pull up first and then push the battery fixing plate.
Note: To install the second branch of batteries, repeat the same procedure on the
battery fixing plate on the right side of battery box
Step 6: Now, it is possible to put the batteries inside following the picture below (in
the following drawing is indicated the fasten positions for the correct
batteries placing).
Note: To install the second branch of batteries, repeat the same procedure on the
right side of battery box.
10
Step 7: Connecting all batteries following the wiring diagram shown in next
chapter.
Step 8: Put all batteries inside with the metal plate.
Note: To install the second branch of batteries, repeat the same procedure on the
right side of battery box.
Step 9: Put metal top cover back to the unit. Close the frontal fixing plate and the
two parts of the front panel and secure it with screws.
Step 10: Then, connect the battery box to the UPS.
Battery Box 48V
Step 1 : Open the package and place the battery box on a horizontal plane.
Step 2: Remove the removable front panel part by pulling it from the lower
extremity
