PowerTech MP3743 Manuel utilisateur

Instruction Manual

MPPT Solar

Charge Controller

for Lithium or SLA Batteries

MP3743

BOX CONTENTS:

PRODUCT DIAGRAM:

1 x 12V/24V 30A MPPT Solar Charge Controller

1 x External Temperature Sensor

1 x User Guide

1 x App Guide

5 6 7 8 9 10

1LCD Screen

2Green Indicator LED

3Red indicator LED

4External Temperature Probe

5Solar Positive Input

6Solar Negative Input

7Battery Positive Input

8Battery Negative Input

9Load Positive Output

10 Load Negative Output

11 Up Button

12 Menu Button

13 Enter Button

14 USB Outputs

15 Down Button

16 Ethernet Socket

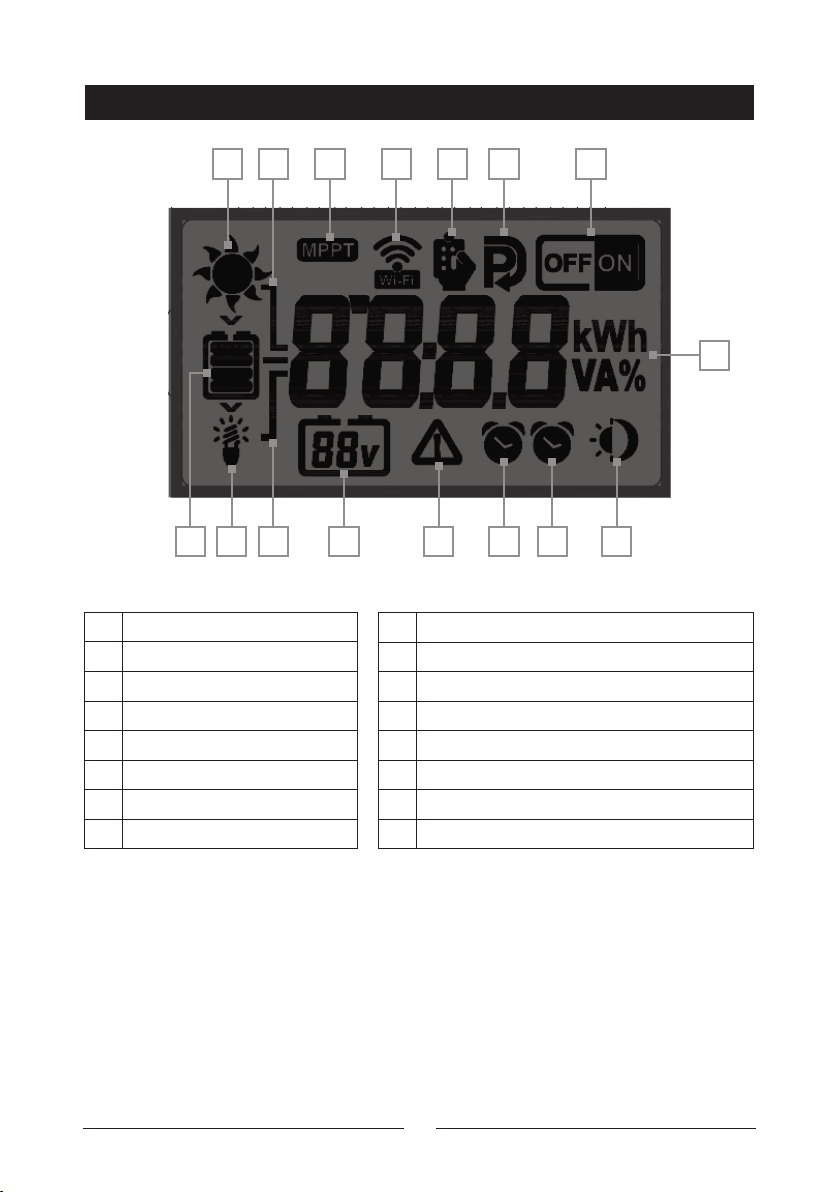

LCD SCREEN:

ASolar Input Indicator

BSolar Current Indicator

CMPPT Charging Indicator

DWiFi Indicator

ERemote Control Indicator

FSetting Mode Indicator

GLoad Switch Indicator

HBattery capacity indicator

H I J K L M N O

B C D E F G

ILoad indicator

JDisplay indicator for current reading

KBattery type (12/24V)

LProtection Icon – See error codes

MTiming clock

NTiming clock

ODay/night indicator – set by PV input

PReading display with unit type

BASIC FUNCTIONS:

Settings Menu

If the display is o, tap the Menu button to turn it on.

Press & hold the Menu button to enter the settings menu, and tap the Menu

button again to cycle through each setting in the following order. Use the

Enter button to enter / save a setting.

# Menu Item Options

1Battery Type Standard (STD) / Lithium (L) / AGM

(A)

2WiFi On / O

3Load Voltage Protection Cut O 10 – 11.5V (12V) – Default 10V

20 – 23V (24V) – Default 20V

4Load Under Voltage Recovery 12 – 13V (12V) – Default 12.5V

24 – 26V (24V) – Default 25V

524 Mode On / O

6Time Hours / Minutes

7Load Timer On / O

When turned on, the next setting is

used to set the Load on time

Factory Reset

With the unit turned o, press & hold the Menu button & power up the

controller via the battery input. The screen will display FFFF to indicate all

settings have been factory reset.

FAULT CODES:

E1 Battery has been installed with the polarity reversed.

E2 Battery is not currently connected, or is under the low voltage cut o.

E3 Battery over current protection enabled. If the issue persists, the control-

ler may be faulty.

E4 Load over current / short circuit protection. Turn o the machine for 10

seconds to reset.

E5 Battery over voltage protection.

E6 Solar input over voltage protection.

E7 Over temperature protection. Charging will restart once the temperature

is under 60’C.

E8 Solar input has been installed with the polarity reversed.

SPECIFICATIONS:

SOLAR

Maximum PV Open Circuit Voltage: 100V

MMPT Voltage: 16 – 80VDC

Maximum PV Input Power: 450W (12VDC) / 900W (24VDC)

Maximum MPPT Current: 30A

GENERAL

Dimensions: 238 x 177 x 63mm

Weight: 1.5kg

Operating Temperature: -10°C – 40°C

Cooling method: Heatsink

Insulation Class: Class 1

IP Rating IP30

PROTECTIVE FUNCTIONS

High / Low Voltage Protection: High: 15V (12V) / 31V (24V)

Low: 8V (12VDC) / 18V (24VDC)

Reverse Polarity Protection: Yes

Temperature Cut O: 90°C

USB OUTPUT

Output Voltage 5VDC

Number of USB Ports 2

Maximum Output Current: 3.4A

DC OUTPUT

Battery Voltage: 12/24VDC

Output Current: 30A

STANDBY CURRENT

MPPT Charger Only: 60mA

MPPT Charger & WiFi: 160mA

NOTES:

Distributed by:

Electus Distribution Pty. Ltd.

320 Victoria Rd, Rydalmere

NSW 2116 Australia

www.electusdistribution.com.au

Made in China
