PowerPac PPV1300 Manuel utilisateur
VACUUM CLEANER WET & DRY + BLOWER WITH VACUUM 16KPA SUCTION
PPV1300
Parts & Description s
Barrel clip
Extension
tubes
Hose
Connector
Floor
brush
Cable
Base
Dust / Water
container
Sponge
Filter
Paper
(Dust) bag
Wheels
HEPA
Filter
Switch
Handle
Cover
Turbine
HOW TO ASSEMBLE & USE s
Warning: DO NOT disassemble the Turbine.
1. Unpack all parts from the package and place them on the floor.
2. Clean the exterior parts of the fan thoroughly with warm water & detergent with a soft
cloth.
3. Attach the Wheels to the bottom of the Dust / Water container.
4. Attach the Handle to the top Cover housing the Turbine.
The Turbine is a machine which is housed within the protective (black) cover. For
simplicity’s sake, the entire housing is referred to as the “Turbine”. The Turbine sits on
top of the Dust / Water container.
Dry Vacuuming
5. When vacuuming dry dust and materials which are not wet, attach the HEPA Filter
around the cylindrical component at the bottom of the Turbine as shown.
6. (Optional) A Paper (Dust) bag is provided (non-replaceable). It is not necessary to use
the bag. However, if you wish to do so, attach the opening of the Paper (Dust) bag
around the Connector at the side of the Dust / Water container. Empty the bag after each
use as a full bag will not fit into the tight confines of the Dust / Water container with the
HEPA Filter already present. DO NOT wash the bag.
Proceed to Step 9.
Dust / Water container
Paper
bag
Wet Vacuuming
(You may perform Steps 7 & 8 as an alternative to Steps 5 & 6 if a HEPA Filter is not
available when dry vacuuming.)

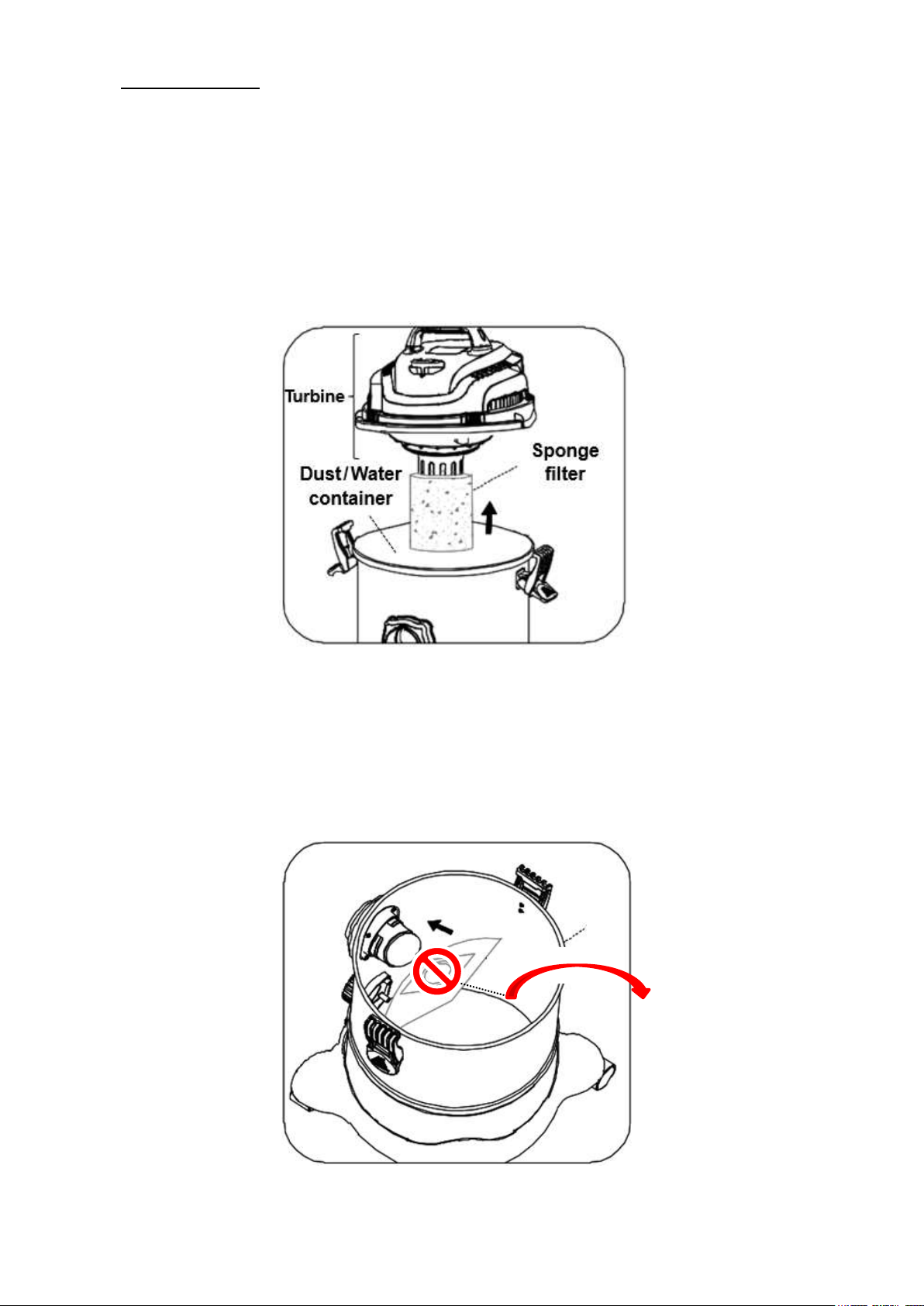

7. When vacuuming liquids and materials which are wet, attach the (black) Sponge Filter
around the cylindrical component at the bottom of the Turbine as shown.
DO NOT attach the HEPA Filter. DO NOT attach the Paper (Dust) bag.
8. Add about 1000 ml of water to the Dust / Water container. During operation, when you
notice that the water is getting too full of dust and fuzz, throw it away and replace it with
clean water. DO NOT operate the appliance for too long without changing the water.
Always empty the Dust / Water container and rinse thoroughly after each use.
Dust / Water container
Paper
bag
9. Place the Turbine onto the Dust / Water container until it sits correctly. Lock the two
Barrel Clips securely.
10. For use as a vacuum cleaner, insert the Hose into the Connector at the side of the Dust
/ Water container, twist the Hose until the connection is secure.
For use as a blower, insert the Hose into the Air Outlet on the Turbine.
Once the Hose is securely connected to either the Connector or Air Outlet, twist the
Hose until the connection is secure The Hose does not come off easily unless the Hose
had not been securely tightened.
Barrel clip
Connector
Hose
11. Connect the Extension tubes and the Floor brush to the Hose.
The appliance is assembled.
12. Insert the plug directly into the wall socket. Switch the socket switch ON.
Cable
Extension
tubes
Floor brush
13. Press the Switch on the appliance ON.
14. When you have finished vacuuming, press the Switch on the appliance and then the
socket switch OFF and detach the plug from the wall socket.
15. Hold the plug when rewinding the power cable. DO NOT allow the plug and the cable to
whip around when rewinding
Cover
Cable
Switch
Warnings s
ATTENTION :
Read this booklet carefully as it contains important instructions for a safe installation, use
and maintenance.
Important instructions to be kept for future reference.
The following basic precautions should always be followed when using electrical appliances:
1. Read all instructions before using the appliance.
The Appliance
2. This appliance must be used only for the purpose it was expressly designed; any use
NOT complying with the instructions contained in the manual is considered inappropriate
and dangerous. The manufacturer is NOT responsible for possible damages caused by
the inappropriate and/or unreasonable use.
3. The installation/assembly of the appliance will be made in accordance with the
indications of the manufacturer. A wrong procedure may cause damages to persons,
animals or objects, for which the manufacturer cannot be considered responsible.
4. This appliance must NOT be used for vacuuming burning, smoking, toxic, volatile or
flammable substances. The appliance must NOT be used to clear sewers. An explosion
may occur if the machine suctions sewer gases. Sewer gases inhalation may lead to
unconsciousness and death.
5. It is NOT recommended to use the appliance for cleaning open stoves or other devices
that contains oil or grease, soot, clay dust, plaster or other similar materials that are
resistant to water action.
6. DO NOT vacuum mud, gypsum material, wall powder, blade, kindling, clumps of hair,
large pieces of paper and other items such as sharp metal objects as that may make
the Air Inlet, Tube/s, Hose and Filter/s get blocked and the Turbine get burned. An
indication of blockage may manifest as an abnormal sound or poor suction. If these
small particles were absorbed, please disconnect the power cable and remove them
from the Dust Bag or Filter immediately.
7. Before use, check the integrity of the appliance and power cable. DO NOT operate the
appliance when Turbine or power cable is damaged. They must be replaced by the
manufacturer or its service agent, or a qualified technician in order to avoid a shock
hazard.
8. Before powering the appliance make sure the rating (voltage and frequency)
corresponding to the grid and the socket is suitable for the plug of the appliance, and
that the wall socket is properly grounded. This appliance is fitted with an earth wire for
extra safety.
9. DO NOT power the appliance using multiple sockets. Avoid the use of adapters and/or
extension cables; if their use is absolutely necessary, use only materials in compliance
with the current safety regulations and according to the electrical parameters of the
adapters.
10. The appliance must NOT be switched on using external timers and/or other remote
control appliances which are not specified in this manual.
11. Only use original components & accessories provided by the manufacturer. Any non-
original component or accessory NOT recommended by the manufacturer (including,
but not limited to Turbine, Dust / Water container, Wheels, Filters, Paper (Dust) bag,
Extension tubes, Hose, Floor Brush, etc.) made by other manufacturers or by the same
manufacturer but for other models of the same capacity or otherwise may cause injuries
to persons or damage to the appliance.
12. The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out of the
reach of children or disabled persons since they represent potential sources of danger.
Location
13. This appliance is NOT suitable to be used or stored near heat sources (open flame,
ovens, heaters, stoves, etc.) and/or in an explosive environment (in the presence of
flammable substances such as gas, vapour, mist or dust, in atmospheric conditions
when, after ignition, the combustion is spread in the air). Items containing these
substances should never be placed in the appliance, and never be used to clean the
appliance in order to avert the risk of fire or explosion.
14. Place and use the appliance on a horizontal and stable surface. Damage may occur if
the appliance is placed on an incline or decline. Be extra careful when vacuum cleaning
on stairs as the machine might topple
15. Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can
be damaged easily. Avoid placing heavy objects on the cable. Arrange the cable away
from high traffic areas, and where it will NOT be tripped over. DO NOT pull or carry the
appliance by the cable, run the appliance over the cable or close a door on the cable.
16. DO NOT operate the appliance in situations where water can splash onto the Turbine
as this may cause an electric shock.
17. DO NOT use or store the appliance outdoors. Store and use the appliance only indoors,
or in any case, protected from weathering such as rain, direct radiation of the sun and
dust.
Operation
18. If you are using the appliance for the first time, you should:
a. Clean the exterior of the fan with a damp cloth. Make sure that the Turbine DOES
NOT come into contact with water.
b. Assemble the appliance fully and check that the Turbine is NOT damaged. Use the
