PowerItUp PBSF-10K Manuel utilisateur
Emergency Powerbank
Flashlight
User Manual
Model: PBSF-10K
2
In the Box:
(1) Emergency Power-bank Flashlight
(1) micro-USB connection cord
(1) User’s Manual
(1) Wrist Strap
Micro-USB Connection Cable
LED Indicators
On/O switch
Micro-USB input
USB Output
Cap
Window Breaker
Seatbelt Cutter
3
FEATURES
Your multi-function product has a number of features and uses:
• Flashlight
• Portable device charger
• Flashing Emergency Light
• Emergency seatbelt cutter
• Emergency window breaker
UNIT SETUP
To get started, unscrew the lamp cap by holding it pointing up and turning it
in a counter-clockwise direction. [See diagram. ]
Lamp Cap
Rotation
4
Press the On/O switch momentarily to check the current battery life. There
are four blue LEDs showing the percentage of battery life from 25% (1 LED)
up to 100% (all four LEDs).
CHARGING
To charge the ashlight/powerbank, use the included micro-USB cable to
connect to a standard USB charging source, such as PC or a cell phone char-
ger.
5
FLASHLIGHT
Hold the On/O switch down for 2 seconds to turn the light on or o. The
ashlight defaults to a low brightness setting. To increase brightness, press
the On/O switch momentarily and it will increase to medium. Repeat to
increase to full brightness and once again to return to low brightness.
EMERGENCY FLASHING LIGHT
Press the On/O switch twice quickly to initiate emergency ashing. This
can be used to get attention in an emergency. Press again twice quickly to
turn o ashlight, or hold the switch down for 2 seconds to resume steady
illumination.
PORTABLE DEVICE CHARGING
To charge any device that can charge via USB (5V), unscrew the lens cap and
plug in a USB cord to the USB (A) slot. You can plug the other end into your
device. Press the On/O button to begin charging. The 4 LEDs will indicate
the current charge.
Note: You may use the included USB-A to Micro-USB cable to charge many
devices. Alternatively, you may already have another kind of USB charging
cord if you own a device such as an iPhone or iPad. Some low-current de-
6
vices such as Bluetooth® headsets may not charge due to the small current
which they draw.
SEATBELT CUTTER AND WINDOW BREAKER
Note: Keep this emergency multi-tool nearby in the front of your car (not
your trunk) so that it can be used in the event of an accident. It’s best if the
unit is kept within reach such as a door map pocket as opposed to a glove
compartment, which may be out-of-reach in an emergency. If you cannot get
out of your car, follow these directions:
1. Don’t panic.
7

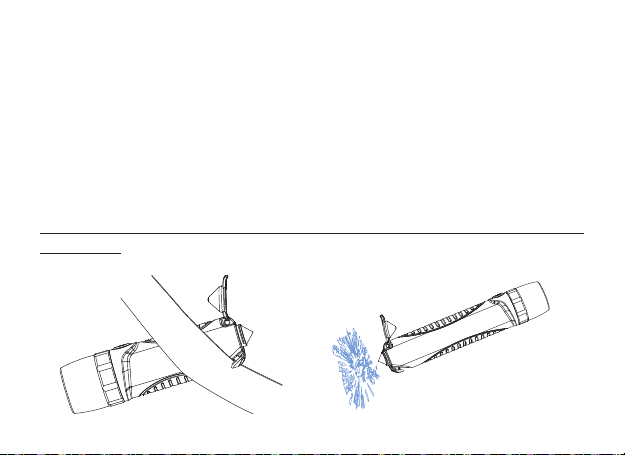

2. Try to release your seatbelt the way you normally do. If you cannot, use
the seatbelt cutter built into the handle to cut your way through the
seatbelt. [See diagram]
3. Try to open the door. If you cannot, try to lower the window. If you
cannot, remove the cap from the bottom of the ashlight.
4. Grasp the ashlight body tightly from close to the head of the ashlight.
5. Turn your face away from the side window and thrust the tool (with the
pointy end towards the glass) through the window. Once there is a hole
and crack in the glass, you can use the tool to break away the rest of
the glass.
Keep your hands away from broken glass. Designed to work on side win-
dows only.
Use as a Window Breaker in Emergency
8
PRODUCT SPECIFICATIONS
Battery : 3.7V 10,400 mAh Lithium Ion
USB-A Output : 5V/1A
Micro-USB Input : 5V/1A
Self-charging time : About 22 hours (using 500 mA computer)
: About 11 hours (using 1A charger)
LED Power : 3 watts, 220 lumens
Multifunction On/O button : Press and hold for On/O function
Charge Level Display : 4 LEDs to show percentage of charge
Waterproof : Rated IPX8 (up to 1/hr 3.5 feet underwater)
Size : 8.9” x 1.75” x 1.75”
Weight : 11.1 ounces
9
WARNINGS:
• Do not puncture, throw, drop bend or modify.
•Do not throw into a re or expose to excessive heat or ame.
• Do not short-circuit the battery terminals.
• Do not disassemble the battery pack.
• Stop using if unit generates strange smell or gets very hot.
• Do not allow children to play with device.
• Only use the battery charging features in a dry location.
