PowerAcoustik PT-110CM Manuel utilisateur
OWNER S MANUAL
11.2 Universal Ceiling Mount Monitor
M
EXIT
AV
MENU
POWER
E
10
DC 12V
9W
11.2 TFT-LCD
16:9
2400x480
2A/V RCAInputs
DC 12V
3W
Right 2.8MHz Left 2.3MHz
Active Matrix TFT
Power Requirements
Power Consumption
Screen Size
Screen Format
Resolution Pixel
A/V Inputs
Dimensions(With shroud)
IR Power Requirements
IR Power Consumption
IR Transmitter Frequency
LCD Panel Type
Compatible video standard
NTSC/PALAuto Select
SPECIFICATIONS
Note : This equipment has been tested and found to comply with the limits for
a ClassAdigital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
Dimensions(Without shroud)
14.6(L)X12.6(W)X3.3(H)inches
14.3(L)X12.4(W)X2.4(H)inches
2
CAUTION 4
INSTALLATION 5
NAME AND FUNCTION OF EACH PARTS 6
Unit 6
Remote Control 7
CONNECTIONS 8
HOW TO OPERATION THE MONITOR 9
Releasing The Monitor 9
How To Watch Monitor 9
SPECIFICATIONS 10
Please read this User,s Manual in detail and use the set properly.
9
CONTENTSHOW TO OPERATE THE MONITOR
Releasing the Monitor
Push the open button (located on the front edge of the screen housing)
and lower the monitor to the desired angle. You can also adjust the
swivel angle.
How to watch the monitor
1. Connect the monitor to the external devices.
2. Press the POWER button on either the remote control or the unit once to turn
the power on.
Press the same POWER button to turn the power off.
3. Turn on the external devices and view.
Make this arrow in DOWN
direction only.
PULLBUTTON
M
EXIT
AV
MENU
POWER
E
POWER
UNIT
REMOTE CONTROLLER
POWER
3
8
CONNECTIONS
CAUTION
Please read and observe all warnings and instructions in this owner s manual
and those marked on the unit. Retain this booklet for future reference.
There are two kinds of alarm symbols as follows:
WARNING
WARNING
CAUTION
The lightening flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of
dangerous voltage within the product s enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to
people.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
Installation of all TV monitors
must be out of the driver s
field of sight.
Do not try and service these
products yourself, Seek only
a qualified service center or
factory service center.
Be careful not to drop or
apply under pressure to the
front panel of your video
monitor. If the screen cracks
due to misuse, your warranty
will be void!
Do not mount the product where
it will obstruct the deployment of
the airbag or in an area where it
would affect the vehicular control.
Also be careful to avoid mounting
the product where it can become
hazardous during sudden stops or
in the event of an accident.
Be careful not to overload your
cigarette lighter plug by adding
more than one device at a time.
Use extra caution with any liquids
in your car. If you or your child
Spills any liquid on these products,
pull your vehicle to the roadside
and turn the key off to disconnect
or wipe the products with a towel. Do not
operate the equipment until all liquids have
either evaporated or you have had the monitor
inspected at a service center by a qualified
technician, Severe harm or danger can
Occur.
Use only a damp cloth to clean
the screen and use only purified
water on the cloth. Wring out all
excess water prior to wiping the
screen. Do not use any cleaners
or chemicals to clean the screen.
In most cases a dry cloth will do!
P
OWER
A
V
MEN
U
,
,
CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO
AV Input
(AV 2) (AV 1)
AV Input
YELLOW
ACC
BLACK
RED
+12VDCBattery
Chassis Ground
Door Trigger
WHITE
+ Door Trigger -
7

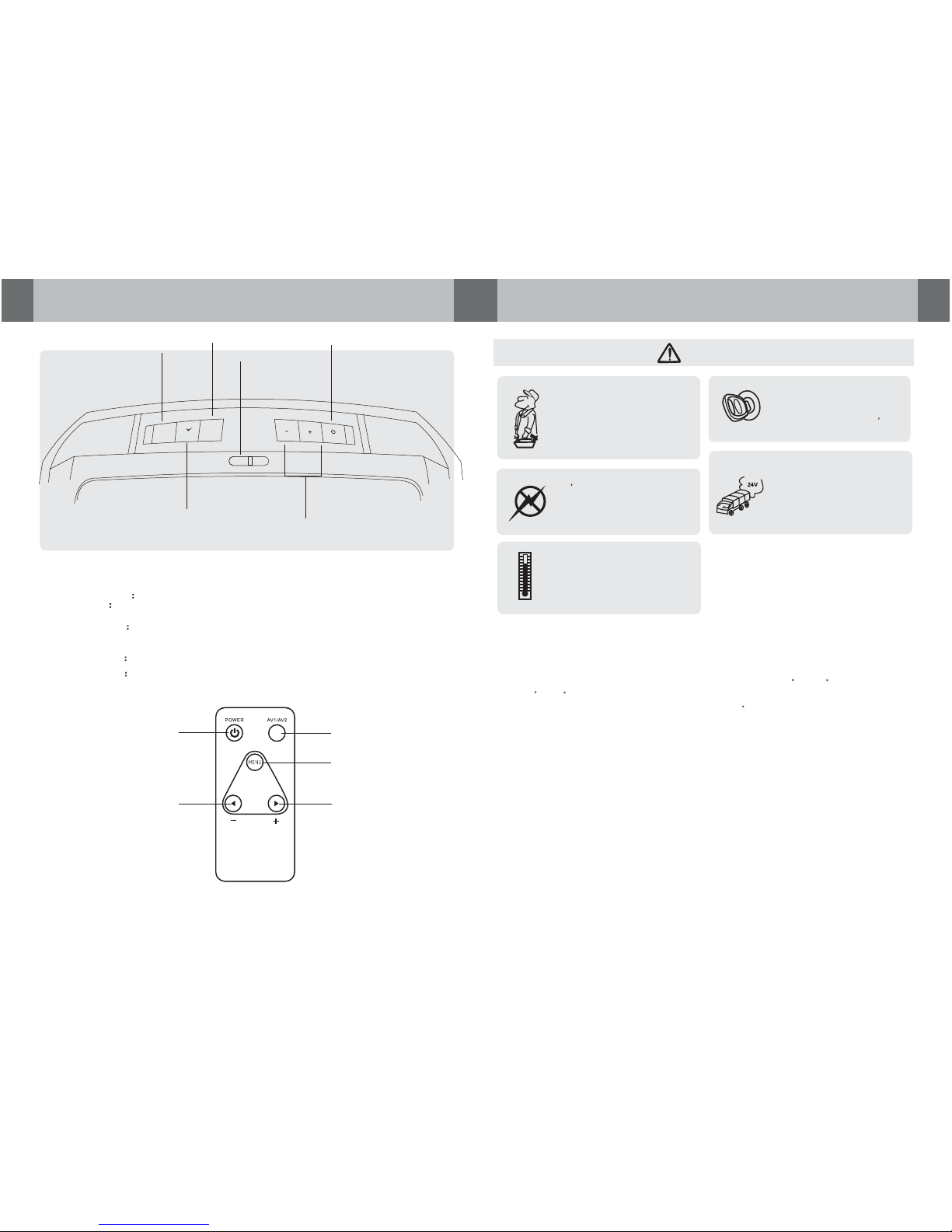

NAME AND FUNCTION OF EACH PART
Interface Switch Function
Power Power ON/OFF
AV Signal Select
Menu Press this button for OSD menu.
And select menu option
-
+
Increase current option value.
Decrease current option value.
LCD MONITOR
REMOTE CONTROL UNIT
POWER KEY AV1/AV2 KEY
+KEY
-KEY
MENU KEY
CAUTION
4
Quality installations are best
performed by qualified and
certifled installers.
Don t touch the unit if there is
a flash of lightning. It may
receive an electric shock.
Do not cover heater ducts or vents.
This may cause a fire or an electric
shock.
Watching the monitor for an
extended period of time
with the engine turned off
may deplete the vehicle s
battery.
This product is designed for
operation with a 12 Volt DC,
negative ground vehicle. It
is not suitable for operation
under other conditions or
voltages.
1. The operating temperature of this product is limited to 14 F~140 F
(-10 C~60 C).
Your vehicle can reach temperatures up to 100 C in the summertime.
2. When your vehicle is extremely hot or cold you must allow time for your air
conditioner or heater to cool or heat the vehicle and for operating temperatures
to return to normal operating ranges. Your monitor will return to its normal
functions when these operating ranges are achieved.
3. Optimum picture quality is achieved when you are directly in front of the monitor
(+/-45 degrees).
4. If the buttons get stuck, please try to press the up of buttons, it will get back.
It won't impact using normal.
5. If you cann't find the files name in list when playing, please reset units or turn
off/on over again.
6. If the unit cann't be change mode when playing some special files which the
unit didn't support, please reset units or turn off/on over again.
CAUTION
Check Point
OSD MENU EXIT Button POWER Button
MENU Button
M
EXIT
AV
MENU
POWER
AV Select Button
+/- Buttons
Dome Light Button
ON DOOR OFF
E
M
EXIT
AV
MENU
POWER
E
56
INSTALLATION NAME AND FUNCTION OF EACH PART
Unit
Dome light
Monitor
(Front)
Monitor
(Rear)
Infrared Transmitter
1. Open the package and check that these items are presents.
INSTALLATION PLATE UNIT SCREWA SCREW B
2. Connect the external compoments to the RCAcable orAV output.
(Refer to the connection diagram on page 8)
3.Match the position of installation bracket and
installation plate with screwA.
4. Tighten the unit with the supplied
screw B.
Audio Video
AV2INPUTS
RESET
