PowerAcoustik BAMF-1200/4 Manuel utilisateur

*************

OWNER'S MANUAL

BAMF800/2 BAMF1250/2 BAMF1800/2 BAMF2200/2

BAMF2600/2 BAMF1200/4 BAMF1600/4

BAMF2000/1D BAMF4000/1D BAMF5500/1D

- 2 -

INTRODUCTION

Power Acoustik amplifiers provide high-performance sound reinforcement for your

mobile audio equipment. Its versatility enables compatibility with optional Equalizers,

Frequency Dividing Crossover Networks, and other audio processors in a customized

system. The Multi-Mode bridging capabilities allow flexibility in hosting several different

speaker configurations.

To achieve optimum performance, it is highly recommended that you read this

Owners Manual before beginning installation.

WARNING

High powered audio systems in a vehicle are capable of generating "Live Concert"

high levels of sound pressure. Continued exposure to excessively high volume sound

levels may cause hearing loss or damage. Also, operation of a motor vehicle while

listening to audio equipment at high volume levels may impair your ability to hear

external sounds such as; horns, warning signals, or emergency vehicles, thus

contributing to a potential traffic hazard. In the interest of safety, Power Acoustik

recommends listening at lower volume levels while driving.

- 3 -

Before beginning the installation, consider the following:

1. Do you plan to add additional mobile electronics equipment in the future?

If you plan to expand your system by adding other components sometime in the

future, ensure adequate space is left and cooling requirements are met.

2. Should you use high or low level inputs?

Your Amplifier has been designed to accept Low-Level(Pre-Amp outputs from your

radio) source signal. If your radio/source is equipped with Pre-Amp outputs, it is

possible to utilize them to drive the Amplifier and the 2 front speakers. Then, use the

built-in power of your radio to drive the 2 rear speakers.

3. Are your components matched?

The RMS power rating of your speaker(s) must be equal or greater than the RMS

power rating of your amplifier. Your speaker(s) also must be 2 - 8 Ohms impedance

for stable amplifier operation. Impedance information is normally printed on the

speaker basket or magnet.

4. Where will the amplifier be installed?

Consider both the length of your leads, and routing when determining the mounting

location. It is best to run power and RCA wiring on opposite sides of the vehicle to

prevent induced noise. Pre-amp input jacks require a length of high quality shielded

male to male RCA patch cord.

PLANNING YOUR SYSTEM ................................................................

WIRING CONNECTION ....................................................................

PANEL LAYOUT .................................................................................

CONTROL FUNCTIONS .....................................................................

SPEAKER CONNECTION MONO CHANNEL ...................................

2 CHANNEL ............................................

4 CHANNEL ............................................

TROUBLE SHOOTING GUIDE ............................................................

SPECIFICATION .................................................................................

WARNING .........................................................................................

4, 5

6, 7

8-10

11-14

15, 16

17-19

TABLE OF CONTENTS

PLANNING YOUR SYSTEM

- 4 -

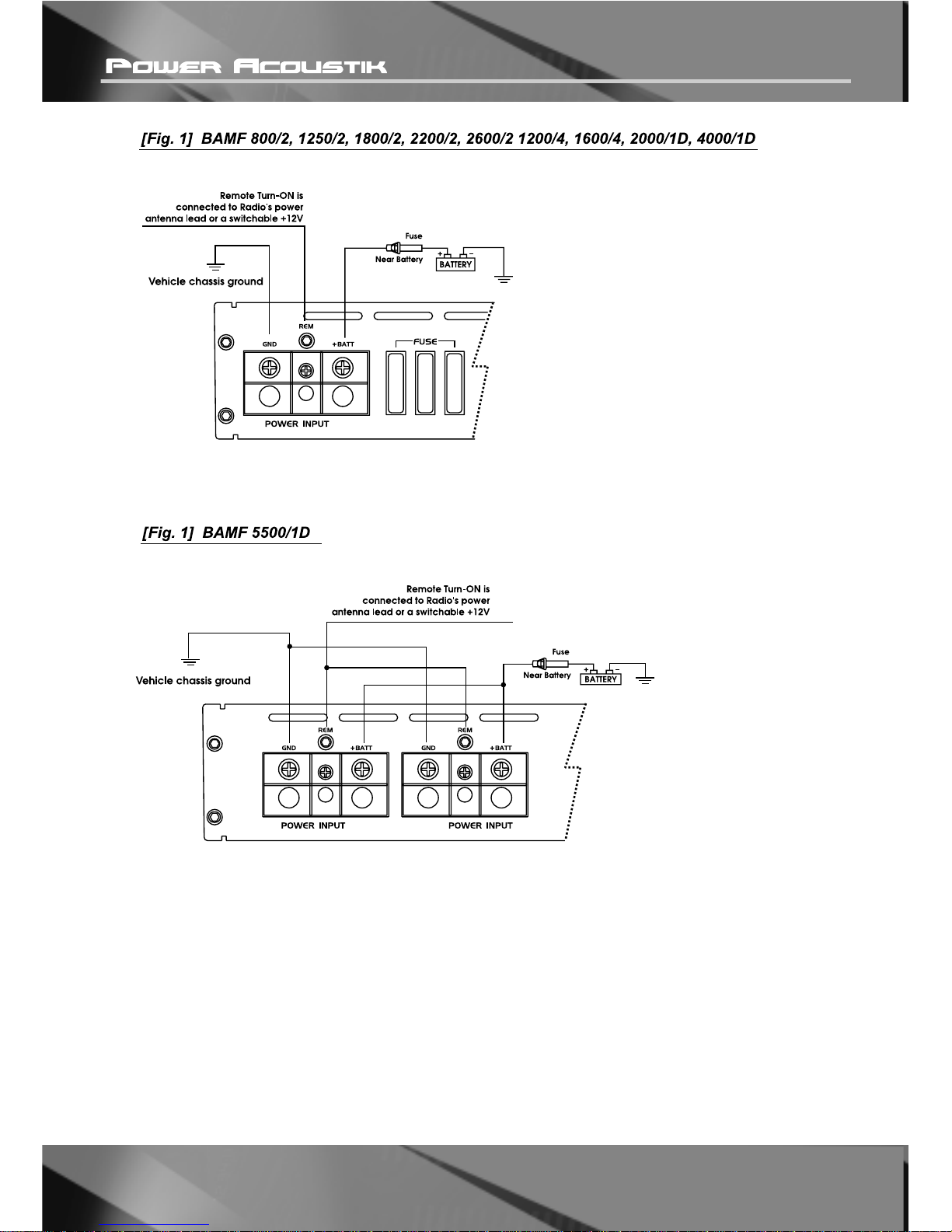

CONNECTING THE POWER (Fig.1,2)

CAUTION:

AS A PRECAUTION, DISCONNECT THE POWER WIRE FROM THE BATTERY WHILE MAKING THE

POWER AND GROUND CONNECTIONS TO THE AMPLIFIER.

4/8 GAUGE(Thicker if planning for additional Amplifiers) wire is recommended for

both the power and ground wires. 12 Gauge, for the remote turn-on wire. Both

types are available at most Mobile Audio Dealers or Installation Shop.

(1) Ground :To Vehicle Chassis

To avoid unwanted ignition noise caused by ground loop, it is essential that the

Amplifier be grounded to a clean, bare, metal surface of the vehicle's Chassis

NOTE :

GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT. (1 METER).

(2) +12 Volt(Fused) Constant Power:To Battery (+)

Due to the power requirements of the Amplifier, this connection should be made

directly to the positive (+) terminal of battery. For safety measures, install an in-line

Fuse Holder (not included) as close to the battery positive (+) terminal as

possible with an ampere rating; not to exceed total value of fuses in Amp.

(3) Remote Turn-On Input: To remote turn-on output of Car Stereo

This Amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON".

NOTE :

IF YOUR RADIO DOES NOT HAVE A +12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, THE "REMOTE"

TERMINAL ON THE AMPLIFIER CAN BE CONNECTED TO VEHICLE'S ACCESSORY CIRCUIT THAT IS LIVE WHEN THE

KEY IS "ON".

- 5 -

- 6 -

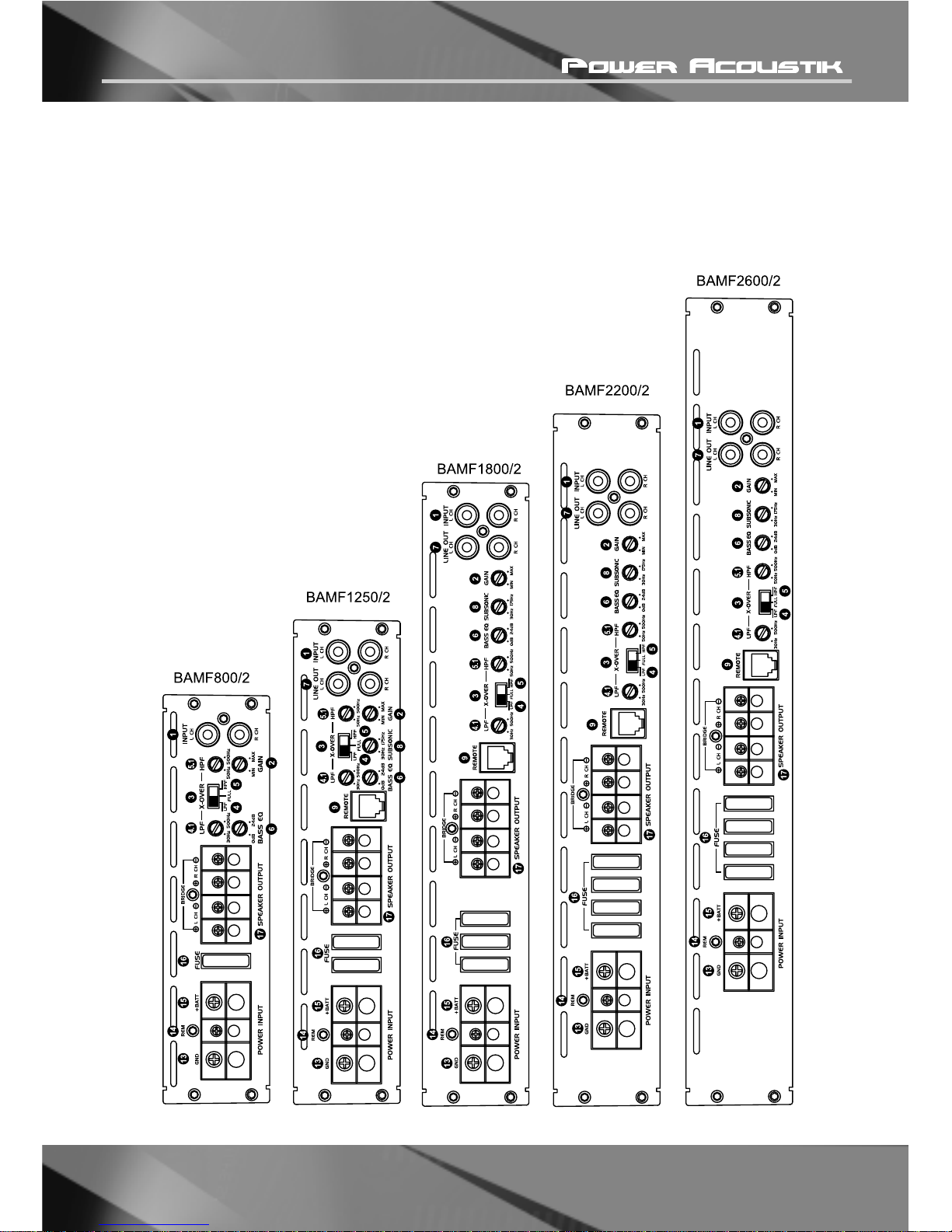

PANEL LAYOUT

- 7 -

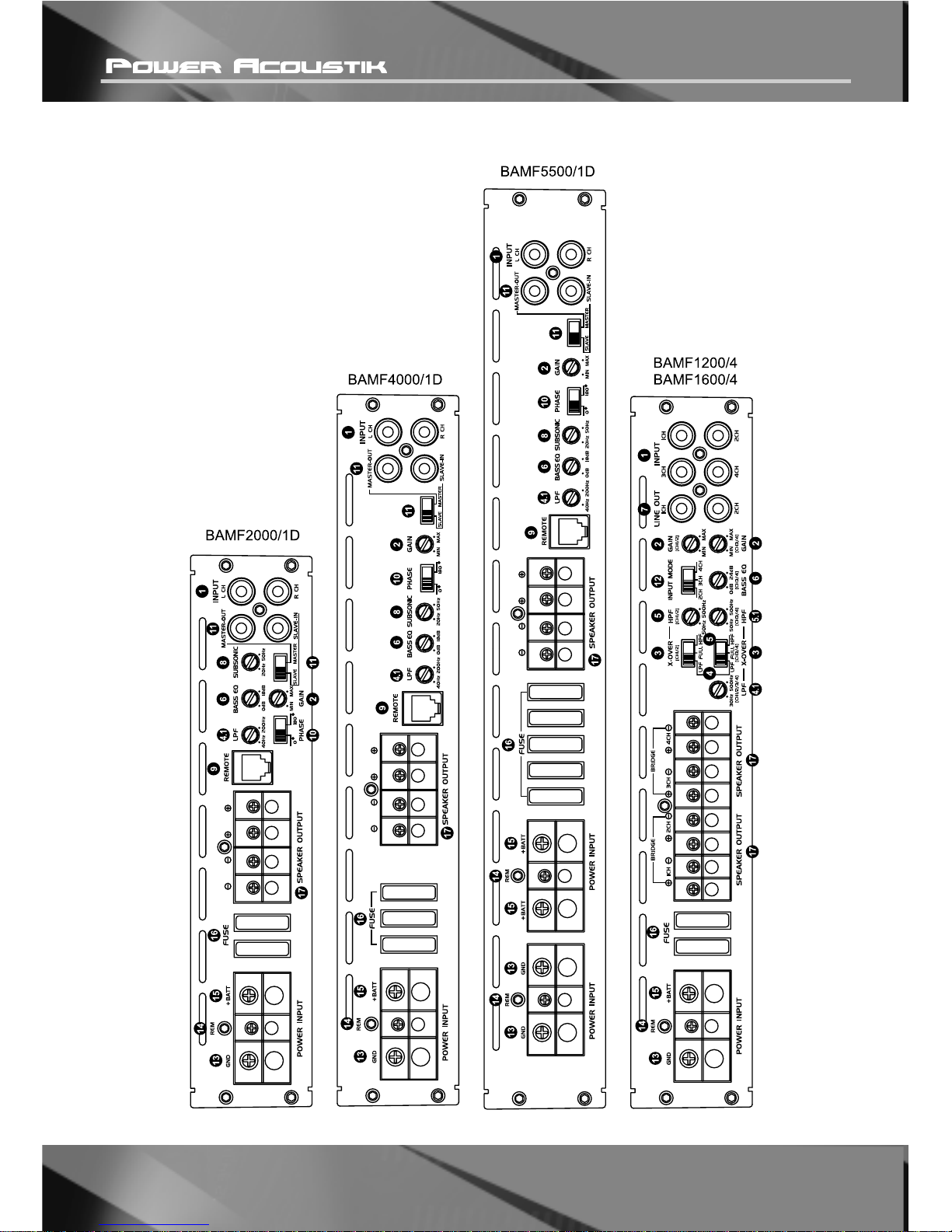

PANEL LAYOUT

- 8 -

CONTROL FUNCTIONS

1. RCA input jacks

These RCA input jacks are for use with source units that have RCA or Line level

outputs. A source unit with a minimum level of 200mV is required for proper operation.

The use of high quality twisted pair cables is recommended to decrease the possibility

of radiated noise entering the system.

2. GAIN Control

The level control will match the amplifiers sensitivity to the source units signal voltage.

The Operating range is 200mV minimum to 6V maximum.

CAUTION: Do not run the amplifier in high volume for long time, otherwise the loudspeakers will be

damaged.

3. Full pass x-over switch

When the switch is in the "Full" position, the full range is bypassed.

4. Low pass x-over switch

When the switch is in the "LPF" position, frequencies lower than the low pass frequency

setting are passed.

4.1 Low pass x-over frequency control

This control is used to select the desired low pass x-over frequency.

BAMF800/2, 1250/2, 1800/2, 2200/2, 2600/2, 1200/4, 1600/4 : The frequency can be

adjusted between 30Hz and 250Hz.

BAMF2000/1D, 4000/1D, 55001D : The frequency can be adjusted between 40Hz and

200Hz.

5. High pass x-over switch

When the switch is in the "HPF" position, frequencies higher than the high pass

frequency setting are passed.

5.1 High pass x-over frequency control

This control is used to select the desired high pass x-over frequency.

BAMF800/2, 1250/2, 1800/2, 2200/2, 2600/2, 1200/4, 1600/4 : The frequency can be

adjusted between 50Hz and 500Hz.

6.Bass EQ

BAMF800/2, 1250/2, 1800/2, 2200/2, 2600/2, 1200/4, 1600/4 : The boost can be

adjusted between 0dB to12dB.

BAMF2000/1D, 4000/1D, 55001D : The boost can be adjusted between 0dB to 18dB.

7. Auxiliary outputs

The Auxiliary outputs offer Power Acoustik amplifiers easy, unlimited system expansion.

Route RCA's from the line out of the first amplifier to the line input of a second

amplifier when using a single source output.
