The materials, technical data, and ﬁgures in this manual are provided for guidance only and are not

binding. The manufacturer reserves the right to make any changes to the technical characteristics

and all features of operation, materials, technical data, or ﬁgures without prior warning.

The following pages contain important safety and

operating instructions

Carefully read and review all safety instructions,

warnings and cautions contained in this manual.

Failure to read and follow these instructions,

warnings and cautionary statements may result

in severe injury or death to persons and pets or

damage to personal property.

POWERWORKSTOOLS.COM 3

Contents

Product Safety........................................................................................................... 4

Reading the operator manual........................................................................ 4

Operational safety............................................................................................6

Product Unboxing..................................................................................................... 7

Installation ..................................................................................................................8

Planning Layout and Preparation .................................................................8

Installing and Connecting the Charging Station.......................................9

Position for the charging station as follows:..............................................9

Connecting the Power Supply..................................................................... 10

Initial Charging of the Battery........................................................................11

Installing the Boundary Wire.........................................................................12

Installing a Guide Wire ...................................................................................15

Calibrating and Initial Start Up......................................................................17

Operation...................................................................................................................18

Starting and Stopping the Mower................................................................18

Switching O the Mower ...............................................................................18

Adjusting Cutting Height ...............................................................................18

Lifting and Carrying the Mower....................................................................19

Pairing Mobile App to Mower.......................................................................19

Maintenance........................................................................................................... 20

Removing the Body from Chassis ............................................................. 20

Cleaning........................................................................................................... 20

Replacing Blades.............................................................................................21

Maintaining the Battery..................................................................................21

Replacing the Battery ....................................................................................22

Winter Storage Mower ..................................................................................23

Winter storage Charging Station ................................................................23

Troubleshooting......................................................................................................24

Indicator LEDs on Mower .............................................................................24

Symptoms.........................................................................................................25

Breaks in Boundary Wire and Guide Wire................................................25

Technical Data.........................................................................................................26

Environmental Protection.....................................................................................27

Warranty Terms .......................................................................................................28

CE Declaration of Conformity..............................................................................29

POWERWORKSTOOLS.COM

Explanation of Symbols on the Mower

This is a dangerous power tool. Use care when operating and follow all safety

instructions and warnings.

Read the operator manual carefully before operating the mower.

Remove the safety key before working on or lifting the mower.

Hazard of thrown objects during operation.

Keep a safe distance from the mower when operating and keep people, especially

children, pets and bystanders away from the area where mower is being operated.

Do not ride on the mower.

Class III appliance

As a complement to this operator manual, more information is available on the website:

www.Powerworkstools.eu

Reading the operator manual

The following symbols are important for reading and understanding

the operating instructions.

Wear protective gloves

The following system is used in the operator manual to make it easier to understand:

•WARNING! Warning texts alert users and consumers to the existence and nature of hazards so that

they can prevent injury by appropriate conduct during use of the product.

•CAUTION: Caution texts alert users and consumers to the existence and nature of product risks so that

they can prevent damaging the product by appropriate conduct during use of the product.

•NOTE: Notes inform users and consumers about additional information about product use.

•Text written in bold italics refers to another section in the operator manual.

•Text written in bold refers to settings on the mower.

Product Safety

POWERWORKSTOOLS.COM 5

Product Safety

IMPORTANT

READ CAREFULLY BEFORE USE! KEEP FOR FUTURE REFERENCE!

Training

WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

•Read the instructions carefully. Be familiar with the controls and the proper use of the machine.

•Never allow people unfamiliar with these instructions or children to use the machine. Local regulations may

restrict the age of the operator.

•The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

•Ensure the correct installation of the automatic perimeter delineation system as instructed.

•Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones,

and other foreign objects.

•Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or

damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

•On multi-spindle machines, take care as rotating one blade can cause other blades to rotate.

General

•Never operate the machine with defective guards, or without safety devices, for example deﬂectors and/or

grass catchers, in place.

•Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

•Never pick up or carry an machine while the motor is running.

•Remove (or Operate) the disabling device from the machine

-before clearing a blockage;

-before checking, cleaning or working on the machine.

•Do not leave the machine to operate unattended if you know that there are pets, children or people in the

vicinity.

Maintenance and storage

•Keep all nuts, bolts, and screws tight to be sure the machine is in safe working condition.

•Check the grass catcher frequently for wear or deterioration.

•Replace worn or damaged parts for safety.

•Ensure that only replacement cutting means of the right type are used.

•Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect

use may result in electric shock, overheating or leakage of corrosive liquid from the battery.

•In the event of leakage of electrolyte ﬂush with water/neutralizing agent, seek medical help if it comes into

contact with the eyes, etc.

•Servicing of the machine should be according to manufacturers’ instructions.

POWERWORKSTOOLS.COM

Operational safety

This operator manual contains all of the basic information concerning the safe operation

and maintenance of the mower.

Product Safety

Carefully read all the safety precautions and instructions in this operator manual before operating

the mower. Save this operator manual for future reference. Follow manufacturer instructions

regarding installation, operation, maintenance, and repair.

This mower is designed to mow grass in open and level areas. Use only equipment recommended

by the manufacturer. All other types of use are incorrect.

This mower conforms to CE safety standards and directives concerning electromagnetic

compatibility, machines, and low voltage.

The mower is not intended for use by persons (including children) with reduced physical, sensory,

or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The mower must only be operated, maintained, and repaired by persons that fully understand its

special characteristics and safety regulations.

Start the mower in accordance with the instructions. When the safety key is in the Enabled position,

keep your hands and feet away from the rotating blades.

Never put your hands and feet under the mower.

Do not modify the original design of the mower. All modiﬁcations void the guarantee.

Switch o mower using the STOP button on the mower when persons, especially children, or pets

are in the cutting area. It is recommended that the mower be programmed for use during hours

when the area is free from persons or pets.

Remove objects from the operating area such as branches, toys, stones, tools that can damage

the blades. The mower can fasten on objects in the operating area and help may be required to

remove the object before the mower can continue mowing.

Never lift up the mower or carry it with the safety key inserted.

Always switch o the mower using the STOP button when the mower is not in use. The mower can

only start when the safety key is inserted and the START button is pressed.

The built-in alarm is very loud. Be careful, especially if the mower is handled indoors.

Do not use the mower with a defective blade disc or body.

Do not let persons who do not know how the mower works and behaves use it.

Do not put anything on top of the mower or its charging station.

Always wear protective gloves when working with the mower’s blades.

POWERWORKSTOOLS.COM 7

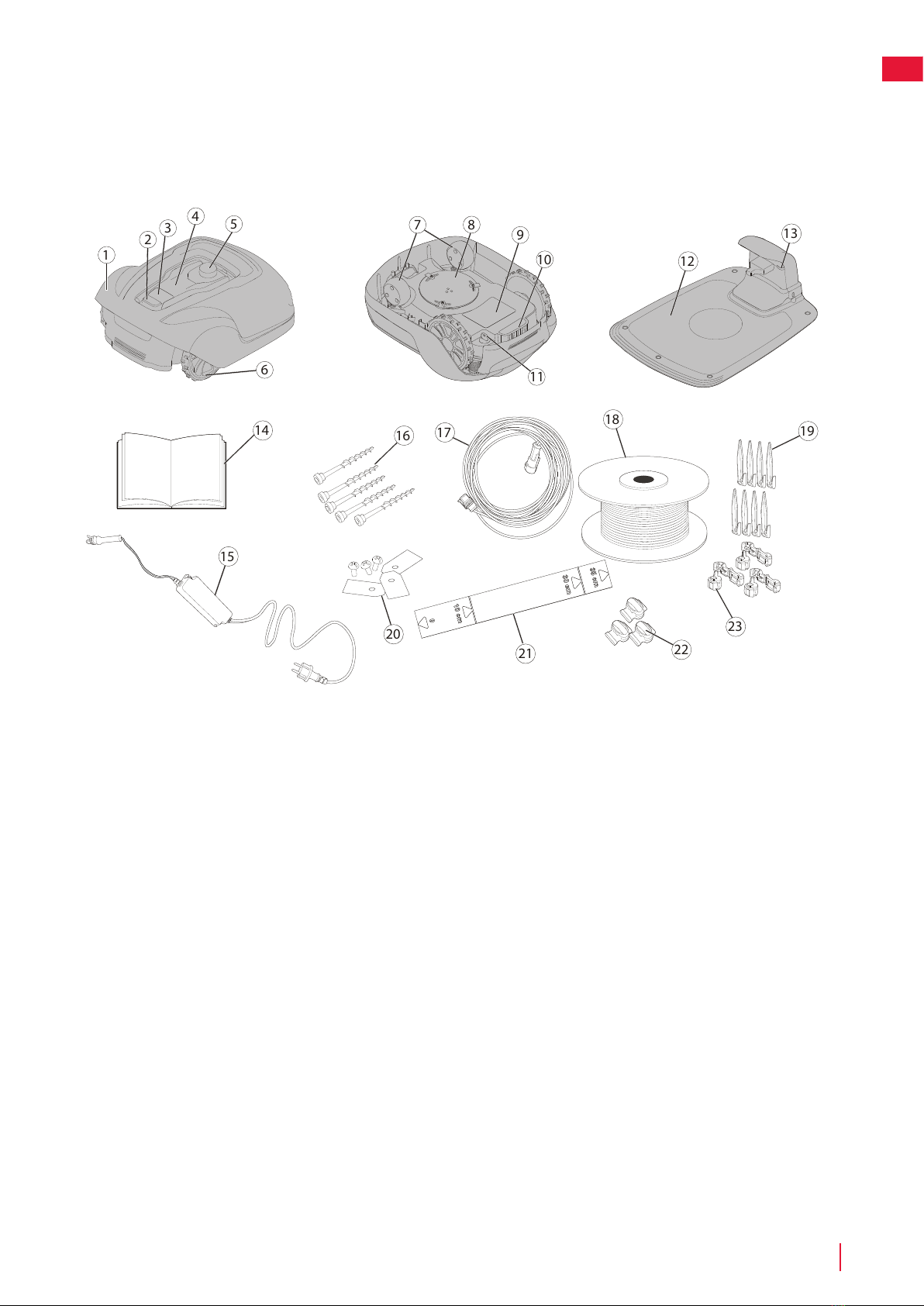

1 Removable cover

2 Stop button

3 Start button

4 LED indicators

5 Cutting height adjustment

6 Rear wheels

7 Front wheels

8 Blade disc

9 Battery cover

10 Carrying handle

11 Safety key

12 Charging station

13 LED for operation check

14 Operator manual and quick guide

15 Power supply*

16 Screws for securing charging station (x5)

17 Low voltage cable

18 Loop wire for boundary and guide wire

19 Wire pegs

20 Extra blades and screws (x3)

21 Ruler (break o carton top)

22 Splice and guide wire connectors (x3)

23 Loop wire connectors (x 3)

* The appearance of the power supply may dier depending on market.

Unbox the mower and installation materials. Make certain that all parts shown in Figure 1 are included and

undamaged. Contact your retailer if any items are missing or damaged.

Keep the Quick Guide in a safe place since it contains the unique pairing code for your mower.

Product Unboxing

POWERWORKSTOOLS.COM

EN Installation

Read the entire section before beginning installation. Installation aects mower capability.

Plan the installation carefully.

The following are the main tasks within the installation:

•Planning layout and preparation

•Installing and connecting the charging station

•Connecting the power supply

•Initial charging of the battery

•Installing the boundary wire

•Installing the guide wire

•Calibrating and initial start up

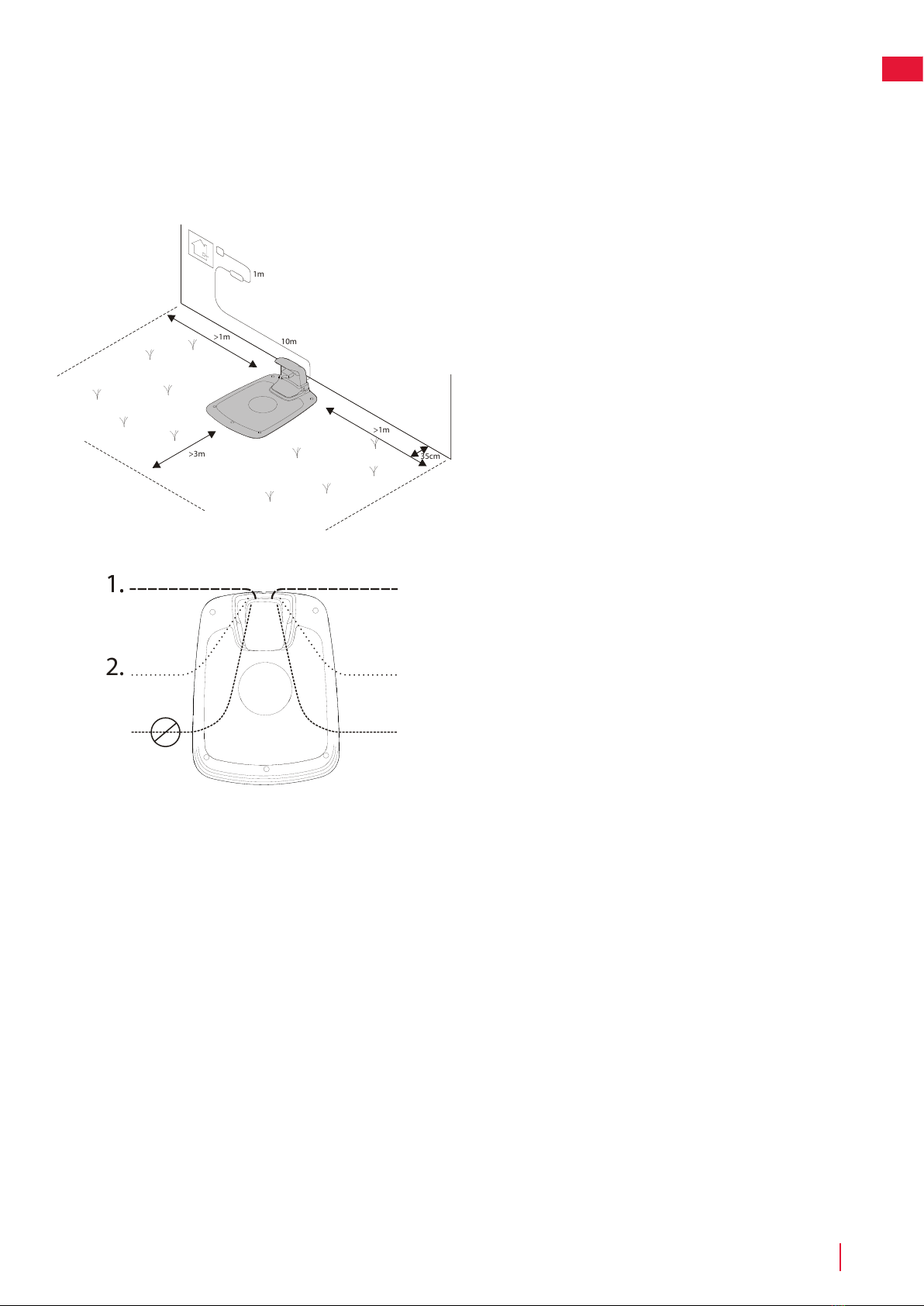

Planning Layout and Preparation

Ensure that the following conditions exist in the operating area where the mower will be used:

•The grass is shorter than 10 cm.

•There are no stones, loose pieces of wood, wire, live mains cables, and other foreign objects.

•The operating area is even and has no ditches, grooves, and steep slopes greater than 35%.

The following tools are required for installation, but not included:

•Hammer/rubber mallet to drive the pegs into the ground

•Combination pliers to cut the boundary wire

•Polygrip to press the couplers together

•Hex key, 6 mm for securing the charging station to ground

POWERWORKSTOOLS.COM 9

The majority of the charging station must be inside the operating area.

The following two options are shown in ﬁgure:

•Option 1 - Charging station is completely inside the operating area.

•Option 2 - Charging station partly outside the operating area.

Installation

Position for the charging station as follows:

•In a level spot out of direct sunlight

(The front end of the charging station must not be 5 cm higher or

lower than the back end.)

•Within reach of a wall socket

(The low voltage cable is 10 m long.)

•With at least 3 m in front of it and 1 m to each side

(Do not position in conﬁned spaces in the operating area.)

Installing and Connecting the Charging Station

>1m

35cm

>3m

10m

1.1.

POWERWORKSTOOLS.COM

Connecting the Power Supply

Connect the power supply in a cool, dry environment; out of direct sunlight.

If the power supply is connected to an electrical socket outdoors, it must be approved for outdoor use.

The low voltage cable can cross the operating area if it is stapled down or buried.

CAUTION: Do not cut, splice, or alter the low voltage cable. Altering the low voltage cable will void the

product guarantee.

Installation

Connect the low voltage cable to the charging station.

Thread the low voltage cable behind the tabs to hold it in place in the

charging station.

Connect the power supply power cable to a 100-240 V wall socket.

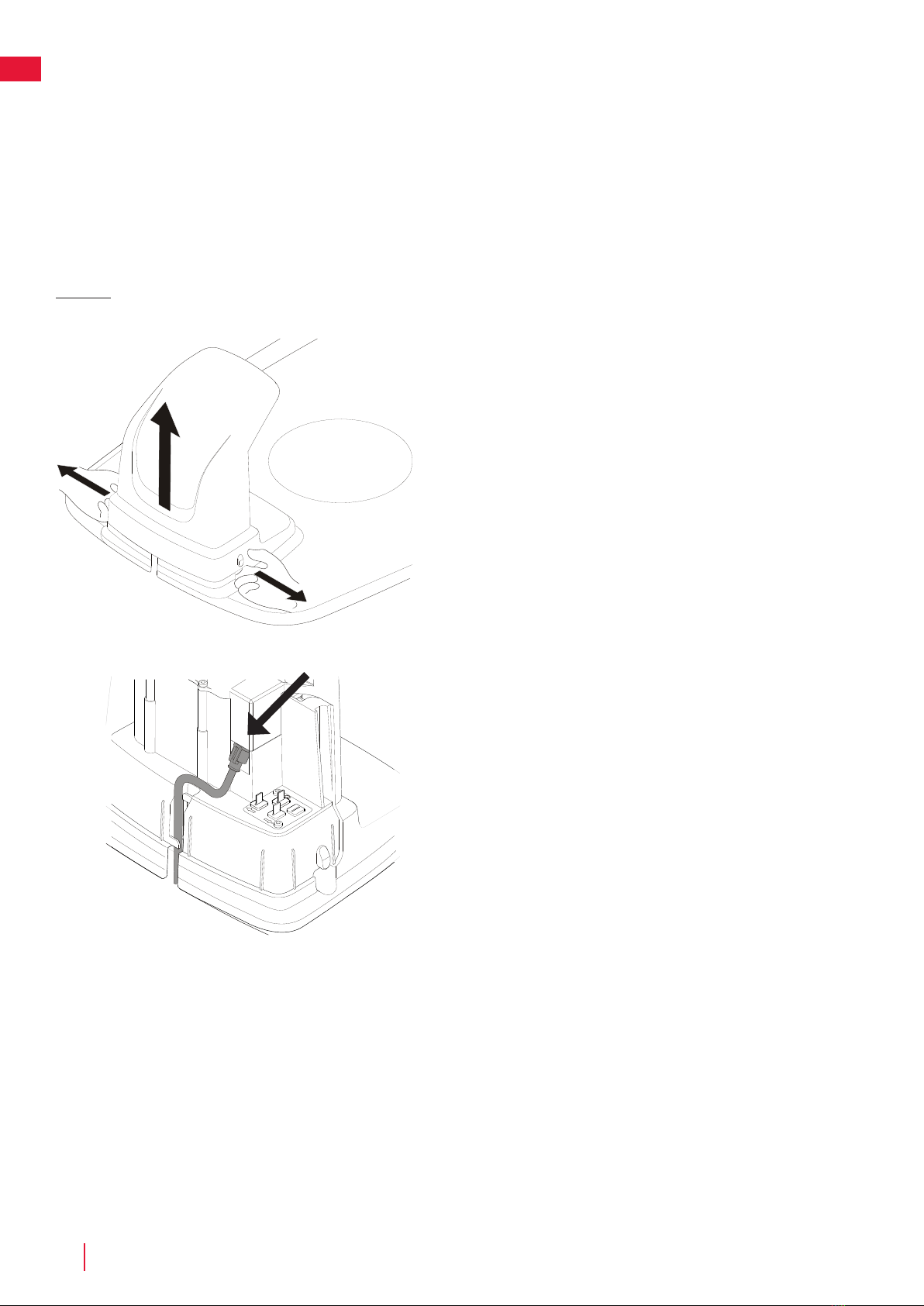

Remove the protective cover on the charging station by pressing in the

tabs on each side of the base and lifting away the cover.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Power works Tondeuse à gazon

Power works

Power works 2500213 Manuel utilisateur

Power works

Power works PD48LM46 Manuel utilisateur

Power works

Power works PD40LM51SPK5 Manuel utilisateur

Power works

Power works LME363 Manuel utilisateur

Power works

Power works 2500713 Manuel utilisateur

Power works

Power works PD60LM41 Manuel utilisateur

Power works

Power works P24ST Manuel utilisateur

Power works

Power works 2500513 Manuel utilisateur

Power works

Power works 2500713 Manuel utilisateur

Power works

Power works LMC406 Manuel utilisateur

Power works

Power works 2500613 Manuel utilisateur

Power works

Power works LME364 Manuel utilisateur

Power works

Power works LMG302 Manuel utilisateur

Power works

Power works PD24LM33 Manuel utilisateur

Power works

Power works LMF401 Manuel utilisateur

Power works

Power works Dual Voltage P48PHT Manuel utilisateur

Power works

Power works PD48LM46SP Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
