Power Fist 9056680 Manuel utilisateur

V1.0 9056680

Please read and understand all instructions before use. Retain this manual for

future reference.

This page is intentionally left blank.

SPECIFICATIONS

Power Rating (Voltage, Current, Frequency) 120VAC, 7A, 60Hz

Wattage 720W

Orbits per Minute 10,000 OPM

No Load Speed 2,100 to 5,000 RPM

Arbor Size M8

Pad Size 6 in.

Material Plastic

Weight 5.7 lb

Cord Length 6-1/2 ft

Cord Size (AWG) 18 AWG

INTRODUCTION

The polisher is ideal for waxing and polishing your vehicle or boat. The pad's

orbital action and a motor that maintains speed while under load creates

a smooth, unmarred nish. The polisher's compact, lightweight construction

reduces fatigue during extended use.

SAFETY

WARNING! Read and understand all instructions before using this tool.

The operator must follow basic precautions to reduce the risk of

personal injury and/or damage to the equipment.

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A

notice is an alert that there is a possibility of property damage, injury or death

if certain instructions are not followed.

DANGER! This notice indicates an immediate and specic hazard that will result in severe

personal injury or death if the proper precautions are not taken.

WARNING! This notice indicates a specic hazard or unsafe practice that could result in a

serious injury if the proper precautions are not taken.

CAUTION! This notice indicates a potentially hazardous situation that may result in minor

or moderate injury if proper practices are not taken.

NOTICE! This notice indicates that a specic hazard or unsafe practice will result in

equipment or property damage, but not personal injury.

V1.0 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER 9056680

Page 3 www.princessauto.com / 1-800-665-8685

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit

and free of distractions. Place lights so you are not working in a shadow.

2. Keep anyone not wearing the appropriate safety equipment away from

the work area.

3. Store unused tools properly in a dry, safe and secure location to prevent

rust, damage or misuse.

4. Do not install or use in the presence of ammable gases, dust or liquids.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the

Canadian Standards Association (CSA) or American National Standards

Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection

for the eyes. Eye protection equipment should comply with CSA Z94.3-07

or ANSI Z87.1 standards based on the type of work performed.

2. Wear protective clothing designed for the work environment and tool.

3. Non-skid footwear is recommended to maintain footing and balance in the

work environment

4. Wear the appropriate rated dust mask or respirator. Wear a NIOSH

approved respirator when working on materials that produce hazardous

fumes, dust or particulate matter.

PERSONAL PRECAUTIONS

Control the tool, personal movement and the work environment to avoid

personal injury or damage to tool.

1. Do not operate any tool when tired or under the inuence of drugs,

alcohol or medications.

2. Avoid wearing clothes or jewelry that can become entangled with the

moving parts of a tool. Keep long hair covered or bound.

3. Do not overreach when operating a tool. Proper footing and balance

enables better control in unexpected situations.

9056680 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER V1.0

www.princessauto.com / 1-800-665-8685 Page 4

SPECIFIC SAFETY

WARNING! DO NOT let comfort or familiarity with product (gained from

repeated use) replace strict adherence to the tool safety rules. If you use

this tool unsafely or incorrectly, you can suer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specic

function. Do not modify or alter this tool or use it for an unintended

purpose.

2. Do not use the tool if any parts are damage broken or misplaced. Repair or

replace the parts.

3. Do not use grinding accessories with this tool.

POWER TOOL PRECAUTIONS

1. Do not use any power tool with a malfunctioning power switch or control.

A power tool that fails to respond to the controls is dangerous and can

cause an injury. A qualied technician must repair and verify the power

tool is operating correctly, before it can be used.

2. Shut the power o and disconnect the polisher from the power supply (if

possible) before making any adjustments, changing accessories, cleaning,

servicing or when storing. Such preventive safety measures reduce the

risk of starting the tool accidentally.

3. Never force the tool. Excessive pressure could bend or break the polisher,

resulting in damage to the tool, your workpiece or serious personal injury.

If the polisher runs smoothly under no load, but does not run smoothly

under load, then excessive pressure is being used.

4. Check if the polisher's moving parts are misaligned or binding before each

use. Correct the issue before using the polisher to avoid an injury or

damage to the tool.

5. Do not cover the air vents. Proper cooling of the motor is necessary to

ensure normal life of the tool.

6. Do not place the polisher down until the polishing pad has stopped

moving. The polisher may catch the surface of work material and wrench

itself free, causing injury to the user or others in the work area.

KICKBACK PRECAUTIONS

Kickback is a sudden reaction when the polisher snags or is caught on the

material. If kickback occurs:

V1.0 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER 9056680

Page 5 www.princessauto.com / 1-800-665-8685

• The polishing pad may pass over a body part, causing an injury.

• The tool may strike bystanders.

• Kickback can also damage the tool or workpiece.

Kickback can be avoided by taking proper precautions:

1. Maintain a rm grip on the tool and position your body and arms to allow

you to resist a kickback. Kickback will propel the tool in the direction

opposite the polishing pad's direction of rotation. The tool may pull out of

your grasp.

a. Use clamps or a vice to hold down smaller workpieces.

2. Only use a polishing pad designed for the tool.

ELECTRICAL SAFETY

WARNING! Do not touch or handle a live tool with any part of your body

that is wet or damp. Wet skin reduces resistance to electrical current,

increasing the danger of a serious or fatal shock.

1. Do not alter any parts of the tool or accessories. All parts and accessories

are designed with built-in safety features that may be compromised if

altered.

2. Protect yourself against electric shocks when working on electrical

equipment. Avoid body contact with grounded surfaces. There is an

increased chance of electrical shock if your body is grounded.

3. Do not expose the polisher to rain, snow, frost or any other damp or wet

conditions. Water entering a tool will increase the risk of electric shock.

4. In the event of a power failure, turn o or unplug the machine as soon as

the power is interrupted. The possibility of accidental injury could occur if

the power returns and the unit is not switched o.

5. Make certain the power source conforms to requirements of your

equipment (see Specications).

6. This tool is only for use on 120 V (single phase) and is equipped with a

three-prong grounded power supply cord and plug. Check with a qualied

electrician if you are in doubt as to whether the outlet is properly

grounded. If the tool should electronically malfunction or break down,

grounding provides a low resistance path to carry electricity away from

the user.

9056680 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER V1.0

www.princessauto.com / 1-800-665-8685 Page 6

a. Never remove the grounding prong or modify the plug in any way, as

this will render the tool unsafe.

b. Do not use any adapter plugs.

POWER CORD SAFETY

1. Insert the power cord plug directly to the power supply whenever

possible. Use extension cords or surge protectors only when the tool's

power cord cannot reach a power supply from the work area.

a. When operating a tool outside, use an outdoor extension cord

marked W-A or W. These cords are rated for outdoor use and reduce

the risk of electric shock.

2. Do not operate this tool if the power cord is frayed, damaged or poorly

spliced, as an electric shock may occur, resulting in personal injury or

property damage.

3. Discontinue use if a power cord feels more than comfortably warm while

operating the tool.

4. Keep all connections dry and o the ground to reduce the risk of electric

shock. Do not touch the plug or wiring with wet hands.

5. Prevent damage to the power cord by observing the following:

a. Place the power cord in a position that prevents it from coming into

contact with the tool or getting caught by the workpiece. The cord

should always stay behind the tool.

b. Do not pull on the cord to disconnect the plug from an outlet.

c. Keep the cord away from heat, oil, sharp edges or moving parts.

6. Position the cord so it is not be stepped on, tripped over or otherwise

subjected to damage or stress.

7. Do not wrap the cord around the tool, as sharp edges may cut insulation

or cause cracks if wound too tight. Gently coil cord and either hang on a

hook or fasten with a device to keep cord together during storage.

UNPACKING

WARNING! Do not operate the tool if any part is missing. Replace

the missing part before operating. Failure to do so could result in a

malfunction and personal injury.

V1.0 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER 9056680

Page 7 www.princessauto.com / 1-800-665-8685

Remove the parts and accessories from the packaging and inspect for damage.

Contents:

• Polisher

• Backing Pad (hook and loop)

• Foam Polishing Pad (hook and loop)

• Hex wrench

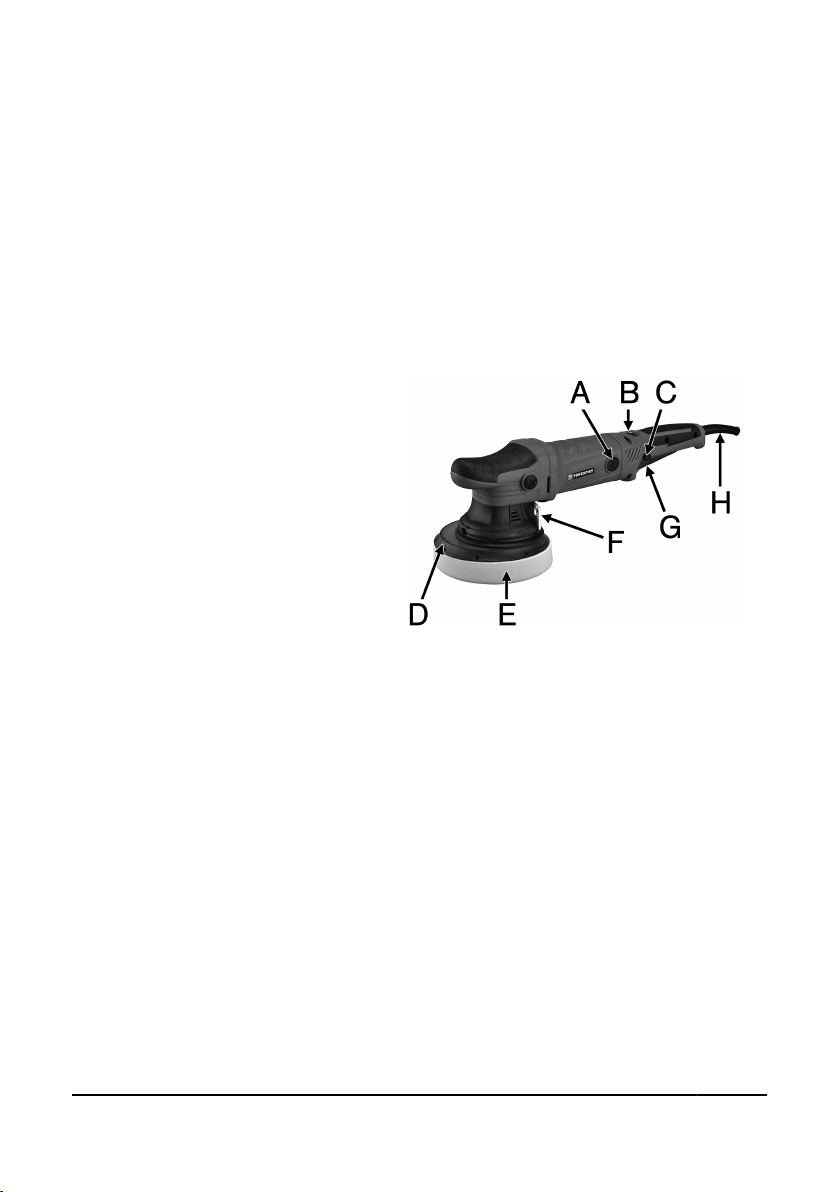

IDENTIFICATION KEY

A. Carbon Brush Cap

B. Speed Dial

C. Trigger Lock Button

D. Backing Pad

E. Sponge Pad

F. Hex wrench

G. Trigger Lever

H. Power Cord

FIGURE 1.

ASSEMBLY & INSTALLATION

INSTALL THE POLISHING PAD

The polisher has a single polishing pad for waxing, bung and polishing.

1. The polishing pad is specically designed to t the size and shape of the

polisher's backing pad. The fuzzy backing on the polishing pad attaches to

the hook and loop backing pad.

2. Position the polishing pad so that it does not touch anything.

3. Before using the polisher on a workpiece, test the polisher by running it

at the highest speed rating for at least 30 seconds in a safe position. Stop

immediately if there is any abnormal vibration or wobbling. Check the tool

to determine the cause.

9056680 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER V1.0

www.princessauto.com / 1-800-665-8685 Page 8

OPERATIONS

WAXING

1. Check that the work surface is free from debris, dirt, oil or grease before

polishing.

2. Apply wax or polish to the polishing pad, following the manufacturer's

instructions for the amount and method.

3. Firmly grasp both handles.

4. Place the polisher on the workpiece.

5. Do not turn the power on yet. Move the polisher around in a circular

motion to spread the wax.

6. Set the speed and turn the the polisher on.

7. Position the polisher so that it does not touch anything.

8. Start the polisher and allow it to attain full speed.

9. Apply the wax to all at surfaces with broad, sweeping strokes in a

crisscross pattern. Apply the wax evenly over the surface of the vehicle.

10. Add small amounts of wax to the polishing pad if needed. Only apply after

stopping the tool.

• Saturating the polishing pad with wax or polish will make application

more dicult.

11. Switch the polisher OFF, then remove the polisher from the workpiece.

12. Remove the polishing pad for cleaning.

13. Allow sucient time for the wax to dry. It wax will turn hazy as it dries.

Consult the directions on the wax product.

14. Bu the dry wax with a clean bung pad if desired. Move the tool over

the workpiece until the excess dried wax becomes clear.

POLISHING

1. Attach the polishing pad's fuzzy side to the hook and loop on the backing

pad.

2. Set the speed and turn the the polisher on.

V1.0 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER 9056680

Page 9 www.princessauto.com / 1-800-665-8685

3. Move the polisher across the waxed surface in light, long strokes. Do not

move in a circle as this will leave swirl marks in the surface.

4. Switch the polisher OFF, then remove the polisher from the workpiece.

5. Remove the polishing pad for cleaning.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is ecient, easier to

control and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or

worn components.. Only use identical replacement parts when servicing.

3. Only use accessories intended for use with this tool. Follow instructions

for changing accessories.

4. Keep the tool handles or gripping surfaces clean and dry.

5. Maintain the tool’s labels and name plates. These carry important

information. If unreadable or missing, contact Princess Auto Ltd. for

replacements.

6. Check the carbon brushes periodically. Replace brushes when they have

about 1/4 in. remaining or the brush displays signs of breakage, crumbling

or burning. Check that the new brushes can move freely in the brush

holder. Run the motor for 15 minutes without load to shape the brushes,

so that they are properly aligned with the commutator.

WARNING! Only qualied service personnel should repair the tool. An

improperly repaired tool may present a hazard to the user and/or others.

CLEANING

1. Wipe down exterior surfaces with a damp cloth to remove accumulated

dust.

2. Gently brush the foam pad with a plastic-bristle brush to remove loose

debris and dust.

9056680 VARIABLE-SPEED ELECTRIC BUFFER/POLISHER V1.0

www.princessauto.com / 1-800-665-8685 Page 10

Table des matières

Langues :

Autres manuels Power Fist Sander

Power Fist

Power Fist 8844136 Manuel utilisateur

Power Fist

Power Fist 8541898 Manuel utilisateur

Power Fist

Power Fist 9049081 Manuel utilisateur

Power Fist

Power Fist 8336349 Manuel utilisateur

Power Fist

Power Fist 8864944 Manuel utilisateur

Power Fist

Power Fist 9049099 Manuel utilisateur

Power Fist

Power Fist 9032202 Manuel utilisateur

Power Fist

Power Fist 9049107 Manuel utilisateur

Power Fist

Power Fist 8359697 Manuel utilisateur

Power Fist

Power Fist 8572232 Manuel utilisateur

Power Fist

Power Fist 8532293 Manuel utilisateur

Power Fist

Power Fist 8155558 Manuel utilisateur

Power Fist

Power Fist 8726788 Manuel utilisateur

Power Fist

Power Fist 8336877 Manuel utilisateur

Power Fist

Power Fist 8630055 Manuel utilisateur

Power Fist

Power Fist 8843823 Manuel utilisateur

Power Fist

Power Fist 9038589 Manuel utilisateur

Power Fist

Power Fist 9073925 Manuel utilisateur

Power Fist

Power Fist 8239485 Manuel utilisateur

Power Fist

Power Fist 8145385 Manuel utilisateur

Power Fist

Power Fist 8056640 Manuel utilisateur

Power Fist

Power Fist 8064685 Manuel utilisateur

Power Fist

Power Fist 8336885 Manuel utilisateur

Manuels Sander populaires d'autres marques

Oliver

Oliver 6305 Manuel utilisateur

Jet

Jet 22-44 Pro-3 Manuel de service

Makita

Makita M9204 Manuel

Makita

Makita M9204 Manuel utilisateur

Craftsman

Craftsman 351.215131 Manuel utilisateur

Clarke

Clarke Woodworker CBS1-5B Mode d’emploi

Chicago Pneumatic

Chicago Pneumatic CP9778 Manuel utilisateur

Nitto Kohki

Nitto Kohki BB-20 Manuel utilisateur

Ferm

Ferm FEOS-135 Manuel utilisateur

Unior

Unior 1510 Manuel utilisateur

stayer

stayer ls1200 Manuel utilisateur

Jet

Jet JSG-96 Manuel de service

Parkside

Parkside PDS 290 B2 Manuel utilisateur

Status

Status XPA Series Manuel utilisateur

Clarke

Clarke EZ Sand Manuel utilisateur

Craftsman

Craftsman 113.22521 Manuel utilisateur

Craftsman

Craftsman 113.225831 Manuel utilisateur

CLAS

CLAS OP 1429 Manuel utilisateur
