TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

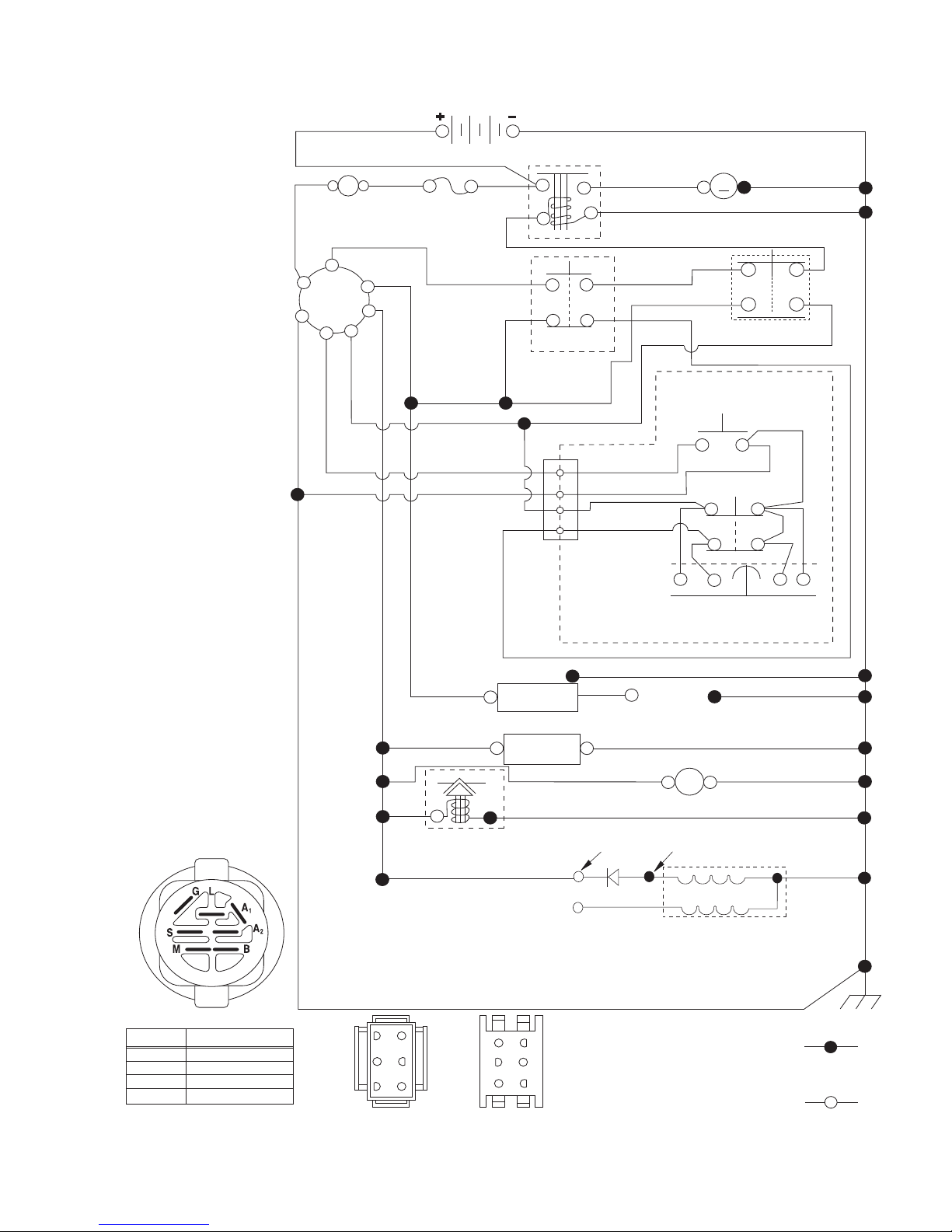

SCHEMATIC

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH18

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

ALTERNATOR

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

ELECTRICAL

T31K

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

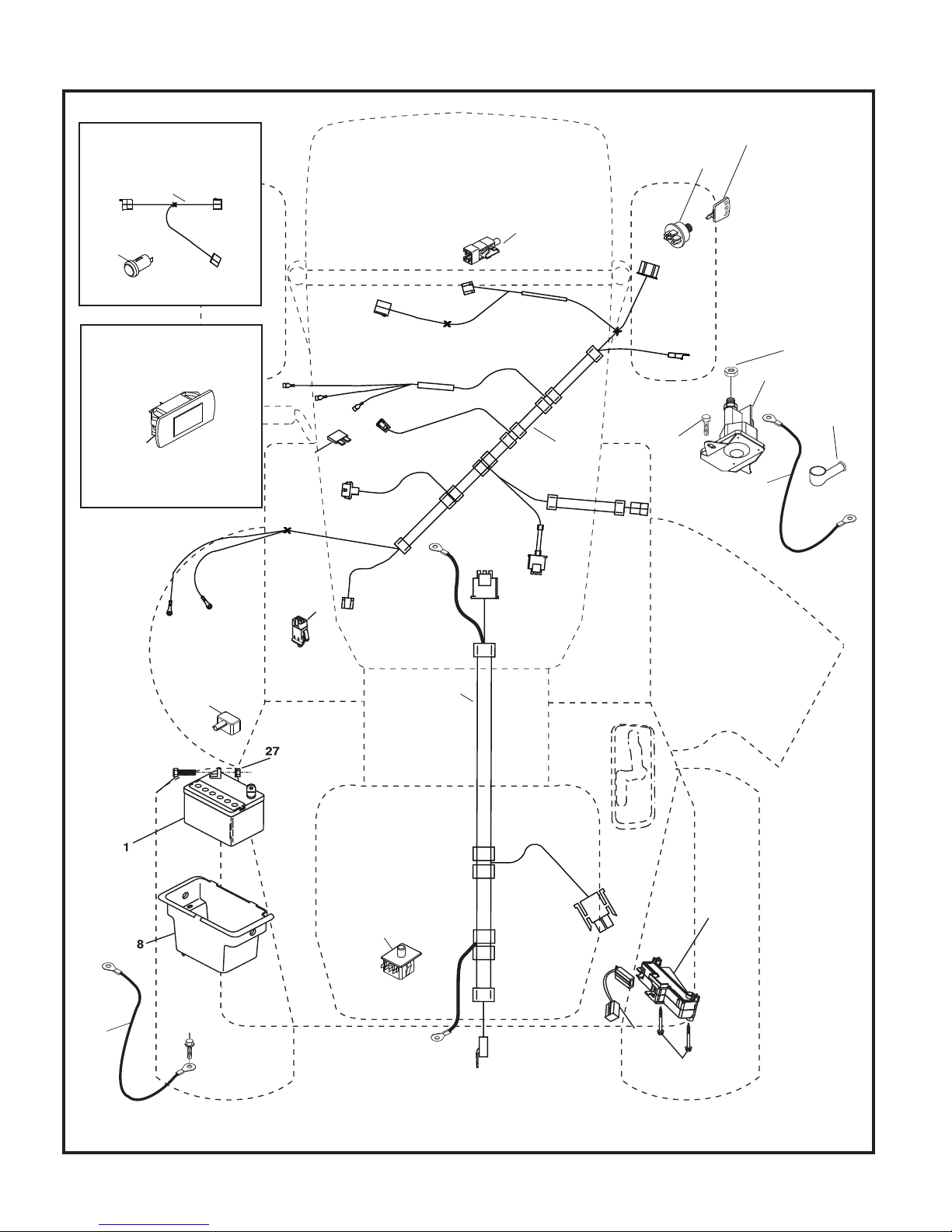

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144924 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8 193228 Box Battery

16 176138 Switch Interlock

25 412894 Cable Starter Battery 6 Ga. BL/Red 14.5

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 unc

28 198885 Cable Ground 18" Rear Battery Blk 6 Ga.

29 192749 Switch Seat

30 193350 Switch Ign

33 411933 Key/Chain

40 401098 Harness Ign

41 17720408 Screw 1/4-20 unc x 1/2

42 131563 Cover Terminal Red

43 192507 Solenoid

55 17060512 Screw 5/16-18 x 3/4

71 400449 Harness Ign. Chass.

87 197802 Switch Interlock Clutch

90 400725 Cover Terminal

92 196615 Harness Pigtail Reverse Switch

93 192540 Screw Plastic 10-14 x 2.0

94 191834 Modual Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Chassis-tex_ALPHA_1

181 194

194

162

181

196

287

138

182

176

175

177

176

180

217

189

152

228

194

183

236

235

213

218

130

151

137

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

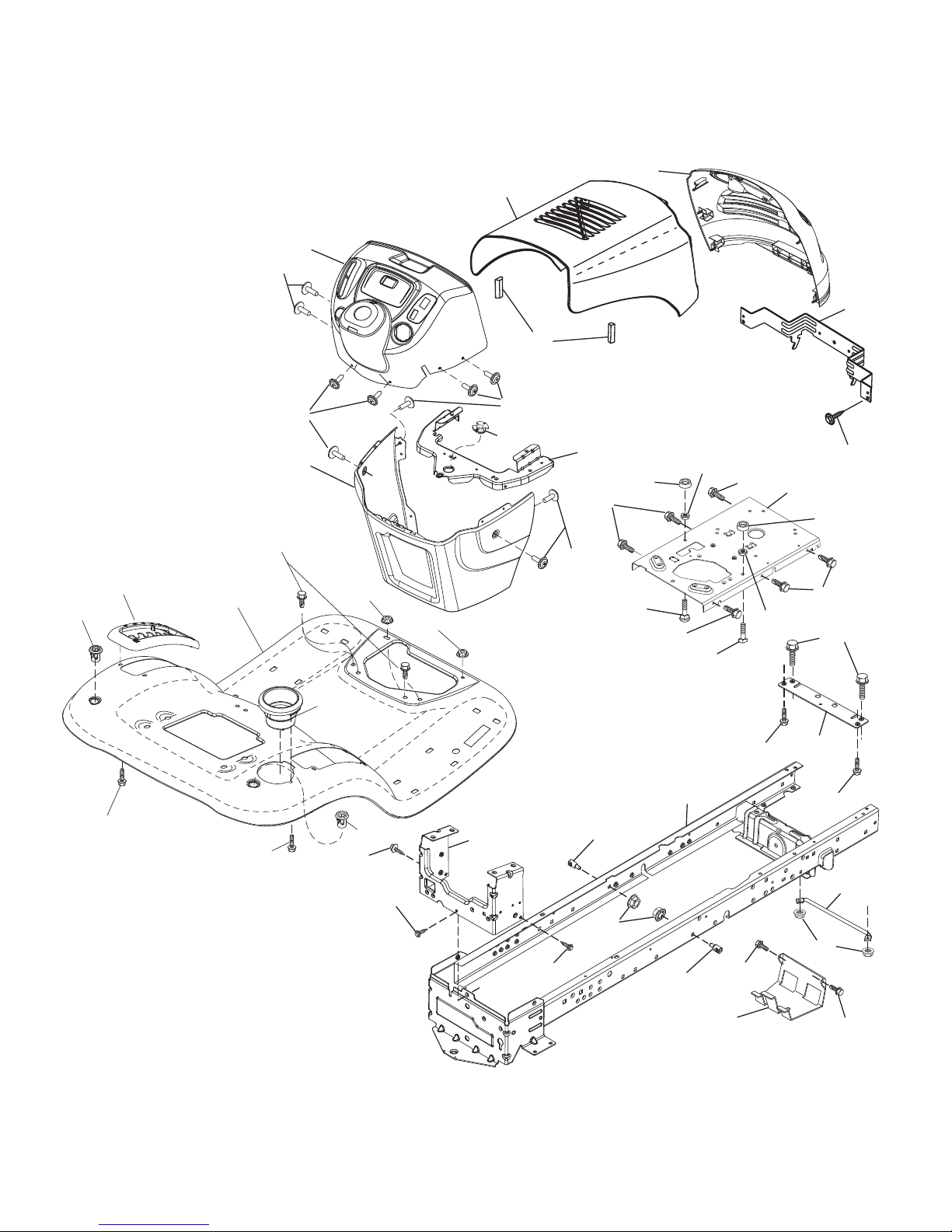

CHASSIS

5 197783X428 Dash

14 187559X428 Hood

18 433994X428 Grille

34 196125 Plate Engine

36 17060512 Screw 5/16-18 x 3/4

37 414872X505 Fender

52 73680500 Nut Lock 5/16-18

58 412280 Drawbar Upper

68 17490508 Screw Thdrol 5/16-18 x 1/2

130 416358 Screw #10 x 0.750

137 184921 Bumper Hood

138 193224X428 Cupholder

151 187568 Bracket Pivot

152 199535 Shield Browning/Debris

162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2

175 193243 Crossmember

176 400776 Screw 10-24 x 5/8 Wshd Qdrx

177 195228 Bushing Steering

180 414685 Chassis

181 193102X428 Bushing Mtg. Fender Crgo.

182 193057 Dash Lower

183 74520520 Bolt 5/16-18 x 1-1/4

189 17000512 Screw 5/16-18 x 3/4

194 73900500 Nut Lock Hex Flange 5/16-18

196 414579 Console Asm. Deck Lift

213 74760512 Bolt 5/16-18 x 3/4

217 409167 Rod Pivot Hood

218 196395 X-Piece Hood Stop

228 195161 Stud Fastener

235 406129 Spacer Fender

236 73930500 Nut Center Lock 5/16-18

287 17600406 Screw 1/4-20 x 3/8

- - - 193640X428 Plug Switch Light

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

CHASSIS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

232

233 165166

188

195

125

161

175

192

134

192

157

141

140

139

178

174

176

203

184

167

160

159

166

155

202

drive-tex_peerless_fender_39

116

193

73 26

158

205 33

221

186

189

187

190

183

287

185

172

125

160

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

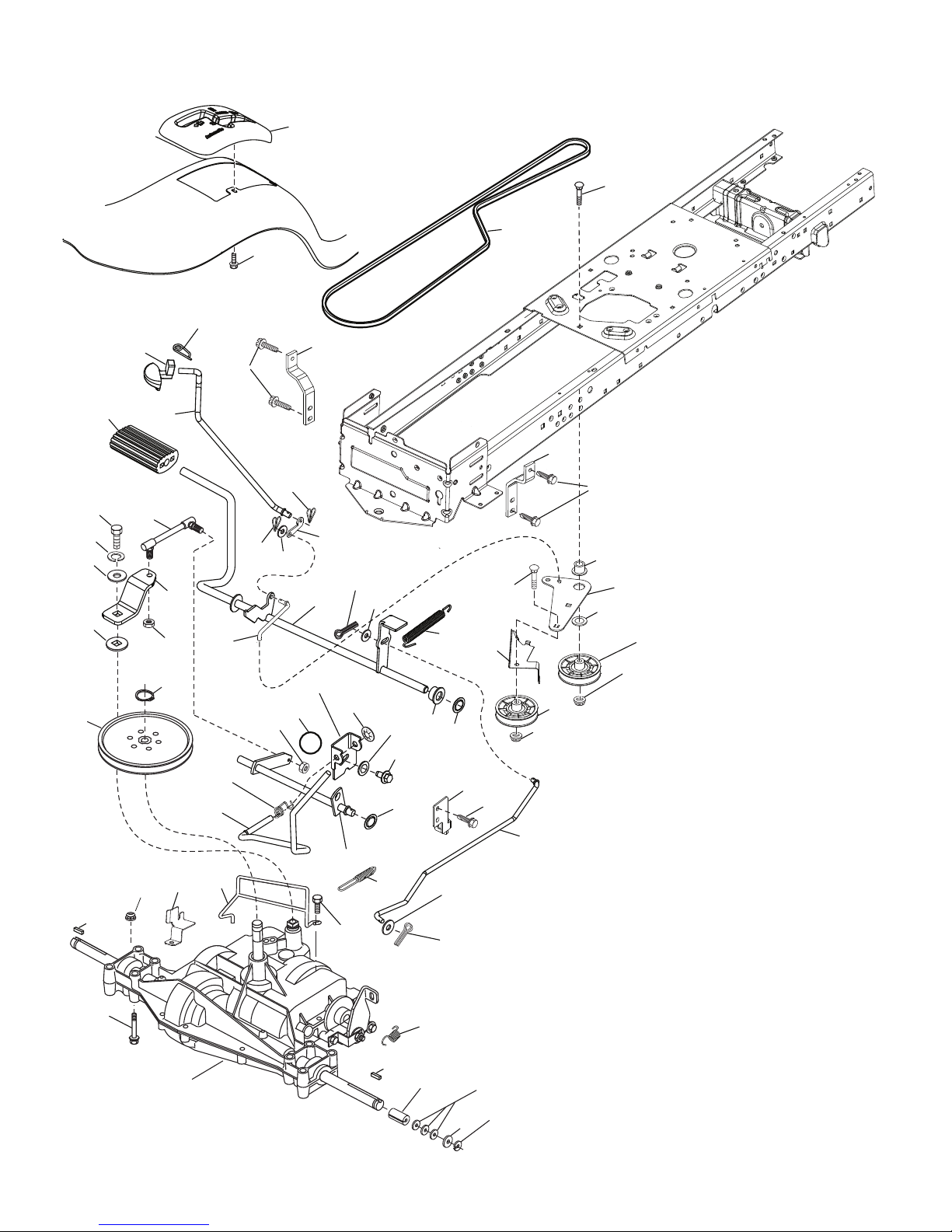

DRIVE

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - Transaxle, Peerless 203-569

2 123583X Key Square

15 19131316 Washer 13/32 x 13/16 x 16 Ga.

17 197297 Spring, Brake

22 197660 Rod Shift

23 106933X Knob

26 197455 Spring Brake RTN

29 197267 Rod, Brake

33 12000001 Ring E

35 197722 Rod, Brake, Park

37 121749X Washer 25/32 x 1-1/4 x 16 Ga.

42 8883R Cover, Foot Pedal

49 72110614 Bolt

50 194327 Pulley Idler Flat

51 73900600 Lock Nut 3/8-16

52 194326 Idler V-Groove

56 138255 V-Belt, Drive

61 165999 Pulley Transaxle

64 196200 Shaft Asm. Pedal Brake Control

70 429581X428 Console

73 74490544 Bolt 5/16-18 Gr. 5

74 142432 Screw 1/4 x 1/2

116 73900500 Nut Lock Hex Flange 5/16-18

125 17000512 Screw 5/16-18 x 3/4

134 197857 Arm Shift

139 74550412 Bolt 1/4-20 unf Gr. 8 w/Patch

140 10040400 Washer Lock Hvy Helical 1/4

141 19091210 Washer 9/32 x 3/4 x 10 Ga.

155 12000028 Ring Retainer

157 105701X Washer Plate Shf

158 194352 Keeper T/A

159 76020412 Pin Cotter 1/8 x 3/4

160 169484 Retainer Clip

161 105709X Spring, Return, Clutch

165 196212 Busing Shaft Brake Hand Control

166 429164 Nut Push .625

167 405257 Latch Brake Parking

172 197657 Strap Torque LH

174 197289 Nut Push

175 197858 Shaft Asm Shift

176 196214 Arm Clevis Rod Shift

178 197456 Spring Shift

183 137057 Spacer, Axle

184 198403X505 Handle Parking Brake

185 72110622 Bolt

186 194321 Spacer Retainer

187 19133210 Washer

188 194323 Link Clutch Ground Drive

189 194317 Bellcrank Ground Drive

190 194318 Keeper Bellcrank Ground Drive

192 150360 Nut Lock Center 1/4-28

193 17060512 Screw 5/16-18 x 3/4

195 197332 Bracket Brake Rod

202 197859 Link Shift

203 19111116 Washer 11/32 x 11/16 x 16 Ga.

205 121748X Washer 25/32 x 1-5/8 x 16 Ga.

221 403187 Retainer Spring Clip Handle

232 74780716 Bolt 7/16-14 x 1 Gr. 5

233 405296 Washer Serrated

287 421648 Keeper Pulley T/A

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

DRIVE

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

OPTIONAL EQUIPMENT

Spark Arrester

engine-tex_BS_30

69 2

122

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

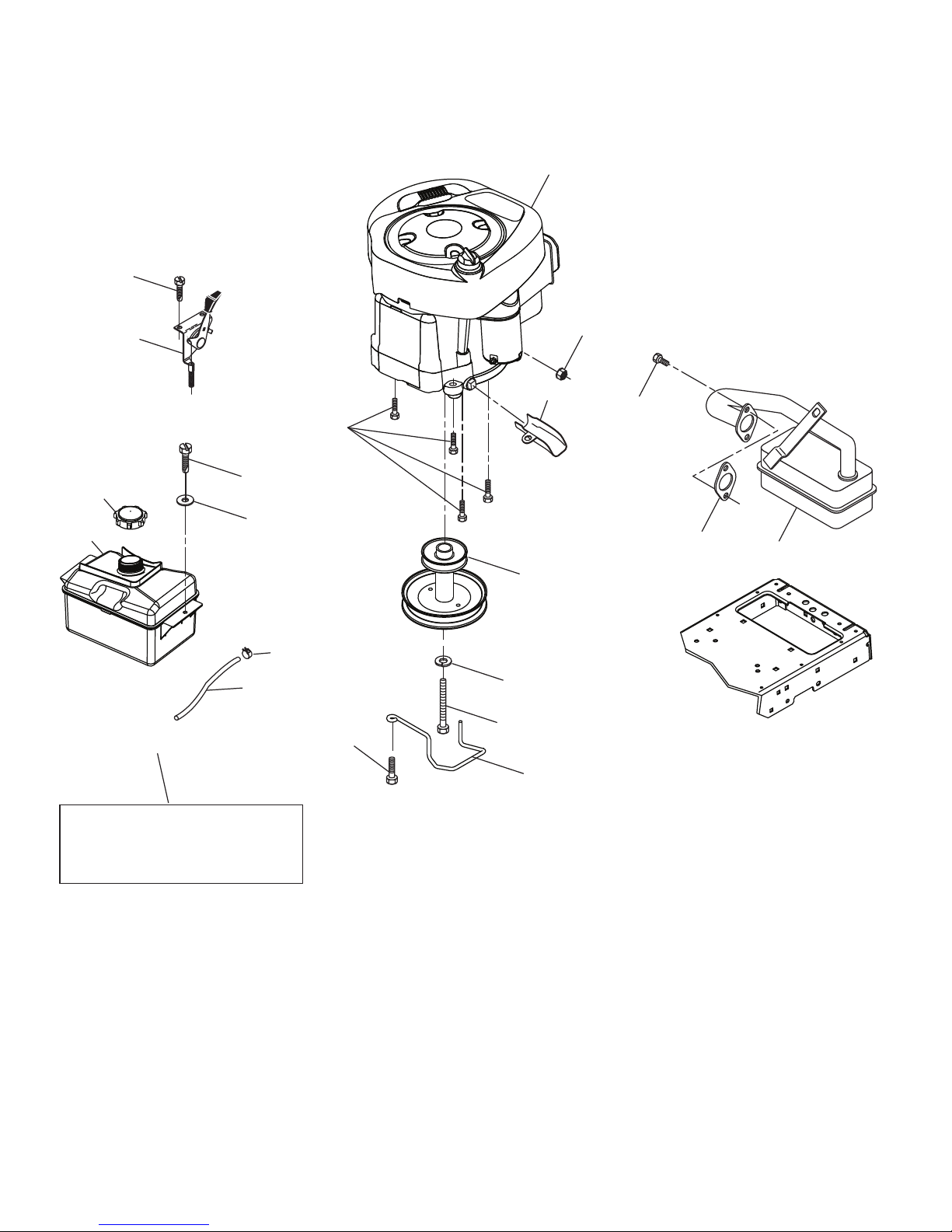

ENGINE

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - Engine Briggs Model No.

219807-0389-B1

2 179758 Muffler

9 194319 Keeper Belt Engine

12 140186 Pulley Engine

15 407545 Tank Fuel 1.5

18 430220 Cap

20 170545 Control Throttle

21 416358 Screw #10 x 0.750

28 401137 Fuel Line

29 137180 Spark Arrester Kit

37 123487 Clamp Hose

42 10040700 Washer Lock 7/16

45 73510400 Nut Keps Hex 1/4-20 unc

69 165291 Gasket

79 192334 Screw 5/16 - 18 x .75

84 17060620 Screw 3/8-16 x 1-1/4

85 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

90 17000616 Screw 3/8-16 x 1

96 19091416 Washer 9/32 x 7/8 x 16 Ga.

97 17670412 Screw 1/4-20 x 3/4

122 421922 Extension Drain Oil

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Engine Power Rating Information

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive

Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained

and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower

values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambi-

ent operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are

placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop

the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is

due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,

fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-

engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher

rated power for this Series engine.

TRACTOR - MODEL NO. PO12530LT (96042010500), PRODUCT NO. 960 42 01-05

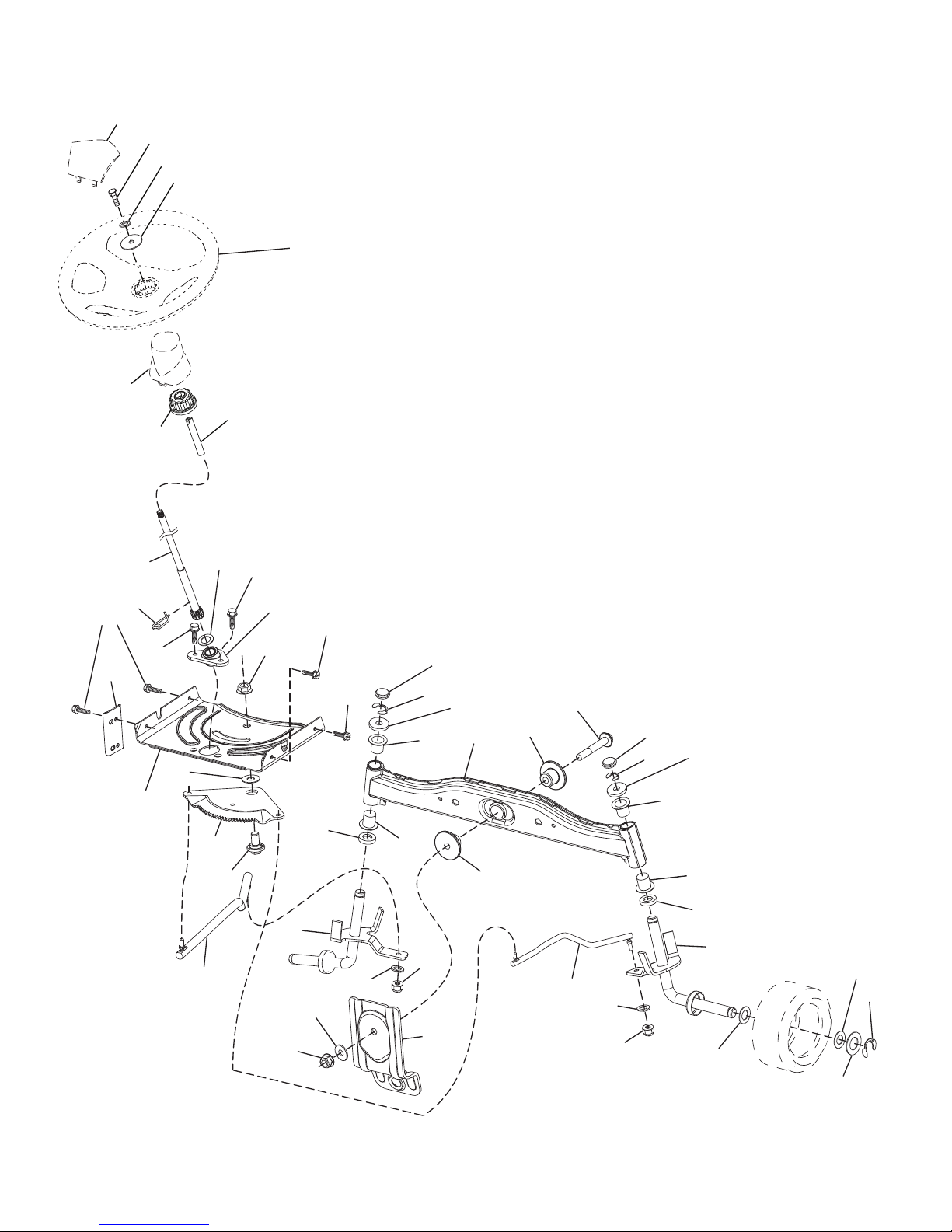

STEERING

steering-tex_STDHRS_10
