Poulan Pro PB175A46 Manuel d'utilisation

REPAIR PART'S MANUAL

MODEL:

PB175A46

LAWN TRACTOR

ALWAYS WEAR EYE PROTECTION DURING OPERATION

Visit our website: www.poulanpro.com

WARNING:

Read this Manual and follow all Warnings

and Safety Instructions. Failure to do so can

result in serious injury.

IMPORTANT MANUAL Do Not Throw Away

10.01.13 BD

585 97 17-27 Printed in the U.S.A.

03131

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor

when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,

it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some

hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “Tractor”

• MODEL NUMBER - “PB175A46 (96042015700)”

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ................................................................................................................ 3

ELECTRICAL............................................................................................................4-5

CHASSIS ..................................................................................................................6-7

DRIVE........................................................................................................................8-9

ENGINE.................................................................................................................10-11

STEERING ............................................................................................................12-13

MOWER DECK .....................................................................................................14-15

MOWER LIFT.............................................................................................................16

SEAT ..........................................................................................................................17

DECALS..................................................................................................................... 18

WARRANTY...............................................................................................................19

PARTS AND SERVICE..............................................................................................20

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

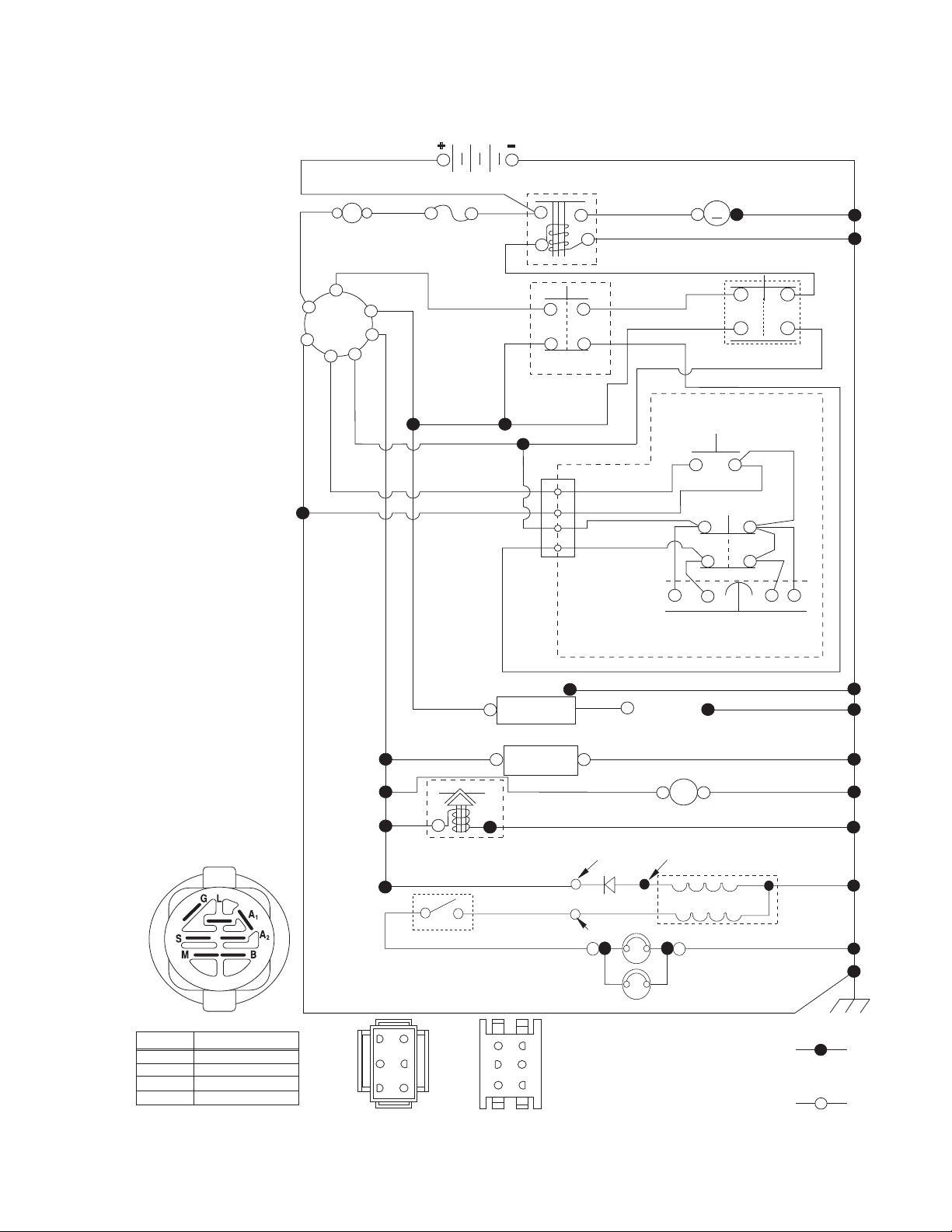

SCH11

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

SCHEMATIC

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

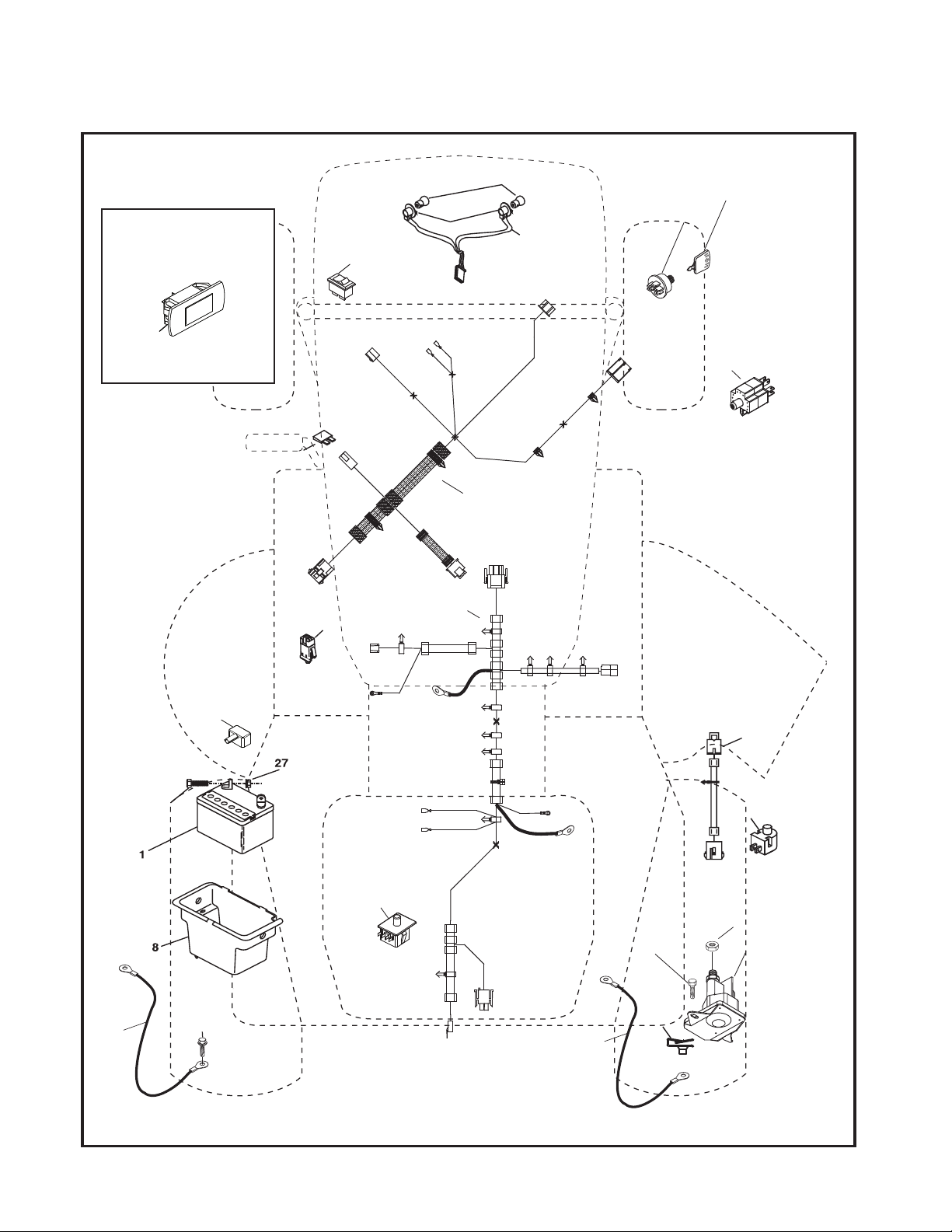

ELECTRICAL

79 21

TR02K

With Service Minder Option

4646

106

102

105

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock

21 532 17 52-42 Harness Socket Light

22 532 00 41-52 Bulb, Light #1156

25 581 49 80-01 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 42 16-86 Cable Ground 18" Rear Battery Blk 6 Ga.

29 532 19 27-49 Switch Seat

30 532 19 33-50 Switch Ign

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 581 02 31-01 Harness Ign Dash

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw 5/16-18 x 3/4

71 581 02 30-01 Harness Ign. Chass

79 532 17 52-42 Socket Asm. Bulb

87 532 19 78-02 Switch Interlock Clutch

90 532 43 53-95 Cover Terminal

99 817 67 04-12 Screw

102 532 41 97-81 Pigtail

105 532 40 75-68 Switch Reverse

106 532 17 48-14 Pal nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

153

130

176

151

225

176

130

130 130

150

191

297

183

236

235

213

218

chassis-tex_TEX LT PRED_42_r2

217

189

152

228

194

180

159

237

189

177

175

176

182

181

287

162 138

181

194

196

234

306

125

146

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

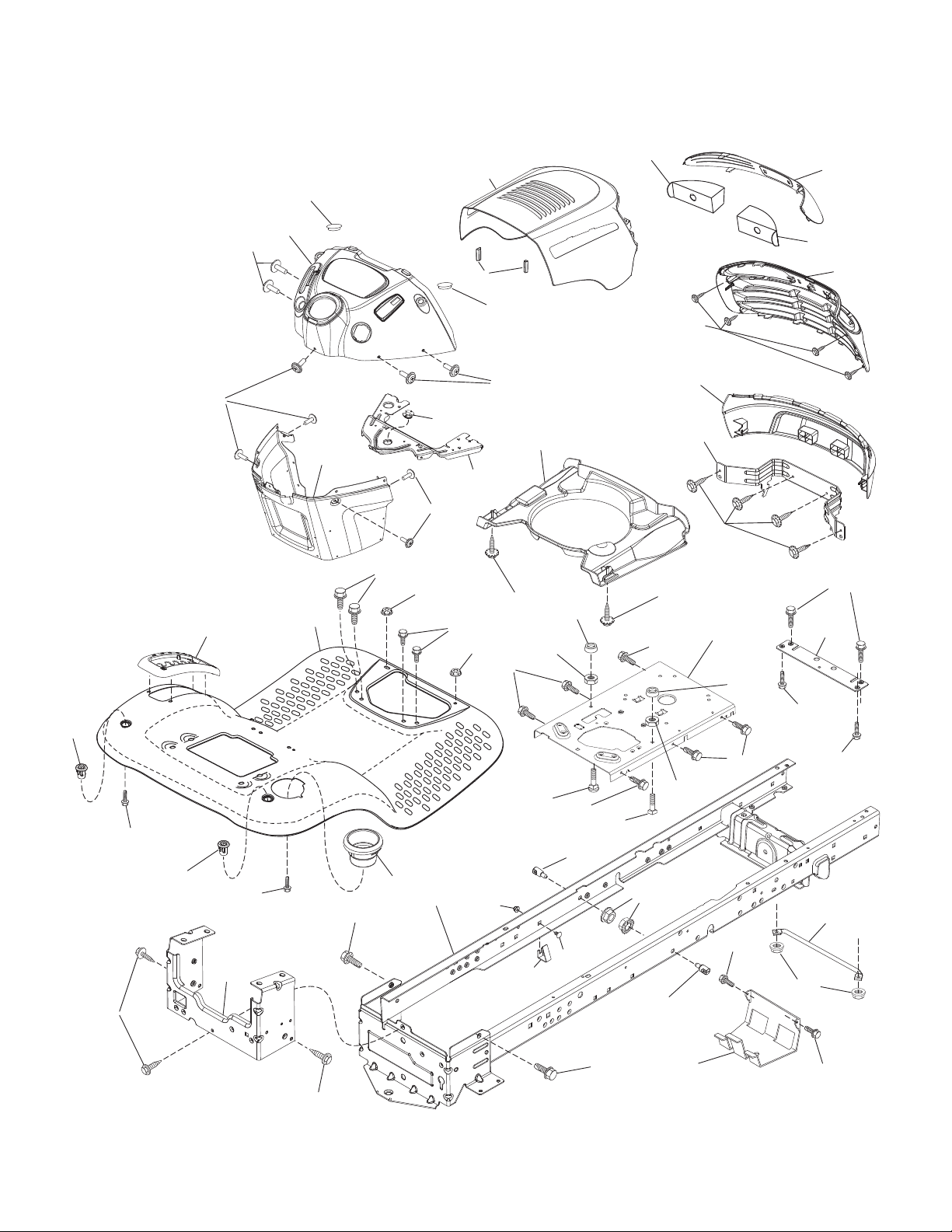

CHASSIS

5 532 42 57-72 Dash

14 586 05 70-01 Hood

18 532 42 65-11 Grille

34 580 91 08-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 43 65-23 Fender

52 873 68 05-00 Nut Lock 5/16-18

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

130 532 41 63-58 Screw #10 x 0.750

138 532 40 97-30 Cupholder

146 581 85 79-01 Bolt

150 532 40 83-10 Duct Heat Hood

151 532 18 75-68 Bracket Pivot

152 532 19 95-35 Shield Browning

153 532 44 42-64 Lens Grille

159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-28 Bushing Steering

180 532 41 50-63 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo.

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-02 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 42 72-53 Console Asm. Deck Lift

213 874 76 05-12 Bolt 5/16-18 x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Step

225 586 01 63-01 Bumper

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18

237 532 40 37-04 Plug Mount Cargo

287 817 60 04-06 Screw 1/4-20 x 3/8

297 532 40 18-27 Insert Reflective LH

306 873 90 06-00 Nut Lock

- - 532 43 23-72 Kit Bumper

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

CHASSIS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

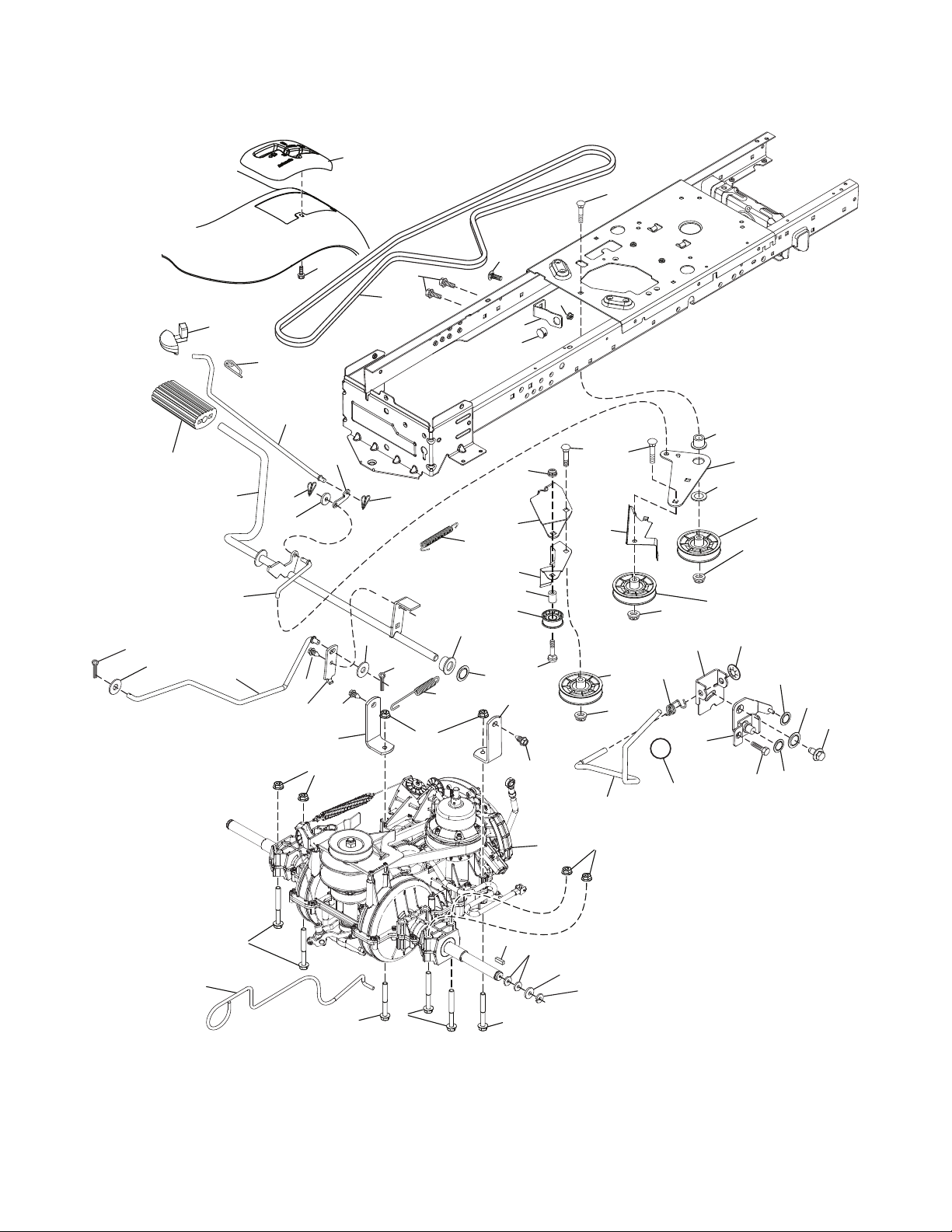

DRIVE

186

189

190

187

373

301

300

303

166

297

125

178

176

232

233

175

174

drive-tex_VATR_18

166

165

282 282

205

116

172

125

374

125

160

203

188

161

184

221

167

299

143

185

302

159

15 159

195

345

375

172

116

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

DRIVE

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 – – – – – – Transaxle, Gentrans VATR

(580486301)(Order parts from

transaxle manufacturer.)

2 532 12 35-83 Key Square 2.0 x .1845/.1865

5 873 68 06-00 Nut Crownlock

6 532 12 40-28 Bushing Snap

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 584 95 40-01 Spring Brake

22 532 42 10-63 Rod Shift

23 532 14 08-45 Knob

29 584 82 31-01 Rod Brake

33 812 00 00-01 E-Ring #5133-75

35 532 40 10-31 Rod Brake Parking Lt. Tex

37 532 18 89-67 Washer .793 x 1.637 x 060

42 532 12 48-72 Cover Pedal Blk. Round

49 872 11 06-14 Bolt 3/8-16 unc x 1-3/4.Gr 5

50 532 19 43-27 Idler Flat

51 873 90 06-00 Nut, Hex, Flangelock 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 19 72-53 Belt Drive 100.97"

64 580 40 15-01 Shaft Asm Pedal Brake Control

67 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.

70 532 44 03-23 Console

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr.5

74 532 14 24-32 Screw Hex.Wsh.1/4 X 1/2 unc

99 532 43 59-35 Rod Bypass

116 873 90 05-00 Nut, Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4 Smgml.

143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 Tytt

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip(M) Dia. 290

161 532 10 57-09 Spring Return Clutch 6.75

165 532 19 62-12 Bushing Shaft Brake Hand

166 532 42 91-64 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 583 97 42-01 Strap Torque Lh/Rh

174 532 19 72-89 Nut Push .500

175 532 41 56-77 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift Gt 2006

184 532 44 14-07 Handle Parking Brake .505

185 872 11 06-22 Bolt 3/8-16 Unc x 2-3/4 Gr. 5

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer 13/32 x 2 x 10 Ga.

188 532 19 43-23 Link. Clutch Ground Drive

189 532 19 43-17 Bellcrank Groundrive Nstg/Nstl

190 532 19 43-18 Keeper Bellcrank Drive Ground

195 581 50 46-01 Bracket Brake

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt Fin Hex 7/16-14 x 1 Gr5

233 532 40 52-96 Washer Serrated

282 874 49 05-48 Screw Thdrol 5/16-18 x 3

297 532 42 02-23 Nut Push 1/4

299 532 41 56-83 Bracket Mount Idler

300 532 41 56-81 Keeper Idler Rear

301 532 41 56-80 Pulley Idler V-Groove

302 581 42 05-01 Pulley Idler Flat 2.0 Od

303 872 11 06-18 Bolt Rdhd Sgnk 3/8-16 x 2-1/4

345 872 11 06-06 Bolt Rdhd Sqnk 3/-16 x 1 Gr. 5

373 581 46 18-01 Spacer Idler

374 581 47 52-01 Arm Control Brake

375 874 76 06-36 Bolt Hex

REPAIR PARTS

TRACTOR - - MODEL NUMBER PB175A46 (96042015700), PRODUCT NO. 960 42 01-57

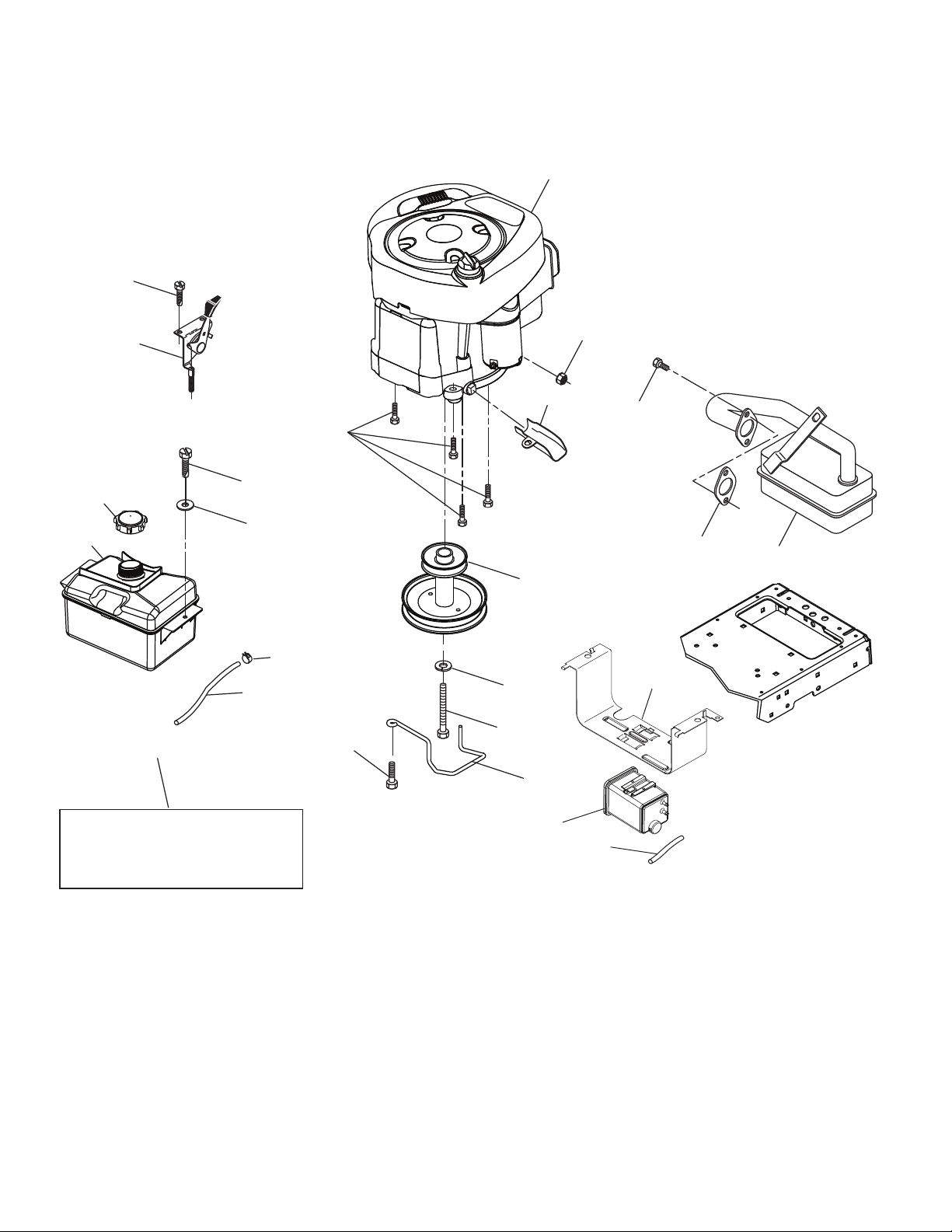

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

18 97

engine-tex_BS_76

69 2

122

109

114

111

Autres manuels pour PB175A46

Table des matières

Langues :

Autres manuels Poulan Pro Tondeuse à gazon

Poulan Pro

Poulan Pro PB19546LT/96042003502 Manuel du propriétaire

Poulan Pro

Poulan Pro XT 433507 Manuel utilisateur

Poulan Pro

Poulan Pro XT PXT12538 Manuel utilisateur

Poulan Pro

Poulan Pro Pro 461ZX / 966681801 Manuel utilisateur

Poulan Pro

Poulan Pro PB175H42LT Manuel utilisateur

Poulan Pro

Poulan Pro 405327 Manuel utilisateur

Poulan Pro

Poulan Pro 411188 Manuel utilisateur

Poulan Pro

Poulan Pro XT20H46YT Manuel utilisateur

Poulan Pro

Poulan Pro PBGT26H54 Manuel utilisateur

Poulan Pro

Poulan Pro PPR2042STC Manuel utilisateur

Poulan Pro

Poulan Pro 183046 Manuel utilisateur

Poulan Pro

Poulan Pro PD25PH48STA Manuel utilisateur

Poulan Pro

Poulan Pro PPH23B48 Manuel utilisateur

Poulan Pro

Poulan Pro 423307 Manuel du propriétaire

Poulan Pro

Poulan Pro 404172 Manuel utilisateur

Poulan Pro

Poulan Pro 961420034 Manuel utilisateur

Poulan Pro

Poulan Pro 183284 Manuel utilisateur

Poulan Pro

Poulan Pro 166120 Manuel utilisateur

Poulan Pro

Poulan Pro PRO PBA19542LTX Manuel utilisateur

Poulan Pro

Poulan Pro PO1538A Manuel utilisateur

Poulan Pro

Poulan Pro PB155G42 Manuel utilisateur

Poulan Pro

Poulan Pro PO18542LT Guide de configuration

Poulan Pro

Poulan Pro PP19H46 Manuel utilisateur

Poulan Pro

Poulan Pro PB20A46LT Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
