Poulan Pro 193282 Mode d'emploi

For Parts and Service, contact our authorized distributor:

call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886

MODEL NO. CO185H42STC

18.5 HP 42 INCH

LAWN TRACTOR

193282 Rev. 1 8.11.04 MH

PRINTED IN U.S.A.

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Storage

• Troubleshooting

• Repair Parts

TABLE OF CONTENTS

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Speciﬁcations........................... 6

Assembly/Pre-Operation ....................... 8

Operation............................................. 11

Maintenance Schedule........................ 17

Maintenance........................................ 17

Service and Adjustments..................... 20

Storage ................................................ 25

Troubleshooting ................................... 26

Repair Parts......................................... 30

WARRANTY

In Canada contact:

Electrolux Canada Corp.

7075 Ordan Drive

Mississauga, Ontario

L5T 1K6

Electrolux Home Products, Inc.

Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as

manufactured is free from defects in materials and workmanship. For a period of two

(2) years from date of purchase by the original consumer purchaser, we will repair or

replace, at our option, without charge for parts or labor incurred in replacing parts, any

part which we ﬁnd to be defective due to materials or workmanship. This Warranty is

subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/

transmission components, battery (except as noted below) or components parts

thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment

are the responsibility of the purchaser. Transportation charges for any parts submit-

ted for replacement under this warranty must be paid by the purchaser unless such

return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without

charge to you, any battery which we ﬁnd to be defective in manufacture, during the

ﬁrst ninety (90) days of ownership. After ninety (90) days, we will exchange the Bat-

tery, charging you 1/12 of the price of a new Battery for each full month from the date

of the original sale. Battery must be maintained in accordance with the instructions

furnished.

4. The Warranty period for any products used for rental or commercial purposes is

limited to 90 days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled, ad-

justed, operated, and maintained in accordance with the instructions furnished. This

Warranty does not apply to any product which has been subjected to alteration, mis-

use, abuse, improper assembly or installation, delivery damage, or to normal wear of

the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal

wear, normal adjustments, standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an

authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

giving the model number, serial number and date of purchase of your product and the

name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME

PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do

not allow the limitation of consequential damages or limitations of how long an implied

Warranty may last, so the above limitations or exclusions may not apply to you. This

Warranty gives you speciﬁc legal rights, and you may have other rights which vary from

locale to locale.

This is a limited Warranty within the meaning of that term as deﬁned in the Magnuson-

Moss Act of 1975.

SAFETY RULES

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artiﬁcial

light.

• Do not operate the machine while under

the inﬂuence of alcohol or drugs.

• Watch for trafﬁc when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass , leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn . Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine . Allow machine to cool before

storage.

II. SLOPE OPERATION

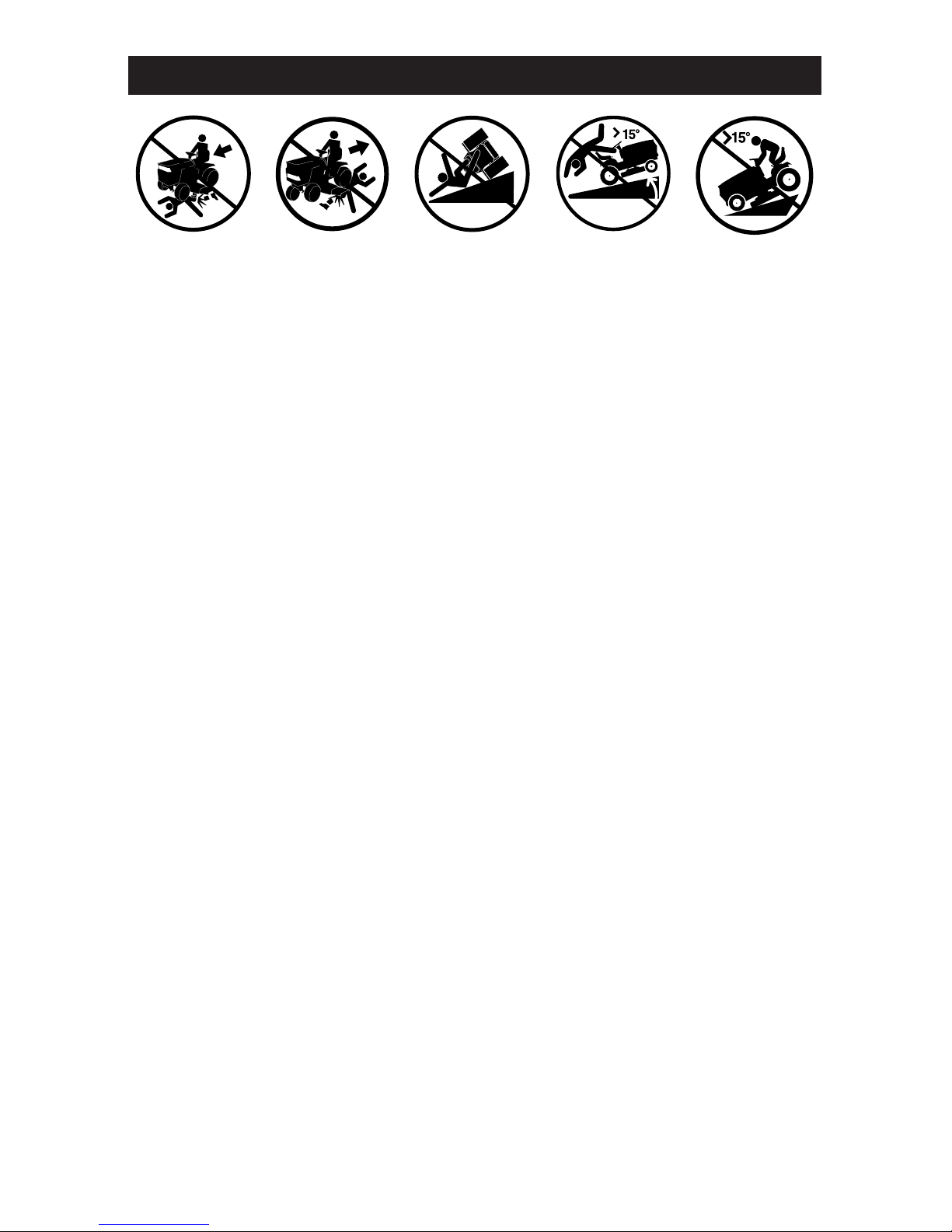

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

WARNING: Do not coast down a

hill in neutral, you may lose control of the

tractor.

WARNING: Tow only the attachments

that are recommended by and comply with

speciﬁcations of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

WARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer’s recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes

slow

and

gradual

. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly

straight

down the

slope.

DO NOT:

•

Do not

turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•

Do not

mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•

Do not

mow on wet grass. Reduced

traction could cause sliding.

•

Do not

try to stabilize the machine by

putting your foot on the ground.

•

Do not

use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity.

Never

as-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and

down

for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

SAFETY RULES

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are ﬂammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open ﬂame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

SAFETY RULES

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest authorized service center/

department We have competent, well-

trained technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under “Mainte-

nance” and “Storage” sections of this

owner’s manual.

WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine’s

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark ar-

rester for the mufﬂer is available through

your nearest authorized service center/de-

partment (See REPAIR PARTS section of

this manual).

PRODUCT SPECIFICATIONS

Gasoline 4.0

Capacity and Unleaded

Type: Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W-30(below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 5.5

Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 9 Amps @ 3600 RPM

System:

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

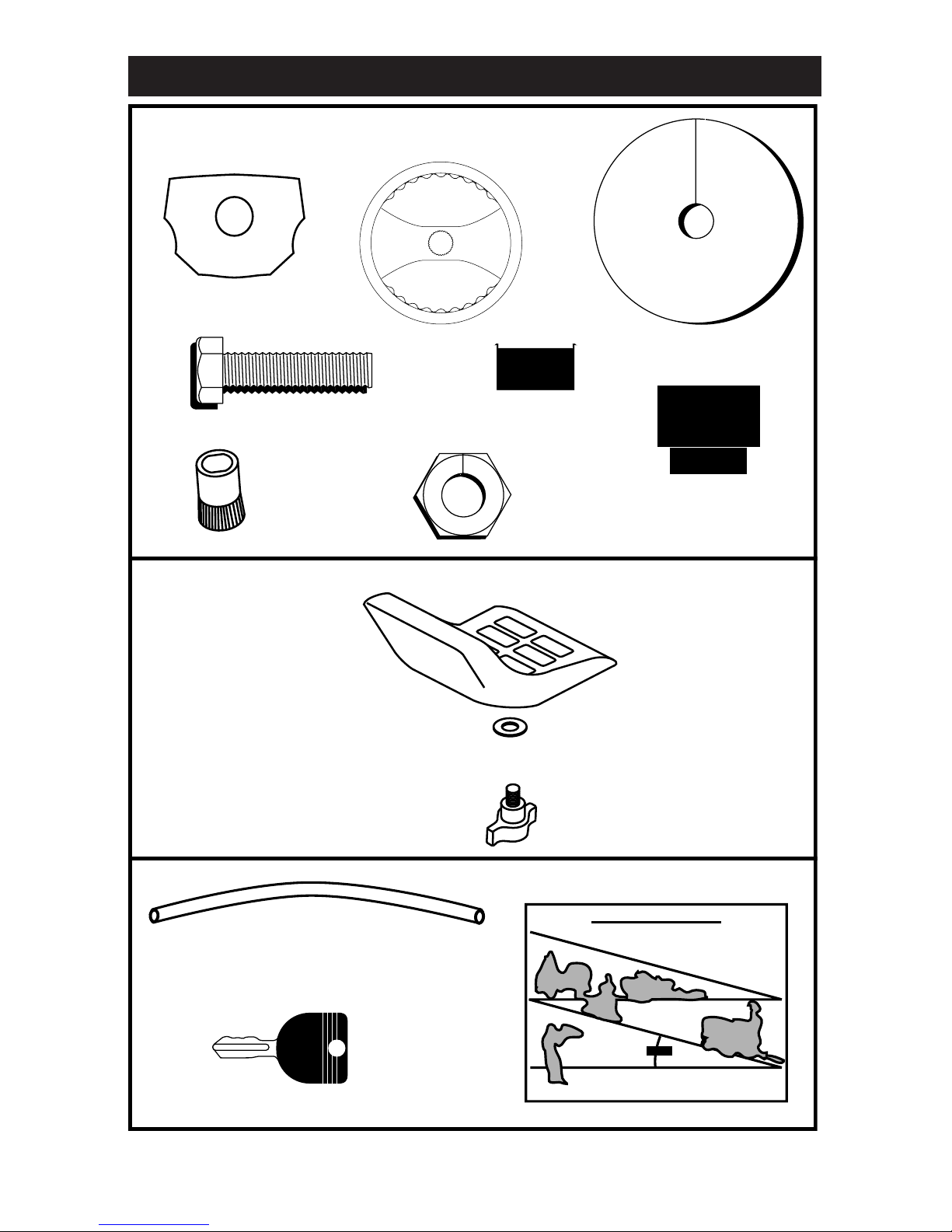

UNASSEMBLED PARTS

Steering Wheel

Steering

Wheel Insert

Seat

(1) Large Flat Washer

Steering Wheel

Adapter

(2) Keys

Slope Sheet

Keys

(1) Oil Drain Tube

For Future Use

(1) Hex Bolt 1/4-28 x 1-1/4

(1) Hex nut 1/2-20

(1) Knob

(1) Washer

17/32 x 1-3/16 x 12 Gauge

Steering Sleeve

Extension

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

ASSEMBLY/PRE-OPERATION

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels ﬂat.

3. Check for any additional loose parts or

cartons and remove.

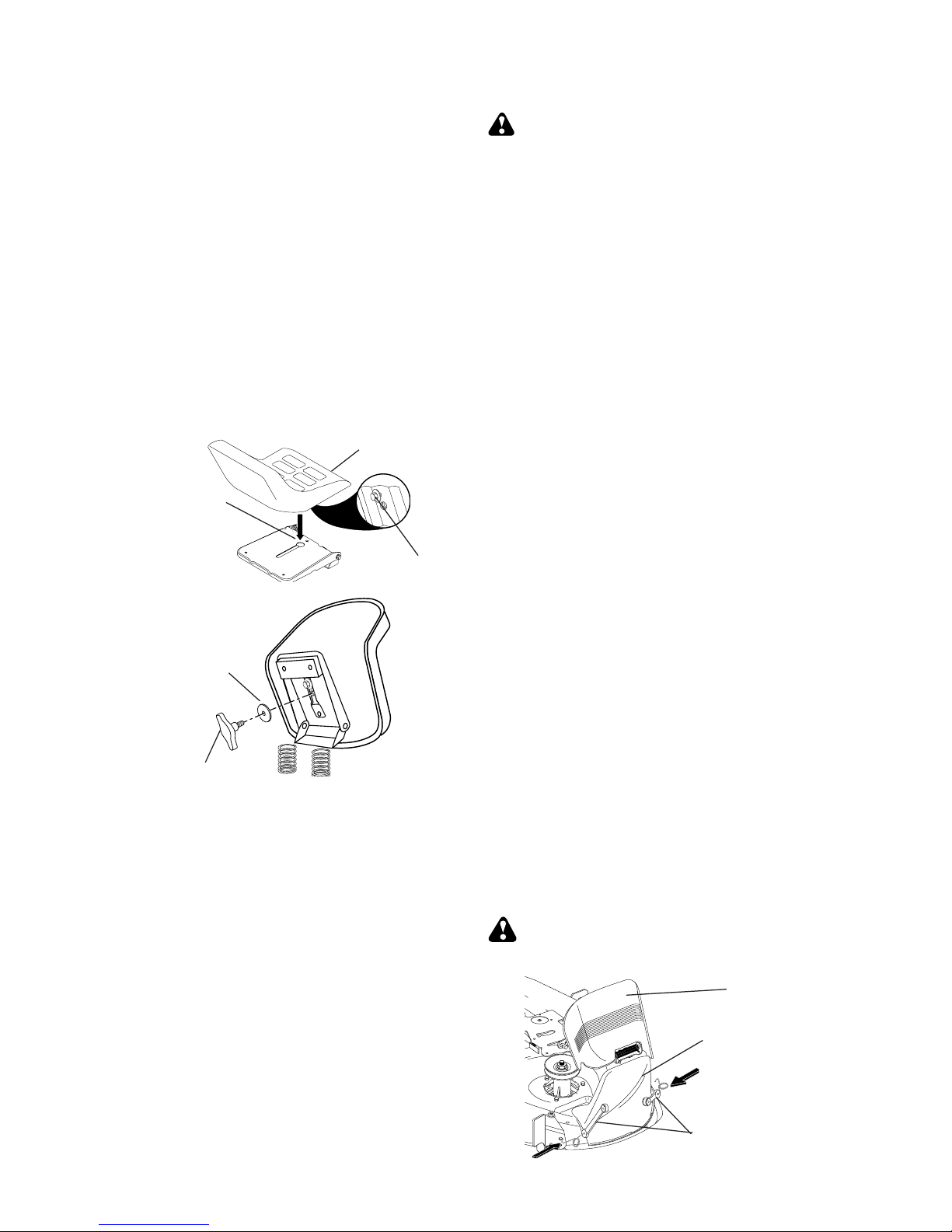

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and ﬂat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

02143

Steering Wheel

Insert

Lock Nut

Large Flat

Washer

Steering Wheel

Steering

Wheel Extention

Steering

Shaft

Steering

Sleeve

Steering

Wheel

Adaptor

Tabs

BEFORE REMOVING TRACTOR

FROM SKID

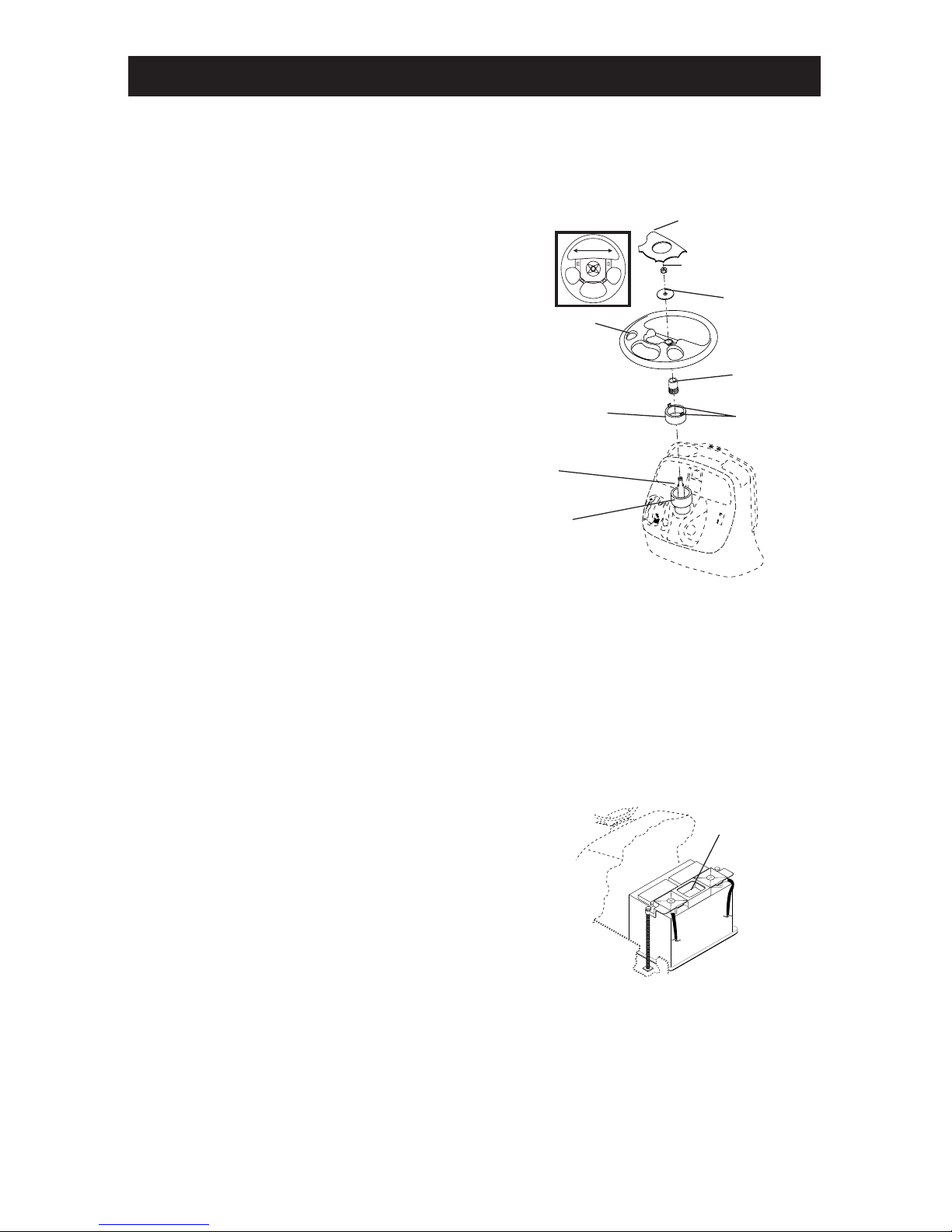

ATTACH STEERING WHEEL

1. Remove locknut and large ﬂat washer

from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with locknut and large ﬂat washer

previously removed. Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

02173

Label

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

02114

2466

Seat Pan

Shoulder

Bolt

Adjustment Knob

Flat Washer

Seat

02464

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and ﬂat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deﬂector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

CAUTION: Do not remove deﬂector

shield from mower.

Deﬂector

Shield

Latch

Hooks

Mulcher Plate

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged position" (See “TO

TRANSPORT” in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deﬂector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and ﬁll fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overin-

ﬂated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

“PRODUCT SPECIFICATIONS” section

of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the ﬁgures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See “TO

LEVEL MOWER HOUSING” in the Service

and Adjustments section of this manual.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

01977

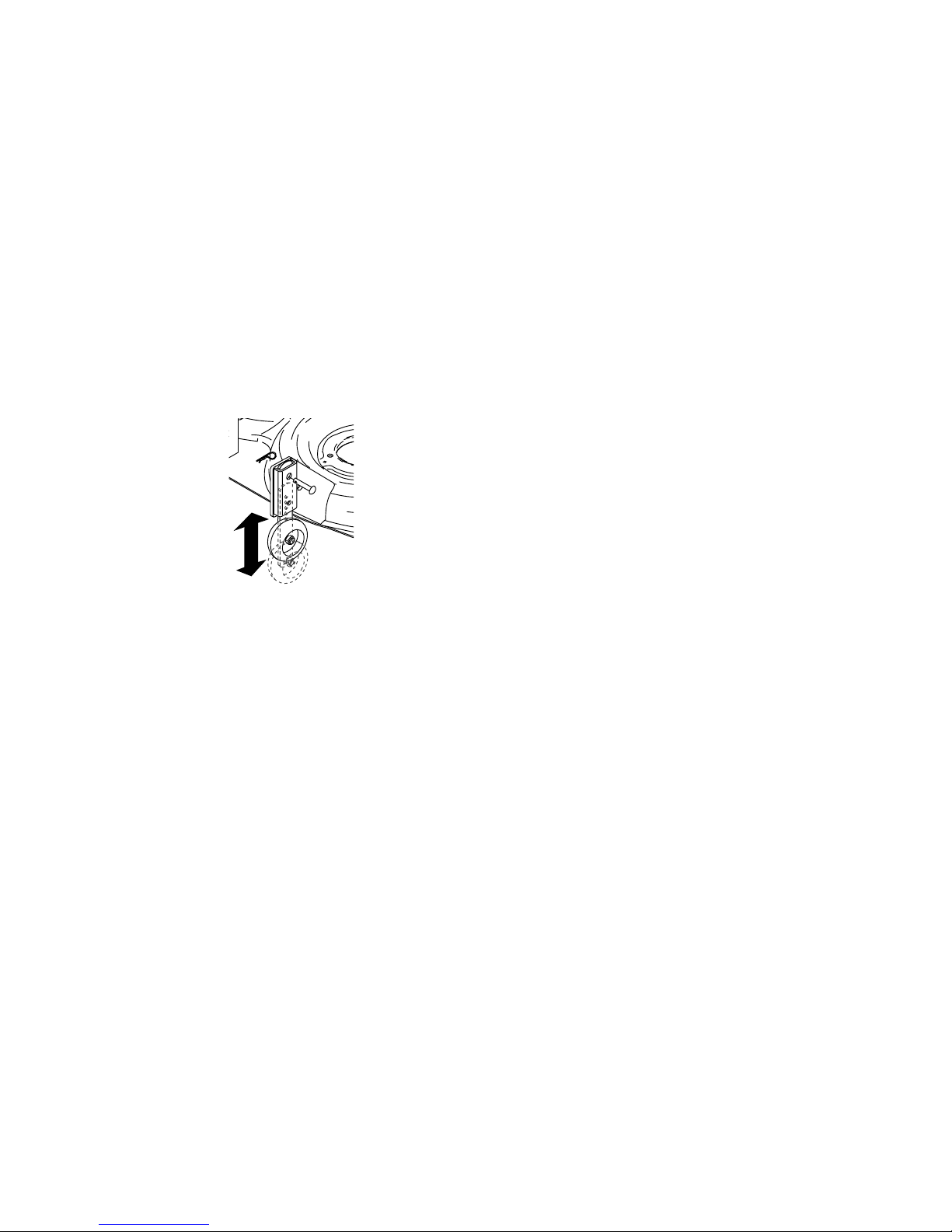

REPOSITION RIGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See “TO ADJUST BRAKE” in

the Service and Adjustments section of

this manual.

✓CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

✓All assembly instructions have been

completed.

✓No remaining loose parts in carton.

✓Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

✓Seat is adjusted comfortably and tight-

ened securely.

✓All tires are properly inﬂated. (For ship-

ping purposes, the tires were overin-

ﬂated at the factory).

✓Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inﬂated

for leveling).

✓Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

✓Check wiring. See that all connections

are still secure and wires are properly

clamped.

✓Before driving tractor, be sure freewheel

control is in “transmission engaged”

position (see “TO TRANSPORT” in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

✓Engine oil is at proper level.

✓Fuel tank is ﬁlled with fresh, clean, regu-

lar unleaded gasoline.

✓Become familiar with all controls, their

location and function. Operate them

before you start the engine.

✓Be sure brake system is in safe operat-

ing condition.

✓It is important to purge the transmission

before operating your tractor for the ﬁrst

time. Follow proper starting and trans-

mission purging instructions (See “TO

START ENGINE” and “PURGE TRANS-

MISSION” in the Operation section of

this manual).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Poulan Pro Tondeuse à gazon

Poulan Pro

Poulan Pro Deluxe 961120042 Manuel utilisateur

Poulan Pro

Poulan Pro 168191 Manuel utilisateur

Poulan Pro

Poulan Pro PRGT22H50C Manuel utilisateur

Poulan Pro

Poulan Pro DPR22H48STB Manuel utilisateur

Poulan Pro

Poulan Pro PB185A42 Manuel utilisateur

Poulan Pro

Poulan Pro BB185H42YT Manuel utilisateur

Poulan Pro

Poulan Pro 96012006800-PO15538LT-FRE Mode d’emploi

Poulan Pro

Poulan Pro PP19A42 Manuel utilisateur

Poulan Pro

Poulan Pro YTH1942 Manuel utilisateur

Poulan Pro

Poulan Pro 96042003801 Manuel utilisateur

Poulan Pro

Poulan Pro 967333801-00 Manuel utilisateur

Poulan Pro

Poulan Pro 178227 Manuel utilisateur

Poulan Pro

Poulan Pro PR17H42STE Manuel utilisateur

Poulan Pro

Poulan Pro PBA195H42LT Manuel utilisateur

Poulan Pro

Poulan Pro PR2042STA Manuel d'utilisation

Poulan Pro

Poulan Pro PPR2042STB Manuel utilisateur

Poulan Pro

Poulan Pro 413106 Manuel utilisateur

Poulan Pro

Poulan Pro 418771 Manuel utilisateur

Poulan Pro

Poulan Pro PDGT26H48B Manuel utilisateur

Poulan Pro

Poulan Pro Pro 960 11 02-18 Manuel du propriétaire

Poulan Pro

Poulan Pro PBGTGE Manuel utilisateur

Poulan Pro

Poulan Pro 184564 Manuel utilisateur

Poulan Pro

Poulan Pro PB155G42 Manuel utilisateur

Poulan Pro

Poulan Pro 169482 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
