LM6100 Series

LCD Monitor

USER’S MANUAL

Rev. : A

I. FEATURES

•Light weight and high luminance LCD monitor for industrial and commercial use

•Application covers POS, POIS (Kiosk), Factory Automation etc.

•High quality 12.1” TFT LCD panel with scaling up function for full screen display

•Successor from earlier LM6000 series and supports display resolution up to 1024 x

768pixels

•Tilt and swivel adjustable construction

•Spill proof and easy maintenance structure allowing easy cleaning

FCCNOTICE

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to

comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to

provide reasonable protection against interference when operated in a commercial environment. Operation of this

equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to

take whatever measures to correct the interference.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person other than the authorized

technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow

the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or

hazard caused by improper application.

ABOUT THIS MANUAL

This manual assists the user to utilize the LCD Monitor LM6100 series. These series provide versatile font

formats and support various instruction sets. These series of products receive instructions in serial communication

protocols and is capable of entering pass through mode so that all instructions received pass on to next connected serial

device if properly configured.

The manufacturer of the LM6100 series heartily apologizes to the user for reserving the right to change or to

modify this manual without notice due to the rapid and constant progress and improvement on science and technology.

The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com.tw,

http: //www.posiflexuk.com, http://www.posiflexusa.com.

Copyright Mustek Corp. 2002, 2003

TRADE MARKS AND SERVICE MARKS

POSIFLEX is a registered trademark of Mustek Corp..

Other brand and product names are trademarks and registered trademarks and service marks of their respective

owners.

II. MODEL NUMBERS

LM6112: 12.1” LCD Monitor w/ stand

LM6101: 12.1” LCD Monitor w/ joining mechanism for Posiflex touch

terminals such as TP-7000 series

III. CARTON CONTENTS

1. LCD Monitor panel unit

2. Monitor stand (for LM6112) or joining mechanism (for LM6101)

3. Pivot screw (1x) and pan head fixing screws (2x for LM6101)

4. User’sManual

5. VGA cable: 20867244100 (for LM6112) or 20863241710 (for

LM6101)

6. Power adaptor: ASP0P042WTB001 & power cord (for LM6112)

IV. INSTALLATION

1. Match the bottom of the panel unit into the monitor stand (for LM6112) or

joining mechanism (for LM6101).

2. Screw on the pivot screw for LM6112. Screw on the pivot screw through a

split washer and then through a plain washer for LM6101.

3. Fix LM6101 to the Posiflex TP7000 terminal per instruction of the terminal.

4. For LM6112, connect the end of VGA cable with the power connector to the

LM6112

LM6101

on back of

TP7000

Pivot Screw

LM6112 LM6101

back of the panel unit. For LM6101, please arrange the power to be supplied

through the interface cable from the main unit and just connect the video

interface cable. Connect the other end of VGA cable to the appropriate VGA

port. The monitor will always turn ON whenever power is made available.

5. Adjust for best viewing tilt angle and engage the on screen display (OSD)

adjustment for best display effect whenever necessary. The monitor will sign

for “No Signal” status and go into power saving mode in 5 seconds when

there is no video signal. The display will come back when the signal does.

V. OSD

A. OSD buttons

“OSD” button: To enter OSD setup menu, or to perform function selected

in OSD operation.

“NXT” button: To go to next option function.

“” “” button: To increase setting.

“”“” button: To decrease setting.

“” “” button: To turn the monitor power ON/OFF. The monitor can be

turned OFF only when there is video signal and can be turned ON only

when there is video signal and after the “Turn Off Panel” message

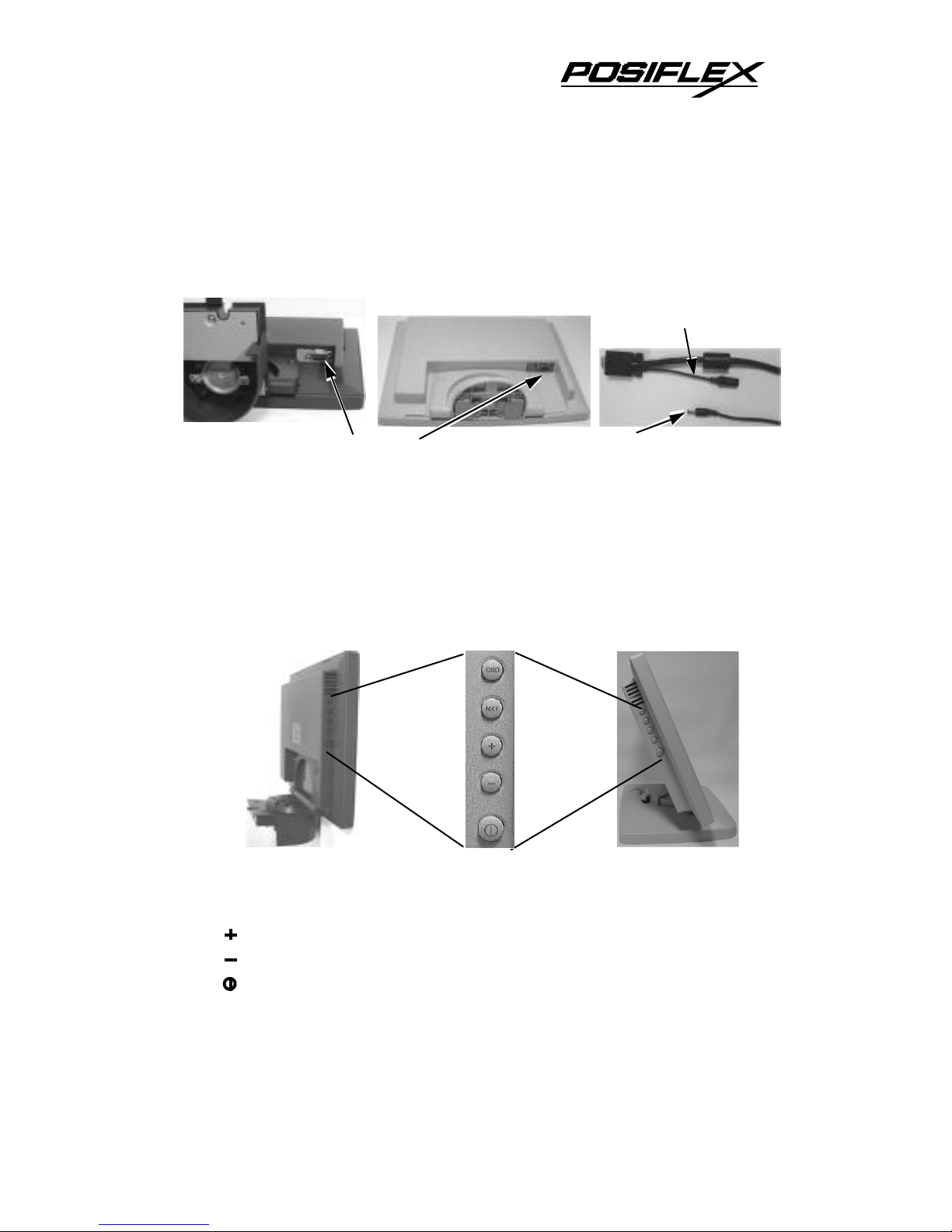

VGA Connector

Power Connector in VGA Cable

Power Connector from Power Adaptor

for LM6112

vanishes. The default status is set to ON when power is supplied unless

manually turned OFF. Since this button controls only the display power

but not the display controller, please try disconnect the power cable or

the VGA cable once unfortunately the screen display goes into a mess.

B. OSD functions

Press “OSD” button with a normal display on the screen to activate the

OSD functions (On Screen Display adjustment). The OSD window will pop up

on the screen. On top part of this window is a Posiflex logo with the OSD

firmware version indicated to its lower right. Below this area is a row of icons

for main OSD menu. Below the main menu is a group of icons for submenu that

corresponds to one icon selected in the main menu. An analysis of the video

signal on resolution and refresh rate will be displayed at the bottom. Applicable

icons in the main menu and its subsequent menus are explained below.

“MAIN MENU”: There are in total 5 icons in this menu: One of the 5

icons will be displayed in inverted color to indicate its

relationship with the submenu below. Pressing “NXT” button will shift the

selected icon one by one from left to right and then wrap around to the most left.

Press “OSD” button to enter the selected sub menu. If there is no button for OSD

setting is pressed within a period of time (about 5 seconds to 1 minute as

programmed) the OSD window will disappear with all the adjusted parameters

saved. Explanations on items in sub menu are as below.

“BRIGHTNESS / CONTRAST ADJUST SUBMENU”: There are 3

icons in this submenu: Press “OSD” button to select item or return to

main menu. Press “NXT” button to select among brightness, contrast and exit.

“BRIGHTNESS ADJUST”: When this item is selected, there will

be only the brightness icon with an adjustment indication bar under it

between the main menu area and the video signal mode. Press “+” button

to increase brightness. Press “-” to decrease. Press “OSD” button to save

the current setting and return to “Brightness/Contrast submenu”.

“CONTRAST ADJUST”: When this item is selected, there will be

only the contrast icon with an adjustment indication bar under it between

the main menu area and the video signal mode. Press “+” button to

increase contrast. Press “-” to decrease. Press “OSD” button to save the

current setting and return to “Brightness/Contrast submenu”.

“EXIT”: Return to “Main menu”.

“COLOR ADJUST SUBMENU”: There are 4 icons in this submenu:

Press “OSD” button to select item or return to main menu. Press

“NXT” button to select among auto color adjust, auto RGB reset, Color balance

adjust and exit.

“AUTO COLOR ADJUST”: Upon an “OSD” button press on this

icon the monitor will perform an automatic color adjustment and exits the

OSD window leaving 2 icons below at center of the screen. Press “NXT”

button to switch the selection. Press “OSD” button to make the choice.

“ACCEPT”: Accept the adjustment setting.

“REJECT”: Decline the adjustment setting and return to

previous setting.

“AUTO RGB RESET”: Upon an “OSD” button press on this icon

the monitor will perform an automatic RGB reset and exits the OSD

window leaving 2 icons below at center of the screen. Press “NXT” button

to switch the selection. Press “OSD” button to make the choice.

“ACCEPT”: Accept the reset result.

“REJECT”: Decline the reset and return to previous setting.

“COLOR BALANCE ADJUST”: When this item is selected, there

will be 7 icons in this item: between main menu

area and the video signal mode. Press “OSD” button to select an item or

return to color adjust submenu. Press “NXT” button to select among

separate color adjust, 4200K, 5000K, 6500K, 7500K, 9300K and exit.

“SEPARATE COLOR ADJUST”: When this item is

selected, there will be 3 adjustment indication bars between the main

menu area and the video signal mode. Press “NXT” button to select

among the 3 colors Red, Green and Blue respectively. Press “+”

button to intensify that color. Press “-” to reduce. Press “OSD”

button to save the current setting and return to “Color balance adjust

submenu”.

“4200K”: Pressing “OSD” button on this icon will set the

color balance to a color temperature of 4200 degrees Kelvin.

“5000K”: Pressing “OSD” button on this icon will set the

color balance to a color temperature of 5000 degrees Kelvin.

“6500K”: Pressing “OSD” button on this icon will set the

color balance to a color temperature of 6500 degrees Kelvin.

“7500K”: Pressing “OSD” button on this icon will set the

color balance to a color temperature of 7500 degrees Kelvin.

“9300K”: Pressing “OSD” button on this icon will set the

color balance to a color temperature of 9300 degrees Kelvin.

“EXIT”: Return to “Color adjust submenu”.

“EXIT”: Return to “Main menu”.

“GEOMETRY ADJUST SUBMENU”: There are 6 icons in this

submenu: Press “OSD” button to select item or return to

main menu. Press “NXT” button to select among auto geometry adjust,

horizontal size, phase, horizontal position, vertical position and exit.

“AUTO GEOMETRY ADJUST”: Upon an “OSD” button press on

this icon the monitor will perform an automatic geometry adjustment and

exits the OSD window leaving 2 icons below at center of the screen. Press

“NXT” button to switch the selection. Press “OSD” button to make the

choice. “ACCEPT”: Accept the adjustment setting.

“REJECT”: Decline the adjustment setting and return to

previous setting.

“HORIZONTAL SIZE”: When this item is selected, there will be

only the horizontal size icon with an adjustment indication bar under it

between the main menu area and the video signal mode. Press “+” button

to increase horizontal size. Press “-” to decrease. Press “OSD” button to

save the current setting and return to “Geometry adjust submenu”.

“PHASE”: When this item is selected, there will be only the phase

adjust icon with an adjustment indication bar under it between the main

menu area and the video signal mode. Press “+” or “-” button to adjust the

pixel synchronization phase for best picture display. Press “OSD” button

to save the current setting and return to “Geometry adjust submenu”.

“HORIZONTAL POSITION”: When this item is selected, there

will be only the horizontal position icon with an adjustment indication bar

under it between the main menu area and the video signal mode. Press “+”

or “-” button to shift the screen display to right or left. Press “OSD” button

to save the current setting and return to “Geometry adjust submenu”.

“VERTICAL POSITION”: When this item is selected, there will

be only the vertical position icon with an adjustment indication bar under it

between the main menu area and the video signal mode. Press “+” button

to shift up the screen display. Press “-” to shift down. Press “OSD” button

to save the current settingand return to “Geometry adjust submenu”.

“EXIT”: Return to “Main menu”.

“TOOLS SUBMENU”: When this item is selected, there are 5 icons in

this submenu: Press “OSD” button to select item or return to

main menu. Press “NXT” button to select among OSD submenu, reset to default,

phase, smoothness / sharpness adjust, mode select and exit.

“OSD SUBMENU”: When this item is selected, there are 4 icons in

this submenu: Press “OSD” button to select item or return to

main menu. Press “NXT” button to select among OSD time, OSD

horizontal position, OSD vertical position and exit.

“OSD TIME”: When this item is selected, there will be only

the OSD time icon with an adjustment indication bar under it

between the main menu area and the video signal mode. Press “+” or

“-” button to adjust the waiting time for OSD operation before OSD

termination between 5 to 60 seconds. Default is 30 seconds. Press

“OSD” button to save the current setting and return to “OSD

submenu”.

“OSD HORIZONTAL POSITION”: When this item is

selected, there will be only the vertical position icon with an

adjustment indication bar under it between the main menu area and

the video signal mode. Press “+” button to shift OSD window right.

Press “-” to shift left. Press “OSD” button to save the current setting

and return to “OSD submenu”.

“OSD VERTICAL POSITION”: When this item is selected,

there will be only the vertical position icon with an adjustment

indication bar under it between the main menu area and the video

signal mode. Press “+” button to move OSD window downward.

Press “-” to go upward. Press “OSD” button to save the current

setting and return to “OSD submenu”.

“EXIT”: Return to “Tools submenu”.

“RESET TO DEFAULT”: Pressing “OSD” button on this icon will

set all parameters back to the status when the monitor left factory.

“SMOOTHNESS / SHARPNESS ADJUST”: When this item is

selected, there will be only the smoothness / sharpness adjust icon with an

adjustment indication bar under it between the main menu area and the

video signal mode. Press “+” button to increase smoothness of display

(decrease sharpness). Press “-” to go the other way. Press “OSD” button to

save the current setting and return to “OSD submenu”.

“MODE SELECT”: Pressing “OSD” button on this icon will have

no effect at all if the display mode is not one of the confusing modes. The

confusing modes here mean 640 x 400 or 720 x 400 in display resolution

as both mode have refresh rate of 70Hz, horizontal frequency of 37.9KHz

and pixel frequency of 31.5MHz making it impossible for automatic select.

These modes are not used in normal Windows display.

“EXIT”: Return to “Main menu”.

“EXIT”: Exit OSD setup with all adjustment saved.

VI. SUPPORTED DISPLAY MODES

For video signals beyond the supported display modes, there will be a

message “Out Of Range” on middle of screen. Maximum supported color depth

is 18 bits or 262,144 colors. Supported display modes are as in the table:

Display Resolution Refresh Rate (Hz) Horizontal Frequency (KHz)

640*400 70 37.9

60 31.5

72 37.9640*480 75 37.5

720*400 70 37.9

56 35.1

60 37.9

72 48.1

800*600

75 46.9

60 48.4

70 56.5

1024*768 75 60

Autres manuels pour LM6112

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels POSIFLEX Moniteur

POSIFLEX

POSIFLEX LM6112 Manuel utilisateur

POSIFLEX

POSIFLEX PD-300 Series Manuel utilisateur

POSIFLEX

POSIFLEX PD-2601 Series Manuel utilisateur

POSIFLEX

POSIFLEX LM-3010F/HS Manuel utilisateur

POSIFLEX

POSIFLEX PD-2300 Series Manuel utilisateur

POSIFLEX

POSIFLEX PD-30 UE Series Manuel utilisateur

POSIFLEX

POSIFLEX TM-4010 Manuel utilisateur

POSIFLEX

POSIFLEX PD-2500 Series Manuel utilisateur

POSIFLEX

POSIFLEX LM-2010 Manuel utilisateur

POSIFLEX

POSIFLEX TM-3112HDMI Manuel utilisateur

POSIFLEX

POSIFLEX TM4000 Series Manuel utilisateur

POSIFLEX

POSIFLEX LM-2010 Manuel utilisateur

POSIFLEX

POSIFLEX LM-4015 Manuel utilisateur

POSIFLEX

POSIFLEX PD-350R Manuel utilisateur

POSIFLEX

POSIFLEX LM-2108 Manuel utilisateur

POSIFLEX

POSIFLEX LM-4011U Manuel utilisateur

POSIFLEX

POSIFLEX PD – 201 Manuel utilisateur

POSIFLEX

POSIFLEX LM-6601 Manuel utilisateur

POSIFLEX

POSIFLEX LM-7112 Manuel utilisateur

POSIFLEX

POSIFLEX LM-2010 Manuel utilisateur

POSIFLEX

POSIFLEX LM-6807U Manuel utilisateur

POSIFLEX

POSIFLEX LM-3315 Series Manuel utilisateur

POSIFLEX

POSIFLEX PD302 Manuel utilisateur

POSIFLEX

POSIFLEX LM-6101E Series Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
