POSIFLEX LM-4015 Manuel utilisateur
1
Package Contents
LM-4015 or TM-4015 POS Monitor…(x 1)
Mounting Kits ………………....……...(x 1)
User Manual…………………………..(x 1)

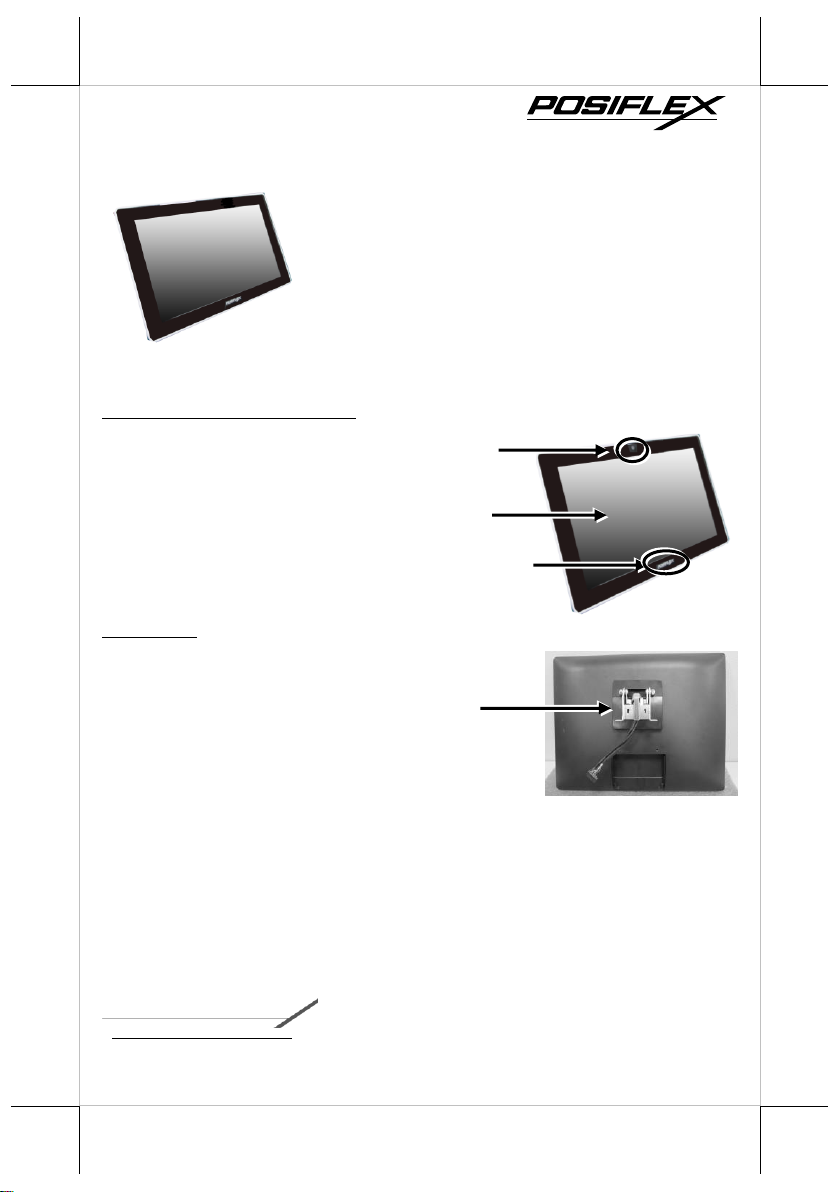

Views of TM/LM-4015
Front View of TM/LM-4015
Rear View
TM/LM-4015
POS Monitor User Manual
Mounting Bracket
Camera (Optional)
15” LM-4015 LCD Panel
15” TM-4015 P-CAP Touch Panel
19640903010 Ver. A0
http://www.posiflex.com
LED indicator
2
Mounting your Monitor to RT-series POS Terminals
The following instructions are provided to help you mount your TM/LM-4015
to Posiflex RT-series POS terminals. During installation, please ensure the
terminal is properly turned off and disconnected from the power sources to
avoid potential hazards.
1. Tile the screen of your RT-series terminal to
the most upright position.
2. Remove the system cover by holding down
the release levers at the bottom of the cover
and then pulling the cover outwards.
3. Take the monitor out of package box, and remove the front cover for
mounting bracket.
4. Tear off the release liner from the protective
strip which is clipped onto the mounting
bracket.
3
5. Lift the monitor, align the two screws holes located on the mounting
bracket with those on the top of the system compartment of RT-series
terminals and then secure the monitor with two fixing screws.
6. After ensuring the monitor is well mounted to RT-series terminal, push
back the front cover for the mounting bracket of TM/LM-4015.
7. Tile the monitor screen all the way up.
8. Well insert the cable to the internal VGA port from the mainboard of
RT-series terminal, and tuck the extra cable inside the system
compartment.
4
9. Place back the sytem cover to close the system
compartment of RT-Series terminal.
10. Tile the monitor screen to your desired angle.
While setting up the tilting adjustment, be
careful NOT to press on the LCD panel.
Identifying your Monitor as Secondary Touchscreen Monitor
in Extended Mode
In the following section the related descriptions will be offered to help you set
up TM series as the extended monitor when you attempt to extend the desktop
across multiple monitors
For TM-4015 Models with P-CAP Touchscreen
If your monitors are TM-4015 models, you may configure the display settings
from Control Panel in Microsoft Windows to identify the monitor as the
secondary touchscreen monitor. Please go through the below steps to complete
configuration.
1. Make sure that the monitor is well connected to your POS terminal.
2. Go to Control Panel>Display Settings, change your display settings to
extended mode.
3. Go to Control Panel, and then click on
Tablet PC Settings item.
5
4. In Tablet PC Settings dialogue box, click
on Setup button.
5. Following the instruction shown on the screen, click on the screen that
you want to identify as the primary touchscreen display.
6. Press Enter button to proceed the configuration.
7. Click on the screen you want to use as the secondary touchscreen
display.
Powering ON/OFF your Monitor
To start up TM/LM-4015, please make sure that the monitor is well connected
to POS terminals and electricity is supplied to the monitor through POS
terminal.
Power LED Indicator
Power LED indicator, which is on the front side of the screen, is used to notify
users of the current status of your monitor by emitting various LED signals.
Please refer to the below chart to accurately interpret the of the indicators
status to facilitate your troubleshooting.
Status
Description
ON, solid blue
System power ON
ON, solid green
System Standby
OFF
System power OFF
6
Installing Drivers
Please visit Posiflex official website to download and install the related drivers.
http://www.posiflex.com/en-global/Download/download)
Setting up Display Resolution for Your Monitor
The below chart defines the list of recommended display settings for
TM/LM-4015. Improper display configuration will prevent the monitor from
properly displaying the image and lead to a warning message of “out of range”
prompted on the screen.
15” TM/LM-4015
Display Resolution
Horizontal Frequency (KHz)
Refresh Rate (Hz)
640 x 400
37.9
70
640 x 480
31.5
60
37.9
72
37.5
75
720 x 400
37.9
70
800 x 600
35.1
56
37.9
60
48.1
72
46.9
75
1024 x 768
48.4
60
Specification
TM-4015
LM-4015
Display
LCD Panel
15" TFT LCD
Resolution
1024 (H) x 768 (V)
7
Active Area
304.128mm (H) x 228.096mm (V)
Pixel Arrangement
R.G.B. Vertical Stripe
Viewing Angle
80/80/80/80 degree (U/D/L/R)
Contrast Ratio
600 : 1
Response time
8ms
Brightness
300 cd/m2
Display Interface
VGA
Power Supply
DC 12V
Touch
Touch type
P-CAP
N/A
Interface
USB
N/A
Mechanical
Dimension
368 x 292 x 34.5 mm
368 x 292 x 78.5 mm (with mounting bracket)
Weight
2.5 Kg
※
The product information and specifications are subject to change without
prior notice. To get the detailed information on TM/LM-4015, please check
this model from Posiflex Global Website
(http://www.posiflex.com/en-global/Download/download).
