Porter 280180 Mode d’emploi
THIS GOAL UTILIZES BOTH BREAKAWAY AND FLEX FEATURES IN A FULL 180
TO DELIVER
TOP PERFORMANCE FOR EVERY LEVEL OF BASKETBALL. FOLLOW THE INSTRUCTIONS
PROVIDED IN THIS MANUAL TO ADJUST THE BREAKAWAY FORCE (WHICH IS THE AMOUNT
OF FORCE REQUIRED TO MAKE THE RIM START TO FLEX) OR THE RIGIDITY OF THE RIM
(AS CAN BE TESTED WITH PORTER'S FAIR-COURT SYSTEM AND IS REQUIRED FOR NCAA
DIVISION 1 LEVEL OF PLAY).
TOOLS NEEDED:
5/16" HEX KEY
•
5/32" HEX KEY
•
SOCKET WRENCH
•
1" SOCKET
•
#2 PHILLIPS SCREWDRIVER
•
ONE OF THE FOLLOWING:
•
9/16" SOCKET
•
9/16" CRESCENT WRENCH
•
ADJUSTABLE CRESCENT WRENCH
•
R
R
MOUNTING HARDWARE IS PROVIDED WITH THE GOAL. DUE TO THE GOAL'S UNIQUELY
DESIGNED MOUNTING PLATE, MOUNTING HARDWARE CAN BE LOOSELY INSTALLED PRIOR
TO MOUNTING OF THE GOAL TO SPEED UP THE INSTALLATION PROCESS. ONCE THE
GOAL IS MOUNTED, ENSURE ALL HARDWARE IS SECURELY TIGHTENED DOWN BEFORE
THE GOAL IS USED. FOLLOW THE MOUNTING DIAGRAM SHOWN ON THE NEXT PAGE.
INSTALLATION
www.porterathletic.com
Copyright
2019 by Porter Athletic.
All rights reserved.
888-277-7778
9/10/2019
INST280180
Page 1 of 4
280180
PORTER TFX 180
BREAKAWAY AND FLEX GOAL
GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS
1
2 3 4 5

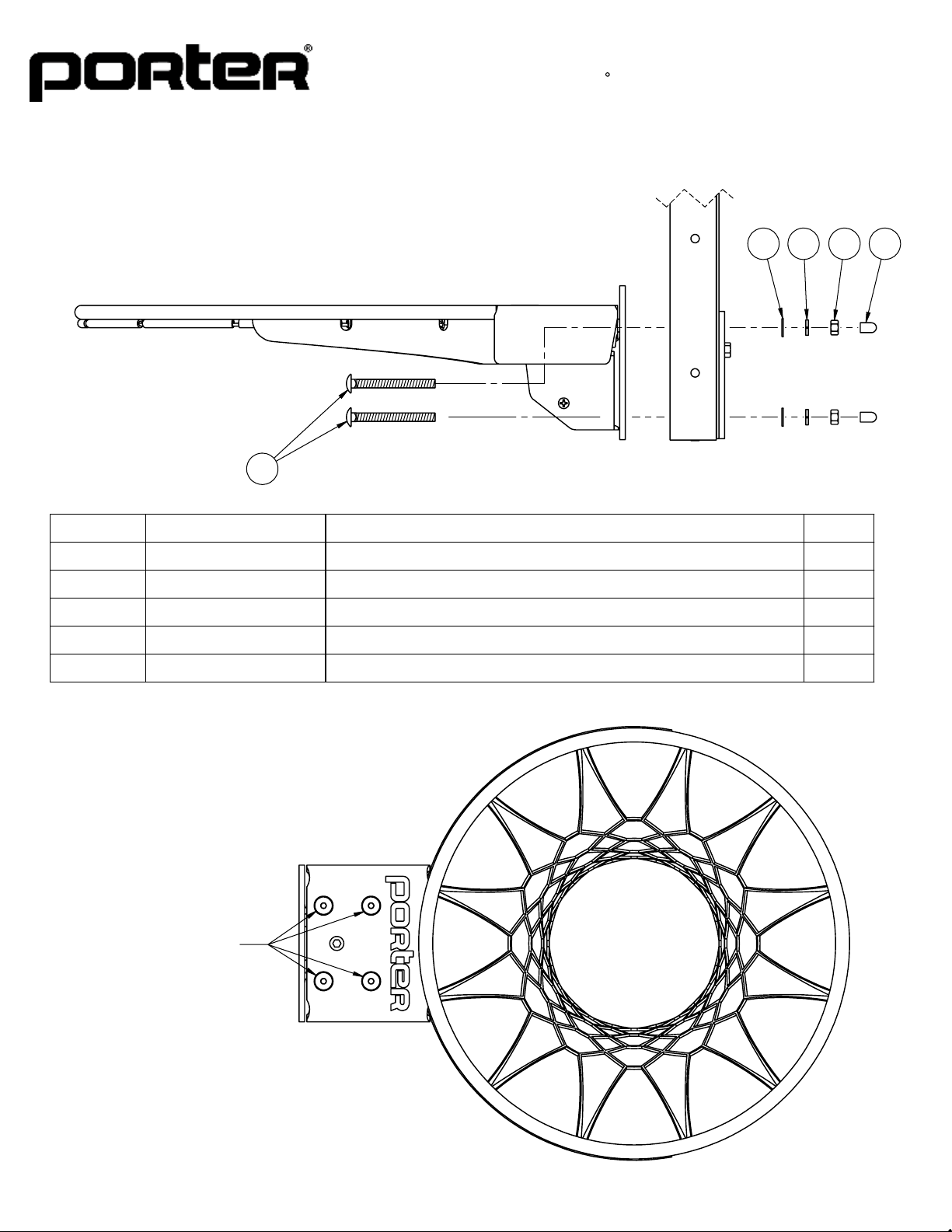

RIM ATTACHMENT BOLTS
NOTE: IT IS RECOMMENDED THAT YOU DO NOT
REMOVE THE (4) RIM ATTACHMENT BOLTS WHICH
CONNECT THE RIM TO THE GOAL MECHANISM. IF
REMOVAL AND REPLACEMENT IS NECCESSARY,
APPLY 242 BLUE LOCTITE TO THE BOLTS BEFORE
REINSTALLING THEM.
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
HDWE020790E0
CARRIAGE BOLT; 3/8"-16 X 3-3/4"; ZINC; GRADE 5
4
2
HDWE050040E0
FLAT WASHER; 3/8"; ZINC; USS
4
3
HDWE040020E0
LOCK WASHER; 3/8"; ZINC
4
4
HDWE030020E0
HEX NUT; 3/8"-16; ZINC
4
5
PCAP00040002
THREAD CAP; 3/8" X 1/2" LG
4
www.porterathletic.com
Copyright
2019 by Porter Athletic.
All rights reserved.
888-277-7778
9/10/2019
INST280180
Page 2 of 4
280180
PORTER TFX 180
BREAKAWAY AND FLEX GOAL
GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS
RIGIDITY ADJUSTMENT
TO ADJUST THE GOAL RIGIDITY, FIRST USE A #2 PHILLIPS HEAD SCREWDRIVER TO
REMOVE THE RUBBER COVER ON THE BOTTOM OF THE GOAL TO EXPOSE THE GOAL'S
SPRING MECHANISMS. PLACE A SOCKET WRENCH WITH A 1" SOCKET ONTO THE REAR,
THIN NUT UNDERNEATH THE RED SPRING. FROM ABOVE THE GOAL, PLACE A 5/16" ALLEN
WRENCH THROUGH THE OPEN HOLE ON TOP OF THE GOAL PLATE UNTIL IT FITS INTO THE
SOCKET HEAD BOLT. TIGHTEN OR LOOSEN THE NUT (COMPRESSING OR RELAXING THE
RED SPRING) TO ADJUST THE RIGIDITY READING OF THE GOAL. ONCE COMPLETE,
REPLACE THE RUBBER COVER AND THE COVER BOLTS.
WARNINGS: THE THIN NUT MUST MAINTAIN ALL THREADS FULLY ENGAGED ON THE LARGE
BOLT; FAILURE TO DO SO COULD RESULT IN FAILURE OF THE GOAL AND SEVERE INJURIES
COULD OCCUR. ALSO, DO NOT MAKE ADJUSTMENTS TO THE NUT UNDER THE GOLD SPRING.
www.porterathletic.com
Copyright
2019 by Porter Athletic.
All rights reserved.
888-277-7778
9/10/2019
INST280180
Page 3 of 4
280180
PORTER TFX 180
BREAKAWAY AND FLEX GOAL
GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS
WARNING
:
This product can expose you to Titanium Dioxide,
which is known to the State of California to cause cancer.
For more information go to www.p65warnings.ca.gov.
!
E

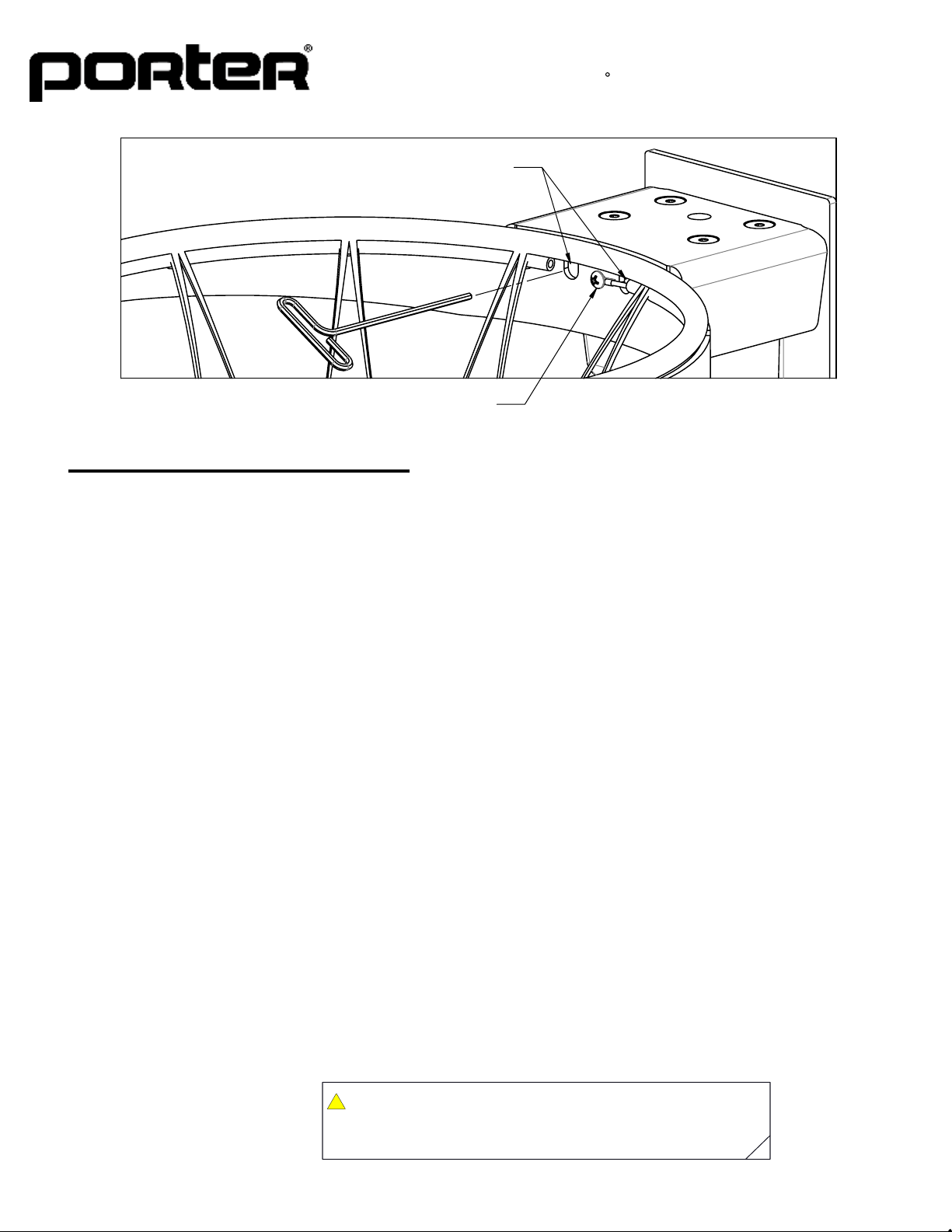

NET TIE ATTACHMENT SCREW
BREAKAWAY ADJUSTMENT OPENINGS
WARNING: GOING ABOVE A BREAKAWAY FORCE OF 230LBS CAN CAUSE DAMAGE TO THE GOAL
AND RESULT IN THE BREAKAWAY AND/OR FLEX FEATURES OF THE GOAL TO NO LONGER
FUNCTION PROPERLY.
NO PARTS NEED TO BE REMOVED FROM THE GOAL IN ORDER TO ADJUST THE
BREAKAWAY FORCE OF THE GOAL. SIMPLY INSERT A 5/32" ALLEN WRENCH INTO THE
OPENINGS ON EITHER SIDE OF THE NET TIE CORD ATTACHMENT SCREW UNTIL IT FITS
INTO THE SOCKET HEAD SET SCREWS INSIDE THE GOAL. TIGHTEN THE SET SCREWS
(TURNING THE ALLEN WRENCH CLOCKWISE) TO INCREASE THE BREAKAWAY FORCE OF
THE GOAL; LIKEWISE, LOOSENING THE SET SCREWS (TURNING COUNTERCLOCKWISE)
WILL DECREASE THE BREAKAWAY FORCE OF THE GOAL.
NOTE: NFHS AND NCAA RULES DO NOT REQUIRE A BREAKAWAY GOAL, SO THE
BREAKAWAY FORCE SETTING FOR THESE COMPETITIONS IS PERSONAL PREFERENCE.
FIBA INTERNATIONAL RULES REQUIRE A BREAKAWAY FORCE BETWEEN 180LBS TO
230LBS, WHILE THE NBA SPECIFIES A BREAKAWAY FORCE OF 200LBS. RULE
SPECIFICATIONS LISTED HEREIN ARE ACCURATE AT THE TIME OF WRITING OF THESE
INSTRUCTIONS.
NOTE: DUE TO THE HIGH PRESSURES EXERTED BY THE BREAKAWAY MECHANISM, IT MAY
BE DIFFICULT TO MAKE CHANGES TO THE RIGIDITY OF THE GOAL. IF CHANGES TO THE
RIGIDITY ARE DESIRED, THE BREAKAWAY FORCE SETTING MAY NEED TO BE LOWERED
PRIOR TO MAKING ADJUSTMENTS FOR THE GOAL RIGIDITY.
BREAKAWAY ADJUSTMENT
www.porterathletic.com
Copyright
2019 by Porter Athletic.
All rights reserved.
888-277-7778
9/10/2019
INST280180
Page 4 of 4
280180
PORTER TFX 180
BREAKAWAY AND FLEX GOAL
GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS
