Installation Guide - NiMH to Lithium
Need Help? Contact Customer Care at (732) 967-9888
Upgrading the Pool Blaster® Centennial Li/Eclipse Li Motor Box
1
Why did my new motor box kit come with a charger?
This complete kit replaces all of the electronics for the Pool
Blaster® Centennial Li/Eclipse Li and will guarantee that your
machine will be repaired and increase the longevity of your
battery.
Your old charger will not work. Please dispose of
your original charger.
STEP 1: Use drill or screwdriver to unscrew the
four screws located at the exhaust of the unit
(2 screws on each side). Place screws to the side.
STEP 2: Remove old motor box from the unit.
Your new kit includes:
Motor Box (P20X003LI)
Charger (LC099-2S-US-EU)
Phillips screwdriver or battery
powered screwdriver
(set at low torque setting)
Pliers and cutters
You will need the following tools:
®
Installation Guide - NiMH to Lithium
Need Help? Contact Customer Care at (732) 967-9888
Upgrading the Pool Blaster® Centennial Li/Eclipse Li Motor Box
2

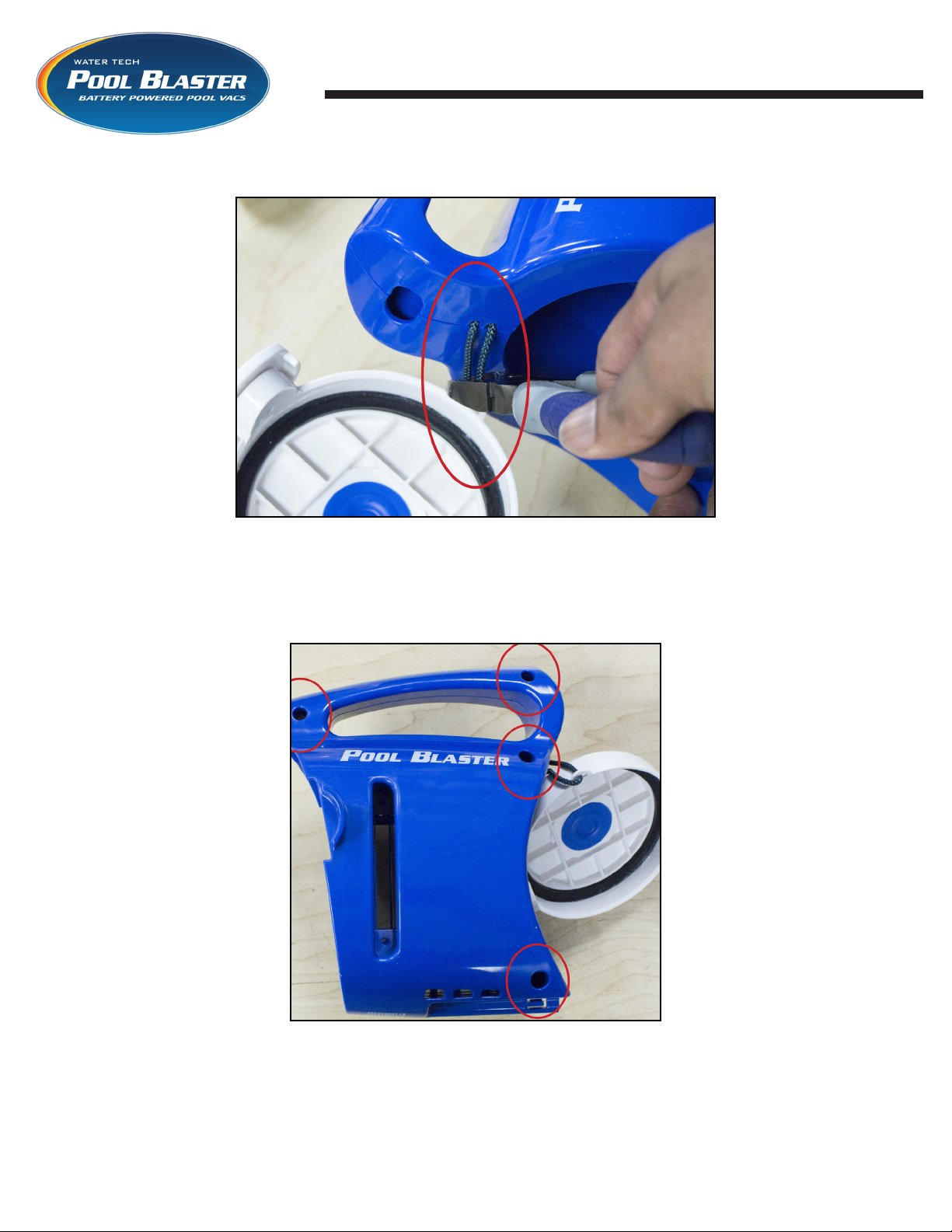

STEP 3: Clip the lanyard from the old motor box cap
STEP 4: Unscrew the four screws and separate the two shells.
®
Installation Guide - NiMH to Lithium
Need Help? Contact Customer Care at (732) 967-9888
Upgrading the Pool Blaster® Centennial Li/Eclipse Li Motor Box
3
STEP 5: Slide lanyard in metal clip. Clamp with pliers. Place
lanyard into the shell’s openings as shown above.
STEP 6: Place shells back together and screw the four screws back in
®
Installation Guide - NiMH to Lithium
Need Help? Contact Customer Care at (732) 967-9888
Upgrading the Pool Blaster® Centennial Li/Eclipse Li Motor Box
4
STEP 7: Insert the new motor box into the unit.
STEP 8: Insert previously set aside screws into
screw openings at exhaust and tighten with drill
or screwdriver. Place cap on top of motor box and
latch handle closed.
Rev.: 542018
