400 Series Chamber Vacuum Sealer
Quick Start Guide
Food Safety HACCP Portal Registration
Settings
1Food Safety Log (Questions)
1Save/Delete Reports
3Edit/Delete an User
4Freestyle Mode
5AirOut - Hold vs. Plus
6SofAir
2Edit/Delete a Product

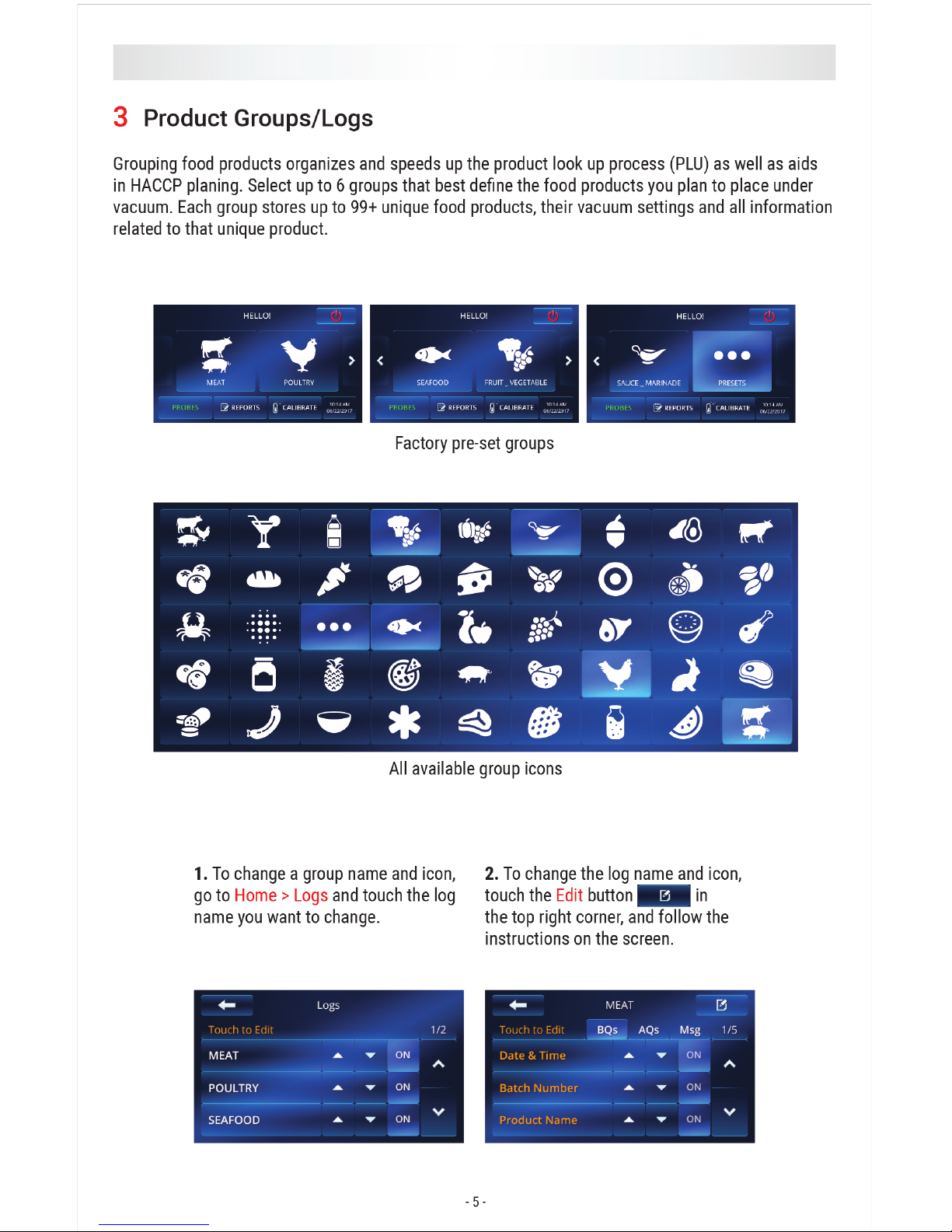

You can set specifi c food safety log questions for each of
the 6 groups. Go to Home > Logs and touch the log you
want to manage the questions for.
A log cosists of 3 categories:
BQs = Before Questions - asked before packaging
AQs = After Questions - asked after packaging
Msg = Messages - CCPs listed on the fi nal log fi le
Orange colored questions can be edited. Touch the on/off
button next to each question to turn it on or off.
Note: the machine is already pre-programmed with the
most common questions. Per factory default they are
turned off. Please refer to the attached sheet for guidance
on which questions to activate for each group/log.
To get started with your HACCP plan,
visit the website below.
HACCP Portal is included with your
SmarTouch™ purchase and your machine’s
serial number is your free ticket:
www.haccp-portal.com/smartouch
HACCP Portal provides you with an easy way
to create a thorough HACCP plan for
Reduced Oxygen Packaging (ROP) and
Sous Vide Cooking.
Plug in your USB fl ash drive into one of the two USB ports
on the side of the machine, and go to: Home > Reports.
Select which reports you want to save: Food Safety or
Probes. Touch the Save to USB button to save the
report as a PDF fi le.
To delete a report from the machine, login as a Manager
user and go to: Home > Reports and touch the Delete but-
ton next to the report's name.
Operator users cannot delete reports.
Note: Your USB fl ash drive must be
formatted in FAT32 fi le system and
the volume name must be one single
word. For detailed instructions on how
to format your USB fl ash drive, go to
www.minipack.us/usb-format.pdf
Log in as a Manager user, go to Home > Products and touch
the Edit button - it will turn green color. Now touch
the product name you want to edit/delete.
To delete, touch the Delete button in the top left
corner. To edit toggle through the product by touching the
Next button .
Log in as a Manager user, go to Home > Settings > Users
and touch the user name you want to edit/delete.
To delete, touch the Delete button in the top left
corner. To edit, toggle through the screens by touching the
Next button .
This mode is useful for experimenting or trying to fi nd the
right vacuum settings before saving it as a product.
To access Freestyle Mode login as a Manager user and
go to Home > Freestyle. You can change all Vacuum
Settings on the fl y by touching the icons at the bottom
.
To reset the settings back to factory default, touch the
Refresh button .
Note: food safety logging is being skipped in Freestyle!
When AirOut = 98.9% or lower, you can defi ne a Hold time.
The Hold timer will start once the AirOut value has been
reached.
When AirOut = 99%, you can defi ne a Plus time. Plus will
keep the vacuum pump running for the set time to achieve
the maximal vacuum possible, having the tiniest air pockets
being pulled out of your product.
Use the SofAir settings when vacuum packaging formed
products, beef patties, product with bones, shellfi sh in the
shell, and sausages.
We recommend the settings Air Return = 10%, and Pause =
1.0s, however you may adjust these settings to fi t your needs.
This setting will let the air return to the chamber in 10% steps
preventing ruptured sausage casings, squished product, and
holes in the bag from bones.
1Temperature Probe
2Label Printer
3Keyboard
4Inkjet Report Printer
5USB Flash Drive
6Cart
7Leg Extensions
Sous Vide Probe, K-Type (3”, dull tip)
#ST200045
Product Probe, K-Type (4”, sharp tip)
#ST200040
Direct Thermal
Label Printer (USB)
#ST200009
Water-Resistant Silicone
Keyboard (USB)
#ST200012
Canon Pixma MG2550 (USB)
#ST200015
Pre-formatted (4GB)
#ST200062
Stainless Steel
#ST200020
Stainless Steel
#ST200025
2x3” Labels - Case
(425 labels/roll, 12 rolls/case)
#ST200060
*This warranty ONLY applies to the Original
Purchaser and Owner of the new equipment and
ONLY applies to manufacturer’s defects.
This warranty will ONLY be honored if minipack
america, inc. determines by EVALUATION that
damage is not due to Non-Warranty Items listed
below.
WARRANTY
Machines manufactured by minipack are warranted
to be free of defects in parts and craftsmanship
under normal use and with recommended service.
The warranty period for non-wearable parts is (1)
year from the date of installation. minipack america,
inc.’s exclusive obligation under this warranty is
limited to repairing or, at its option, replacing any
minipack part that is determined by minipack
america, inc. to be defective.
NON-WARRANTY
• Wearable parts such as Tefl on tape, sealing wires,
rubber components, fi lters, oil, etc.
• Damage from freight, installation, improper
electrical connection, moisture damage, accident,
neglect, misuse, improper maintenance, alteration,
modifi cation, or repair by anyone other than a minipa-
ck america, inc. authorized re-seller.
• In the event of highly corrosive or high moisture
applications, special protective coating or stainless
steel construction might be needed.
Component subsystems manufactured by minipack
carry the warranty as stated herein. The warranty
does not apply to subsystem component parts which
are not manufactured by minipack. Subsystem com-
ponent parts not manufactured by minipack, shall
be subject to any warranty of their manufacturer.
minipack-torre and minipack america, inc. shall not
be liable if minipack-torre equipment or components
are used with accessory equipment not manufac-
tured by minipack.
Representations and/or warranties, by whomever
made (even if made by minipack america, inc.
authorized distributors/dealers), which are incon-
sistent with the terms herein shall not constitute a
term of the minipack-torre and minipack america,
inc express warranty, and shall not be binding to
minipack-torre or minipack america, inc.
EXCLUSION
THE LIMITED WARRANTY SET FORTH ABOVE IS THE
SOLE AND ENTIRE WARRANTY PERTAINING TO THE
PRODUCT, AND IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES OF ANY NATURE WHATSOEV-
ER, WHETHER EXPRESSED, IMPLIED OR ARISING BY
OPERATION OF LAW, INCLUDING, BUT NOT LIMITED
TO ANY IMPLIED WARRANTIES OF MERCHANTABI-
LITY OR FITNESS FOR PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR
THE REIMBURSEMENT OR PAYMENT OF INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES OF ANY TYPE,
MANNER, OR DEGREE, AND ANY LIABILITY BY
MINIPACK-TORRE OR MINIPACK AMERICA, INC FOR
SUCH INCIDENTAL OR CONSEQUENTIAL DAMAGES
HEREBY DISCLAIMED.
Some states do not allow this exclusion or limitation
of warranties and/or damages, so the above limita-
tions and/or exclusions might not be applicable to
you. This warranty gives you specifi c legal rights, and
you might also have other rights that vary from state
to state.
SERVICE WITHIN WARRANTY PERIOD
• For Repair or Service please contact the entity
from whom you purchased the machine from.
• The Original Purchaser must contact minipack
america, inc. for an RMA Request Form to request
the return or repair of the machine or part. The
Original Purchaser or Owner of the equipment is
responsible for all shipping charges, including out-
bound and inbound freight charges. In the case that
our minipack america, inc. evaluation determines
there is a manufacturer’s defect, no shipping charges
will apply and the outbound freight charges initially
paid by the customer, will be reimbursed by minipack
america, inc. Freight reimbursement applies only to
standard shipping charges.
One-Year Limited Warranty
Sanitation
Approved
Electrical
Approved
Accessories Important Product Information
To order accessories call: +1-714-283-4200
