SERIES CATALOG

CSW SERIES LOUDSPEAKERS BASS PERFORMANCE THAT’S OUT OF SIGHT

LAMINAR FLOW PORT

The wide, long Laminar Flow Port in the custom install subs dramatically reduces bass turbulence, noise and

distortion. This is because the cross-sectional area of the port is larger than the largest possible round port that

would fit into subs of this convenient size. The port’s solid upper wall helps reinforce the cabinet, making it less

prone to energy-stealing resonance. This rigid, large-area vent promotes and concentrates smooth, less-turbulent

air flow throughout the enclosure, pouring out a tidal wave of precise, thunderous bass. See more about Laminar

Flow Port at www.polkaudio.com/catalog/technology/.

polk

technology

2CSW SERIES LOUDSPEAKERS

CSW CUSTOM BUILT-IN HIGH

PERFORMANCE SUBWOOFERS

These are the built-in subwoofers and dedicated

power amplifier for custom home installations that

will raise the roof beams with their performance as

they tuck out of sight to blend with any architectural

style or interior design. If you’re looking for tight,

musical bass, you’ve found your subwoofers.

CSW SUBWOOFERS COMBINE ULTRA-

PERFORMANCE WITH ULTRA-RELIABILITY

The subwoofers’ long-throw designs have been thought

out with not only big, robust performance in mind, but

ultra-reliability, too. Massive motor structures, each

employing a tall coil, have been Klippel laser-optimized

to perfectly position the voice coil in the magnetic gap,

helping ensure a linear excursion of 25mm peak to peak.

The CSW100 and CSW200, as well as the CSW155, use

dual spiders for symmetric excursion stiffness. The overall

result is tight, superbly detailed, lower distortion bass.

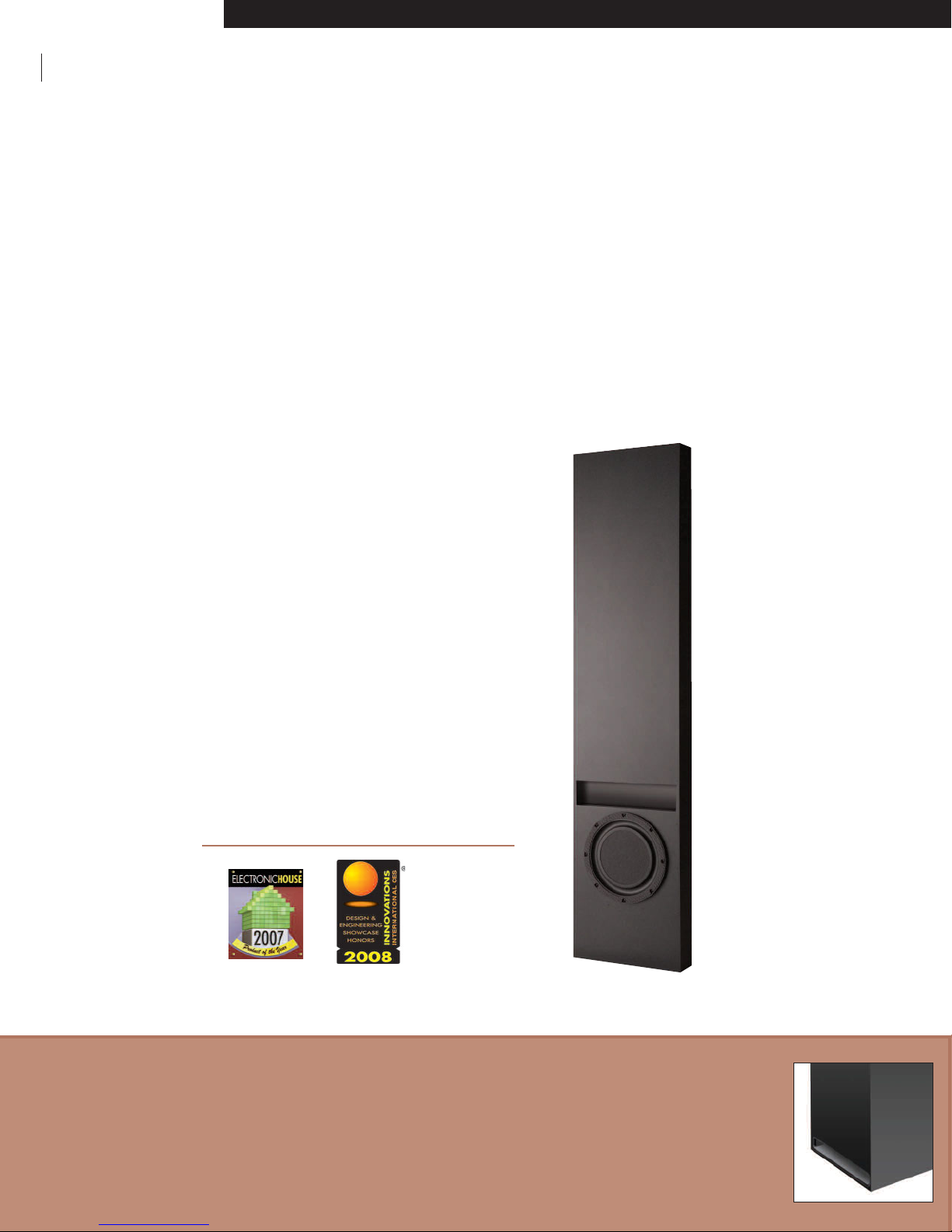

CSW155

AN IN-WALL THAT ACTUALLY

OUTPERFORMS MANY FREESTANDING

POWERED SUBWOOFERS

The CSW155 is for anyone who covets uncompromising

bass performance in a nearly invisible package. The CSW155’s

single 10" diameter driver is the shallowest ever engineered

by Polk, ensuring the CSW155 fits easily in a wall. This is

really big bass that’s created with ultra-reliability in mind.

A massive 2" voice coil for high output and power handling,

plus dual spiders that ensure linear excursion and prevent

bottoming out are just some of the features that ensure

ultimate performance and reliability. A 15 1/2" x 17 1/2"

perforated grille that mimics the look of an air register is

included with the CSW155. The CSW155 stands 60" tall

but fits comfortably between standard 16" on-center studs.

CSW155

CSW155 HONORS

Designed for in-wall use; fits comfortably between

standard 16" OC (on-center) studs.

Single 10" diameter driver is the shallowest

subwoofer Polk has ever engineered.

Klippel Optimized Woofer—a state-of-the-art Klippel

Distortion Analyzer enabled our engineers to optimize

the woofer’s motor structure, voice coil alignment and

suspension for the best possible performance, with

low distortion, even at extreme listening levels.

Neodymium motor structure—made the sub’s shallow

depth possible without compromising performance.

Cast aluminum basket is rigid and as well as inert

to suppress resonance.

Massive 2" voice coil for high bass output and

high power handling.

Inverted roll surround—highly reliable design

maintains its “springiness” over time.

Dual spiders ensure linear excursion and prevent

the driver from bottoming out.

Rigid MDF Slot Ported Enclosure—the port cross

section runs the width of the grille.

Steel plate on the back of the cabinet stiffens the

enclosure for better performance.

15 1/2" x 17 1/2" perforated aluminum grille included.

All mounting hardware and isolation pads included.

OVERALL DIMENSIONS:

60"LX14"W X 3 3/8"D (152.4CM H X 35.56CM W X 8.57CM D)

OVERALL FREQUENCY RESPONSE: 30HZ-140HZ

SEE SPECIFICATIONS FOR MORE DETAILED PRODUCT INFORMATION.

KLIPPEL OPTIMIZATION

In order for a driver to reproduce complex sounds accurately, the cone must move

in exactly the same distance and manner in both directions of travel. If the cone moves

5 mm in the forward direction and only 4mm in the backward direction in response

to a given signal, the sound will be distorted. In order for the driver to move accurately

in both directions equal force must be applied to the cone and the cone must be able

to move as far and as freely in both directions. A Klippel Distortion Analyzer employs

a laser and sophisticated software to do large scale analysis of drivers in motion and

enables us to optimize the motor structure, voice coil alignment and suspension to yield

the best possible performance.

polk

technology

WWW.POLKAUDIO.COM 3

IN-WALL SUBWOOFER WITH GRILLE

FITS BETWEEN STANDARD 16" OC STUDS

DYNAMIC BALANCE®

Advanced laser imaging technology allowed Polk Audio engineers to see the entire vibrating surface of a driver

and tweeter; they could actually see the resonance develop on the speaker cones—resonance that is the root

cause of loudspeaker distortion (A). Being able to see the resonance develop, they determined the “Dynamic

Balance” of high-tech materials, geometry and construction that effectively tune out the offending resonance (B).

Exclusive Dynamic Balance Composite Material Technology delivers sound |that’s effortlessly clean and clear,

even at lifelike volume. See more about Dynamic Balance at www.polkaudio.com/catalog/technology/.

polk

technolgy

4CSW SERIES LOUDSPEAKERS

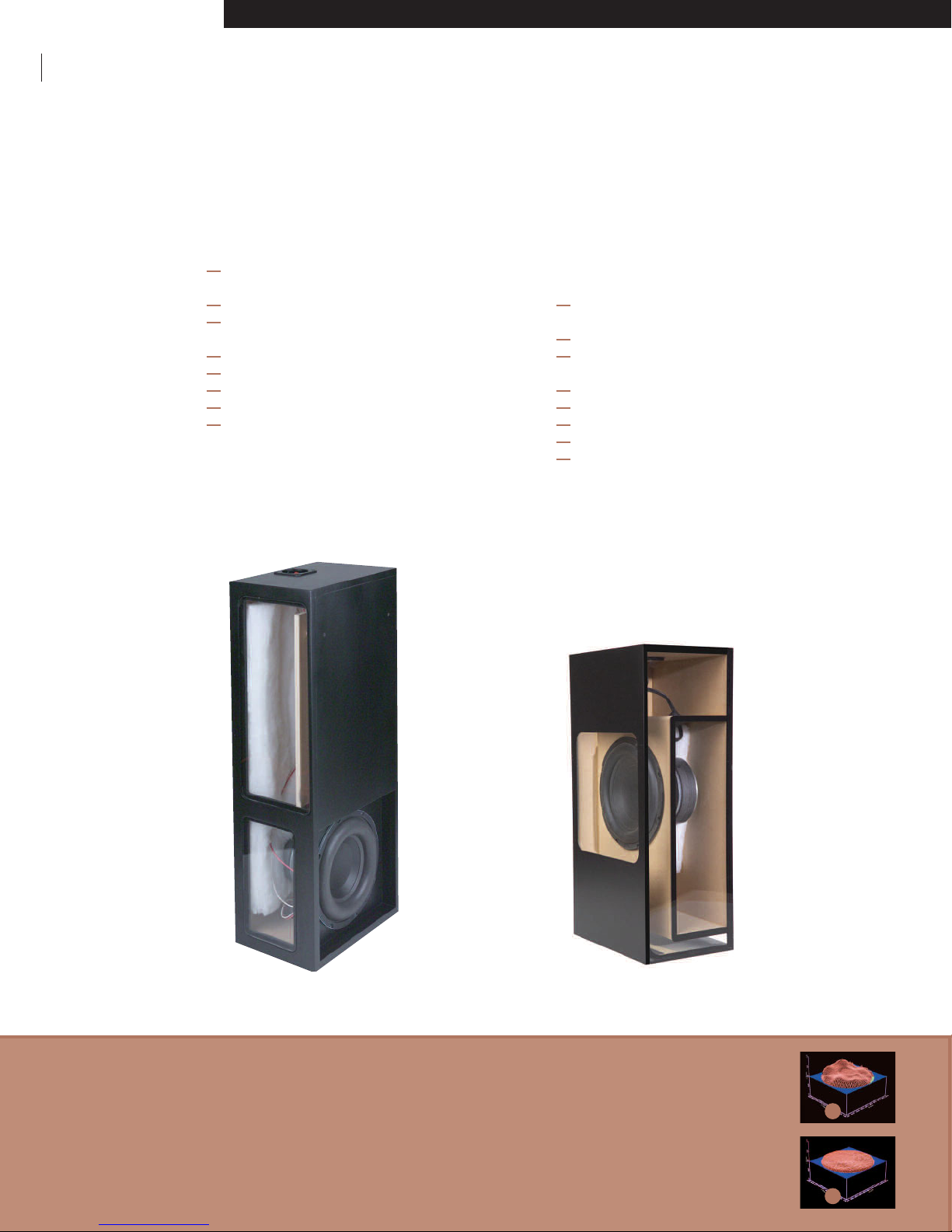

CSW200

For ultimate performance, there’s the CSW200, with a direct

radiating 10" driver in a 1.5 cubic foot slot load vented MDF

enclosure. The CSW200 produces robust bass down to the

lowest audible frequencies, thanks to its substantial size

and long-throw woofer. With its 12" x 12" grille, the CSW200

is for those who place a premium on performance over

size or unobtrusiveness.

Direct-radiating Laminar Flow Port enclosure is

designed for floor and ceiling installations.

Fits engineered floor joists and I-beam construction.

10" Long-throw driver with dual spiders for long

excursion control.

Klippel optimized driver.

Designed specifically for floor and ceiling installations.

Mounting hardware and isolation pads included.

12" X 12" grille (not included).

5 year warranty.

OVERALL DIMENSIONS:

34 1/8" L X 13" W X 9" D (86.68CM H X 33.02CM W X 22.86CM D)

OVERALL FREQUENCY RESPONSE: 22HZ-140HZ

SEE SPECIFICATIONS FOR MORE DETAILED PRODUCT INFORMATION.

CSW100

The CSW100 becomes practically invisible in a ceiling

or a floor. It can also tuck away in an entertainment

cabinet or other furniture. A single 10" woofer plus

patented Polk Audio technology—High Velocity

Compression Drive®Bandpass Alignment—helps

produce a gutsy, driving bass that other similarly

sized built-ins can’t equal. Bass frequencies launch

out of the enclosure via an unobtrusive 3" x 12" vent.

The CSW100 comfortably fits in standard joist spacing.

10" Long-throw driver with dual spiders for long

excursion control.

Klippel optimized driver.

Patented High Velocity Compression Drive.

bandpass alignment with slot port venting.

Designed specifically for floor and ceiling installations.

Fits engineered floor joists and I-beam construction.

Mounting hardware and isolation pads included.

Sound launches from an unobtrusive 3" x 12" grille.

5 year warranty.

OVERALL DIMENSIONS:

26 1/4" L X 13" W X 9" D (66.68CM H X 33.02CM W X 22.86CM D)

OVERALL FREQUENCY RESPONSE: 27HZ-140HZ

SEE SPECIFICATIONS FOR MORE DETAILED PRODUCT INFORMATION.

CSW100

CSW200

SPEX CARD

SPEX Cards configure the SWA500 for the particular model subwoofer being installed.

The card pre-programs equalization and overload protection. The card also features power

control circuitry designed specifically to each subwoofer’s requirements for extra reliability.

See more about SPEX cards at www.polkaudio.com/catalog/technology/.

polk

technolgy

WWW.POLKAUDIO.COM 5

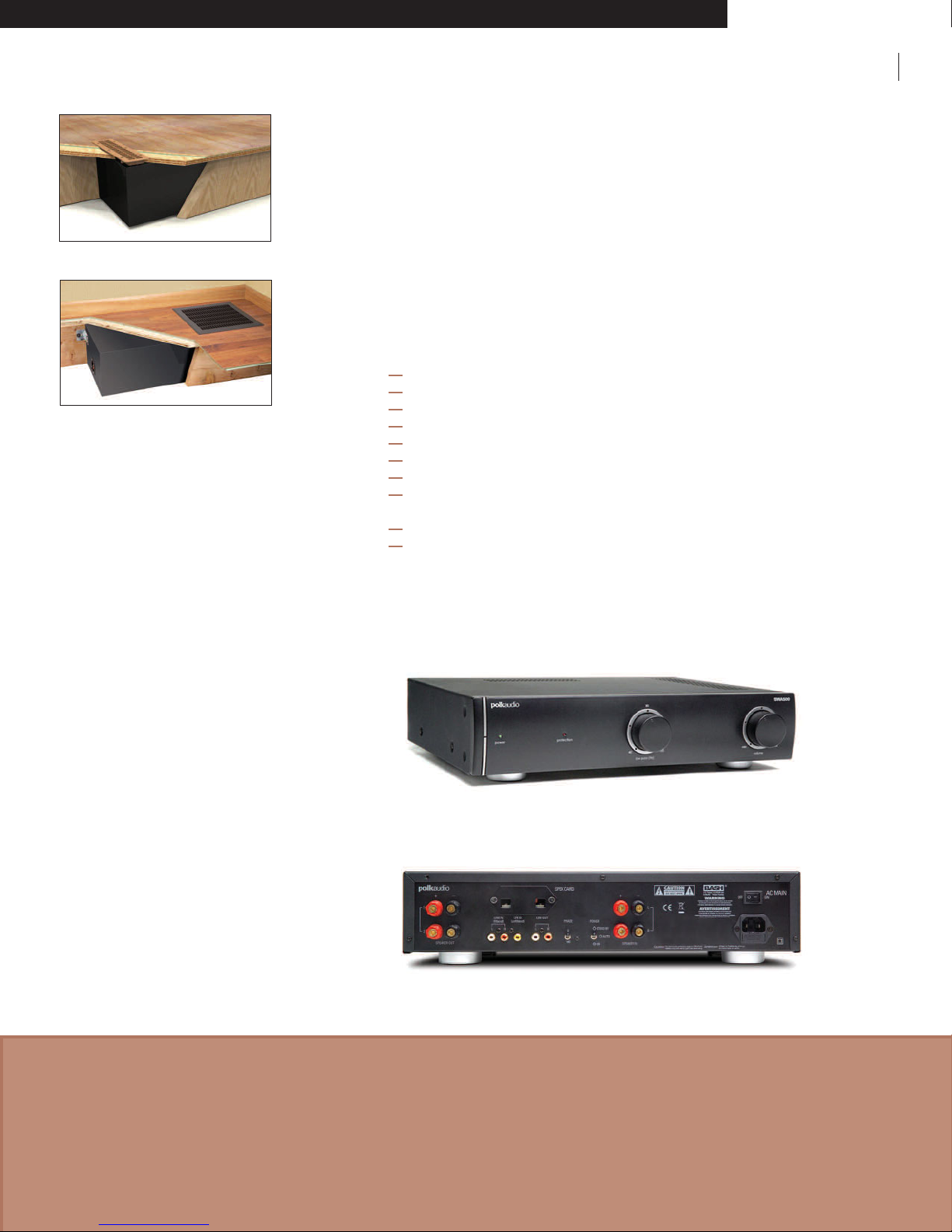

SWA500 AMPLIFIER

All three subwoofers are powered by an external Class

D amplifier, the SWA500. It produces 500W Continuous

into 4 Ohms. The BASH amplifier combines the fidelity

of conventional Class A/B amplifiers with the efficiency

of Class D amplifiers. The bottom line is high power,

and cool, reliable operation with precise definition and

low distortion. Plug-in data cards for each subwoofer,

called SPEX Cards, preprogram equalization, infrasonic

filter characteristics and power output that best matches

the subwoofer being used. Each SPEX Card also has specific

power control circuitry tailored to each subwoofer’s require-

ments for an even greater level of reliability. A SPEX Card

installs easily, plugging into the back of the amplifier.

Can power up to two subwoofers.

Delivers up to 250 Watts to each subwoofer.

SPEX card ensures optimum performance.

Front panel level and variable low-pass filter controls.

Power and protection LEDs.

Overload protection circuitry.

Low-level and high-level inputs.

2 sets of outputs (for daisy-chain connection

to additional amplifiers).

Phase switch.

Auto On/Off switch.

SWA500 (back)

SWA500 (front)

CSW200

CSW100

POLK AUDIO

5601 METRO DRIVE

BALTIMORE, MD 21215

WWW.POLKAUDIO.COM

CUSTOMERSERVICE:

800-377-7655 (USA & CANADA)

410-358-3600 (WORLDWIDE)

* For an explanation of CEA 2010 go to Http://www.polkaudio.com/partners/paper.php?id=12

We’re fanatics when it comes to providing you useful, accurate information that can help you evaluate our products. But as we all know, we live in an imperfect world. At least some of us do.

That’s why performance specifications and product dimensions are subject to change without notice. For the most current specifications see our website, www.polkaudio.com/home.

Polk Audio is a Directed Electronics company which trades on NASDAQ under the symbol DEIX. Investor information can be found at http://investor.directed.com.

Polk Audio, Polk, PowerPort, Dynamic Balance, F/X, Atrium, Big Speaker Sound Without The Big Speaker, High Velocity Compression Drive, Acoustic Resonance Control, ARC Port,

Casket Basket, I-Sonic, SurroundBar & SDA are registered trademarks of Britannia Investment Corporation used under license by Polk Audio, Incorporated. Polk Audio Designs & miDock

are trademarks of Britannia Investment Corporation used under license by Polk Audio, Incorporated.

CUSTOM INSTALL

BUILT-IN SUBWOOFER CSW155 CSW200 CSW100

Frequency Response/-3dB 30Hz-140Hz / 36Hz-120Hz 22Hz-140Hz / 28Hz-120Hz 27Hz-140Hz / 33Hz-120Hz

CEA 2010* Ultra Low / Low 103.9dB / 121.3dB 109.6dB / 121.2dB 103.6dB / 120.4dB

Impedance 8 Ohms 8 Ohms 8 Ohms

Driver Diameter 10" 10" 10"

Enclosure Type direct radiating slot port direct radiating, slot vented HVCD bandpass, slot vented

Accessory grille wire mesh grille plastic molded grate with wire mesh grille

Driver Complement 10" polycomposite 10" polycomposite 10" polycomposite with slot load vent

Dimensions 60" L x 14" W x 3 3/8" D 34 1/8" L x 13" W x 9" D 26 1/4" L x 13" W x 9" D

152.4cm H x 35.56cm W x 8.57cm D 86.68cm H x 33.02cm W x 22.86cm D 66.68cm H x 33.02cm W x 22.86cm D

Grille Size 15 1/2" x 17 1/2" (39.37cm x 44.45cm) 12" x 12" (30.48cm x 30.48cm) 3" x 12" (7.62cm x 30.48cm)

Product Weight / Shipping Weight 36 lbs / 53 lbs 48 lbs / 52.9 lbs 33 lbs / 39.4 lbs

(16.33 kg / 24 kg) (21.8 kg / 24 kg) (15 kg / 17.9 kg)

CUSTOM INSTALL BUILT-IN

SUBWOOFER AMPLIFIER SWA500

Power Continuous 500W @ 4 Ohms; 250 Watts @ 8 Ohms

Power Peak 800W @ 4 Ohms

Bandwidth 15Hz - 250Hz

Distortion 0.01%

Crossover Frequency Range 40Hz - 120Hz

Accessories SPEX Cards, rack ears

Dimensions 17" W x 3 1/2" H x 12 5/8" D

CSW SERIES LOUDSPEAKERS PRODUCT SPECIFICATIONS

Autres manuels pour CSW155

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Polk Audio Intervenants

Polk Audio

Polk Audio RTS100 Manuel utilisateur

Polk Audio

Polk Audio RM30 Manuel utilisateur

Polk Audio

Polk Audio RM50T Manuel utilisateur

Polk Audio

Polk Audio VM30 Manuel utilisateur

Polk Audio

Polk Audio Vanishing 255c-RT Manuel utilisateur

Polk Audio

Polk Audio 550T Manuel utilisateur

Polk Audio

Polk Audio Surroundbar360 Manuel utilisateur

Polk Audio

Polk Audio omni s6 Manuel utilisateur

Polk Audio

Polk Audio LCi-RTS105 Manuel utilisateur

Polk Audio

Polk Audio Patio25 Manuel utilisateur

Polk Audio

Polk Audio SurroundBar SurroundBar Manuel utilisateur

Polk Audio

Polk Audio ATRIUM 50 Manuel utilisateur

Polk Audio

Polk Audio MC60 Manuel utilisateur

Polk Audio

Polk Audio MM522 Manuel

Polk Audio

Polk Audio EX2500 Manuel utilisateur

Polk Audio

Polk Audio CSM Manuel utilisateur

Polk Audio

Polk Audio LC60i Feuille d'instructions

Polk Audio

Polk Audio Vanishing Series Manuel utilisateur

Polk Audio

Polk Audio RT600i Manuel utilisateur

Polk Audio

Polk Audio RC55i Manuel utilisateur

Polk Audio

Polk Audio M M20 Manuel utilisateur

Polk Audio

Polk Audio T15 Manuel utilisateur

Polk Audio

Polk Audio Atrium 65SDI Manuel utilisateur

Polk Audio

Polk Audio CS175I Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
