FLM-2011

Operating Manual

20” LCD Television

20050314

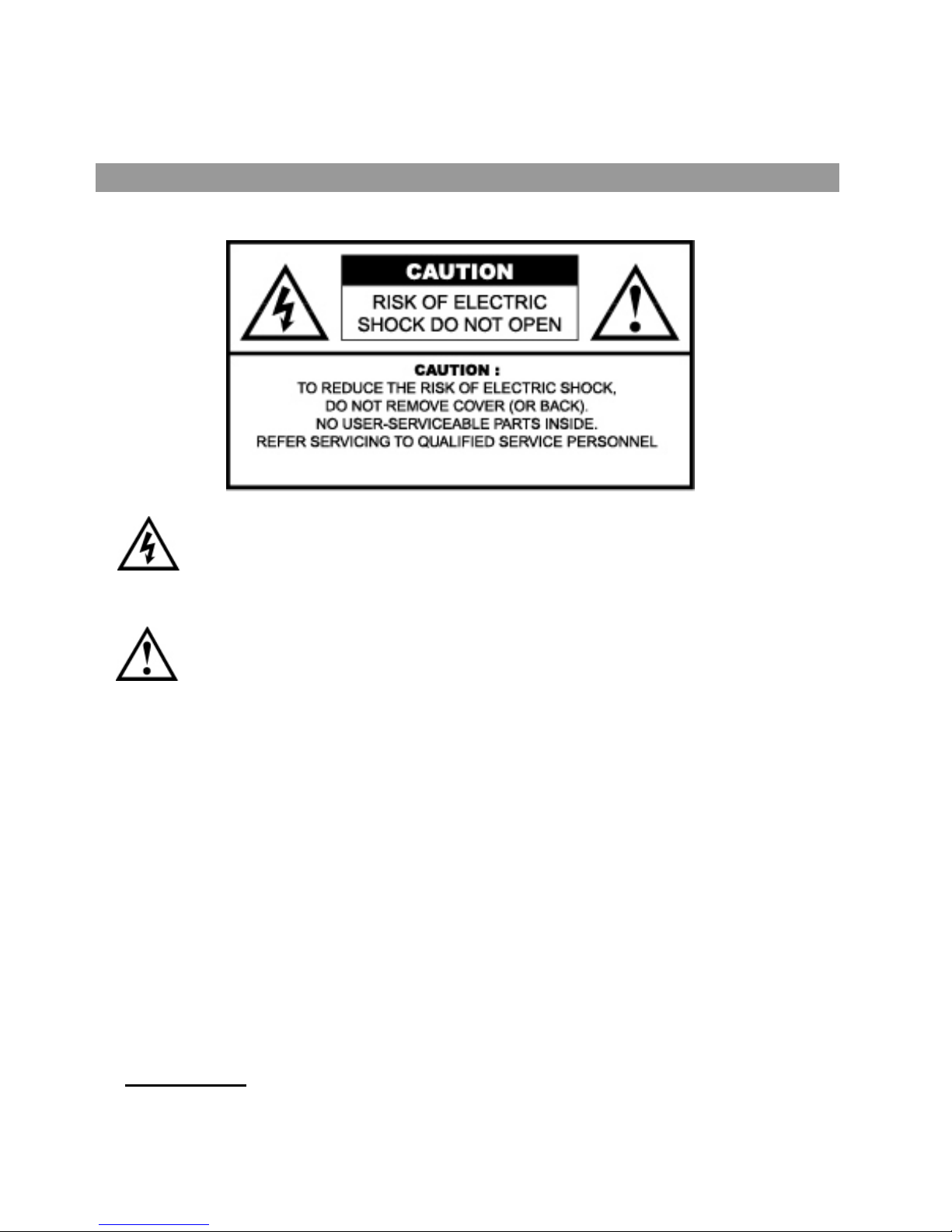

The lightning flash with the arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated “DANGEROUS

VOLTAGE” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The Exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (Servicing instructions in

the literature accompanying the product).

This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications If this equipment does cause or receive interference, which can be determined by

turning equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

?? Reorient or relocate the TV antenna

?? Increase the separation between TV and other equipment.

?? Connect TV into separate outlet from equipment.

? ?Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment

Federal Communication Commission

Information (FCC)

Important Safety Information

Congratulations on your purchase of this LCD TV.

We recommend that you thoroughly read this manual before use to fully enjoy the

many functions and excellent features of this set.

Retain this manual in an easily accessible location for future reference.

* Screen displays and illustrations in this manual may differ from the actual ones for

better visibility.

Contents

Important safety cautions .................................................................... 1

Identification of controls .......................................................................3

Remote Control..................................................................................... 5

Installation..............................................................................................7

Basic Operations ................................................................................14

Main OSD introduction ..................................................................... 15

Channel setting....................................................................................16

Selecting Channel ...............................................................................18

Picture adjustment...............................................................................19

Sound setting .......................................................................................20

System setting .....................................................................................22

OSD Setting ..........................................................................................27

Timer setting.........................................................................................28

Operations in VGA/YPbPr mode.........................................................29

Troubleshooting ..................................................................................31

Care and Maintenance.........................................................................32

Specifications.......................................................................................33

Contents

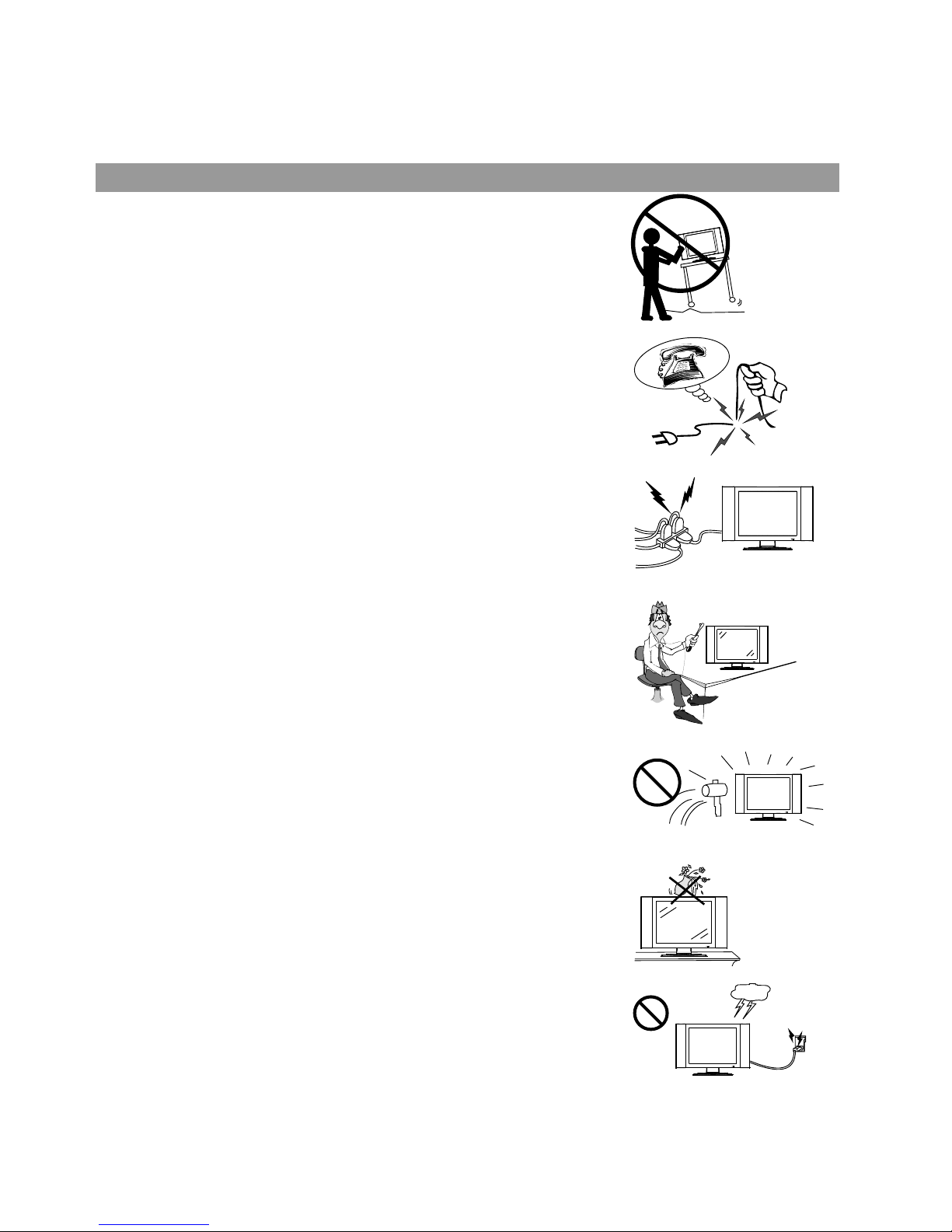

Important Safety Cautions

When any unusual situation occurs, turn off the power supply at once and remove

the plug from the wall outlet. Contact a qualified service department in your local

area.

Do not expose this to rain or spattering liquids. Do not use this product near water -

for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, and the like. Do not use immediately after

moving from a low temperature to high temperature environment, as this causes

condensation, which may result in fire, electric shock, or other hazards.

Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves

and other heat generating products (including amplifiers).

Requirement of environment temperature:

o o o o

0 C~50 C for storage; 5 C~40 C for working

The vents and other openings in the cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause

overheating and/or shorten the life of the product.

Do not place the product on a bed, sofa, rug or other similar surface, since they can

block ventilation openings.

This product is not designed for built-in installation; do not place the product in an

enclosed place such as a bookcase or rack, unless proper ventilation is provided

or the manufacturer's instructions are followed.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for cleaning.

Do not place the product on an unstable trolley, stand, tripod or table. Placing the

product on an unstable base can cause the product to fall, resulting in

serious personal injuries as well as damage to the product. Use only a trolley,

stand, tripod, and bracket or table recommended by the manufacturer or sold with

the product.

When relocating the product placed on a trolley, it must be moved with the utmost

care. Sudden stops, excessive force and uneven floor surfaces can cause the

product to fall from the trolley.

The power cords must be routed properly to prevent people from stepping on them

or objects from resting on them. Check the cords at the plugs and product. Power-

supply cords should be routed so that they are not likely to be walked on or

snagged by items placed upon or against them. Pay particular attention to cords at

doors, plugs, receptacles, and the point where they exit from the product.

If the power cord or the plug is damaged contact a qualified service department for

service.

High Voltage exists in this TV set. Do not remove the cover.

In case the product needs replacement parts, make sure that the service person

uses replacement parts specified by the manufacturer, or those with the same

characteristics and performance as the original parts. Use of unauthorized parts

can result in fire, electric shock and/or other danger.

For added protection for this television equipment during a lightning storm, or

when it is left unattended and unused for long periods of time, unplug it from the

wall outlet and disconnect the antenna. This will prevent damage to the equipment

due to lightning and power-line surges.

The LCD panel used in this product is made of glass. Therefore, it can break when

the product is dropped or impacted upon by other objects. Be careful not to be

injured by broken glass pieces in case the LCD panel breaks.

Don't try to push anything into the cabinet or place any vessel with water on the TV

set.

Do not overload wall outlets, extension cords, or convenience receptacles on other

equipment as this can result in a risk of fire or electric shock.

Important Safety Cautions

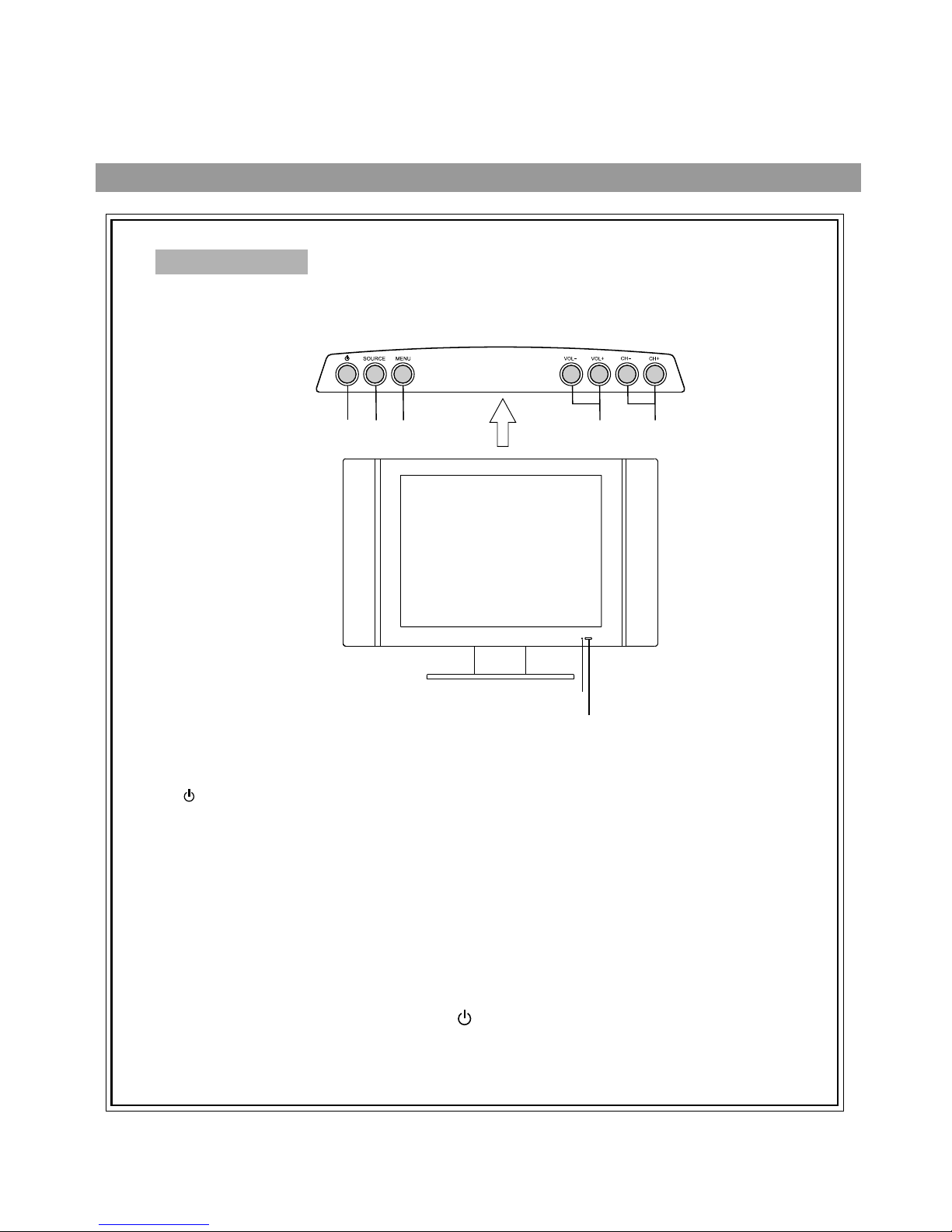

Identification of controls

Control buttons

Note:

SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the

corresponding buttons on the remote control.

This operation manual provides a description based on operating functions with the remote control.

12345

1. : Power on/standby

2.SOURCE: To select input signal

3.MENU: To access menu

4.VOL+/-:press to raise/lower the volume or adjust the selected item.

5.CH+/-:press to select a higher/lower numbered channel or cycle through the menus.

6.Power Indicator

7.Remote sensor

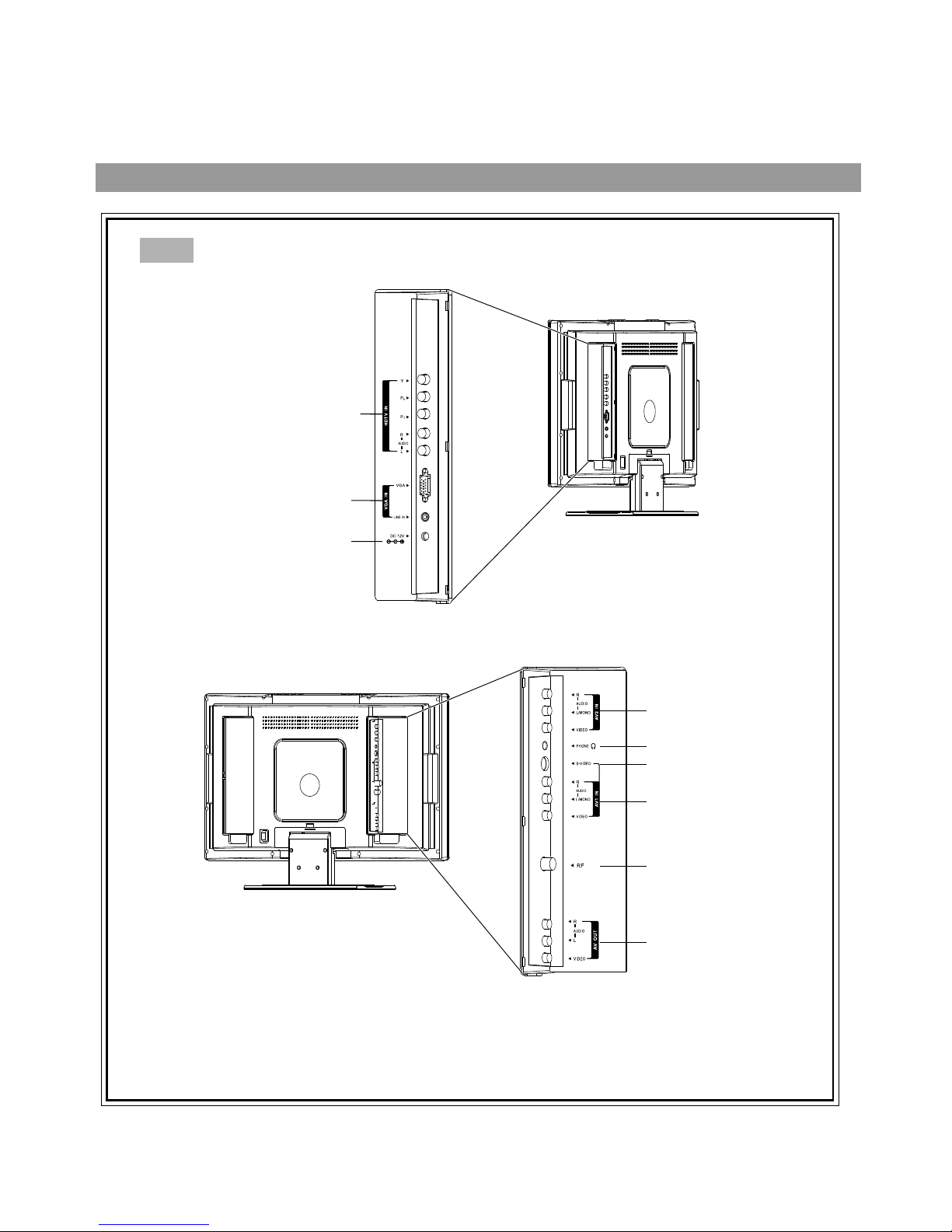

Antenna input

S-VIDEO input

Earphone jack

Audio/video 1 input

Audio/video 2 input

Audio/video output

VGA input

YPbPr/YCbCr input

PC audio input

Power input

Back

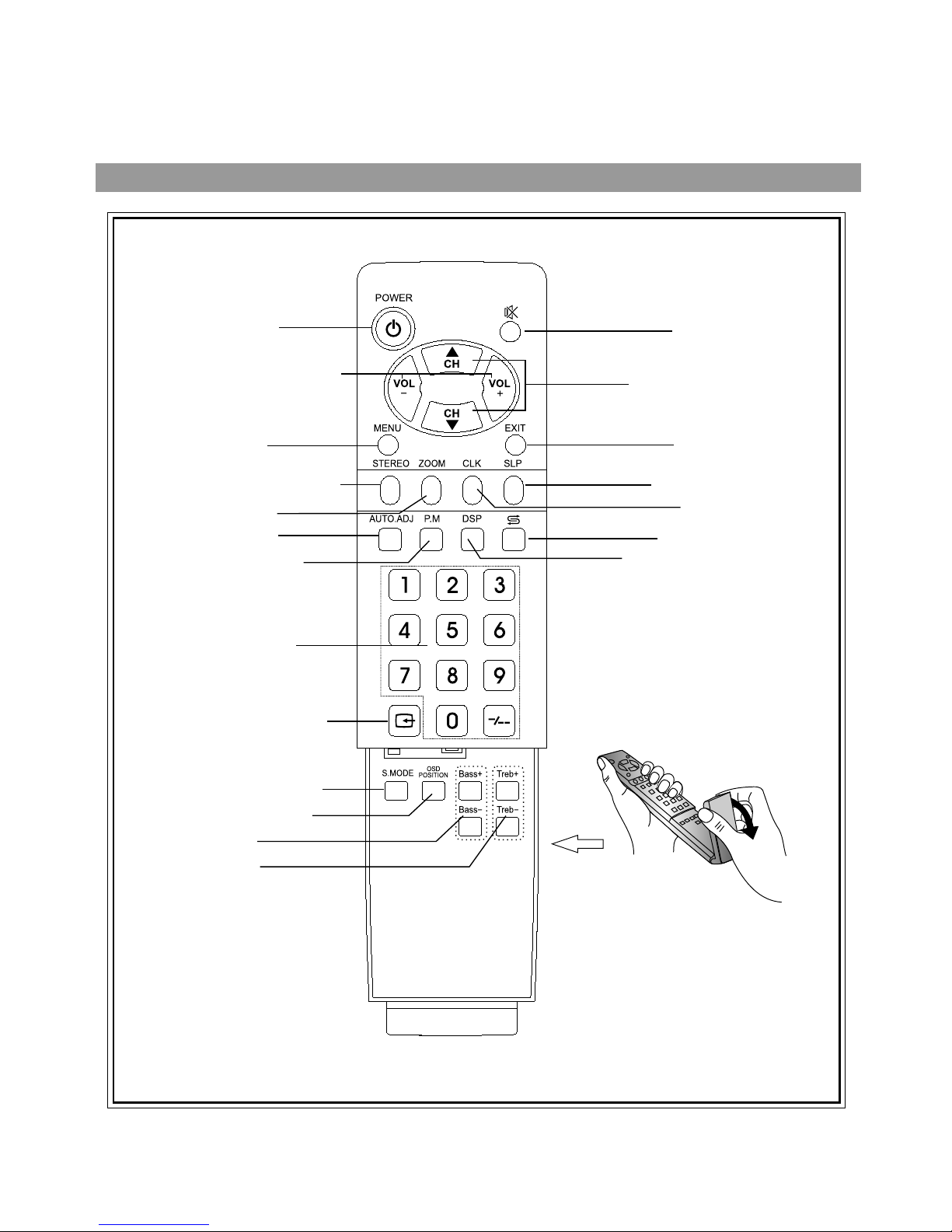

Identification of controls (continued)

Display the current state

Muting sound

Previous channel

Auto correct picture

Channel up/down selector.

In menu operations, used

to select item.

Switch the picture mode

Power on/standby

Select the input signal source

Direct channel selector

Sound preset mode selector

Select OSD menu position

Adjust the bass

Setting sleep timer

Exit the menu

Clock setting

Select zoom mode

Select the mono, stereo or SAP

Volume up/down selector.

In the menu operation, adjust the

selected item

Access the menu

Adjust the treble

Flip the cover open in

the direction shown by

the arrow.

Remote Control

Please install the batteries before using the remote control.

Effective range of the remote control

Notes:

1.When the remote control will not be used for a

long period of time or when the batteries are

worn out, remove the batteries.

2.Do not drop or dampen the remote control.

3.Do not disassemble the remote control.

4.There should be no obstacle between the TV

and the transmitter.

5.Use the remote control within the effective

range as shown in the figure on the left.

6.If the remote control does not work, please

check whether the batteries are exhausted or

if they have been installed properly.

7.When direct sunlight, and incandescent

lighting, fluorescent lamp or any other strong

light shines on the remote sensor of the TV,

the remote operation can be come erratic.

8.Do not mix different types of batteries in the

remote.

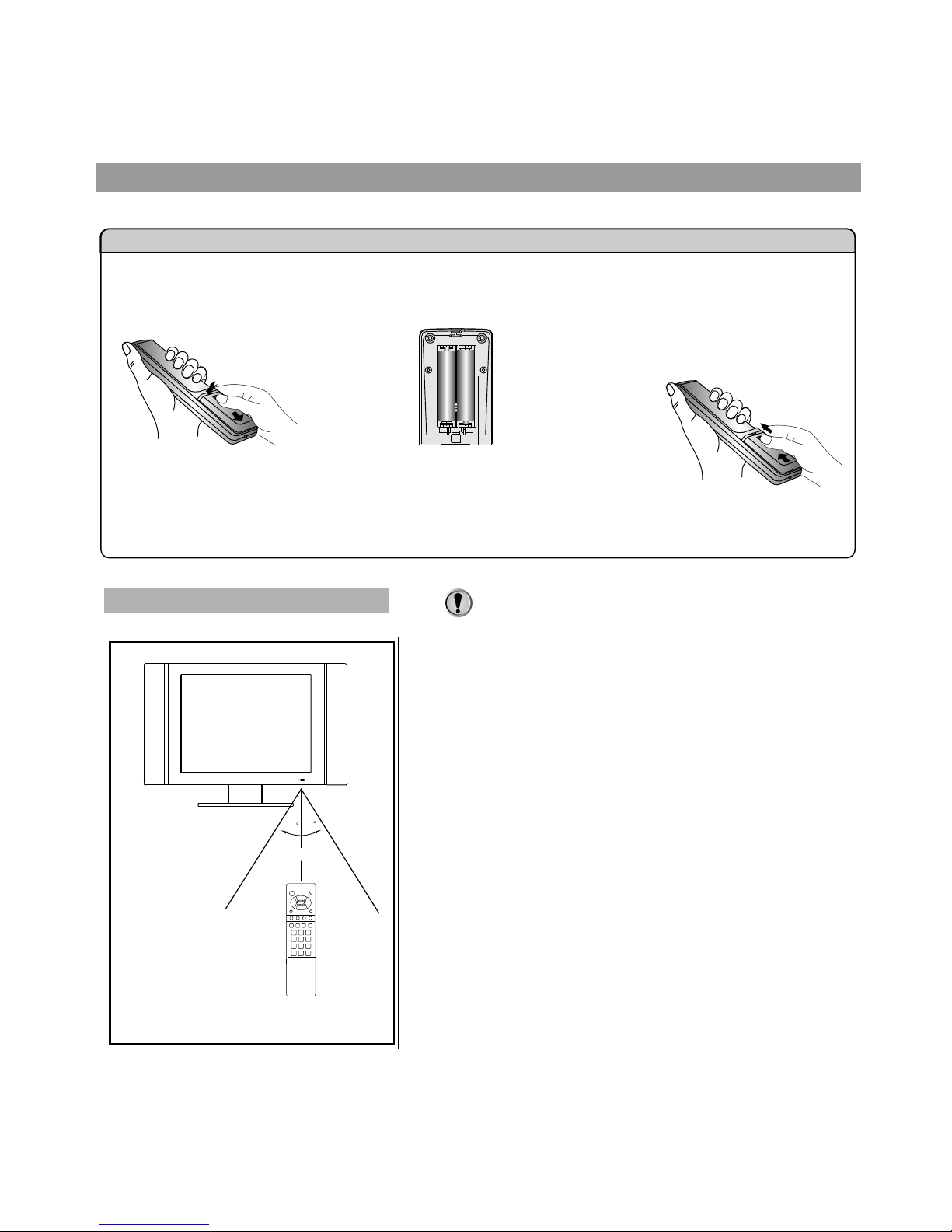

Batteries for the Remote Control

If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.

<(Slide the cover while

pressing down.)

<(Place the batteries with their

terminals corresponding to the (+)

and (-) indications in the battery

compartment.)

Open the battery cover.

1Insert two size-AAA batteries.

Replace the cover and slide

in reverse until the lock

snaps.

Preparing the Remote Control

Installation

Install the unit in a room where direct light will not fall upon the screen.

Total darkness or a reflection on the picture screen may cause

eyestrain. Soft and indirect lighting is recommended for comfortable

viewing.

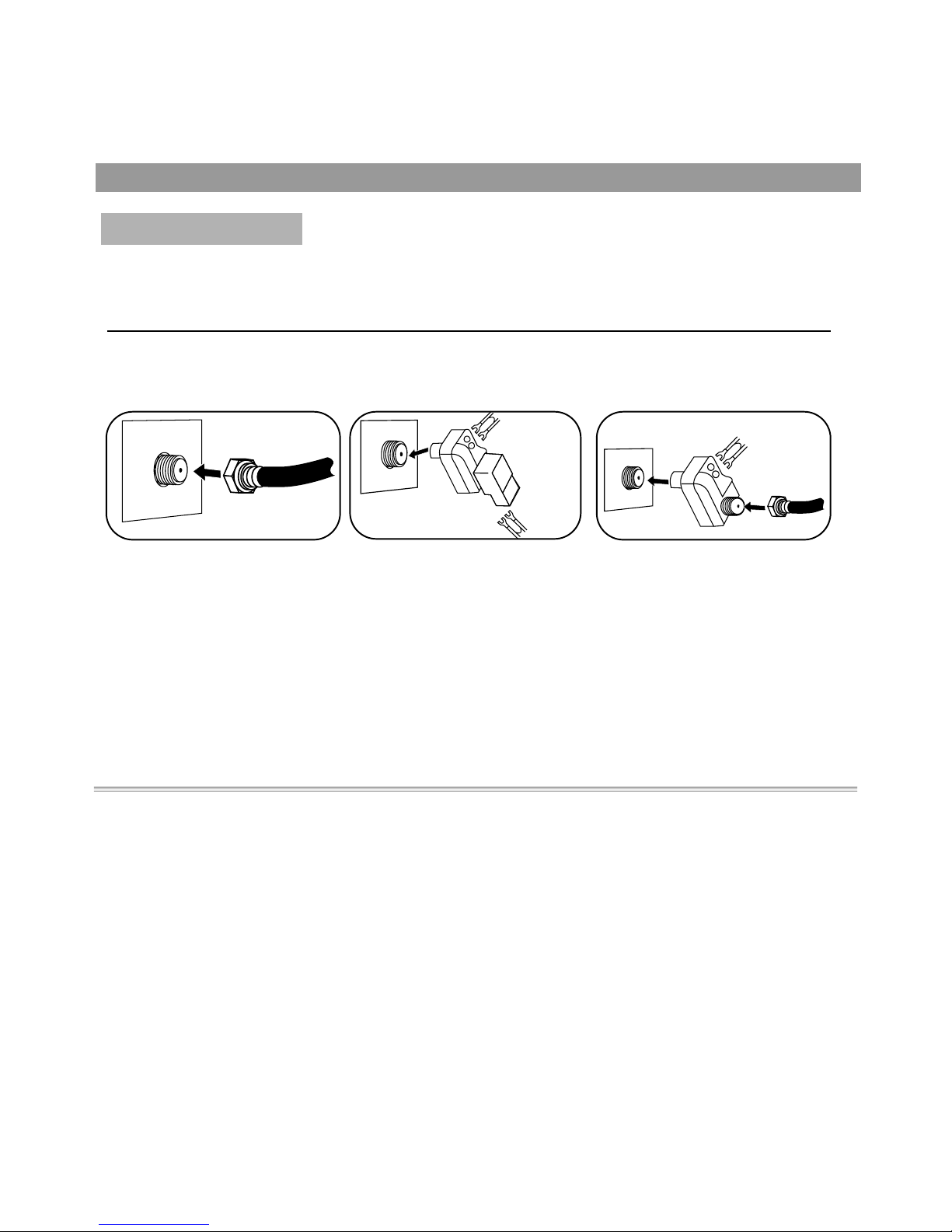

Antenna connections

OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)

Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see

the next page.

Combination VHF/UHF

Antenna (Single 75 Ohm cable

or 300 Ohm twin-lead wire)

Connect the 75 Ohm cable from

combination VHF/UHF antenna

to the antenna jack.

If your combination antenna has

a 300 Ohm twin-lead wire, use a

300-75 Ohm matching

transformer (NOT SUPPLIED).

Connect the UHF twin-lead wire

to a combiner (NOT SUPPLIED).

Connect the VHF twin-lead to a

300-75 Ohm matching

transformer (NOT SUPPLIED).

Attach the transformer to the

combiner. Attach the combiner to

the antenna jack.

Connect the 75 Ohm cable from

the VHF antenna and the UHF

antenna twin-lead wire to a

combiner (NOT SUPPLIED).

Attach the combiner to the

antenna jack.

NOTE: If your VHF antenna has

a twin-lead wire use a 300-75

Ohm matching transformer, then

connect the transformer to the

combiner.

Combination VHF/UHF

Antenna (Separate VHF and

UHF 300 Ohm twin-leads)

VHF 300

Ohm VHF 75 Ohm

Combiner

UHF 300 Ohm UHF 300 Ohm

VHF/UHF

75 OHM

Ohm

Ce manuel convient aux modèles suivants

Autres manuels Polaroid Téléviseur LCD

Polaroid

Polaroid FLU-1514SA Manuel utilisateur

Polaroid

Polaroid TLA-04641C - 46" LCD TV Manuel utilisateur

Polaroid

Polaroid FLM-2632 - 26" LCD TV Manuel utilisateur

Polaroid

Polaroid FLU-2632 Manuel utilisateur

Polaroid

Polaroid FLM-1000WL Manuel utilisateur

Polaroid

Polaroid LC20H15 Manuel utilisateur

Polaroid

Polaroid TLM-23201B Manuel utilisateur

Polaroid

Polaroid TLA-04011C Manuel utilisateur

Polaroid

Polaroid FLM-1507 Manuel utilisateur

Polaroid

Polaroid DEFINIA Manuel utilisateur

Polaroid

Polaroid FLM-3232 Manuel utilisateur

Polaroid

Polaroid FLM1911 - HD-ready LCD TV Manuel utilisateur

Polaroid

Polaroid 40GSR3000FM Manuel utilisateur

Polaroid

Polaroid FULL HD LCD TV Manuel utilisateur

Polaroid

Polaroid FLU-1911SA Manuel utilisateur

Polaroid

Polaroid HD-Ready Widescreen LCD TV Manuel utilisateur

Polaroid

Polaroid FLM-2017 - 20" LCD TV Manuel utilisateur

Polaroid

Polaroid FLM-2061 Manuel utilisateur

Polaroid

Polaroid TLA-02023BM Manuel utilisateur

Polaroid

Polaroid FLM-1512 Manuel utilisateur

Polaroid

Polaroid FLA-3232B Manuel utilisateur

Polaroid

Polaroid V23D series Manuel utilisateur

Polaroid

Polaroid FLA-2007B Manuel utilisateur

Polaroid

Polaroid HD-Ready Widescreen LCD TV Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
