Polaroid PL3221HDC Manuel utilisateur
PL3221HDC
32" HD TV
WITH BUILT-IN DVD PLAYER
User Manual
2
Welcome
Welcome to your experience with Polaroid products.
All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of
our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty.
This user manual tells you all you need to know about setting up and using your new TV.
Please take special note of any important safety and usage information presented with the symbol.
3
On-Screen Set Up 17
TV Setting Menus 18
Channel (DTV and ATV) 20
Picture 22
Sound 23
Time 24
Lock 25
Setup 27
PVR File System 28
TV Guide 30
Recording 31
Recording Live TV 32
Scheduled Recording 32
Playback 32
Pause Live TV (Time-shift) 33
USB Mode 34
Set up 34
Contents
Welcome 2
Contents 3
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Attaching the stand 6
Wall-mounting the TV 7
Connect to power 8
Connect to 12V power source 8
Connect your antenna 9
Controls and Connections 10
Get to know your TV 10
Buttons on the TV 10
Ports on the TV 11
Remote Control 13
Setup 13
Using the Remote Control 14
Buttons and Functions 15
DVD Mode 37
Basic DVD Movie Playback 37
Media File Playback 40
Menu Navigation 43
Troubleshooting 45
Specications 48
Compliance and
Responsible Disposal 49
4 | UNPACK AND PREPARE
Unpack and Prepare

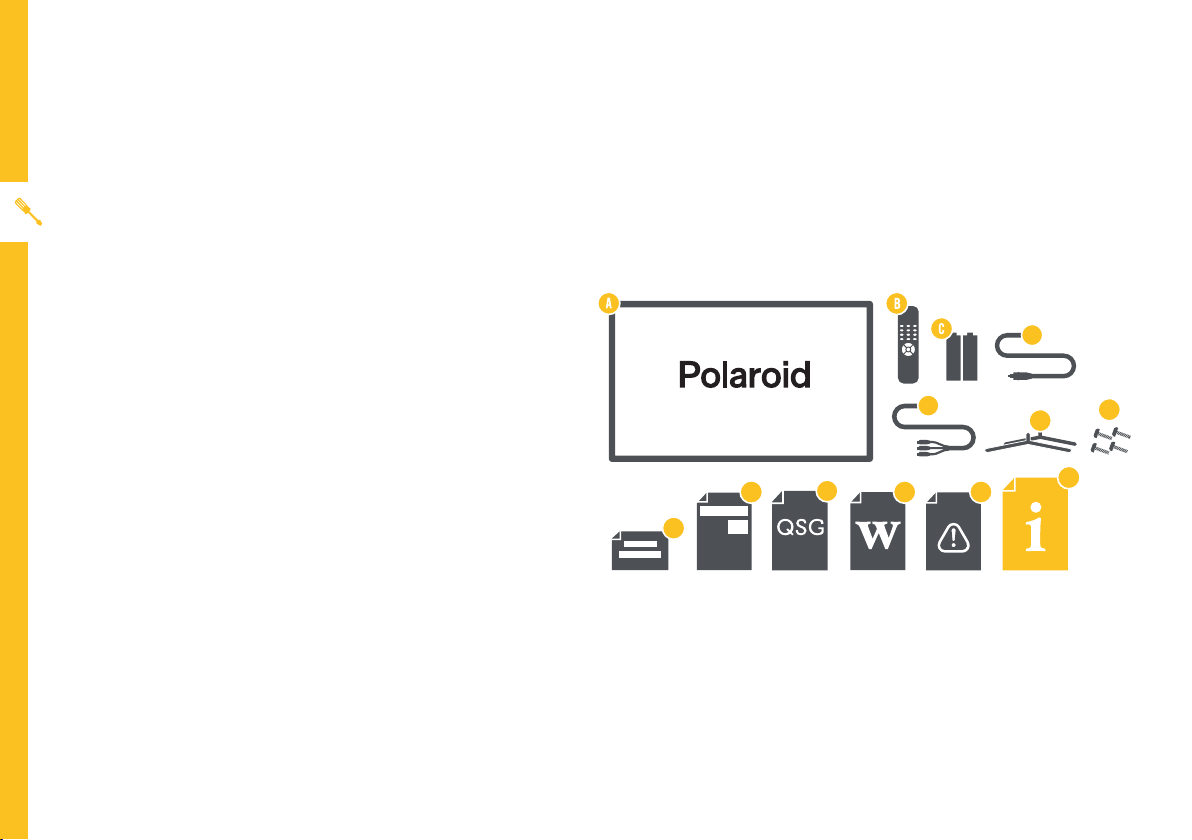

What's in the box
Before installing your new TV, check you have everything needed.
In the box you will find:
A. 32" HD TV with Built-in DVD Player
B. Remote Control
C. AAA Batteries
D. 12V Car Adaptor
E. Mini AV Cable
F. TV Stands
G. Screws for TV Stands
H. Warning Sheet
I. TV Toppling Safety Message
J. Quick Start Guide
K. Warranty Certificate
L. General Safety Warnings
M. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Antenna cable (to watch live TV)
D
FG
H
IJKL
M
E
UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.
6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit). Make sure the legs are facing away from
each other (not leaning inwards).
Attaching the stand
• This TV is heavy! We recommend asking someone
to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
1
2
3
UNPACK AND PREPARE | 7
200mm
Back of the TV
100mm
Wall-mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this TV
(screws are not included).
• Unplug the TV from the power outlet before
wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.
8 | UNPACK AND PREPARE
Connect to power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
Connect to 12V power source
12V car adaptor
(plug into the DC IN
socket on the TV)
12V power outlet
UNPACK AND PREPARE | 9
Free-to-air TV in HD (High Denition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
10 | CONTROLS AND CONNECTIONS
Controls and Connections
Buttons on the TV
Get to know your TV
DVD Slot
1
3
4
6
5
2
1. STANDBY : switch the TV on or to standby.
2. VOL - / VOL + : decrease/increase the volume
level.
3. CH - / : select the previous channel. Play or
pause playback (in DVD mode).
4. MENU : enter the settings menu.
5. SOURCE : change the input source.
6. CH + / : select the next channel. Eject a disc
from the DVD player.
On/Standby light and
Remote sensor
STANDBY
VOL+ VOL-
CH /
+CH-/
SOURCE MENU
