Welcome
Welcome to your experience with Polaroid products.
All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of
our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty.
This user manual tells you all you need to know about setting up and using your new TV.
Please take special note of any important safety and usage information presented with the symbol.
3
On-Screen Set Up 17
TV Setting Menus 18
Picture 20
Sound 22
Channel (DTV and ATV) 24
Lock 26
Setup 28
PVR Settings 31
TV Guide 32
Recording 33
Recording Live TV 34
Scheduled Recording 34
Playback 34
Pause Live TV (Time-shit) 35
USB Mode 36
Set up 36
Contents
Welcome 2
Contents 3
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Attaching the stand 6
Wall-mounting the TV 7
Connect to power 8
Connect to 12V power source 8
Connect your antenna 9
Controls and Connections 10
Get to know your TV 10
Buttons on the TV 10
Ports on the TV 11
Remote Control 13
Setup 13
Using the Remote Control 14
Standard Remote 15
DVD Mode 39
Basic DVD Movie Playback 39
Media File Playback 42
Menu Navigation 45
Troubleshooting 47
Specications 50
Compliance and
ResponsibleDisposal 51
4 | UNPACK AND PREPARE
Unpack and Prepare
What's in the box
In the box you will find:
A. 24" Full HD TV with Built-in DVD Player
B. Remote Control
C. AAA Batteries
D. 12V DC Car Adaptor
E. TV Stands
F. Screws for TV Stands
G. Warning Sheet
H. TV Toppling Safety Message
I. Quick Start Guide
J. Warranty Certificate
K. General Safety Warnings
L. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Antenna cable (to watch live TV)
Before installing your new TV, check you have everything needed.
F
E
D
G
HIJKL
UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.
6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit). Make sure the legs are facing away from
each other (not leaning inwards).
Attaching the stand
• This TV is heavy! We recommend asking someone
to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
1
2
3
UNPACK AND PREPARE | 7
100mm
Back of the TV
100mm
Wall-mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M4*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this TV
(screws are not included).
• Unplug the TV from the power outlet before
wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M4*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.
8 | UNPACK AND PREPARE
Connect to power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
Connect to 12V power source
12V car adaptor
(plug into the DC IN
socket on the TV)
12V power outlet
UNPACK AND PREPARE | 9
Free-to-air TV in HD (High Denition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
10 | CONTROLS AND CONNECTIONS
See next page for more info on the connections.

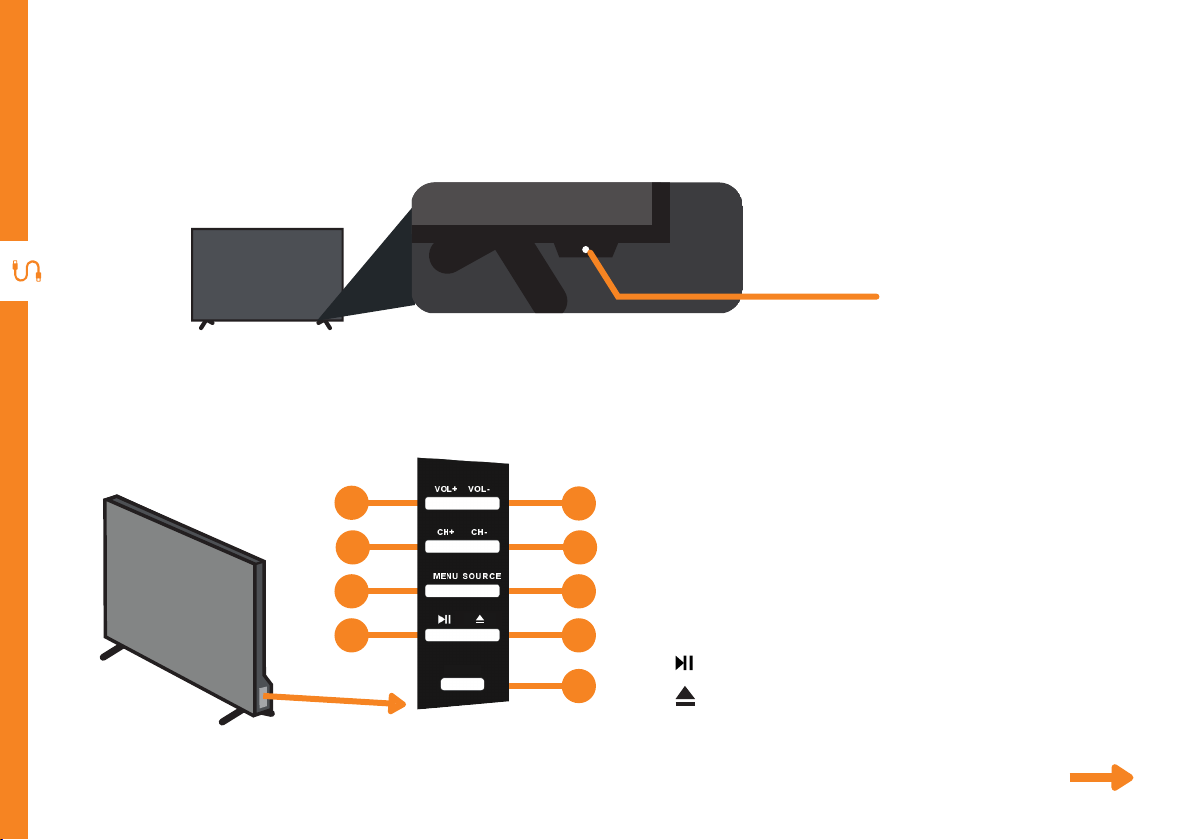

1. VOL + : Increase the volume level.
2. VOL - : Decrease the volume level.
3. CH + : Select the next channel.
4. CH - : Select the previous channel.
5. MENU : Enter the settings menu.
6. SOURCE : Change the input source.
7. : Play or pause playback.
8. : Eject a disc from the DVD player.
9. STANDBY: Switch the TV ON or to Standby.
Controls and Connections
1
5
3
7
2
6
4
8
9
Buttons on the TV
Get to know your TV
On/Standby light and
Remote sensor
STANDBY
