POLARIS PROSPECTOR PRO ATV Track Kit User Manual
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SYMBOLS AND SIGNAL WORDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SERIAL NUMBER LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ANGLE OF ATTACK - FRONT SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ANGLE OF ATTACK - REAR SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ALIGNMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TRACK TENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TRACKS - INSTALLATION DIRECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
WEAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PATENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
’’CE’’ DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9940495 - VERSION A
1
INTRODUCTION
INTRODUCTION
SYMBOLS AND SIGNAL WORDS
This guide uses the following signal words and
symbols to emphasize particular information:
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in
damage to vehicle and Track System components.
NOTE: Indicates supplementary information.
The Prohibition Safety Sign indicates an
action NOT to be taken in order to avoid a
hazard.
The Mandatory Action Sign indicates an
action that NEEDS to be taken to avoid a
hazard.
GENERAL INFORMATION
• All figures, information or photos presented in
this document are up to date at the time of
publication. However, they may change without
notice.
• Read and follow the indications contained in the
vehicle’s user manual and installation guidelines
carefully. Their content remain applicable after
installation of the System.
• This document should be read by everyone
operating the vehicle equipped with the System.
• This document is an integral part of the System.
Pass it along to any new owner of the System.
• Before usage, consult the legal authorities of the
area where you operate your vehicle equipped
with the System to ensure that all applicable
laws and regulations are observed.
• ATV and SxS Track Systems are designed to
reduce ground pressure and increase vehicle
traction. However, during normal operating
conditions, vehicle speed should be reduced
compared to a wheeled vehicle.
SERIAL NUMBER LOCATION

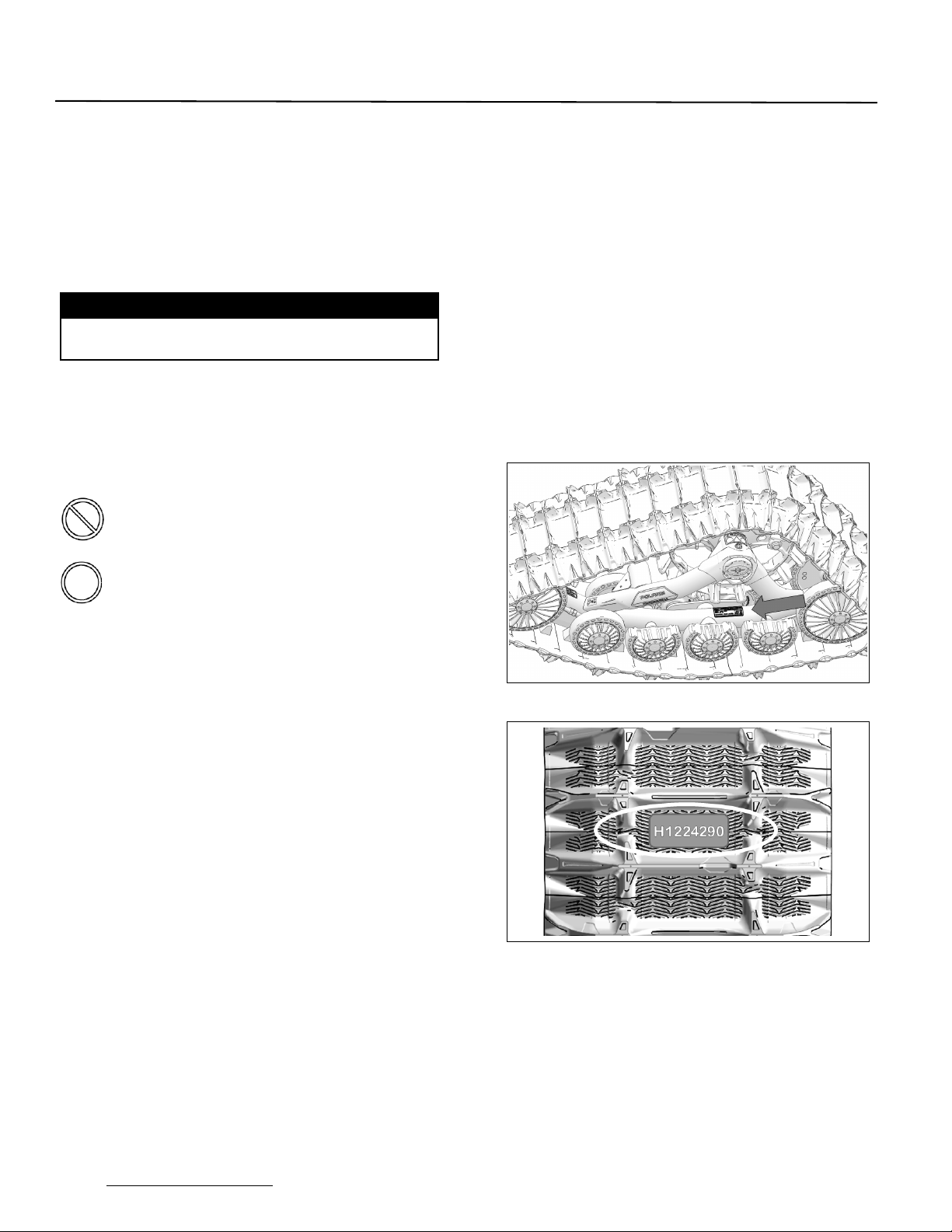

The following figures show the location of the serial
numbers on the Track System frame (Figure 1) and
rubber track (Figure 2).
Figure 1
Figure 2
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
2
SAFETY
SAFETY
WARNING STICKERS
You will find the warning stickers, shown in the
illustration below, affixed on the Track System
frames. Read the stickers carefully and understand
them before using the Track System. They contain
important information about safety and proper
operation of the System.
CAUTION: Do not remove the warning sticker from
the frame. If a sticker is damaged, have it replaced
at an authorized Polaris dealer.
GENERAL WARNING
User Manual - Users must read
the User Manual before attempting
to operate a vehicle equipped with
a Track System.
If the Track System is sold or in any
way transferred to a new user, the
User Manual must also be
transferred to the new user.
Moving Parts - Hands or fingers
caught between moving parts of the
equipment present a danger to life
or limb. Turn motor off before
servicing the Track System.
Maintenance Schedule
- Follow
instructions contained in the User
Manual’s Maintenance Schedule to
ensure safe and long lasting Track
System operation.
TENSIONER WARNING
TENSIONER BOLT WARNING - If track tension
adjustment is required, do not loosen the tensioner
assembly bolt under any circumstance. The bolt is
used to assemble and align the tensioner with the
frame. Tensioner re-alignment is necessary if this
bolt is loosened.
POSITION PICTOGRAM STICKERS
These stickers indicate the position of each Track
System unit: front left, front right, rear left and rear
right. They are located on the top of each frame.
Front left Front right
Rear left Rear right
3
SAFETY
OPERATION
Safe Operation Practices
1. Read and understand this user manual and all
warning and instruction labels before
operating a track-equipped vehicle.
2. Read the vehicle owner’s manual before
operating with tracks.
Follow all safety and operation warnings and
procedures.
3. Operate the vehicle in 4X4 mode when
operating with tracks. This will significantly
reduce the possibility of derailing.
4. The vehicle will handle differently when a
Track System is installed. Select an open area
that allows room to familiarize yourself with
vehicle operation and handling. Drive slowly at
first. On level surfaces, practice starting,
stopping, turning, maneuvering, using the
throttle and brakes and driving in reverse.
Learn how the vehicle handles when making
both left and right turns at a slow speed.
5. Track systems are designed to reduce ground
pressure and increase vehicle traction. For the
best traction, drive at slow speeds. Traction is
reduced at faster speeds.
6. Moving Track Systems can propel objects.
Drive slowly when operating near bystanders
and when traveling in a group with other
vehicles. Alert others in your group to the
potential for propelled objects in the wake of a
track-equipped vehicle.
7. Always travel at a speed appropriate for your
skills and operating conditions. Avoid
unexpected or aggressive maneuvers.
8. Operate the vehicle off-road only. Never
operate the vehicle on pavement or on any
public street, road or highway, including dirt
and gravel roads.
9. Travel slowly and use extra caution when
operating on unfamiliar terrain. Not all
obstacles are immediately visible.
10. When driving in deep snow, avoid spinning
the tracks, which could cause the vehicle to
become stuck. When under power, tracks will
continue to turn in deep snow even if the
vehicle fails to move.
11. When driving in snow, allow for a greater
braking distance. Periodically apply the brakes
while driving to prevent ice buildup on brake
components.
12. Never operate on a frozen body of water.
4
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
HINTS AND TIPS
• Before leaving for an excursion, make sure to
bring with you the following: 13 mm, 14 mm, 15
mm, 16 mm, 17 mm, and 19 mm wrenches and
sockets, an ax, a shovel, a tow cable, a lifting
jack and an adjustable wrench.
• Generally, the slower you go, the better the
traction will be.
• If an excursion on unknown or remote terrain is
planned, make sure to have in your possession
a cellular or satellite phone, a first aid kit and
spare parts.
• If you drive off trails, always beware of hidden
obstacles.
• If you ride in deep snow, do not intentionally spin
the tracks (tracks are rotating but the vehicle is
not moving).This could cause the vehicle to get
stuck.
BREAK-IN PERIOD
CAUTION: A break-in period is necessary to allow
the components of the system to settle and adjust
themselves to each other.
During the break-in period (4 hours or 80
kilometers), follow these recommendations:
CAUTION: Avoid running under dry and clean
conditions. (For example: asphalt, hay or straw
field, etc.). Start sharp turns at very low speed: (10
km/h maximum real speed).
• A GOOD break-in period must be done in a
lubricated environment such as water, mud,
snow, soft soil, sand, dust, etc.
• A BAD break-in period can generate smoke,
odors of burned rubber as well as plastic deposits
on the sprocket and/or the frame.
CAUTION: Non-compliance with the usage
recommendations can lead to a warranty claim
refusal.
PRE-USE VERIFICATION
CAUTION: Before each ride make sure that the
System’s wheels and moving parts are free and that
they are not frozen or stuck on the frame.
CAUTION: Track systems installed on an ATV or SxS
project more snow, dirt, water, or mud than tires.
The owner/driver is responsible for adapting engine
and CVT air intakes to minimize the risks of
breakdowns and/or damage to mechanical
components.
VERIFICATION Hr 0 Hr 1
15 km/h* Hr 2
25 km/h* Hr 3
35 km/h*
Visual Inspection xxxx
Track Tension xx x
Angle of Attack xx
Alignment xx
Bolt Torque -
Anchor Brackets x
* Maximum Real Speed
WARNING
Driving a vehicle equipped with Track Systems is
different from driving a vehicle on wheels. It is
strongly recommended that the safety guidelines
provided below are followed to prevent any
accident and/or serious malfunction that could
affect the occupants, the vehicle or the Track
Systems.
5
OPERATING INSTRUCTIONS
STEEP DESCENTS
CAUTION: It is not advisable to change direction
during steep descents. This can lead to a serious
malfunction of the vehicle’s steering system and
Track Systems.
CAUTION: During a steep descent, it is advisable to
keep the handlebars straight and to begin turning
when the vehicle is on flat ground, thus avoiding
subjecting the vehicle components and the System
to any high stress.
CAUTION: Reduce your speed at all times; Track
Systems installed on a vehicle do not have the
same absorption capacity as tires.
DESCENDING AND BEING STUCK IN
REVERSE
CAUTION: If the rear Track Systems get stuck in the
snow, avoid moving or towing the vehicle in reverse
to ease it from its position, as this could lead to a
malfunction of the Systems. If possible, move it in
the forward direction to free it from the snow.
CAUTION: It is advisable to remove the snow from
the top of the rear Track Systems and to compact it
behind the Systems, using your feet, to dislodge the
track. Shoveling remains the best alternative in this
situation.
CAUTION: Always operate in 4x4 mode, this
significantly reduces possibility of derailing in any
conditions.
WARNING
Allow for a greater braking distance and
periodically apply the brakes while driving to
prevent ice build-up on brake components.
WARNING
Adapt your driving style to surrounding conditions
(weather, traffic, etc.) and your driving abilities.
6
OPERATING INSTRUCTIONS
DRIVING OVER AN OBSTACLE TALLER
THAN 30 cm [12 in]
CAUTION: It is not advisable to attempt to drive
over an obstacle taller than 30 cm [12 in], such as a
tree trunk, stump or big rock.
CAUTION: If the situation occurs, insert a log or a
rock to lower the height of the obstacle and
facilitate driving over the obstacle.
CAUTION: In loaded / working mode (100 kg and
over), reduce significantly your speed and be extra
careful on rough terrain.
CAUTION: Never exceed vehicle cargo and tow
capacity specified by your vehicle manufacturer on
any type of terrain.
DRIVING OVER A STEEP RIDGE
CAUTION: It is not advisable to attempt to drive over
an obstacle, such as a tree trunk, big rock or steep
ridge that could lodge itself between the front and
the rear Track Systems and immobilize the vehicle.
The best option is to bypass this type of obstacle.
DRIVING OVER AN OBSTACLE
WARNING
The driver must remain vigilant and cautious at
all times. Snow and mud can hide dangerous
obstacles.
WARNING
Always follow the ATV or SxS manufacturer safety
rules and recommendations regarding,
passengers transportation, maximum loads, etc.
WARNING
When travelling in groups, riders following
vehicles equipped with track systems should be
warned of dangerous objects that can potentially
be propelled by tracks. Be especially cautious on
rocky trails.
7
OPERATING INSTRUCTIONS
TOWING A VEHICLE OUT OF THE SNOW
CAUTION: If your vehicle must be towed out of the
snow, never tow it in the direction in which you
were riding when the vehicle got stuck.
CAUTION: Tow the vehicle back in the tracks left
before getting stuck.
LOCATION OF TOWING CABLE
CAUTION: If your vehicle must be towed out of the
snow, do not secure the towing cable on the Track
Systems.
CAUTION: The towing cable must be attached to the
vehicle’s frame.
LOADING AND UNLOADING A VEHICLE
IN A TRUCK
CAUTION: While loading or unloading a vehicle in
truck box, make sure that the front tracks do not
grip the tailgate locking gudgeons to avoid tearing
the tracks.
JUMPING
WARNING
Jumping with a vehicle equipped with a Track
System is not recommended. The System was
not designed to carry out this type of operation. A
vehicle equipped with the System must never be
used for the following activities: races, rallies,
jumps, stunts, acrobatics or any other extreme
applications.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Polaris GPS
