Polaris 2883687 Manuel utilisateur
APPLICATION
Verify accessory fitment at Polaris.com.
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.
KIT CONTENTS
This Kit includes:
REF QTY PART DESCRIPTION KIT PN
2883687
KIT PN
2883786
1 1 Harness - 850 2414491 2414491
2 1 Harness - Titan -2414584
3 1 Harness - 600/800 2414585 2414585
4 1 Bag - HB USB Charge 2688874
-
-
2688951
1 Instructions 9928802 9928802
Instr 9928802 Rev 01 2018-06 Page 1 of 8
P/N 2883687; 2883786
HANDLEBAR BAG WITH PHONE CHARGER
KIT
Instr 9928802 Rev 01 2018-06 Page 2 of 8
TOOLS REQUIRED
• Safety Glasses
• Pliers, Push Pin Rivet
• Pliers, Side Cutting
• Socket Set, Metric
• Socket Set, Torx®Bit
• Torque Wrench
• Wrench Set, Metric
IMPORTANT
Your HANDLEBAR BAG WITH PHONE CHARGER KIT is exclusively designed for your vehicle. Please read the
installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of
debris. For your safety, and to ensure a satisfactory installation, perform all installation steps correctly in the
sequence shown.
ASSEMBLY TIME
Approximately 30 minutes
NOTE
Additional time may be required for optional steps, or
to accommodate other installed accessories.
INSTALLATION INSTRUCTIONS
CAUTION
BEFORE STARTING INSTALLATION, always
ensure vehicle is properly secured on a flat stable
surface to avoid accidental tipping, unwanted
movement and to prevent personal injury and/or
damage to equipment. Turn key to “OFF” position
and remove from vehicle.
NOTE
Images shown may vary from your specific model
vehicle. Installation steps are similar between
models unless otherwise specified.
1. REMOVE SIDE PANELS.
2. REMOVE HOOD.
a. Slightly lift the rear of the hood assembly to
gain access to the main hood harness
connector Aand disconnect from main
chassis harness connector B. If applicable, cut
the cable tie Csecuring the hood harness to
the chassis and remove hood.
Instr 9928802 Rev 01 2018-06 Page 3 of 8
3. REMOVE UPPER INTAKE PLENUM.
a. To do so, first remove the two dart clips Aand
cable tie Bthat fasten the intermediate intake
tube Cto the upper intake plenum..
b. Next, unplug the two electrical connectors D
from the ECU E.
c. Remove the two screws Fthat attach the
upper intake plenum Hto the over-structure
along with the two dart clips Gas shown. Once
complete, remove upper intake plenum H.
Instr 9928802 Rev 01 2018-06 Page 4 of 8

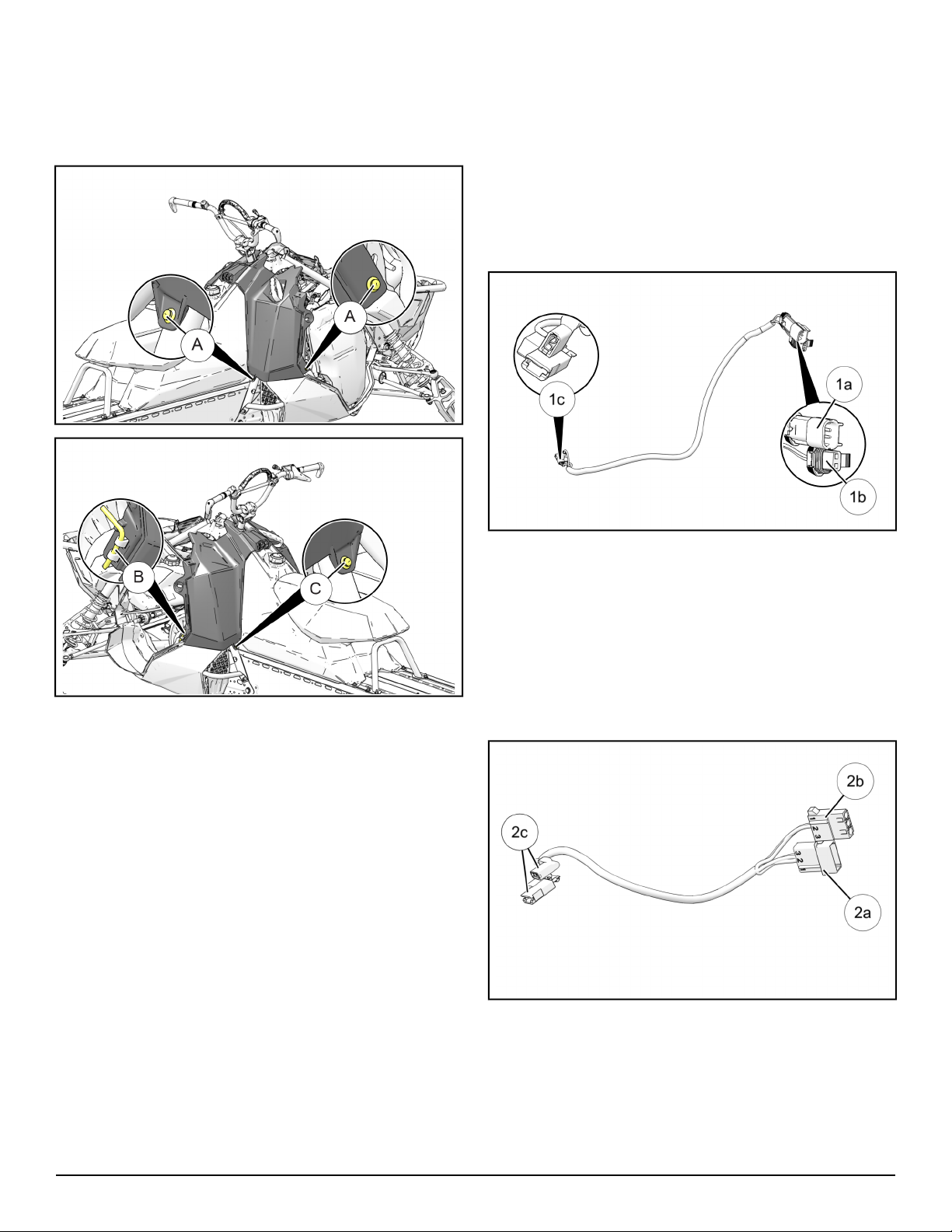

4. REMOVE CONSOLE.
a. Remove two dart clips Aon right side along
with clutch tool Band dart clip Cfrom left side
and slide the console rearward leaving the
starter rope attached.
The console should now be in a position to
allow you to access the fabric electrical
connections bag in the following steps.
5. SELECT HARNESS.
a. For 850 models use harness q. See detailed
image.
• Connector (1a) will get connected to the
chassis harness.
• Connector (1b) is a spare connector for use
with additional accessories.
• Connectors (1c) connect to the USB
terminals on the bag.
b. For Titan
™™
models use harness w. See
detailed image.
• Connector (2a) will get connected to the chassis
harness.
• Connector (2b) is a spare connector for use with
additional accessories.
• Connectors (2c) connect to the USB terminals on
the bag.
Instr 9928802 Rev 01 2018-06 Page 5 of 8

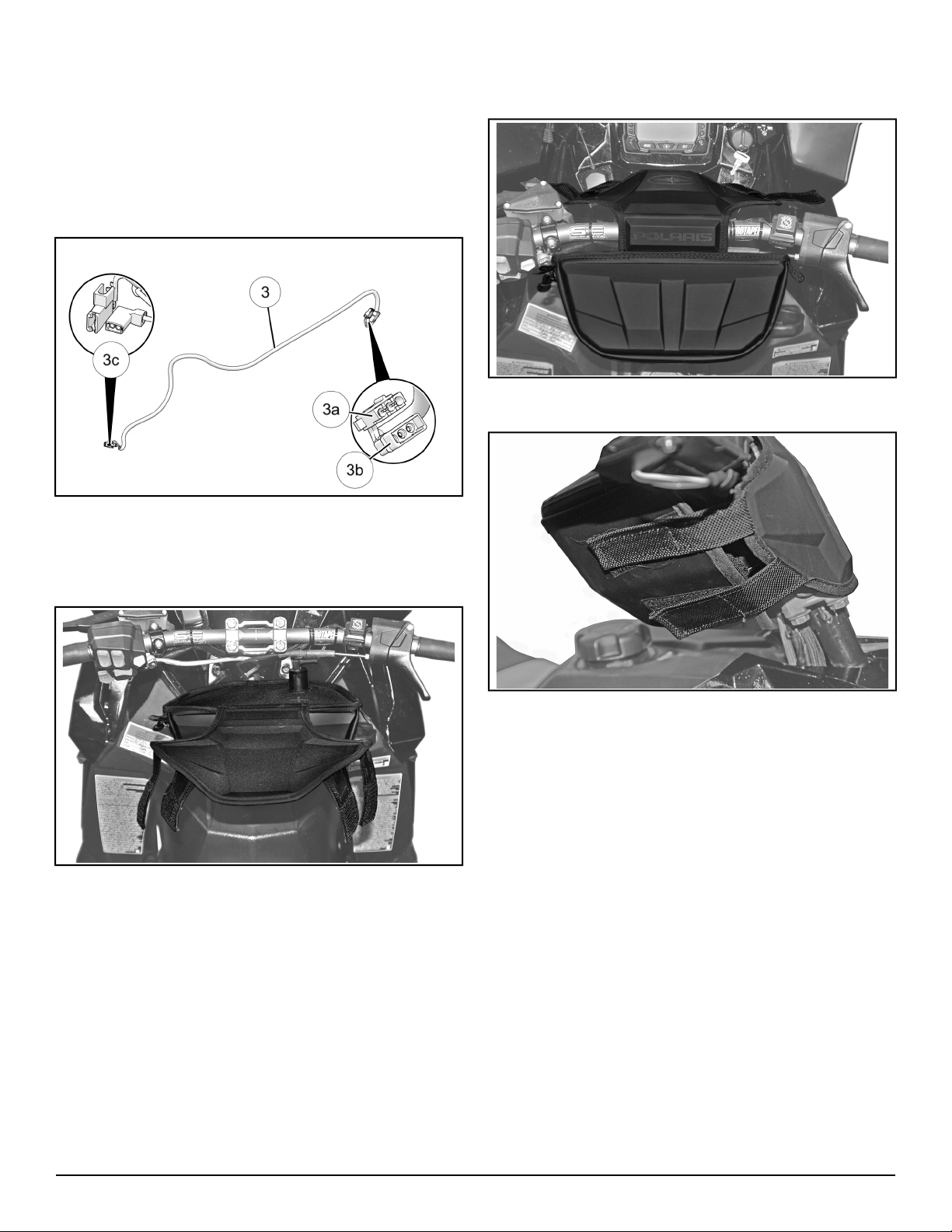

c. For 600/800 models use harness e.
• Connector (3a) will get connected to the chassis
harness.
• Connector (3b) is a spare connector for use with
additional accessories.
• Connectors (3c) connect to the USB terminals on
the bag.
6. MOUNT HANDLEBAR BAG.
a. Ensure the USB harness connections are
connected to USB terminals on the back of the
bag. Place bag into position as shown.
b. Place bag over top of handlebars being sure
wires are routed downward along the
handlebar post.
c. Secure bag onto handlebars with the two hook
and loop fastener panels on each side of bag.
Instr 9928802 Rev 01 2018-06 Page 6 of 8
7. ROUTE AND CONNECT HARNESS WIRES.
NOTE
Electrical connections and routing vary slightly
between models. Follow steps for you specific model
for proper installation.
a. 850 Models
i. Route USB harness wires down along
steering post to the electrical connections
bag Blocated under the console.
Open bag and connect USB harness
connection (1A) to chassis harness
connector Cas shown.
b. Titan Model
i. Route USB harness wires down along
steering post to the electrical connections
bag Blocated under the console. Open
bag and connect USB harness connection
(2A) to chassis harness connector Cas
shown.
c. 600/800 Models
i. Route USB harness wires down along
steering post then along the left hand over-
structure tube to connector Clocated near
the left hand shock tower. Connect USB
harness connection (3A) to chassis harness
connector Cas shown.
Instr 9928802 Rev 01 2018-06 Page 7 of 8

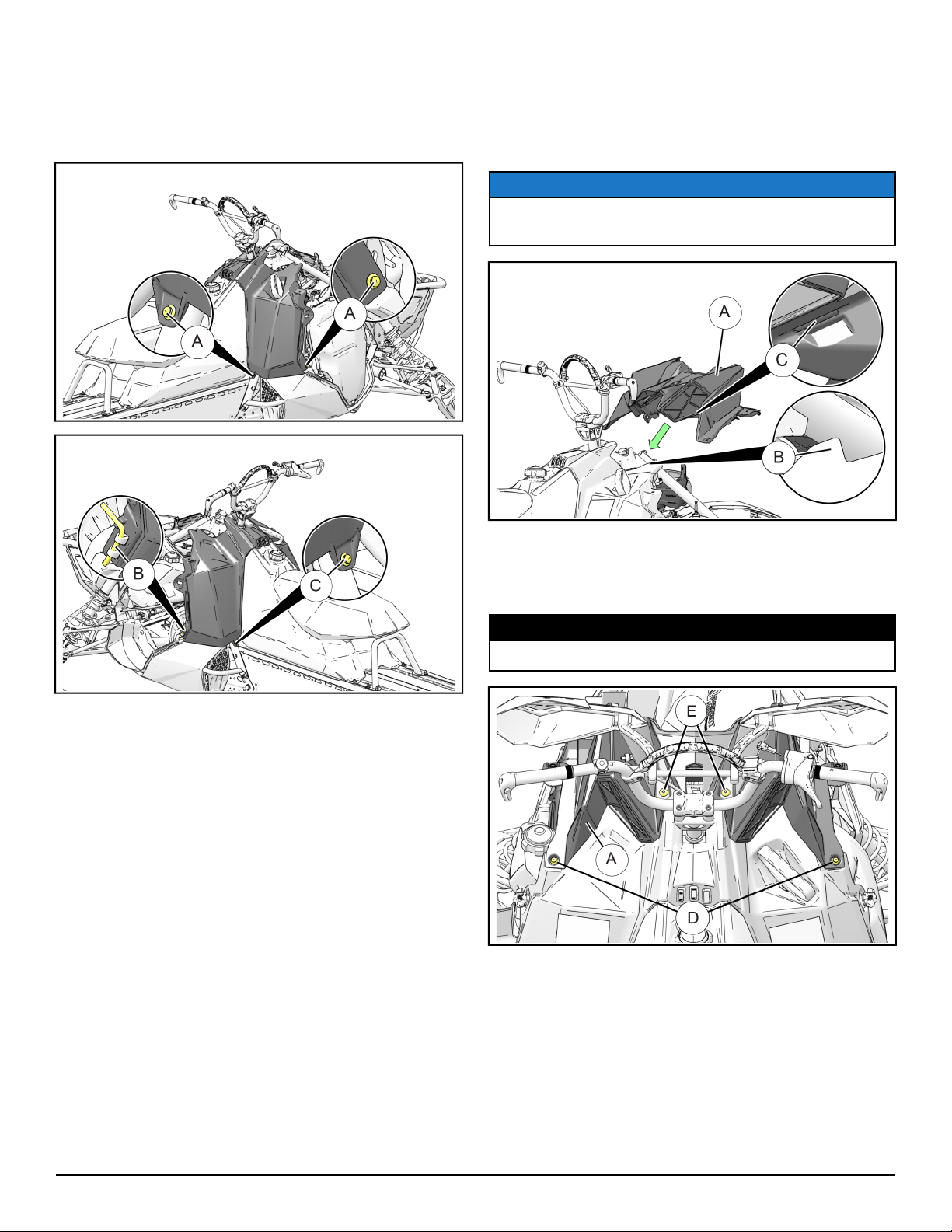

8. REINSTALL CONSOLE.
a. Place console into original position and install
previously removed dart clips Aon right side
along with the clutch tool Band dart clip Con
left side.
9. REINSTALL UPPER INTAKE PLENUM.
a. Carefully install upper intake plenum Aback
into original position. Ensure the console tabs
Bare fully engaged into the slots Con the
underside of the intake plenum.
NOTE
Be careful not to damage the intake screen while
installing upper intake plenum.
b. Install dart clips Dand fasteners Ethat
secure the intake plenum Ato the over-
structure and torque fasteners Eto
specification provided
TORQUE
7 ft. lbs. (10 Nm)
Instr 9928802 Rev 01 2018-06 Page 8 of 8
c. Place intake tube Fback into position and
secure with previously removed dart clip
fasteners G. Replace cable tie Hto secure
lower portion of intake tube.
IMPORTANT
Ensure the mating joint between the upper intake
plenum and the intake tube is completely engaged
all the way around the mating joint. Failure to do so
may result in premature engine failure.
d. Reconnect ECU by plugging the chassis
electrical harness connector Jin the ECU K.
10.REINSTALL HOOD.
a. Install hood being sure to connect the hood
harness Aand chassis harness Bconnection.
Replace cable tie Cif applicable. Secure hood
into position with hood latch fasteners.
11. REINSTALL SIDE PANELS.
a. After installing hood, install both side panels
making sure all hood latches and rubber straps
are fully secured.
12.VERIFY WORK.
a. Check to ensure all tools are accounted for and
all steps have been completed.
FEEDBACK FORM
A feedback form has been created for the installer to provide any comments, questions
or concerns about the installation instructions. The form is viewable on mobile devices
by scanning the QR code or by clicking HERE if viewing on a PC.
FEEDBACK FORM
