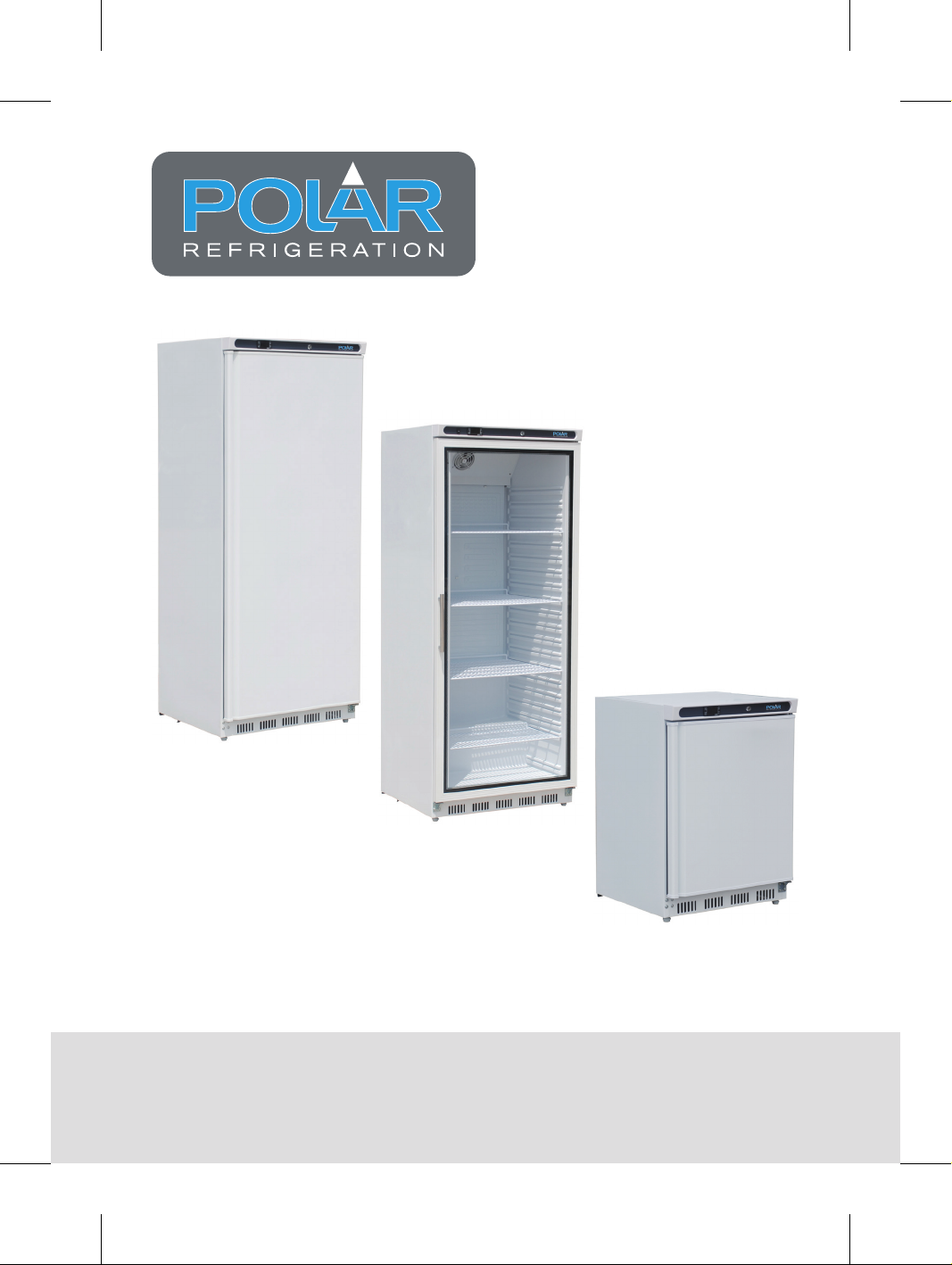

Polar Electro CD080-A Manuel utilisateur

Model • Modèle • Modell • Modello • Modelo • Malli:

CD080-A/CD081-A/CD082-A/CD083-A/CD084-A/CD085-A/CD610-A/CD611-A/

CD612-A/CD613-A/CD614-A/CD615-A/CD086-A/CD087-A/CD088-A

600 / 400 / 150 litre series

Refrigerators/Freezers

Instruction manual

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 1 2018/8/30 18:06

AU Telephone Helpline: 1300225960

Safety Tips

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out

installation and any repairs if required. Do not remove any

components or service panels on this product.

• Consult Local and National Standards to comply with the

following:

- Health and Safety at Work Legislation

- Fire Precautions

- Wiring Regulations

- Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.

• DO NOT use electrical appliances inside the appliance

(e.g. heaters, ice cream makers etc.).

• DO NOT allow oil or fat to come into contact with the plastic

components or door seal. Clean immediately if contact occurs.

• DO NOT store products on top of the appliance.

• Bottles that contain a high percentage of alcohol must be

sealed and placed vertically in the refrigerator.

• Always carry, store and handle the appliance in a vertical

position and move by holding the base of the appliance.

• Always switch off and disconnect the power supply to the unit

before cleaning.

• Keep all packaging away from children. Dispose of the

packaging in accordance with the regulations of local

authorities.

• If the power cord is damaged, it must be replaced by a POLAR

agent or a recommended qualified technician in order to avoid

a hazard.

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 2 2018/8/30 18:06

AUAU

Telephone Helpline: 1300225960

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience or knowledge, unless they have been

given supervision or instruction concerning the use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• Polar recommend that this appliance is PAT tested on an

annual basis to ensure the product remains safe.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of

obstruction. Unit should not be boxed in without

adequate ventilation.

• Warning: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are the

type recommended by the manufacturer.

Product Description

• CD080-A - 150 litre Refrigerator

• CD081-A - 140 litre Freezer

• CD082-A - 400 litre Refrigerator

• CD083-A - 365 litre Freezer

• CD084-A - 600 litre Refrigerator

• CD085-A - 600 litre Freezer

• CD086-A - 150 litre Glass-Door Refrigerator

• CD087-A - 400 litre Glass-Door Refrigerator

• CD088-A - 600 litre Glass-Door Refrigerator

• CD613-A - 365 litre Freezer

• CD614-A - 600 litre Refrigerator

• CD615-A - 600 litre Freezer

• CD610-A - 150 litre Refrigerator

• CD611-A - 140 litre Freezer

• CD612-A - 400 litre Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of

this machine will provide the best possible performance from your POLAR product.

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 3 2018/8/30 18:06

AU Telephone Helpline: 1300225960

Pack Contents

The following is included:

• POLAR Refrigerator / Freezer

• Shelves - Refrigerator only

CD610-A/ CD080-A x 3/ CD086 x 3

CD612-A/ CD082-A x 4 / CD087 x 4

CD614-A x 4 / CD084-A / CD088 x 4

• Keys x 2

• Spacers x 2

• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are

supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand

upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are

thoroughly removed from all surfaces.

2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.

NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior

with soapy water.

The appliance is supplied with feet by default. However, castors can be supplied

as an option from serial number range: 8128595-AU onwards.

Reversing the door

Depending on the location of the appliance, it may be necessary to change the direction the door opens

by changing the side of the door handle.

To reverse the door handle:

1. The door handle is on the left side. Disassemble the right lower hinge.

Door handle

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 4 2018/8/30 18:06

AUAU

Telephone Helpline: 1300225960

2. Remove the door from the right upper hinge.

Then remove the hinge sleeve from the door

top.

3. Remove the right upper hinge and install it

on the left side. Afterwards, install the hinge

sleeve onto the hinge.

4. Reverse the door and hang it onto the left

upper hinge.

Door handle

5. Remove the pre-mounted screws on the left

lower side.

6. Install the previously removed right lower

hinge on the left side.

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 5 2018/8/30 18:06

AU Telephone Helpline: 1300225960

7. Secure the hinge in place using the previously

removed screws.

8. Now the door handle is installed on the right

side.

Operation

Control Panel

The control panel is located on the front of the

appliance.

Turn On

1. Close the door of the appliance.

2. Connect the appliance to a mains power

supply.

Set the Operating Temperature

1. Press the SET button. The display will flash.

2. Press the or buttons to display the

required temperature.

3. Press the SET button to store the temperature.

Manual Defrost

Press and hold the defrost button “aux” for

2 seconds to begin a manual defrost. The defrost

light illuminates.

Storing Food

To get the best results from your POLAR appliance,

follow these instructions:

• Only store foodstuffs in the appliance when it

has reached the correct operating temperature.

• Do not place uncovered hot food or liquid

inside the appliance.

• Wrap or cover food where possible.

• Do not obstruct the fans inside the appliance.

• Avoid opening the doors for prolonged periods

of time.

Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs

are kept secure within your POLAR appliance.

• Use the keys provided to lock/unlock the door.

Cleaning, Care &

Maintenance

Switch off and disconnect

from the power supply before

cleaning.

• Clean the interior of the appliance as often as

possible.

• Do not use abrasive cleaning agents. These

can leave harmful residues.

• Clean the door seal with warm soapy water.

• Always wipe dry after cleaning.

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 6 2018/8/30 18:06

AUAU

Telephone Helpline: 1300225960

• Do not allow water used in cleaning to run

through the drain hole into the evaporation

pan.

• Take care when cleaning the rear of the

appliance. Sharp edges can cut.

• A POLAR agent or qualified technician must

carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the

life of the appliance.

POLAR recommend that a POLAR agent or qualified

technician should clean the condenser.

Replacing the Lamp (CD086-

A,CD087-A,CD088-A)

1. Switch Off and disconnect the appliance from

the power supply

2. Remove the plastic cover

3. Twist the lamp in its socket and release

4. Remove the lamp and replace the new one of

the same power rating

5. Replace the plastic cover

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the

Helpline or your POLAR dealer.

Fault Probable Cause Solution

The appliance is not

working

The unit is not switched on Check the unit is plugged in correctly and

switched on

Plug and lead are damaged Call POLAR agent or qualified Technician

Fuse in the plug has blown Replace the fuse

Power supply Check power supply

Internal wiring fault Call POLAR agent or qualified Technician

The appliance turns on,

but the temperature is

too high/low

Too much ice on the evaporator Defrost the appliance

Condenser blocked with dust Call POLAR agent or qualified Technician

Doors are not shut properly Check doors are shut and seals are not

damaged

Appliance is located near a

heat source or air flow to the

condenser is being interrupted

Move the refrigerator to a more suitable

location

Ambient temperature is too high Increase ventilation or move appliance to a

cooler position

Unsuitable foodstuffs are being

stored in the appliance

Remove any excessive hot foodstuffs or

blockages to the fan

Appliance is overloaded Reduce the amount of food stored in the

appliance

The appliance is

leaking water

The appliance is not properly

levelled

Adjust the screw feet to level the appliance

(if applicable)

The discharge outlet is blocked Clear the discharge outlet

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 7 2018/8/30 18:06

AU Telephone Helpline: 1300225960

Fault Probable Cause Solution

The appliance is

leaking water

Movement of water to the drain is

obstructed

Clear the floor of the appliance (if

applicable)

The water container is damaged Call POLAR agent or qualified Technician

The appliance is

unusually loud

Loose nut/screw Check and tighten all nuts and screws

The appliance has not been

installed in a level or stable

position

Check installation position and change if

necessary

Technical Specifications

Model Voltage Power Current Temperature

Range

Capacity

(litres) Refrigerant

Dimensions

H x W x D

Weight

(kg)

CD610-A

CD080-A

220-240V

50Hz

150 1.0A -2°C to 8°C 150 R134a (75g) 850 x 600 x

600

CD611-A

CD081-A

220-240V

50Hz

150 1.0A -10°C to -25°C 140 R134a (75g) 850 x 600 x

600

44.5

CD612-A

CD082-A

220-240V

50Hz

185 1.5A -2°C to 8°C 400 R134a

(170g)

1850 x 600 x

600

CD613-A

CD083-A

220-240V

50Hz

210 2A -10°C to -25°C 365 R134a

(185g)

1850 x 600 x

600

CD614-A

CD084-A

220-240V

50Hz

185 1.5A -2°C to 8°C 600 R134a

(210g)

1890 x 777 x

695

CD615-A

CD085-A

220-240V

50Hz

350 3.5A -10°C to -25°C 600 R134a

(290g)

1890 x 777 x

695

CD086-A 220-240V

50Hz

150 1.0A -2°C to 8°C 150 R134a (75g) 850 x 600 x

600

CD087-A 220-240V

50Hz

185 1.5A -2°C to 8°C 400 R134a

(170g)

1850 x 600 x

600

CD088-A 220-240V

50Hz

185 1.5A -2°C to 8°C 600 R134a

(290g)

1890 x 777 x

695

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 8 2018/8/30 18:06

AUAU

Telephone Helpline: 1300225960

Electrical Wiring

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency

disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must

not be disposed of as household waste. To help prevent possible harm to human

health and/or the environment, the product must be disposed of in an approved and

environmentally safe recycling process. For further information on how to dispose of

this product correctly, contact the product supplier, or the local authority responsible for

waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory

standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to

change specifications without notice.

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 9 2018/8/30 18:06

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 10 2018/8/30 18:06

Autres manuels pour CD080-A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Polar Electro Réfrigérateur

Polar Electro

Polar Electro UA005-A Manuel utilisateur

Polar Electro

Polar Electro GC870-A Manuel utilisateur

Polar Electro

Polar Electro G608 Manuel utilisateur

Polar Electro

Polar Electro DM075 Manuel utilisateur

Polar Electro

Polar Electro GD873-A Manuel utilisateur

Polar Electro

Polar Electro UA017 Manuel utilisateur

Polar Electro

Polar Electro G604 Manuel utilisateur

Polar Electro

Polar Electro CE322 Manuel utilisateur

Polar Electro

Polar Electro CD239 Manuel utilisateur

Polar Electro

Polar Electro CD610 Manuel utilisateur

Polar Electro

Polar Electro DB109-A Manuel utilisateur

Polar Electro

Polar Electro CM287 Manuel utilisateur

Polar Electro

Polar Electro GH215-A Manuel utilisateur

Polar Electro

Polar Electro G Series Manuel utilisateur

Polar Electro

Polar Electro UA001 Manuel utilisateur

Polar Electro

Polar Electro G590/G591/G592/G593/G594/G595/U632/U633/U634/U635/CC663/CD616/GD879/GD880/ Manuel utilisateur

Polar Electro

Polar Electro D4325000 Manuel utilisateur

Polar Electro

Polar Electro GD881 Manuel utilisateur

Polar Electro

Polar Electro GE579 Manuel utilisateur

Polar Electro

Polar Electro CD610 Manuel utilisateur

Polar Electro

Polar Electro CD080-A Manuel utilisateur

Polar Electro

Polar Electro UA013 Manuel utilisateur

Polar Electro

Polar Electro DM075-A Manuel utilisateur

Polar Electro

Polar Electro UA001-A Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
