Plus BF-030SPP Manuel utilisateur

PLUS

BF-030SPP/WPP

OPERATION MANUAL

First of all, we would like to thank you very much

for purchasing a Plus Copy board CONFERENCE

ODEL.

Please read this Operation anual before using

the machine to get the best performance out of

the product.

We recommend that you keep this manual for

future reference.

FEATURES ......................................................... 1

SAFETY PRECAUTIONS ................................... 2

PRODUCT FEATURES ...................................... 3

CONTROL FUNCTIONS..................................... 4

OPERATION ....................................................... 5

AINTENANCE/STORAGE ............................. 10

HANDLING PRECAUTIONS............................. 10

TROUBLE SHOOTING ..................................... 11

SPECIFICATIONS ............................................ 12

CONTENTS

EXPLANATION OF UL REGULATORY LABEL

(USA ONLY)

PLEASE NOTE: The description "Computer Rooms" on the

label located on the rear of the copyboard, refers to areas where

an abundance of computer control equipment (such as high output

servers) is being used, It does NOT refer to environments such

as offices or classrooms where there are simply PC's being used.

UL regulations require that we place a warning label in regard to

this item being used in a "Computer Room". Please understand

that this equipment will in no way interfere with the running of

computer equipment or peripherals. The UL regulation simply

applies to all items that contain flammable material in excess of a

specified area, We would like to further stress that there is no

inherent risk of this equipment causing a fire. It is only pointing

out that should a fire occur, then this equipment will also burn

along with any other flammable materials contained in the room.

Should you have any questions whatsoever about this information,

please call PLUS Corporation of America directly at (201)818-

2700

The world's first plain paper printing electronic copy board with two

built-in interface that let you print directly from the writing pancl's surface

to a compatible PC printer or download information to your personal

computer.

You can copy the information on the board surface quickly onto plain

paper via the connected compatible PC printer.

The plain paper does not discolor or fade like heat-sensitive paper,

thus making copies unnecessary and saving both time and money.

By connecting your PC to the board, you can download the information

on the board surface and save it. Then, you can edit and send it via e-

mail or network to other remote location.

If a PC and compatible PC printer is connected to the port on the

bottom of the board, it is possible to use the unit as a PC printer.

(It is necessary to install the auxiliary driver software in the PC unit.)

The board surface can be easily moved with a light manual touch.

FEATURES

Note: HP LaserJet 6L, 6Lse, 6Lxi, 6 P, 6Pse, 6Pxi and Extension PCL 5 are

trademarks of Hewlett-Packard Company in the United States.

S-DOS, Windows, Windows 3.1, and Windows 95 are registered trademarks

of icrosoft Corporation in the United States and in other countries.

All other product names and company names are the registered trademarks

or trademarks of the respective companies.

BF-030SPP BOARD FAX CARTON CONTENTS

The product package contents are as listed below. Please confirm that

all parts have been included before using the equipment.

Copy board ......................... 1

MAIN UNIT ACCESSORIES

Special markers (one each of

black, red, blue)

Special eraser (1)

Instruction anual (1 copy with

Guarantee)

Power cord (1 cord, 4 meters

long)

Printer power cord (2 cord, 1.1

and 2.5 meters long)

Printer cable (1 cable, 1.3

meters long)

BOARD WARE ACCESSORIES

Interface cable (D-Sub 9 pin,

2 m): 1

Set-up disk (floppy disk): 1

Set-up manual: 1 copy

User registration card: 1

P inte must be pu chased sepa ately.

Compatible printer: HP LaserJet 6L, 6Lse, 6Lxi, 6 P, 6Pse, 6Pxi

*Compatible printers are subject to change without notice.

Please call PLUS @ 1-800-289-7587 with question regarding printer

compatibility.

*PLUS BF-030PP plain paper electronic copy board dose not have a

built-in thermal printer.

SAFETY PRECAUTIONS

Befo e use (pictu e displays).

Please read this manual carefully before using your board-Fax BF-030SPP/WPP and

keep the manual handy for future reference.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SER-

VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PLUS

SERVICE PERSONNEL.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR

OISTURE. DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTEN-

SION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY

INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE CO -

PONENTS INSIDE. ALL SERVICING UST BE DONE BY QUALIFIED PLUS

SERVICE PERSONNEL.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S

GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN

OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY

INSERTED. DO NOT OPEN THE CABINET. THERE ARE

HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING

MUST BE DONE BY QUALIFIED PLUS SERVICE PERSON-

NEL.

PRODUCT FEATURES

F ont Side

Back Side

Connection ports

Power cord

T-frame

Control

panel

Accessory tray

50mm × 50mm (2"×2")

cross-ruled

Writing surface

Caster

Connection po ts

PC CO

PORT PC LPT

PORT PRINTER

PORT

NOTE: Printer not included. Printer must be purchased separately.

Compatible printer: HP LaserJet 6L, 6L, 6Lse, 6Lxi, 6 P, 6Pse, 6Pxi

*Compatible printers are subject to change without notice.

Please call PLUS @ 1-800-289-7587 with qucstion regarding printer compatibility.

*PLUS BF-030PP plain paper electronic copy board dose not have a built-in thermal

printer.

Powe Switch..................... Pushing to the " " (ON) side causes the power to go ON. "01" is

displayed in the LED panel.

Powe lamp ........................ The lamp (green) goes on when the switch is turned on.

E o lamp.......................... Lights (red) when a printer error occurs. Blinks when the copy

key is pressed while sending data from the PC.

LED panel .......................... Displays the number of copies. The number of copies is set with

the + and - keys.

If there is no key operation for more than 1 minute, the display

changes to the "01" display.

+ key

- key.................................... Used to set the number of copies.

Press the + key to increase the number of copies. By keeping the

key pressed down, you can increase the number of copies

automatically up to "99".

Press the - to decrease the number of copies. By keeping the key

pressed down, you can decrease the number of copies

automatically down to "01".

It is possible to set for up to 99 copies.

P int key ............................. Use this key to print one page on the writing surface to paper.

BF-030SPP: The copy has the same compression ration vertically

and horizontally.

BF-030WPP:The copy is compressed horizontally.

Download/Recopy............. This key is used to make a print-out again after copying.

key The +/- keys can be used.

If the PC On-Line lamp is lit, the Boardware software can be used

to download the writing surface data to the PC.

Feed/Stop key.................... Used to move the writing surface to the left. When the key is

pressed, it moves 1 page and stops automatically. If the key is

pressed again while the writing surface is moving, it stops

immediately. If this key is pressed during copying, the writing

surface is stopped and the paper is ejected during printing.

If the number of copies is set to multiple copies, the printer will

eject the set number of page for the paper which were printed on

up to the point when the stop key was pressed. Reset the printer.

See page 7 for the method of resetting the printer

Do not turn the power switch OFF during printing.

If the power switch is turned OFF by mistake during printing,

this could cause a paper jam.

PC ON-Line lamp............... This lamp is lit when the Boardware software is used and the unit

is connected to a PC.

CONTROL PANEL

CONTROL FUNCTIONS

PLUSBOARDFAX BF-030SPP

POWER

POWERON

PCONLINE

PRINT REPERT

STOP

FEED

ERROR

DONWLOAD

BA C DEFGIH

Befo e Use

OPERATION

POWER

POWERON

ERROR

Press the caster lock switches to set the

casters to the lock position.

Insert the power cord plug in the socket.

Turn the power switch ON. The power lamp

blinks 2-3 seconds and then remains lit

(green).

After all the lamps light on the printer front

panel, the lamps immediately light in the

order of data lamp (center), error lamp (top)

and on-line lamp (bottom).

If there is no paper in the unit, the error lamp

(top) remains lit. Insert paper in the required

location.

Printer Display Lamps (HP LaserJet 6L)

• Error (yellow)

• Data (green)

• Printing OK (green)

Pape Inse tion

Pull up the paper support attached to the

back of the printer paper feed tray.

Insert paper in the paper feed tray.

Up to 100 sheets can be inserted at a time.

ake sure that no paper is protruding from

the paper feed tray at this time.

If paper is inserted in the paper feed tray,

the on-line lamp (bottom) is lit.

Use the paper guide to locate center the

paper in the feed tray.

For further details, consult the Operation

anual for the printer.

The following is the explanation of operation assuming an HP LaserJet 6L is being used as the

printer.

If any other compatible printers are to be used, please see the operation manual for that particular.

*Please see Page.1 for compatible printers.

上

下

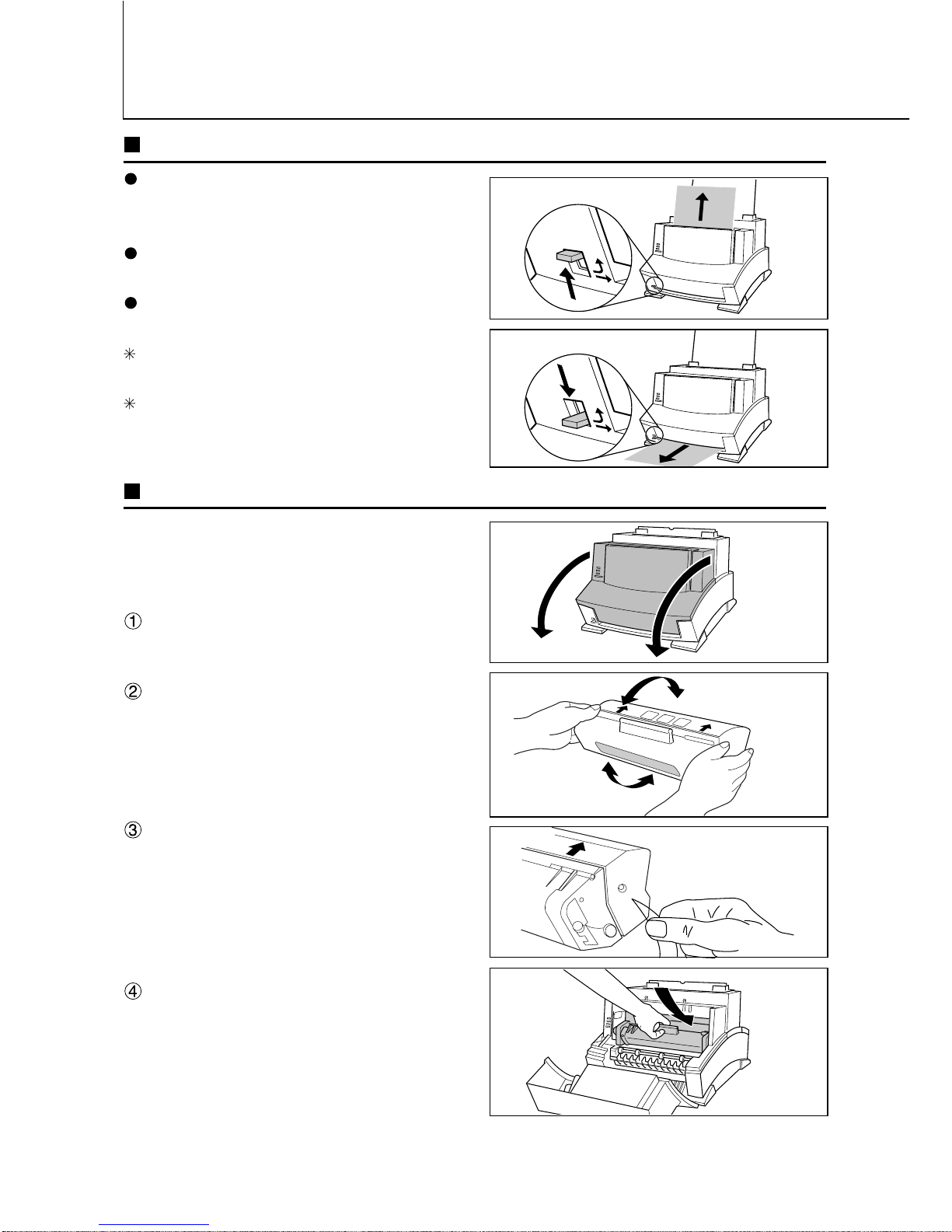

Operate the paper path lever on the lower

left side up the front of the printer to select

the paper path.

Pushing the lever up causes the paper to be

ejected in the tray on the top.

Pushing the lever down causes the paper to

be ejected from the font of the printer.

Do not operate the lever during copying as

this could cause paper jams.

If there are many copies, to be printed use

the paper eject tray on the top.

To attach the toner cartridge, first remove the

toner cartridge from the package. (Keep the

package in a safe place for re-storage of the

cartridge).

Hold the cover with both hands and pull

toward you to open.

Shake the toner cartridge well to evenly

distribute the toner in the cartridge.

Hold the ends of the sealing tape attached

to the side of the cartridge and pull it to

completely remove the tape from the

cartridge. The length of the tape after

removal is 490 mm (19.3 inches) or twice

the length of the cartridge.

While grasping the handle on the cartridge

(so that the arrow is facing the printer side),

insert the cartridge in the printer. Be sure

that the ends of the cartridge match the

groove on the black plastic section. Insert

the cartridge all the way to the back and

close the printer cover.

Selecting the Pape Path

Attaching the tone ca t idge

Down

OPERATION

Ope ation

Use the special markers to write on the board.

Making Copies

Making a single copy.

Press the Copy key.

The writing surface moves the equivalent of

one side and the contents are copied onto

paper.

When making a single copy it is not

necessary to set the number of copies.

Making multiple copies.

Use the +/- keys to set to the required number

of copies.

Press the Copy key.

The writing surface moves the equivalent of

one side and the contents are copied on

multiple sheets of paper.

It is possible to set to up to 99 copies.

Stopping copying ope ations midway.

Press the Feed/Stop key.

The writing surface being read stops.

The pages which was being printed on is

ejected from the printer.

If the unit has been set to multiple copies,

the sheets that were printed up to that point

are ejected for the set number of copies.

Remove all the inserted paper at this time

and reset the printer.

Resetting the printer.

Hold down the printer front panel button

(approx. 5 seconds) and release the button

after the 3 display lamps light in order.

If the printer is being reset, it is not possible

to receive key operations while the copy

count display is blinking.

Printer front panel

OPERATION

Moving the w iting su face

Use the auxiliary cable to connect the CO Port on the PC and the PC CO connector (9 pins) on

the board to the auxiliary serial cable.

Install the board ware software in the PC.

Use the board ware software to download the writing surface data to the PC.

The PC ONLINE lamp on the unit switch panel lights up when the boardware starts up and

the "Repeat" key changes to the "Download" key. The Repeat function is now inoperable.

Consult the board ware software manual for the connect installation and operation of the

software.

Moving with the keys.

Press the Feed/Stop key. When the key is

pressed, the writing surface moves to the left

the equivalent of one page and then stops.

If the Feed/Stop key is pressed during

movement, the unit immediately stops.

Moving manually

It is also possible to move the writing surface

manually. The sheet can be moved in this

case either to the left or right. Avoid moving

the writing surface too quickly manually as

this could cause malfunctioning.

Downloading data to the PC

Making Additional Copies (Repeat)

To make a single copy

Press the Repeat key.

The 1 additional sheet is printed out from data

that was just copied.

There is no need to set several sheets

when making only 1 copy.

To make additional copies

Set the number of copies needed with the

[+] or [-] keys.

Press the Repeat key.

The copies are printed out from data that was

just copied.

A maximum of 99 copies can be set.

The Stop key is disabled during printout.

Be sure to set the correct number of copies.

PLUSBOARDFAX

BF-030SPP

POWER

POWERON

PCONLINE

PRINT REPERT

STOP

FEED

ERROR

DONWLOAD

Downloadkey

PCONLINELAMP

Ce manuel convient aux modèles suivants

Manuels Tableau blanc interactif populaires d'autres marques

SMART

SMART KAPP42 Manuel utilisateur

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manuel utilisateur

Buhl

Buhl LyteBoard Manuel utilisateur

SMART Board

SMART Board 680 Manuel utilisateur

SMART

SMART SBX880 Manuel utilisateur

Legamaster

Legamaster e-SCREEN ETX Manuel utilisateur

SMART Board

SMART Board SBM685ix2 Manuel utilisateur

Seneca

Seneca eno Manuel utilisateur

BenQ

BenQ RP840G Manuel utilisateur

SMART

SMART Sympodium IC-150 Manuel utilisateur

Olivetti

Olivetti OLIBOARD Manuel utilisateur

Turning Technologies

Turning Technologies MOBIVIEW Manuel utilisateur

Panasonic

Panasonic UB-5335 Manuel utilisateur

Dukane

Dukane ITP84 Manuel utilisateur

Bretford

Bretford EDUIMS Guide de configuration

Panasonic

Panasonic Panaboard UB-5315 Manuel utilisateur

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manuel utilisateur

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manuel utilisateur
