Playskool Step Start Walk 'n Ride (2003) 05545 Manuel utilisateur

OVER 9 months - 36 months

05545

Step Start Walk ‘n Ride™

WARNING:

CAUTION:

Adult supervision required. This ride-on toy is not to be used near swimming

pools, on or near hills, roadways or stairways. Shoes must be worn at all

times when riding this toy. Designed for only one rider at a time.

This product contains small parts which are necessary for assembly. Prior to

and during assembly of this product, keep small parts out of children's reach.

Small parts pose a choking hazard to children under 3 years.

ADULT ASSEMBLY AND PHILLIPS/CROSS HEAD SCREWDRIVER (NOT INCLUDED)

REQUIRED.

MAXIMUM WEIGHT 42 LBS. (19 KGS.)

Parts include: body/chassis, 4 wheels, front handle, rear handle, handle retainer, dial,

roller, spinner (2 pieces), antenna, gear shift, 4 plain #6 screws, 1 #6 screw with

attached washer, and instructions.

ASSEMBLY:

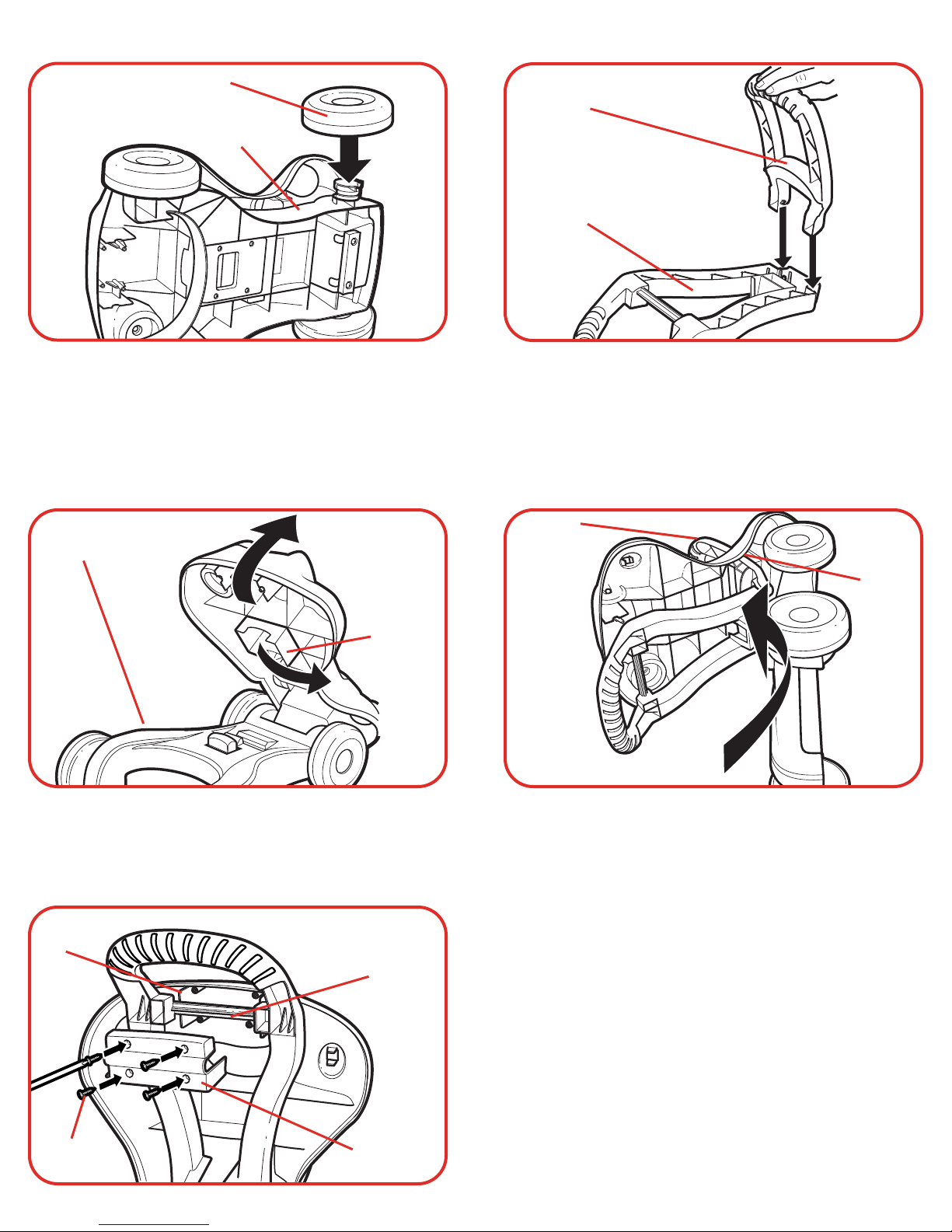

11..AAttttaacchhWWhheeeellss

Tip body/chassis on its side. Snap wheel onto axle,

with flat side of wheel against chassis. Repeat for

remaining 3 wheels.

22..AAsssseemmbblleeHHaannddlleess

To snap front and rear handles together: Place rear

handle upside down on flat surface. Holding front

handle with back facing rear handle and perpendicular

to rear handle, snap posts on front handle into holes in

rear handle.

33..AAttttaacchhHHaannddlleeAAsssseemmbbllyyttooBBooddyy

Lift body and remove cardboard insert.

Turn body/chassis on its side. Insert front handle

through slot in body.

WHEEL

CHASSIS

FRONT HANDLE

REAR HANDLE

BODY

CARD-

BOARD

INSERT

FRONT

HANDLE

SLOT

Fit axle on rear handle into ridges in underside of body.

Place handle retainer over axle (retainer fits only one

way). Using the 4 plain #6 screws and Phillips/cross

head screwdriver, attach retainer to body.

NOTE: If body is locked closed, see back panel for

conversion instructions.

AXLE

RIDGES

SCREWS HANDLE

RETAINER

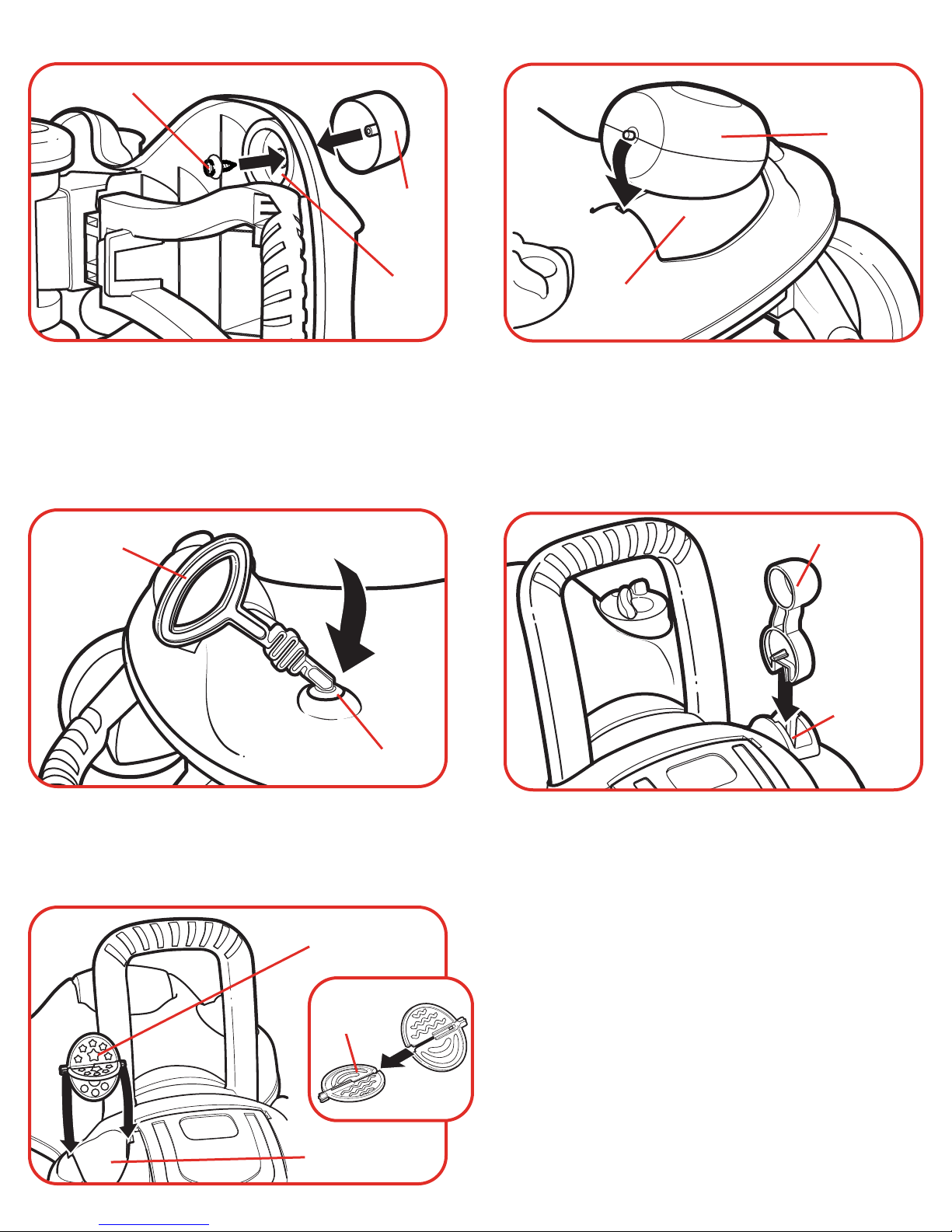

44..DDiiaall

With body/chassis on its side, insert dial into recess.

Turn body so that underside of chassis faces you.

Insert #6 screw with attached washer into hole, and

tighten with Phillips/cross head screwdriver.

55..RRoolllleerr

Turn body/chassis right side up and lower chassis onto

body. Insert posts on roller into holes in recessed area

(smaller post into smaller hole, larger post into larger

hole).

66..AAnntteennnnaa

Antenna fits only one way. Insert end of antenna into

hole.

SCREW

HOLE

DIAL

RECESSED

AREA

ROLLER

SPINNER

RECESSED

AREA

ANTENNA

HOLE

77..GGeeaarrSShhiifftt

Gear shift fits only one way. Inserts posts on gear shift

into holes in recessed area (smaller post into smaller

hole, larger post into larger hole).

88..SSppiinnnneerr

Slide slots on each spinner piece into each other until

they snap into place. Snap assembled spinner into

recessed area.

GEAR SHIFT

RECESSED

AREA

SPINNER

PIECE

Product and colors may vary.

® denotes Reg. U.S. Pat. & TM Office.

U.S. Patent Nos. 6,296,268 & D424,126 05545 P/N 6257540200

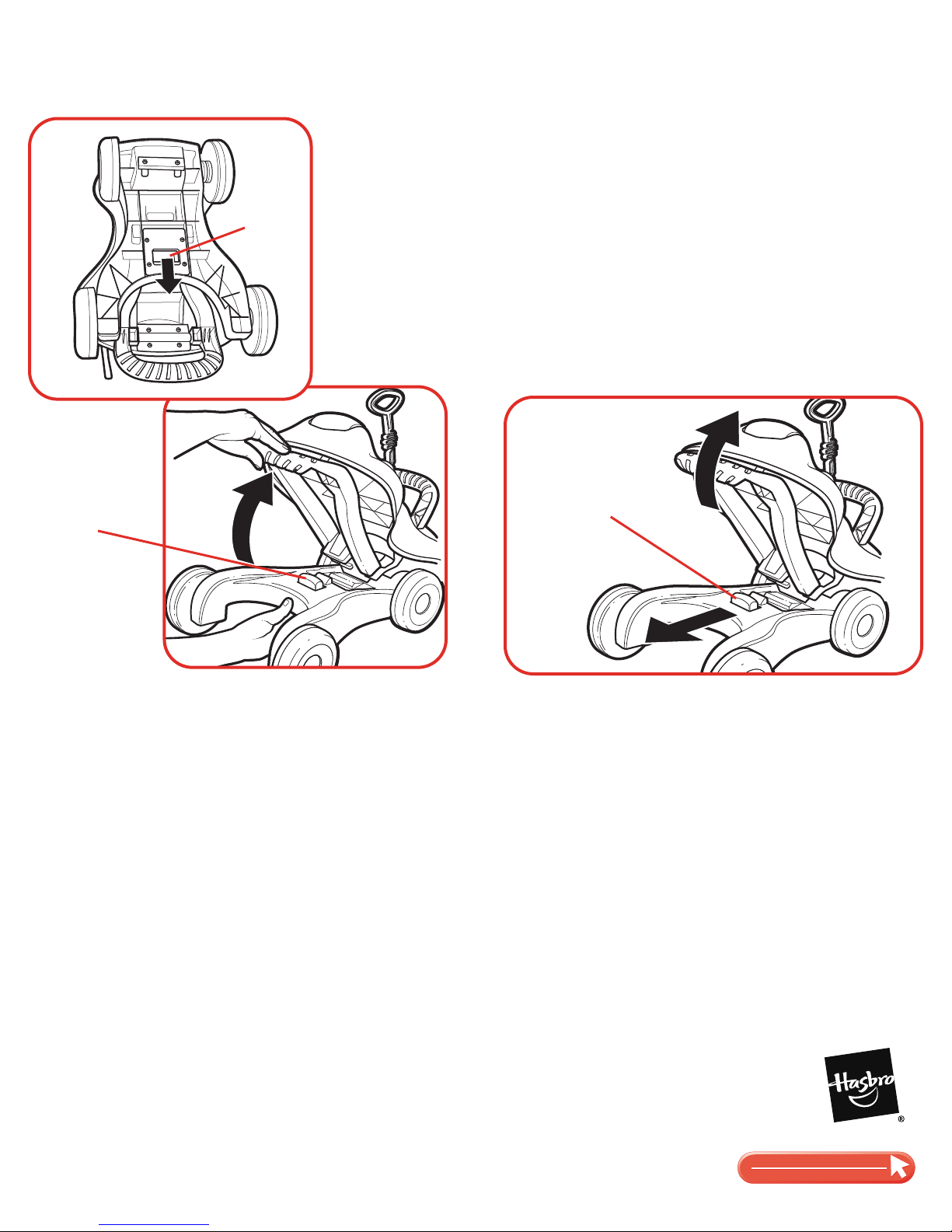

FUNCTION:

NNOOTTEE::UUppoonnccoommpplleettiinnggaasssseemmbbllyy,,tthheettooyywwiillllpprroobbaabbllyybbeeiinntthheerriiddee--oonnmmooddee..

••TTooCCoonnvveerrttFFrroommRRiiddee--OOnnTTooWWaallkkeerr::

Lift toy to access underside of chassis. Squeeze latch

with one hand, and at same time, grasp rear handle and

lift up body.

Push handle down to lock into place - latch must be

visible to lock in place (listen for click).

Make sure the handle locks into place.

••TTooCCoonnvveerrttFFrroommWWaallkkeerrTTooRRiiddee--OOnn::

Squeeze latch on top of chassis. Lift rear handle up and

forward. Rotate handles up then lower body onto

chassis.

Make sure the handle locks into place.

LATCH

PLAYSKOOL.COM

FOR NEW PRODUCTS AND OFFERS

PLAYSKOOL.COM

FOR NEW PRODUCTS AND OFFERS

Questions? Call: 1-800-PLAYSKL
