Playon!HD Essential PV73500 Manuel utilisateur
Table of Contents
1. User Information ........................................................................................................ 2
1.1 Caution .............................................................................................................. 2
2. Product Introduction .................................................................................................. 3
2.1 Product Overview .............................................................................................. 3
2.2 Package Contents .............................................................................................. 4
2.3 Connection ........................................................................................................ 5
2.4 Front Panel ........................................................................................................
2.5 Side Panel ..........................................................................................................
2.6 Back Panel .........................................................................................................
2.7 Menu Language ............................................................................................... 10
2.8 Remote Control ............................................................................................... 10
3 Main Functions ..................................................................................................... 12
3.1 Setup Menu ..................................................................................................... 12
3.2 Movie Playback ............................................................................................... 16
3.3 Photo Playback ................................................................................................ 18
3.4 Music Playback ................................................................................................ 21
3.5 File Manager ................................................................................................... 23
3.6 Playlist management ....................................................................................... 24
3.7 Copy Function ................................................................................................. 26
4 Upgrading the Firmware ....................................................................................... 28
5 Appendixes ............................................................................................................ 28
5.1 Specifications .................................................................................................. 28
5.2 Frequently Asked Questions ........................................................................... 2
6 Copyrights and Trademarks ....................................................................................... 30
7. Warranty .................................................................................................................. 31
8 GPL Statement........................................................................................................... 31
1. User Information
1.1 Caution
The Playon!HD Essential design and manufacture has your safety in mind. To safely and
effectively use this product, please read the following before usage.
1.1.1 Usage Cautions
User should not modify this product. If commercial hard disk is being used, the environmental
temperature should be within +5
℃
~ +35
℃
.
1.1.2 Power
The product’s power voltage: DC 12V.
When using this product, please connect the supplied AC adapter to the product’s power jack.
When placing the power adapter cable, please make sure it is not damaged or subjected to
pressure. To reduce the risk of electrical shock, unplug the power adapter first before cleaning
it. Never connect the power adapter to the player in a humid or dusty area. Do not replace the
power adapter’s cable connector by yourself.
1.1.3 Radio Interference
- If not properly shielded, almost all electronic devices will get radio interference. Under some
conditions, your player might be subjected to radio interference.
- The design of this player has followed the FCC/CE standard, and has adhered to the
following rules:
(1) This product may not cause harmful interference;
(2) This product could accept some interference received including interferences that may
cause undesired operation.
1.1.4 Repair
If the product is defective, you should take it to an authorized repair center and let the
specialists do the repair. Never repair the product yourself or you might risk damaging it or
endangering yourself and losing your data.
1.1.5 Disposing of the Product
When you dispose the product, be sure to dispose it appropriately. Some countries may
regulate disposal of electrical device, please consult with your local authority.
1.1.6 Hard Disk Cautions
This product uses an internal hard disk for data storage and in normal cases, format or repair
is not required. You should carefully read the < Frequently Asked Questions > chapter, and
check our website for latest information before formatting the hard disk.
- Physical impact may create bad sectors in the hard disk, you can use CHKDSK to diagnose
and fix the problem.
- All data stored in the hard disk may be lost due to physical impact, electrical shock, power
lost, formatting etc. We advise that you backup your data periodically.
- It is advisable to run disk defragment after a long period of usage.
- Regularly backup the data in the hard disk so that it can be recovered in the event of data
corruption or loss. Our company holds no responsibility for loss of data stored in the hard disk.
1.1.7 Others
When using this product, please do not let it come into contact with water or other liquid, if
water is accidentally spilled on the product, please use a dry cloth to absorb the spillage.
Electronic products are vulnerable during operation, please avoid shaking or hitting it, and do
not press the buttons too hard.
Do not let the product come into contact with water or other liquid.
Do not disassemble the product, repair or modify the design of the product, any damage
done will not be warranted under our service/repair policy.
Do not press the buttons of the player too hard.
Avoid hitting the player with hard objects, avoid shaking it, and stay away from magnetic
objects and interference.
The product may malfunction under electrostatic discharge and strong electromagnetic
interference. If it does, please unplug the power cable and the product will return to
normal operation the next time it is powered on.
2. Product Introduction
2.1 Product Overview
Thank you very much for purchasing the Playon!HD Essential. We hope you will enjoy using it
as a home entertainment partner. This product has the following functionality.
Movie Playback
•Fast forward/rewind
•View subtitle
•Supports major audio, video and image file formats (1080p HD video decoding)
•Subtitle control: color/offset/size
•Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/
WMV/ASF/RM/RMVB/FLV
Music Playback
•Fast forward/rewind
•Shuffle
•Repeat
•Music format: MP3/OGG/WMA/WAV/FLAC
Photo Viewing
•You can view photos in slide show mode with background music.
•Zoom in/out, Rotate
•Photo format: HD JPEG/BMP/GIF/TIF/PNG
USB 2.0 Support
•USB 2.0 device port (for PC connection)
•
USB 2.0 host port x 2 (for USB storage devices
)
3 in 1 Card reader
•SD/SDHC/MMC/MS/MS Pro
Navigation Options Include
•Search: search by keywords.
•Smart Content Management: lets you view all your media files in one menu regardless of
its location in folders or drivers.
File Copy
•Supports copying & moving files among Card, USB, HDD
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.
2.2 Package Contents
Part Quantity
AC Ryan Playon!HD Essential
1
A/V cable
1
Remote Control
1
Remote Control Battery
2
AC/DC adaptor
1
Quick Installation Guide
1
Note:
The actual contents in the package might be different from the packing list in this manual.
2.3 Connection
2.3.1 Connecting the Power Adaptor
(1) Follow the picture and connect the AC adaptor to the product DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.

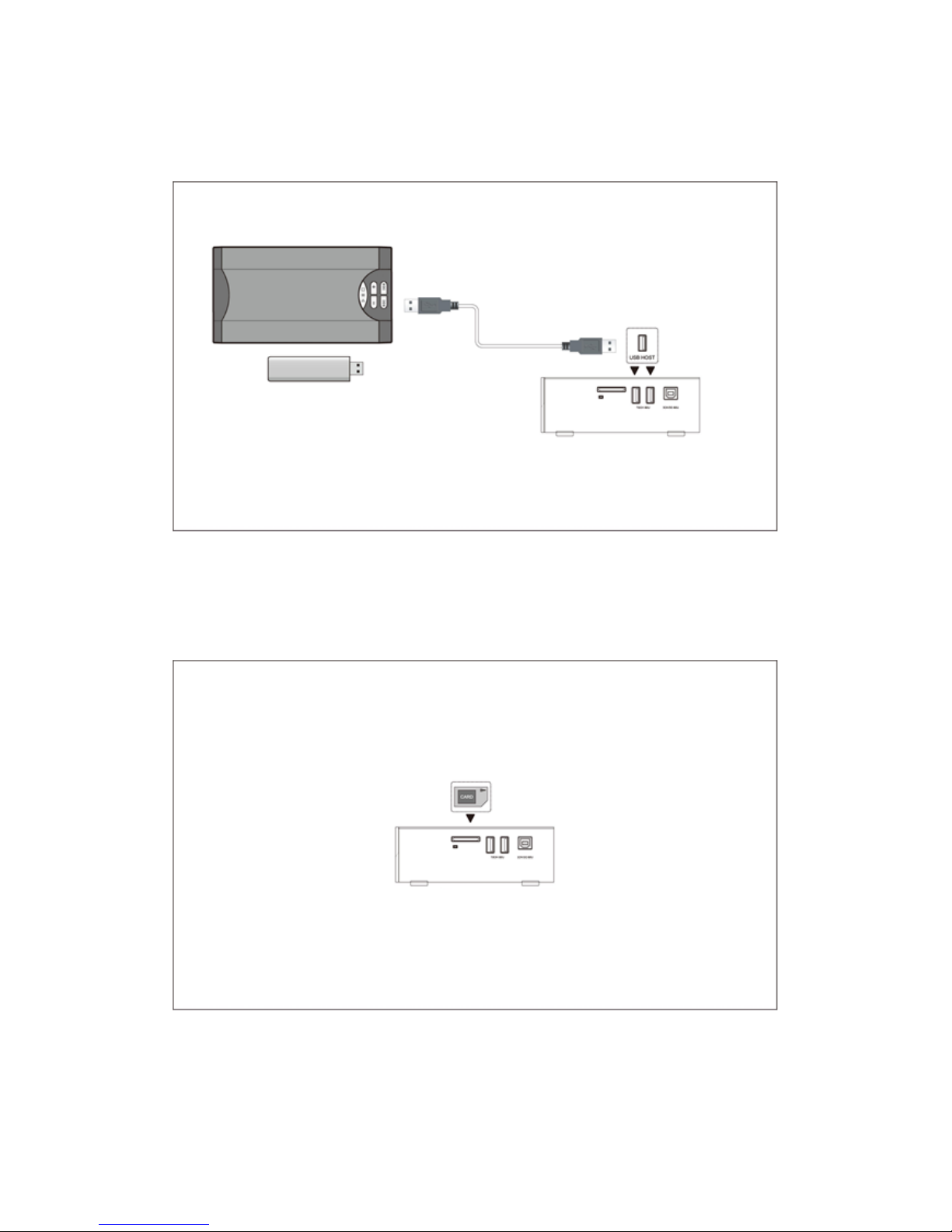

2.3.2 Connecting to a PC
(1) Make sure the product is powered on;
(2) Plug in one end of the USB cable to the product USB device port;
(3) Plug in the other end of the USB cable to your PC.
2.3.3 Connecting a USB storage device
(1) Make sure the product is powered on;
(2) Plug in your USB storage device to the USB host ports of the product.
2.3.4 Connecting a Memory Card
Memory card can be used by inserting to the card slot
(1) Follow the picture to insert the memory card to the card slot properly;
(2) Insert the card by following the arrow pointer in the picture.

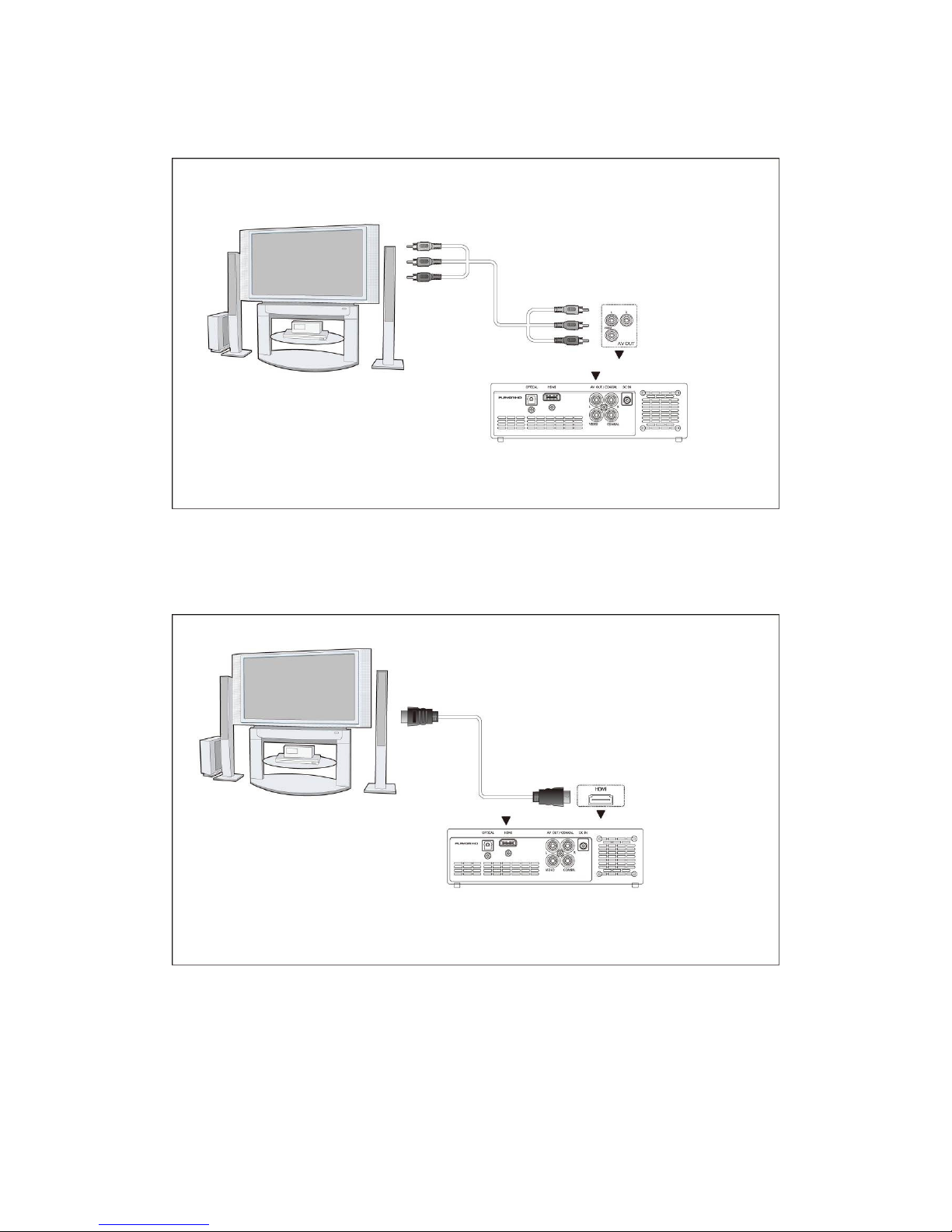

2.3.5 Connecting to a TV
2.3.5.1 A/V OUT
(1) Follow the picture and plug in the 3 color connector to the product’s A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV’s A/V IN jack.
In this way, you can enjoy the content in the player on TV or other display devices.
2.3.5.2 HDMI OUT
(1) Follow the picture and plug one end of your HDMI cable to the product’s HDMI jack;
(2) Follow the picture and plug the other end of your HDMI cable to the TV’s HDMI jack.
In this way, you can have the highest quality video and audio via a single cable.

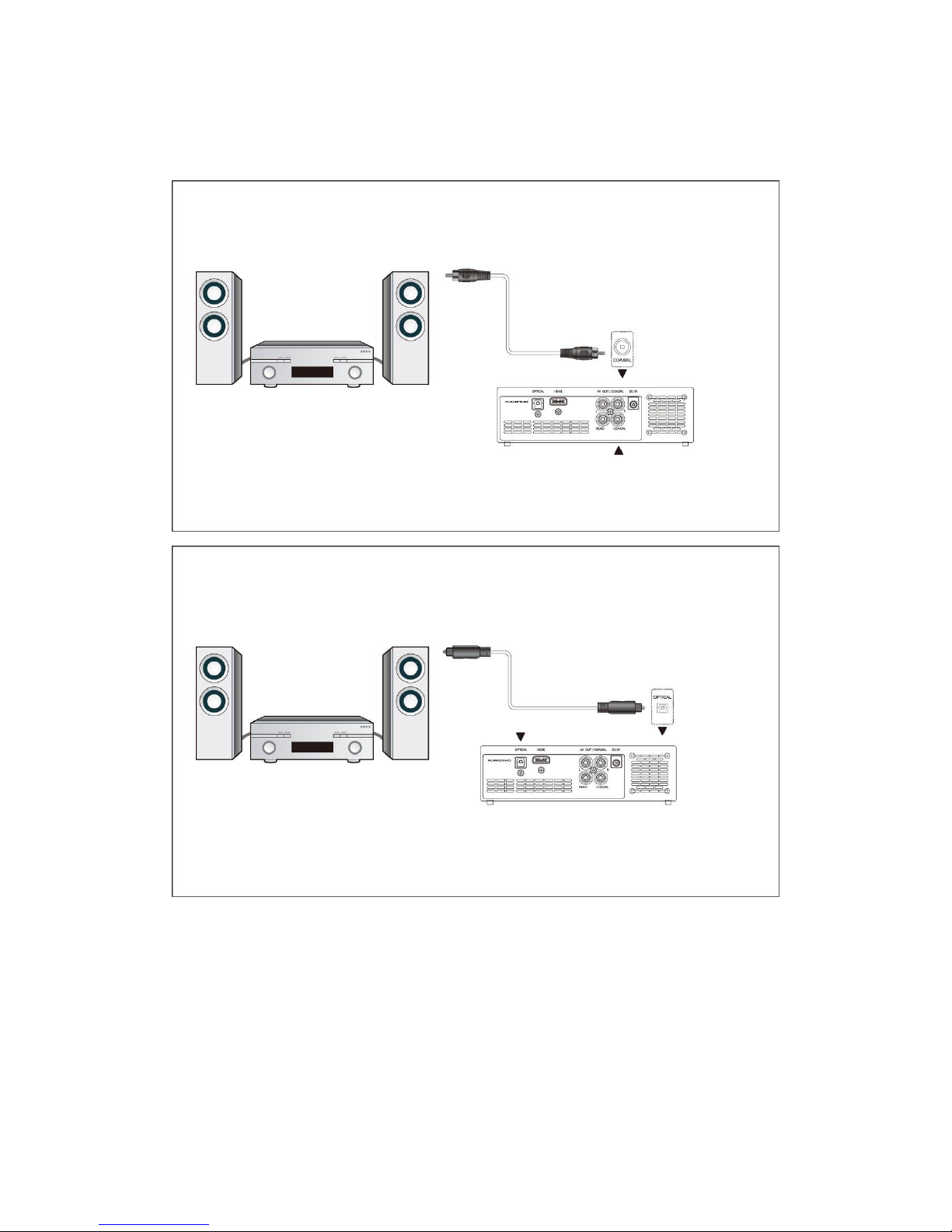

2.3.5 Connecting to a Digital Amplifier
(1) Follow the picture and plug in the RCA connector of your coaxial cable to the player’s
S/PDIF Coaxial jack. Or if you use optical fiber, please plug in the Toslink connector on your
optical fiber to the player’s S/PDIF Optical jack;
(2) Follow the picture and plug in the other end of your coaxial cable or optical fiber to the
digital audio device (digital amplifier or decoder).
Note: The optical fiber and coaxial cables are not supplied.

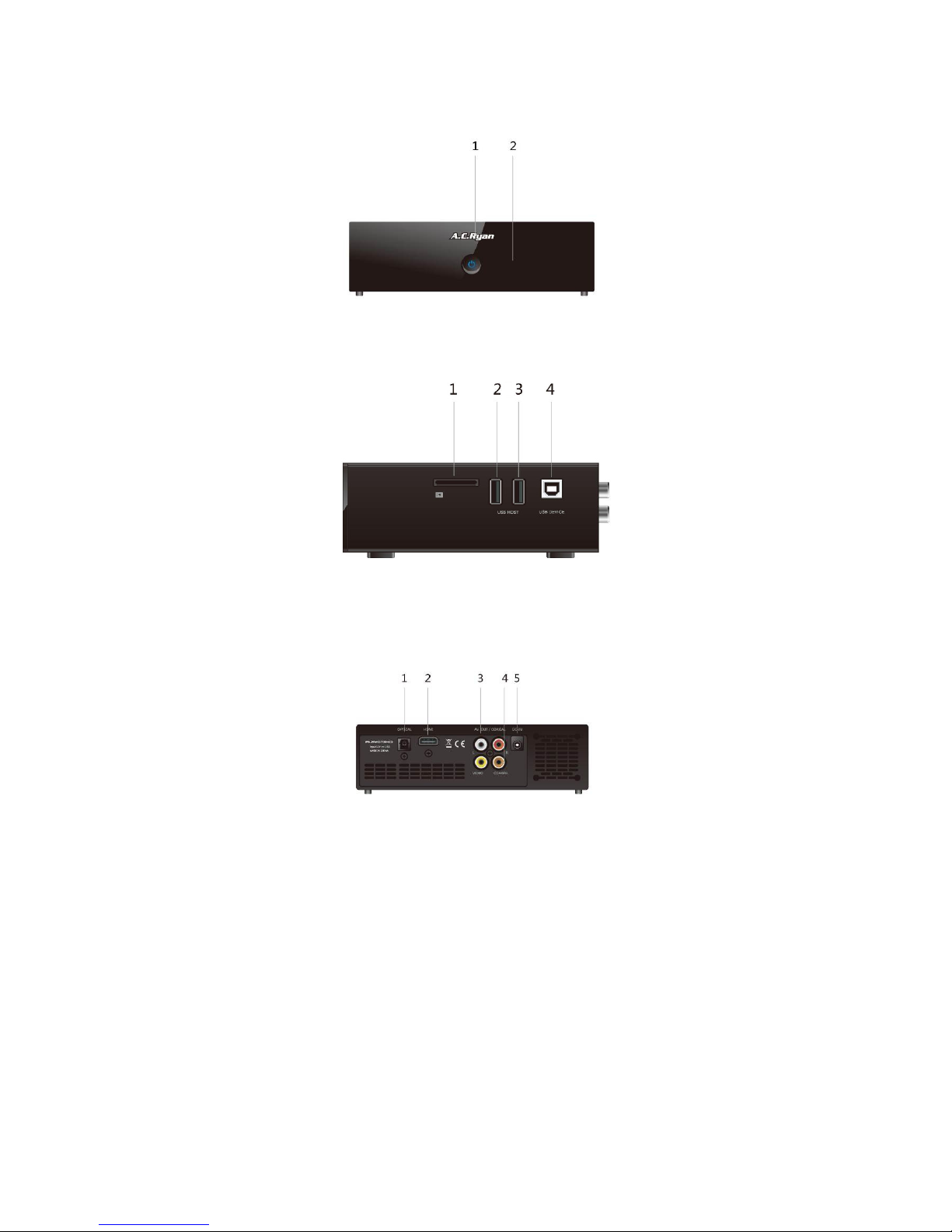

2.4Front Panel
1. Power button & indicator 2. Infrared receiver window
2.5Side Panel
1. Memory Card slot 2. USB host port (A-Type)
3. USB host port (A-Type) 4. USB device port (B-Type)
2.6 Back Panel
1. DC-IN jack 2. HDMI jack
3. A/V OUT jack 4. S/PDIF COAXIAL jack
5. S/PDIF OPTICAL jack
2.7 Menu Language
The system language of this product can be set to English or other languages. Change the
language you prefer in the setup menu, and the selected language will take effect immediately.

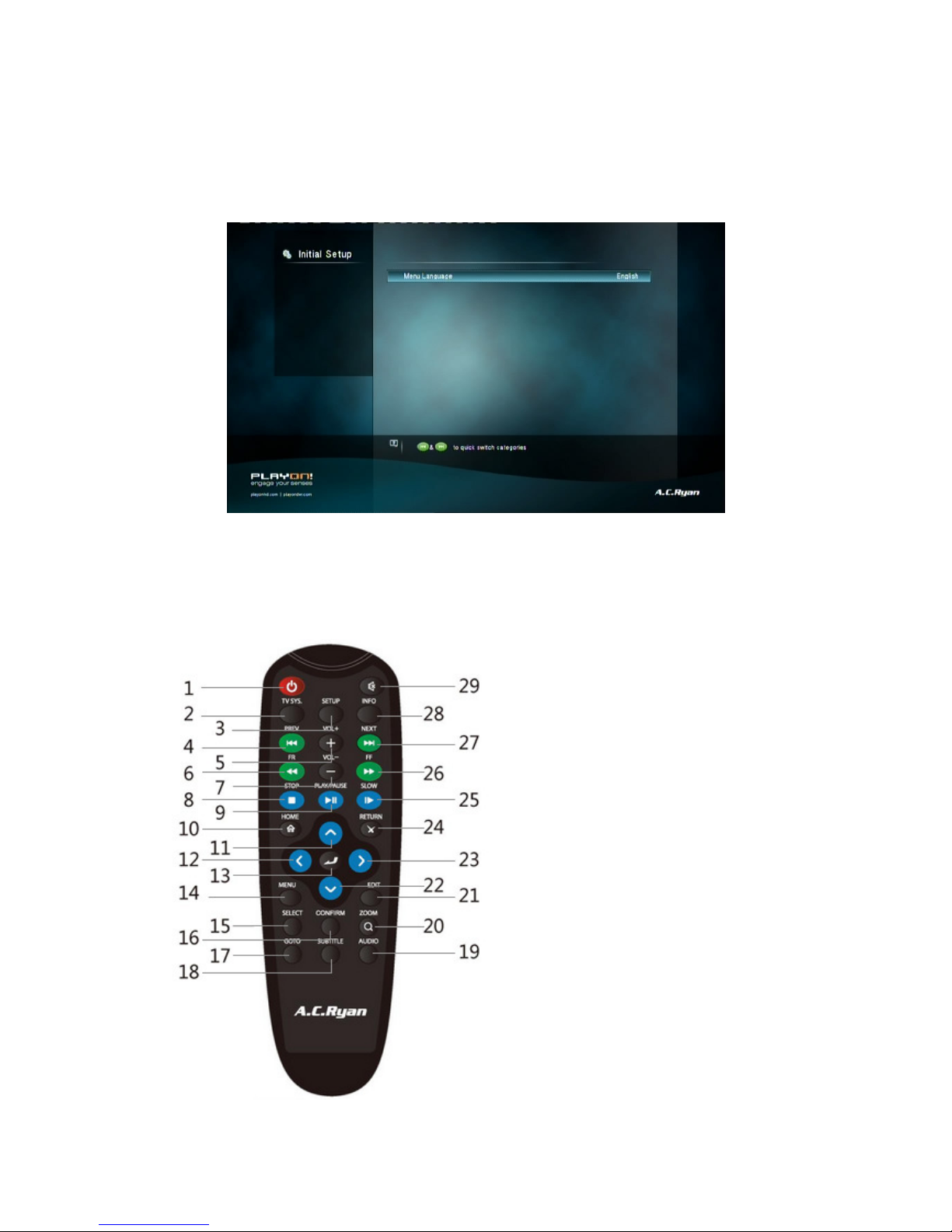

2.8Remote Control
1. POWER
2. TV SYS.
3.
SETUP
4. PREV
5. VOL+ 6. FR
7. VOL- 8. STOP
9. PLAY/PAUSE
10. HOME
11. UP 12. LEFT
13. OK 14. MENU
15. SELECT 16. CONFIRM
17. GOTO 18. SUBTITLE
19. AUDIO 20. ZOOM
21.EDIT 22. DOWN
23. RIGHT 24. RETURN
25. SLOW 26. FF
27. NEXT 28. INFO
29. MUTE
