User Guide

CS50-USB &

CS60-USB DECT™

WIRELESS

HEADSET SYSTEM

DIAGRAMS

HEADSET

7 6 1

FIG.1

FIG.2

FIG.3

FIG.2.1

POWER SUPPLY

BASE UNIT

DIAGRAMS

EARLOOP

FIG.3.1

HEADBAND Available as an accessory.

FIG.3.2

DIAGRAMS

NECKBAND Available only as an accessory.

FIG.3.3

DIAGRAMS

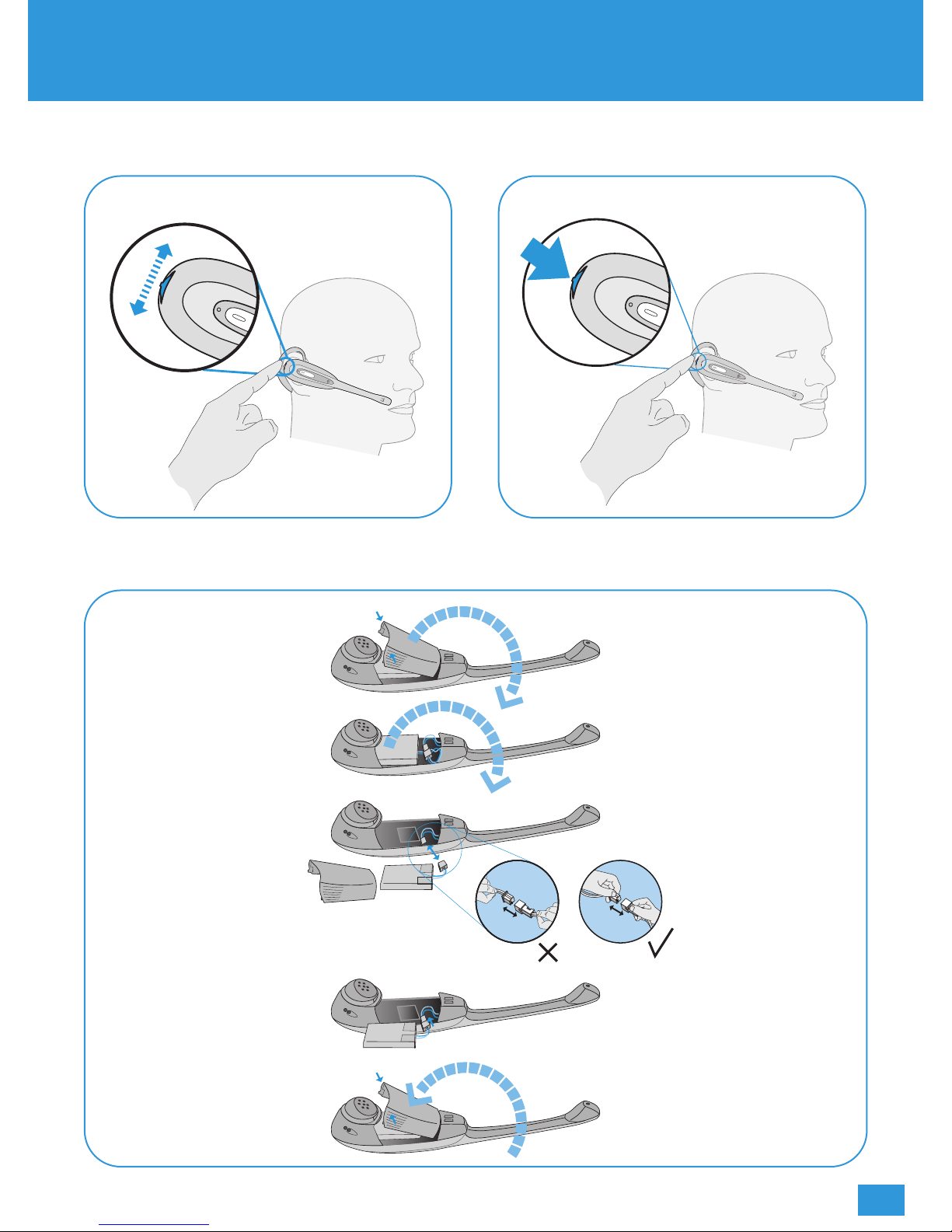

INSTALLING A REPLACEMENT BATTERY

LISTEN VOLUME ADJUST MUTE FEATURE

FIG.4.1

FIG.5

FIG.4.2

WELCOME

www.plantronics.com

Thank you for selecting the CS50-

USB/CS60-USB Wireless Headset

System from Plantronics.

The CS50-USB/CS60-USB offers

wireless, hands-free headset con-

venience and long range work-

space mobility.

This user guide provides instruc-

tions on the installation and usage

of your system.

For safety and regulatory informa-

tion, please refer to the separate

"Important Safety Information"

booklet. Detailed technical infor-

mation and a copy of the

Declaration

of Conformity can be found at

www.plantronics.com/

documentation

CS50-USB/CS60-USB

Wireless Headset

System User Guide.

USAGE INSTRUCTIONS

DIAGRAM KEY

HEADSET

1Microphone

2Speaker

3Talk Button

4Volume/Mute Control

5On-line Indicator

6Charge Contacts

7Battery Door

DESK CHARGER

8AC Power Adapter

9AC Power Adapter Port

10 Headset Docking Cradle

11 Charge Contacts

12 Status Indicator

13 Charge Indicator

14 Stand

15 Stand Pegs

16 Ringer Switch On/Off

17 USB Connector

18 Subscription button access hole

(paperclip required)

1. GETTING STARTED

To use your Plantronics CS50-USB/CS60-USB Headset System, please follow these

simple steps:

1. Install the hardware.

2. Install the software.

3. Charge your headset battery.

4. Choose your headset wearing style.

5. Carry out the initial set-up

INSTALLING THE CS50-USB/CS60-USB BASE UNIT

To install the base-unit, attach the stand by inserting the Stand Pegs into the locating

holes on the underside of the base unit. Connect to the USB connector shown in Fig.

2 on page 1 to a free USB port on your computer. A USB hub can be used but you

should ensure it can supply sufficient power (250mA) to charge the headset. This

will create the finished assembly (refer to Fig.3, page 1). Alternatively, the Velcro

strips included can be used to attach the base unit to a PC monitor. The optional AC

Power Adapter can be installed as shown in Fig. 2.1

INSTALLING THE PerSonoCall SOFTWARE

To install the software, insert the CD supplied with CS50-USB/CS60-USB. If the CD

does not autoplay, then use Windows Explorer to find the file called install.bat, double-

click on it and then follow the instructions on-screen.

CHARGE YOUR HEADSET BATTERY

To charge the headset battery, place the headset into the DOCKING CRADLE. During

charging the CHARGE indicator (13) will be illuminated. When the headset is fully

charged, the CHARGE indicator (13) will extinguish.

The headset must be charged for a minimum of 1 hour prior to use – 3 hours to fully

charge.

CHOOSE YOUR HEADSET WEARING STYLE

The CS50-USB/CS60-USB is provided with a choice of wearing styles. A neckband is

also available as an accessory. Refer to Fig. 3 on pages 2 and 3 for instructions on

how to connect and adjust your choice of wearing style.

INITIAL SET-UP

RINGER

The CS50-USB/CS60-USB includes a ringer in the base to ensure that if you are not

wearing the headset then you can still receive notification of an incoming call. The

feature is disabled when the Ringer switch (16) is in the up position (as shown) or

enabled when the switch is in the down position.

COMPUTER AUDIO & VOICE DEVICES

When the CS50-USB/CS60-USB is installed, it will set itself as the default voice device

in your computer. You can set your preferences manually in Windows ™ through the

Sounds and Audio Devices option in Control Panel.

SOFTPHONE

In addition to setting up the CS50-USB/CS60-USB through your computer operating

system, your softphone may require you to choose which audio device you wish to use

and carry out a short test to match this device to the softphone. It may also enable

you to choose which device indicates an incoming call. Please refer to your softphone

documentation to determine how to do this.

2. USING YOUR HEADSET

PERSONOCALL SOFTWARE

BASIC OPTIONS TAB

SELECT SOFTPHONES

Check the box or boxes of the softphones (installed during setup) you want the head-

set to work with. If you change the softphone you use, or add an additional one, then

you can change the softphones selectable by running “Install” again from the

PerSonoCall software CD.

LAUNCH PERSONOCALL WHENEVER WINDOWS™ STARTS

Check this box to automatically launch the PerSonoCall application whenever you start

your computer. PerSonoCall software must be activated to enable the remote ring

detection and answer/end capabilities with supported softphones.

ENABLE HEADSET ONLY FOR PHONE CALLS

Check this box to conserve headset battery power by turning off the headset radio

when no softphone call is active. The radio link is automatically re-activated when a

softphone call is activated. When this box is checked, your headset only functions for

phone calls. If you still want to use the headset to listen to audio files such as mp3,

you should not check this box.

SMART BUTTON

Check this box to launch the application of your choice by pressing the mute button for

longer than 2 seconds. Application executables to be launched can be selected via the

browse button. (For example… launch your softphone application)

CURRENT STATUS TAB

HEADSET STATUS

ATTACHED TO HEADSET

Headset detected in USB port.

USB FIRMWARE VERSION

Factory installed firmware revision. May be required for technical assistance.

BASE FIRMWARE VERSION

Factory installed firmware revision. May be required for technical assistance.

REMOTE FIRMWARE VERSION

Factory installed firmware revision. May be required for technical assistance.

HEADSET INDICATORS

RADIO LINK

Communication between base and headset when checked.

SMART BUTTON

Headset Smart (long press of Mute button) button has been pressed when checked.

TALK BUTTON

Headset talk button has been pressed when checked.

FLASH BUTTON

Headset Flash (long press of volume up or down button) button has been pressed

when checked.

MUTE BUTTON

Headset mute button has been selected when checked.

SOFTPHONE STATUS

AVAILABLE PHONE LINES

Shows the phone lines currently active from the softphone(s) selected at install or from

the basic options tab.

CALL STATUS

ACTIVE

Number of current active calls.

RINGING

Number current ringing calls.

ON HOLD

Number of current calls on hold.
