Planet ICA-750 Manuel utilisateur

Dual Mode CCD Box Internet Camera

ICA-750

Version 1.0

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. System Requirements ................................................................................. 4

3. Outlook...................................................................................................... 5

3.1 Front Panel ........................................................................................... 5

3.2 Rear Panel ............................................................................................ 6

4. Physical Installation .................................................................................... 7

5. SetupWizardConguration ......................................................................... 8

1. Package Contents

● 1xICA-750

● 1xCameraStand

● 1xPowerAdapter

● 1xAllenWrench

● 2xQuickInstallationGuide

● 1xCD-ROM

Note

Pleaseusethepoweradapterinthispackage.Usingapowersupply

with a different voltage rating will damage and void the warranty

forthisproduct.

2. System Requirements

Network Interface 10/100Base-TXEthernet

Monitoring System RecommendedforInternetExplorer6.0orlater

System Hardware

●CPU:Pentium4,1.5GHzorabove

●MemorySize:512MBorabove

●VGAcardresolution:1024x768orabove

●Network bandwidth : In VGA resolu-

tion mode, minimum upload bandwidth is

1Mbps.

Optional:

●SoundCard

●Microphone(forPC)

●Speaker(forPCandICA-750)

3. Outlook

3.1 Front Panel

LED Status LED Description

PWR

Off Nopower.

On Poweron.

Blinking ThePowerLEDwillblinkduringstartup(15~20sec).

LAN

Off LANconnectionisnotdetected.

On LANconnectionisdetected.

Blinking DataisbeingtransmittedorreceivedviatheLAN

connection.

LAN

Microphone

PWR

3.2 Rear Panel

Reset LAN (PoE)

PWR AUDIO

AUDIO

OUT

DI / DO

I/O Info

PORT PORT Description

Reset

Resettomanufacturerdefaultvaluedandreboot.

Whenpressedandheldover10seconds,thesettingsofIP

Camerawillbesettothedefaultvalues.

Uponcompletion,thePWELEDwillblinkthreetimes.

LAN(PoE)

ConnectyourCameratoa10/100Base-TXhuborswitch.Itis

compliantwithIEEE802.3afstandardPoE.Bothmid-span&

end-spancanbeused.

PWR

Connecttothesuppliedpoweradapter12VDC,1A.Whenthis

deviceisobtainingpowerfromPoEalready,youdon’thaveto

attachthepoweradaptertoICA-750.

DI/DO Theterminalblockincludes2inputportsand2outputports.

AUDIOIN Anexternalmicrophonecanbepluggedin.Thatwilldisablethe

built-inmicrophoneonthefrontpanel.

AUDIOOUT Anexternalspeakercanbepluggedin.

4. Physical Installation

1.ConnectanEthernetcable

 ConnectoneendofanEthernetcabletotheLANportlocatedontheIPcamera’s

rearpanelandconnecttheotherendtothenetworkdevice(huborswitch).

2.Attachtheexternalpowersupply

 Attach the provided power adapter to the IP camera’s connector labeled “PWR”

on the rear panel.

3.ChecktheLEDs

a.The Power LED will turn on briey, and then start blinking during startup. Af-

terstartupiscompleted,thePowerLEDwillremainON.

b.TheLANLEDwillbeON.

5. Setup Wizard Conguration

Initial setup should be performed by using the supplied Windows-based Setup

Wizardasfollows:

1.Insert the bundled Product CD into CD-ROM drive to launch the autorun pro-

gram.

2.Afterthewebpage displayed,clickthe“Setup Wizard” hyperlink on the menu

tostartthecongurationprocess.

Note

If the CD’s menu does not appear, click “Start” on the task bar

andselect“Run”totype“X:\Utility\SetupWizard\SetupWizard.

exe”,assumeXisyourCD-Romdrive.

3.Thewelcomescreenappears.Clickon“Setup Camera”buttontostartthewiz-

ard.

4.Afterclickingthesetupcamerabutton,itwillautosearchfortheIPCamerason

yournetwork.Clickon to continue.

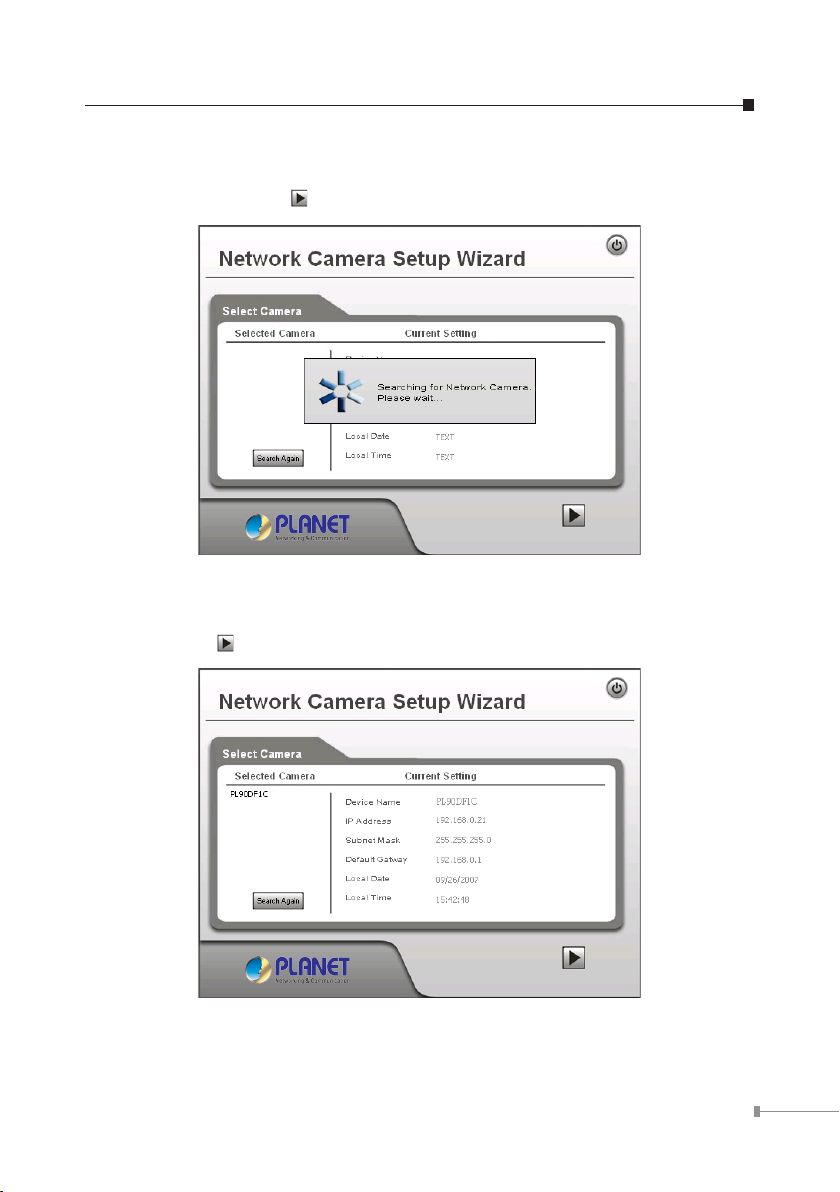

5.The next screen below will list the IP Camera on your network. Select it from

the list on the left side, the current settings table will be displayed on the right

side. Click on to continue.

6.The administrator login window will pop up. If the Administrator Name and Ad-

ministrator Password have been set, you will be prompted to enter them. If us-

ing the default values, please enter “admin” for both the name and the pass-

word.Clickon“OK” to continue.

7.On the following Camera Settings screen, you can ll and congure the Device

Name, Description, Time Zone, Local Date and time here. Click on to con-

tinue.
